AD7705 AD7606 Data Acquisition Module
Price range: $3.33 through $16.66
| Product Status |
New |
|---|
Product Introduction
Data Acquisition Module is an electronic device or system used to collect raw data from sensors, instruments, networks or other data sources, and to store, process or transmit it. It supports analog signals, digital signals and network data collection, and is compatible with various sensors and equipment. It is widely used in industrial monitoring, environmental monitoring, experimental data collection, and other fields. It is suitable for scenarios that require real-time collection, processing and transmission of multi-source heterogeneous data, such as industrial production line monitoring, real-time recording of environmental parameters, and synchronous collection of experimental data.
The AD7705 is an ideal circuit for microcontrollers and digital signal processors systems, which can further reduce costs, shrink size, and decrease the complexity of the system. It is applied in microprocessors , digital signal processing systems, handheld instruments, and distributed data acquisition systems. The AD7705 has a serial clock and Schmitt logic input. Connect an external serial clock to this input port to access the serial data of the AD7705/7706. When transmitting data with the microcontroller, the control clock provides the main clock signal to the converter.
The AD7606 is a new generation 16-bit, 8-channel, synchronous sampling, bipolar input analog-to-digital converter ADC launched by ADI Company.
The AD7606 multi-channel integrated circuit can conveniently realize the measurement and monitoring of multiple I&V (current and voltage) in intelligent substations. This enables the power line monitoring system to monitor and manage various abnormal events occurring on the power grid in real time, achieving the comprehensive integration of intelligent substation functions, digitization of system protection, control, and measurement devices, intelligent operation management, adapting to the development of the power market.
Feature

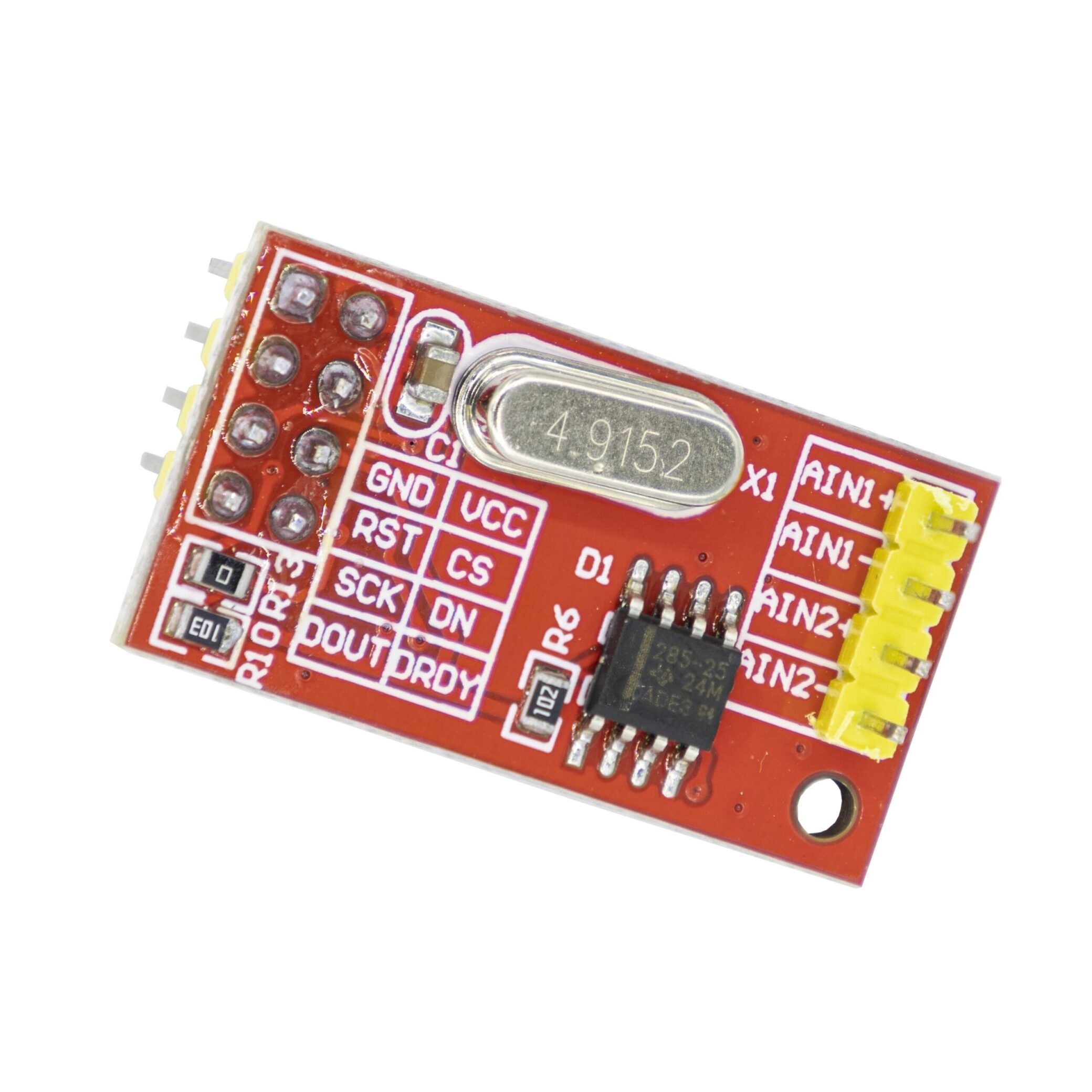

- AD7705
- 3.3V or 5V DC power supply.
- MCU interface: SPI
- Main ADC chip: TM7705 (a brand-new chip, fully compatible with the AD7705 chip)
- External LM285-2.5 reference voltage.
- Input circuit with divider resistance and R-C filtering, facilitating customers to adjust the gain range by themselves.
- The chip has a programmable gain amplifier, with a gain range of 1 – 128 times.
- The chip has an internal input buffer amplifier, allowing direct connection to the sensor.
- AD7606
- Use the AD7606 high precision 16-bit ADC chip
- 8 analog inputs. Impedance 1M Ohm. (No need for negative power supply, no need for front-end analog amplifier circuit, can directly connect to sensor output)
- Input range ±5V, ± Can be controlled by IO to set the range.
- Resolution 16 bits.
- Maximum sampling frequency 200Ksps. Supports 8-level oversampling settings (can effectively reduce jitter)
- Built-in benchmark
- 5V power supply
- SPI interface or 16-bit bus interface. Interface IO level can be 5V or 3.3V
Module Function
- Data acquisition: The data acquisition module is responsible for collecting data from various data sources, which can be either real-time or offline.
- Data transmission: The data acquisition module sends the collected data through the transmission interface to the backend system.
- Data processing: The data acquisition module conducts preliminary processing on the received data, such as cleaning, noise reduction, and formatting, to prepare for subsequent analysis.
- Data storage: The data acquisition module stores the processed data in local or cloud-based databases for subsequent querying and usage.
- Data analysis: The data acquisition module supports various data analysis methods, such as statistical analysis, machine learning, and deep learning, to help users extract valuable information from massive data.
- Data visualization: The data acquisition module provides a variety of data visualization tools, such as charts, maps, and dashboards, to help users present data and trends in an intuitive manner.
Shipping List
AD7705/AD7606 Data Acquisition Module ×1
Note：To facilitate your selection, the dual-row pins (2×8/2.54mm spacing) for analog input on the front of the PCB board of the AD7606 Data Acquisition Module are not soldered. We will provide 2×8 dual-row pins and 8 jumper caps for you to choose whether to solder them upwards or downwards by yourself.

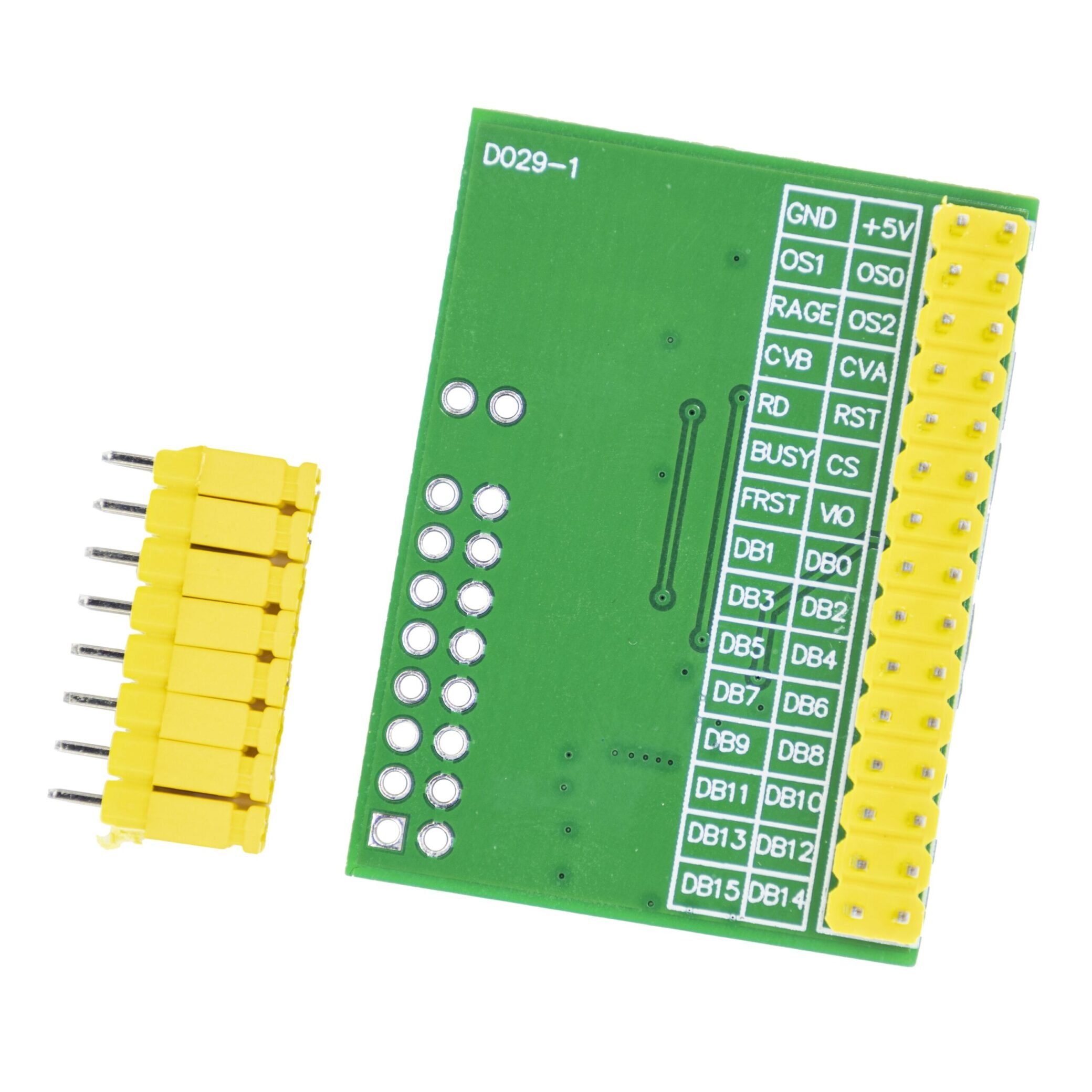

AD7606 Data Acquisition Module shipment: The 2×8 dual-row pins on the front are not soldered (provided with the pins, you can solder them yourself), while the 2×15 dual-row pins on the bottom are soldered.
AD7705 Data Acquisition Module has been soldered by customers.
Matters Need Attention
- AD7606
- The AD7606 module we manufacture has an 8080 parallel interface. If using the SPI interface mode, the configurations of R1 and R2 resistors need to be modified.
- Parallel interface jumper: R1 is left unconnected (not attached), R2 is attached with a 10K resistor.
SPI interface jumper: R1 is attached with a 10K resistor, R2 is left unconnected (not attached).
- The configuration of AD7606 is very simple. It has no internal registers. The range and oversampling parameters are controlled by external IO. The sampling rate is controlled by the pulse frequency provided by the MCU or DSP.
- The AD7606 must be powered by a single 5V supply.
The communication interface level between AD7606 and the MCU is controlled by the VIO pin. That is to say, VIO must be connected to the power supply of the microcontroller, which can be 3.3V or 5V.
Application
- Internet of Things: A large amount of data generated by IoT devices needs to be collected and processed through data collection modules in order to achieve remote monitoring and management of the devices.
- Industrial Automation: Sensors and actuators in industrial production generate a large amount of real-time data. Data collection modules can collect this data in real time and perform analysis to improve production efficiency and product quality.
- Smart Cities: Various sensors and cameras in cities generate a large amount of data. Data collection modules can collect and process this data to support urban planning and management.
- Financial Risk Control: Financial institutions need to monitor and analyze real-time data of customers’ transaction behaviors and credit status to provide better services.
- Medical Health: Medical institutions need to collect and analyze data such as patients’ physiological parameters and medical records to provide better medical services.
- Transportation Logistics: Logistics companies need to monitor and analyze information such as vehicle locations, speeds, and goods, and data collection modules can help logistics companies improve operational efficiency and service quality.
- Energy Management: Energy companies need to collect and analyze data such as the operation status of the power grid and equipment performance to optimize energy allocation and reduce operating costs.
In summary, data collection modules have broad application prospects in various fields, and their functions and application scenarios are constantly expanding and improving. With the continuous advancement of technology, we have reason to believe that future data collection modules will be more intelligent, efficient, and convenient.
Relative Information
Data Acquisition Moduleis an electronic device or system used to collect raw data from sensors, instruments, networks or other data sources, and to store, process or transmit it. It supports analog signals, digital signals and network data collection, and is compatible with various sensors and equipment. It is widely used in industrial monitoring, environmental monitoring, experimental data collection, and other fields. It is suitable for scenarios that require real-time collection, processing and transmission of multi-source heterogeneous data, such as industrial production line monitoring, real-time recording of environmental parameters, and synchronous collection of experimental data.
The AD7705 is an ideal circuit for microcontrollers and digital signal processors systems, which can further reduce costs, shrink size, and decrease the complexity of the system. It is applied in microprocessors , digital signal processing systems, handheld instruments, and distributed data acquisition systems. The AD7705 has a serial clock and Schmitt logic input. Connect an external serial clock to this input port to access the serial data of the AD7705/7706. When transmitting data with the microcontroller, the control clock provides the main clock signal to the converter.
The AD7606 is a new generation 16-bit, 8-channel, synchronous sampling, bipolar input analog-to-digital converter ADC launched by ADI Company.
The AD7606 multi-channel integrated circuit can conveniently realize the measurement and monitoring of multiple I&V (current and voltage) in intelligent substations. This enables the power line monitoring system to monitor and manage various abnormal events occurring on the power grid in real time, achieving the comprehensive integration of intelligent substation functions, digitization of system protection, control, and measurement devices, intelligent operation management, adapting to the development of the power market.
