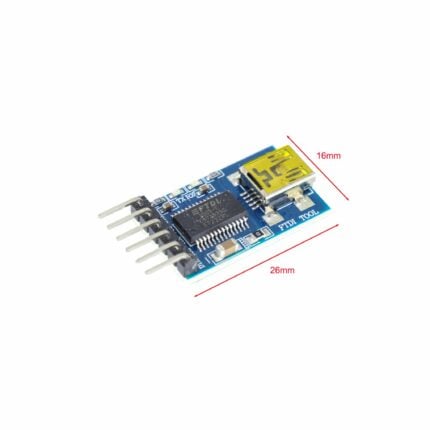

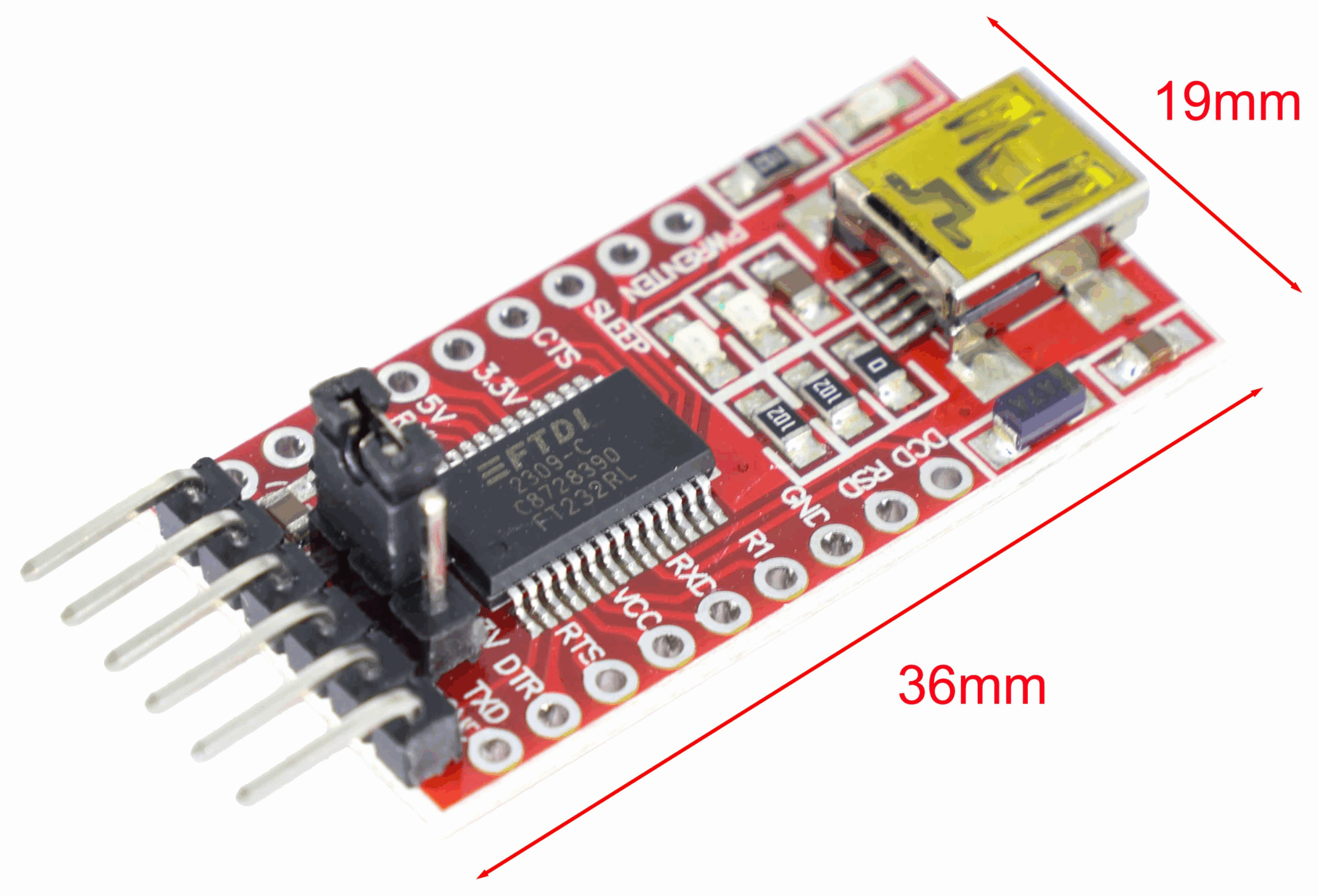

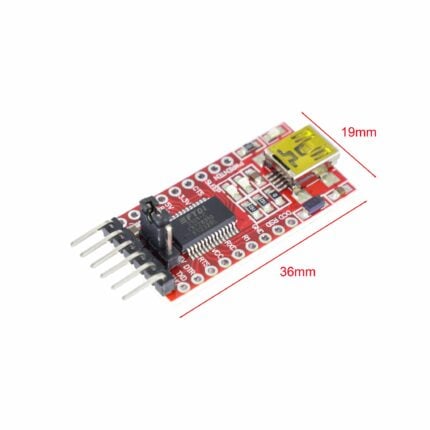

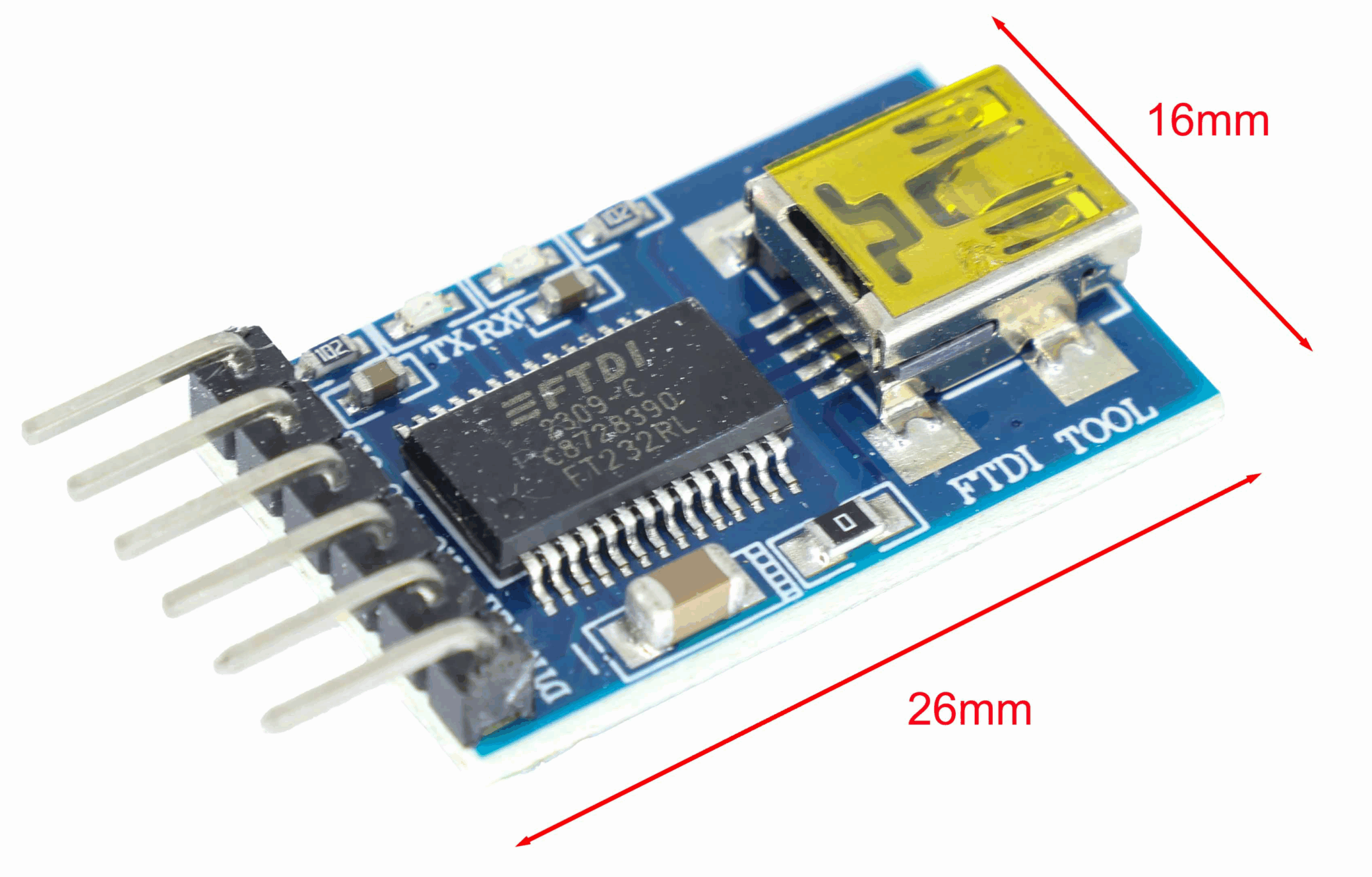

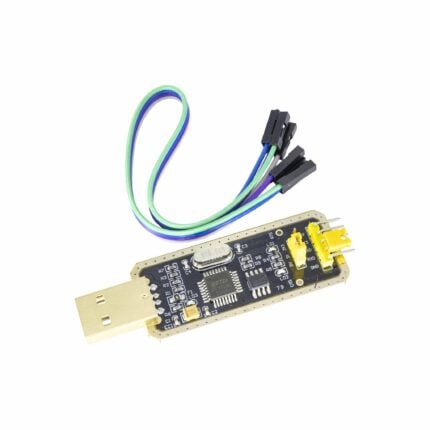

FT232RL/BL module USB-to-serial port, USB-to-TTL Upgrade Download
Price range: $2.80 through $22.901 pcs
| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |
FT232RL is a powerful USB – to – serial chip produced by FTDI, which is widely used in various electronic design projects. With its efficient and stable characteristics, it provides developers with a convenient hardware communication solution. The FT232RL chip provides designers with a simple way to implement RS – 232 serial communication function through the USB interface. It integrates USB full – speed processing function, serial engine and FIFO buffer, without the need for an external USB interface chip or FIFO RAM. This degree of integration simplifies the design process and reduces the development cost.
Instructions for Use

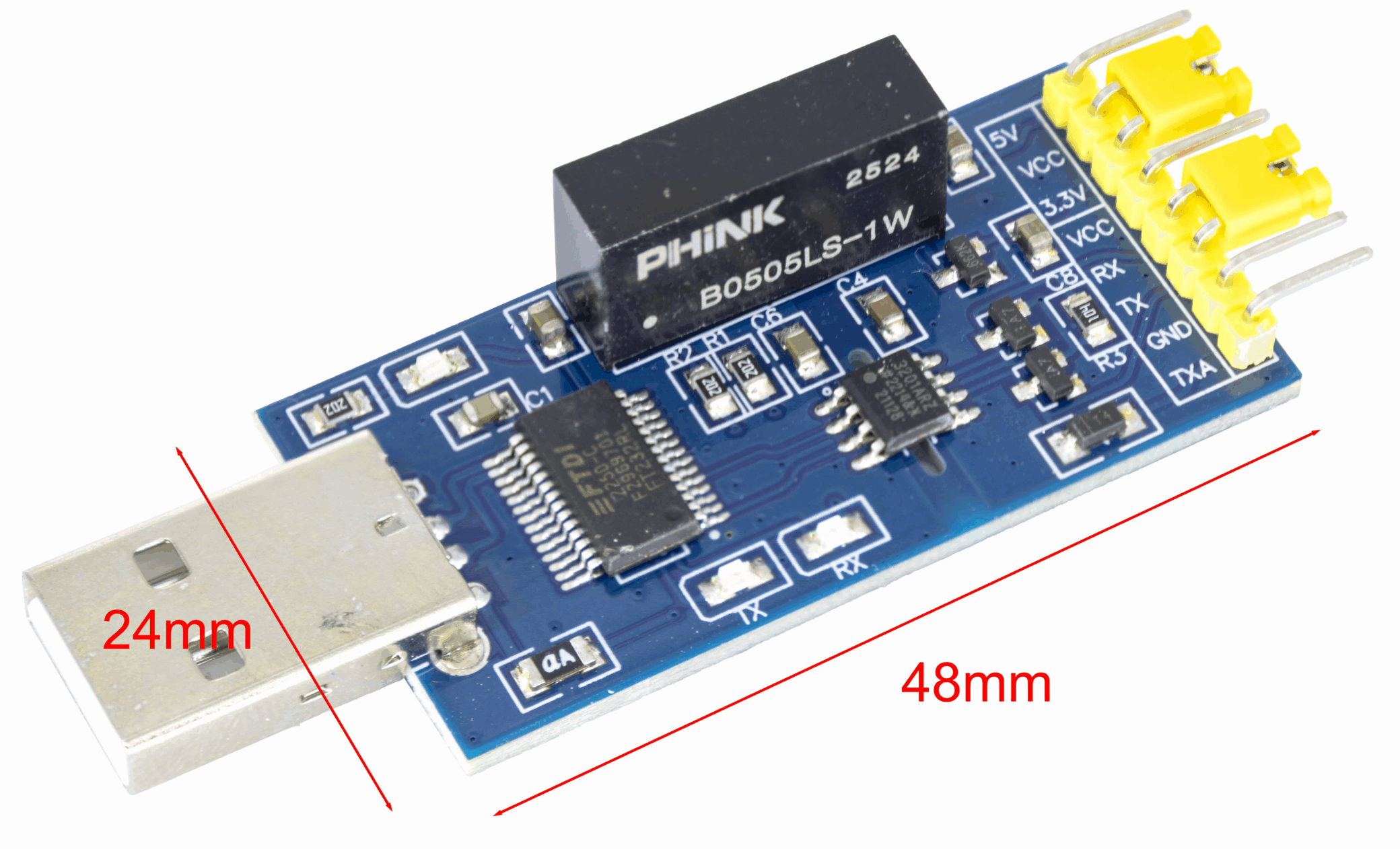

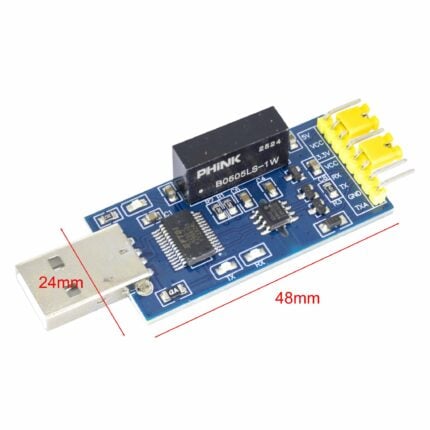

The FT232RL magnetic isolation USB to TTL serial interface (i.e., UART/COM) module uses the FTDI USB chip FT232RL as the main control, adopts the digital isolator ADUM3201 and a power isolation module. It has a DC isolation voltage of 1000V and a reliable communication rate of up to 1MBPS. The USB side and the TTL output side are completely isolated, which fully ensures the safety of the computer and effectively reduces interference.
Product Features
Product Applications

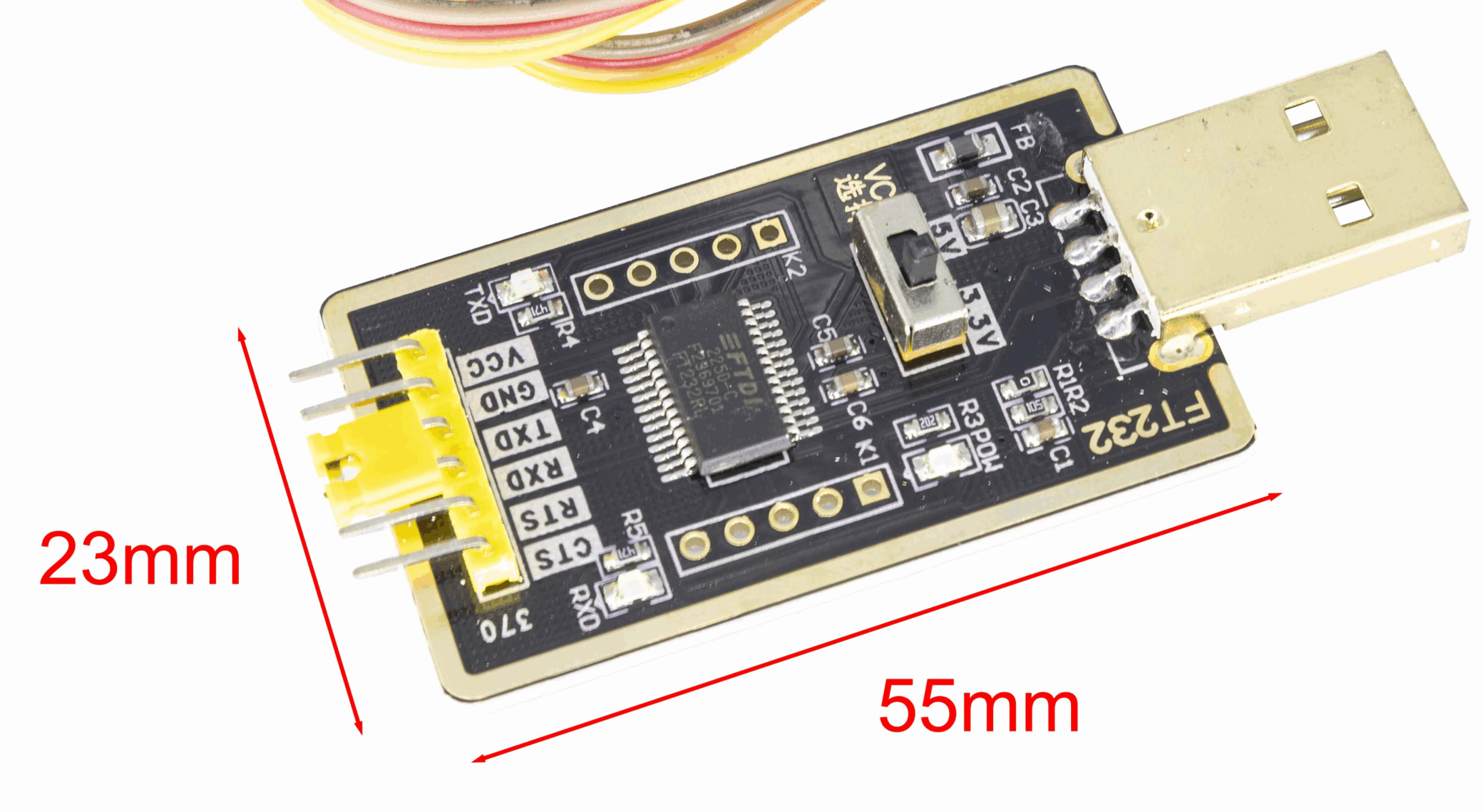

It adopts a USB 2.0 chip, and the SUB power supply uses a 500mA fuse (FUSE) to protect your USB power supply and devices! The performance is more stable! This product uses a brand – new design to convert USB to a serial port and has two power supply versions.
Hardware Introduction
Parameters:
Parameters
- Host interface: USB
- Communication rate: 300bps ~ 3Mbps
- Device interface: UART
USB port
- Interface form: USB – A type interface
- Interface protection: Self – restoring fuse, ESD electrostatic protection
UART port
- Interface form: Terminal block
- Interface form: 8PIN anti – misinsertion interface
- Interface protection: 10 protection diode circuits

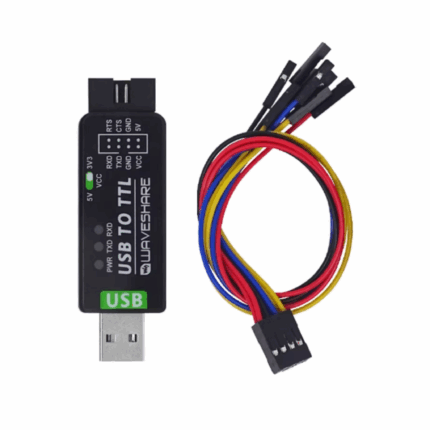

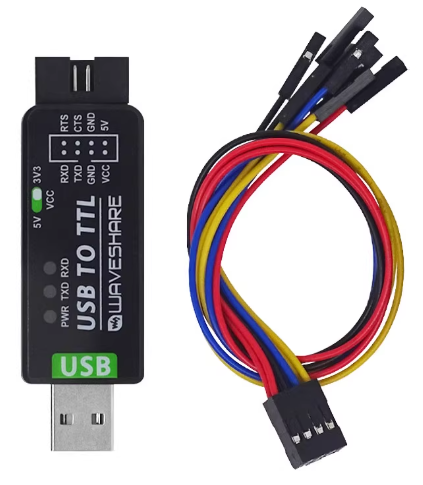

Indicator Lights
PWR power indicator light: Lights up when USB is connected and voltage is detected.
TXD transmission indicator light: Lights up when data is sent from USB.
RXD reception indicator light: Lights up when data is returned from the device interface.
Common Problems
In which environments does the USB interface need to be isolated?
The USB interface has become one of the commonly used interfaces in the daily work and life of electronic engineers and practitioners. However, as competition in the computer industry becomes increasingly fierce and product prices get lower and lower, most merchants are forced to reduce the protection of computer motherboards. This forces most enterprises to frequently come into contact with the human body and the outside world, and many times it also supplies power to external devices. External strong electricity and strong interference put great pressure on the USB port. This leads to the premature failure of USB interfaces in many computers and even motherboard damage.

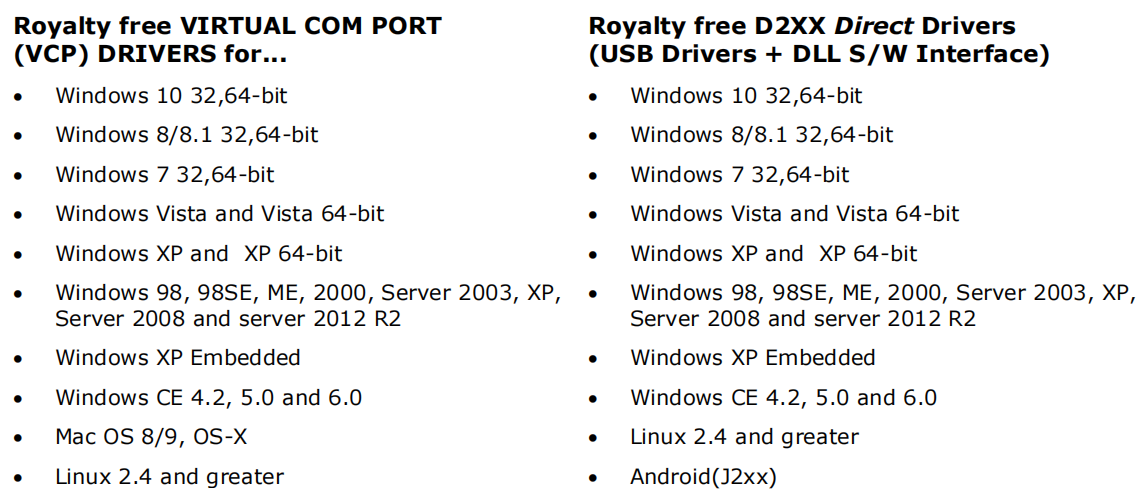

FT232RL Driver Installation
For driver installation, please refer to https://easyelecmodule.com/the-ultimate-guide-to-the-versatile-ft232rl-usb-to-uart-module/
