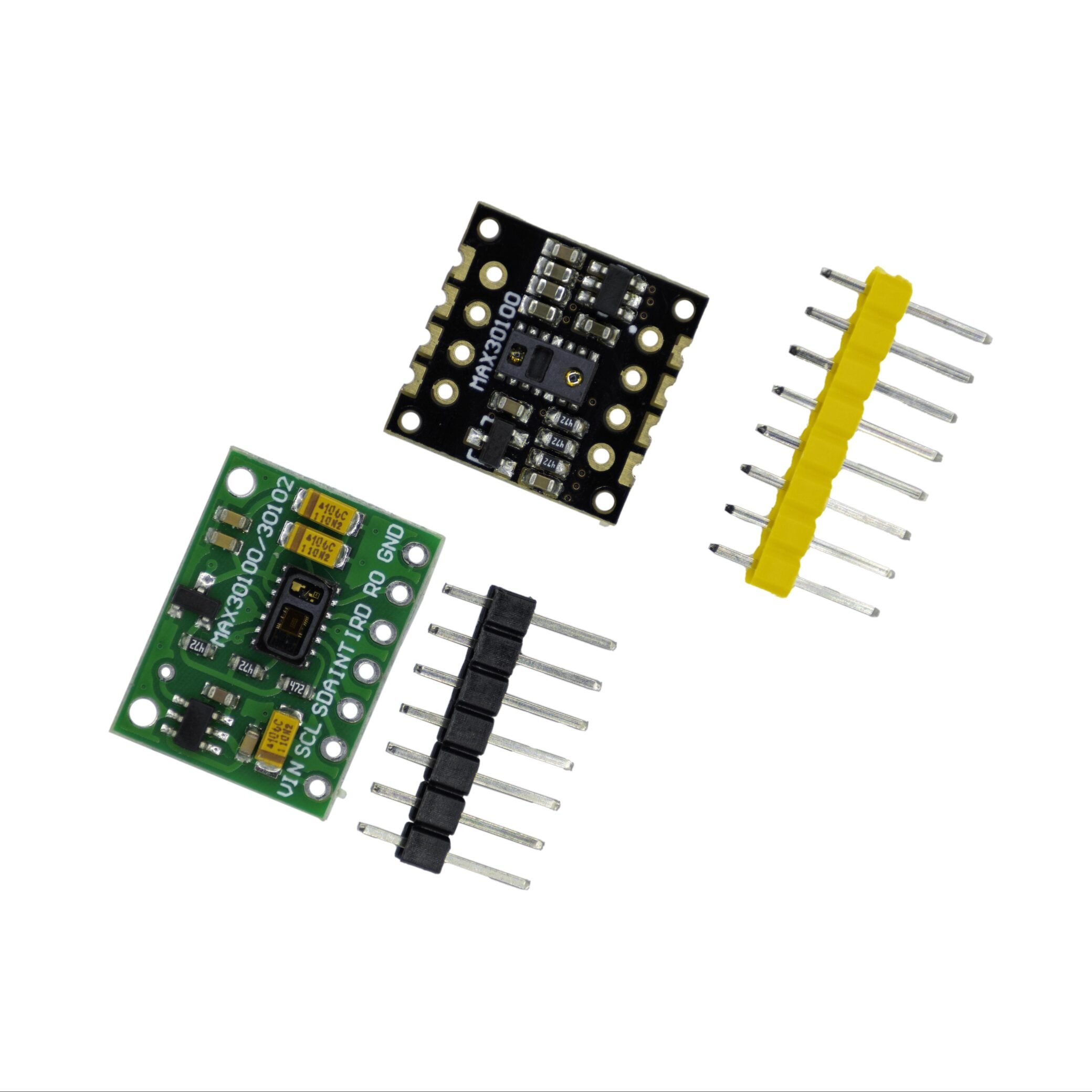

MAX30100 / MAX30102 Pulse Oximeter and Heart Rate Sensor Module
Price range: $2.22 through $2.50
| Product Status |
New |
|---|
Product Introduction
MAX30100/MAX30102 is a module integrating a pulse oximeter and heart rate monitor biosensor. It incorporates a red light LED and an infrared light LED, a photodetector, a light device, as well as a low-noise electronic circuit with environmental light suppression.
MAX30102 uses a 1.8V power supply and an independent 5.0V power supply for the internal LEDs and is applied to wearable devices for heart rate and blood oxygen collection and detection. It is worn on fingers, earlobes, and wrists, etc. The standard 12C compatible communication interface transmits the collected values to Arduino, KL25z, etc. single-chip microcontrollers for heart rate and blood oxygen calculation. Additionally, this chip can be shut down through software to achieve a power supply state where the current is close to zero, maintaining the power supply status all the time. Due to its excellent performance, this chip has been widely used in Samsung Galaxy S7 mobile phones.
Compared with the previous generation product MAX30100, MAX30102 integrates a glass cover, which can effectively eliminate external and internal light interference.
This heart rate and blood oxygen sensor module is a biosensor module made according to the power requirements of MAX30100 – MAX30102. Its 12C communication interface voltage is compatible with 1.8V/5V and can communicate normally with conventional microcontroller development boards such as Arduino, KL25Z, STM32, etc. In addition, it provides corresponding heart rate and blood oxygen programs, which can be easily used to cooperate with various development boards for heart rate and blood oxygen concentration monitoring. It is suitable for scientific research and teaching demonstrations in the field of heart rate and blood oxygen and is also suitable for secondary development.
MAX30100 Feature
- The complete pulse oximeter and heart rate sensor solution simplifies the design
- Integrated with LEDs, light sensors and high-performance analog front-end
- Ultra-low power consumption mode extends the battery life of wearable devices
- Programmable sampling rate and LED current saves power
- Ultra-low off-state current (0.7 µA, typical value)
- Advanced functions enhance measurement performance
- High SNR can reliably eliminate the influence of motion interference
- Integrated environmental light compensation
- High sampling rate
- Fast data output
MAX30100 Application
1、 Wearable Devices
2、 Fitness Assistant Devices
3、 Medical Monitoring Device
MAX30102 Feature
- In the LED reflection solution, there are heart rate monitors and pulse oximeters with biological sensors that are relatively small in size and feature 14-pin optical modules.
- With an integrated glass cover, reliable performance is achieved, enabling mobile devices to operate with relatively low power consumption.
- Programmable sampling rate and LED current, which save power consumption.
- Low-power heart rate monitor (<1mw).
- Ultra-low off-state current (0.7μA, typical value).
- Fast data output, high sampling rate.
- Reliable motion artifact suppression.
- Product applications: medical monitoring devices, fitness assistance devices, wearable devices.
MAX30102 Application
1、Wearable Devices
2、Fitness Assistant Devices
3、Smartphones
4、Tablets
Shiping List
MAX30100 / MAX30102 Pulse Oximeter and Heart Rate Sensor Module ×1
Relative Information
MAX30100/MAX30102 is a module integrating a pulse oximeter and heart rate monitor biosensor. It incorporates a red light LED and an infrared light LED, a photodetector, a light device, as well as a low-noise electronic circuit with environmental light suppression.
MAX30102 uses a 1.8V power supply and an independent 5.0V power supply for the internal LEDs and is applied to wearable devices for heart rate and blood oxygen collection and detection. It is worn on fingers, earlobes, and wrists, etc. The standard 12C compatible communication interface transmits the collected values to Arduino, KL25z, etc. single-chip microcontrollers for heart rate and blood oxygen calculation. Additionally, this chip can be shut down through software to achieve a power supply state where the current is close to zero, maintaining the power supply status all the time. Due to its excellent performance, this chip has been widely used in Samsung Galaxy S7 mobile phones.
Compared with the previous generation product MAX30100, MAX30102 integrates a glass cover, which can effectively eliminate external and internal light interference.
This heart rate and blood oxygen sensor module is a biosensor module made according to the power requirements of MAX301001-MAX30102. Its 12C communication interface voltage is compatible with 1.8V/5V and can communicate normally with conventional microcontroller development boards such as Arduino, KL25Z, STM32, etc. In addition, it provides corresponding heart rate and blood oxygen programs, which can be easily used to cooperate with various development boards for heart rate and blood oxygen concentration monitoring. It is suitable for scientific research and teaching demonstrations in the field of heart rate and blood oxygen and is also suitable for secondary development.
