WS2812B 5050 RGB LED Full-color Development Board
Price range: $0.11 through $6.30
The WS2812B is an intelligent, addressable LED light source that integrates a control circuit and a light-emitting circuit into a single package.
The WS2812B is an intelligent, addressable LED light source that integrates a control circuit and a light-emitting circuit into a single package.
Product Description
This product is a WS2812B RGB (5050 package) full-color smart LED. It utilizes a single-wire communication protocol, which simplifies wiring and significantly reduces the communication load on the microcontroller (MCU).
Each LED is equipped with built-in protection and an internal signal reshaping circuit. Every LED acts as an individual pixel; upon receiving a signal, it reshapes the waveform before outputting it to the next pixel. This ensures that signal distortion does not accumulate over long chain lengths.
Each of the three primary colors (red, green, and blue) in every pixel can achieve 256 levels of brightness, enabling the display of 16,777,216 (256³) true full colors. The refresh rate is no less than 400Hz.
Furthermore, each LED board or strip is fitted with an output port, allowing for easy cascading with additional boards to create larger displays.
Key Features
- The IC control circuit and the LED share a single power supply.
- The control circuit and RGB chip are integrated into a single 5050 package component, forming a complete, externally-controlled pixel.
- Built-in signal reshaping circuit ensures waveform distortion does not accumulate by reshaping the signal at each pixel before output.
- Built-in power-on reset (POR) and brown-out reset (BOR) circuits.
- Each of the three primary colors (RGB) can display 256 brightness levels, achieving 16,777,216 (24-bit) true colors.
- PWM (Port Scanning) Frequency: 2 KHz.
- Serial cascade interface for data reception and decoding via a single signal line.
- No additional circuitry required for transmission distances of up to 5 meters between any two points.
- Supports at least 1024 cascaded pixels at a refresh rate of 30 fps.
- Data transmission speed up to 800 Kbps.
- High color consistency and cost-effective.
PIN
| Serial Number | Symbol | Pin Name | Function Description |
|---|---|---|---|
| 1 | VCC | Power Supply | Power supply pin |
| 2 | DOUT | Data Output | Control data signal output |
| 3 | GND | Ground | Signal ground and power ground |
| 4 | DIN | Data Input | Control data signal input |
LED Specifications
| LED | Reference Value |
|---|---|
| Static Current | 0.7mA |
| RGB Channel Constant Current | 16mA |
| Red Light Luminance (Central Value) | 600mcd |
| Green Light Luminance (Central Value) | 1200mcd |
| Blue Light Luminance (Central Value) | 300mcd |
| White Light Luminance (Central Value) | 2100mcd |
| Red Light Wavelength | 620-630nm |
| Green Light Wavelength | 520-530nm |
| Blue Light Wavelength | 465-475nm |

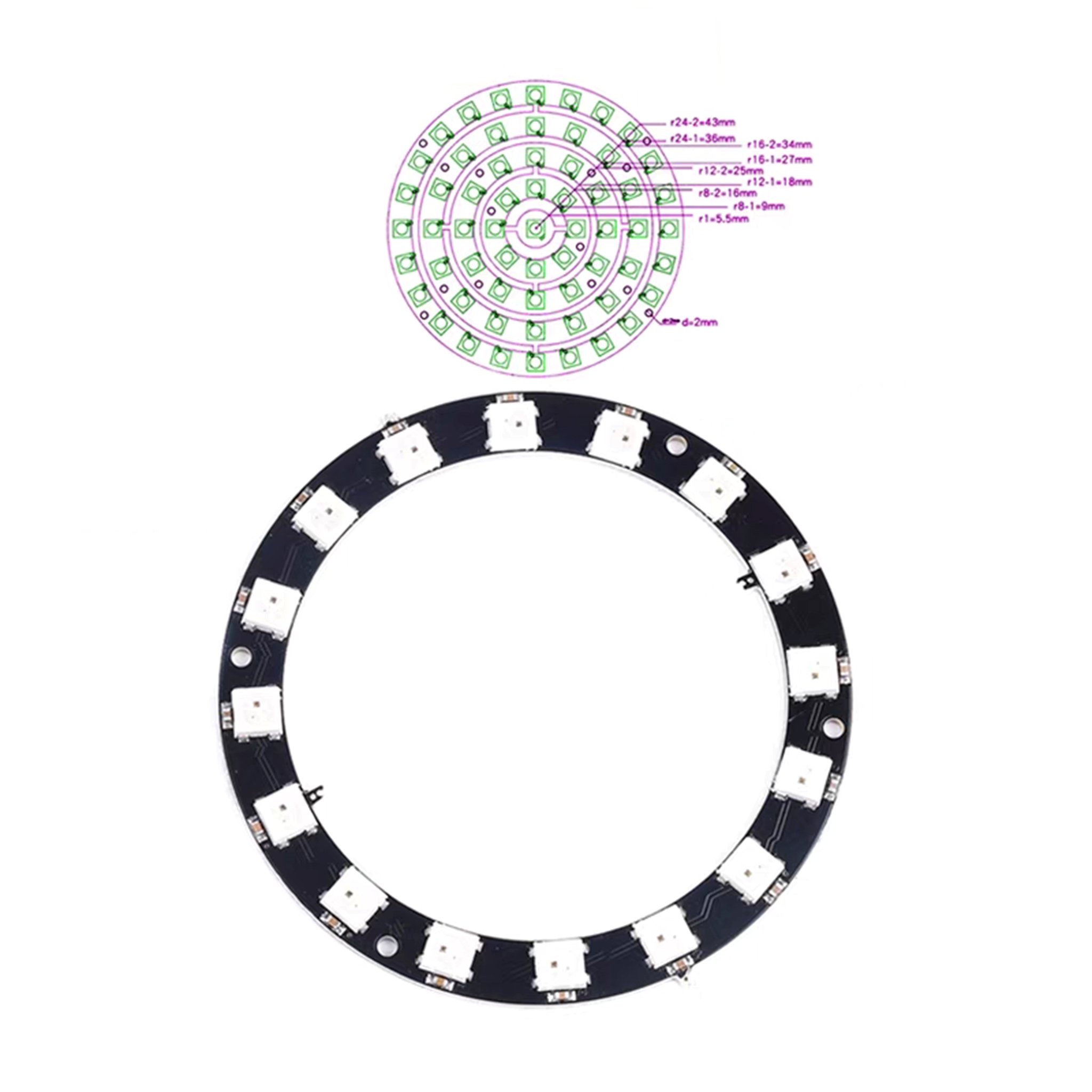

Product Dimensions

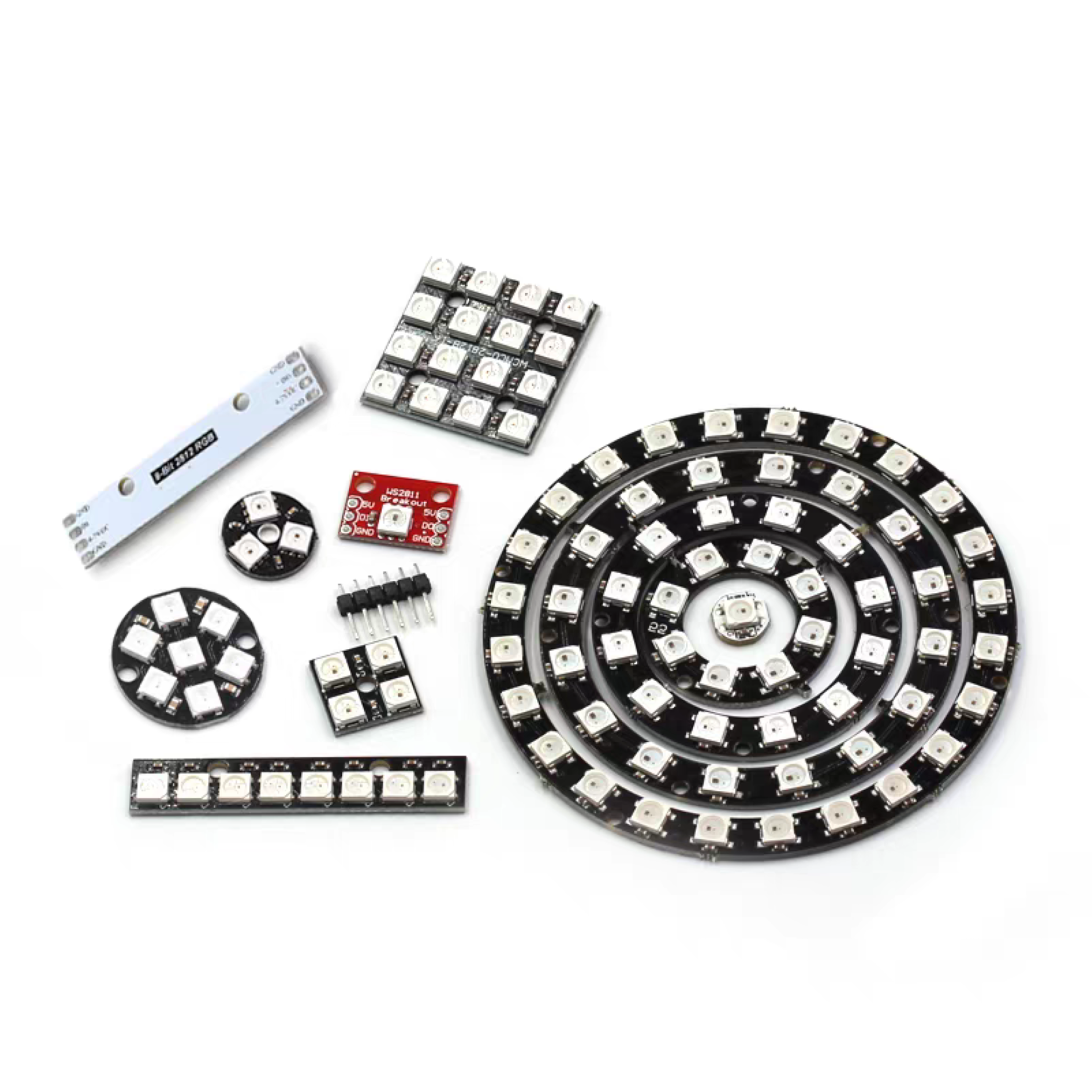

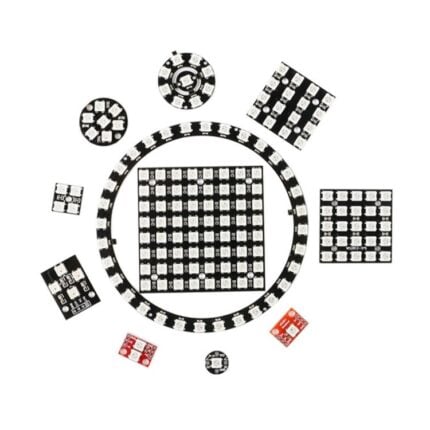

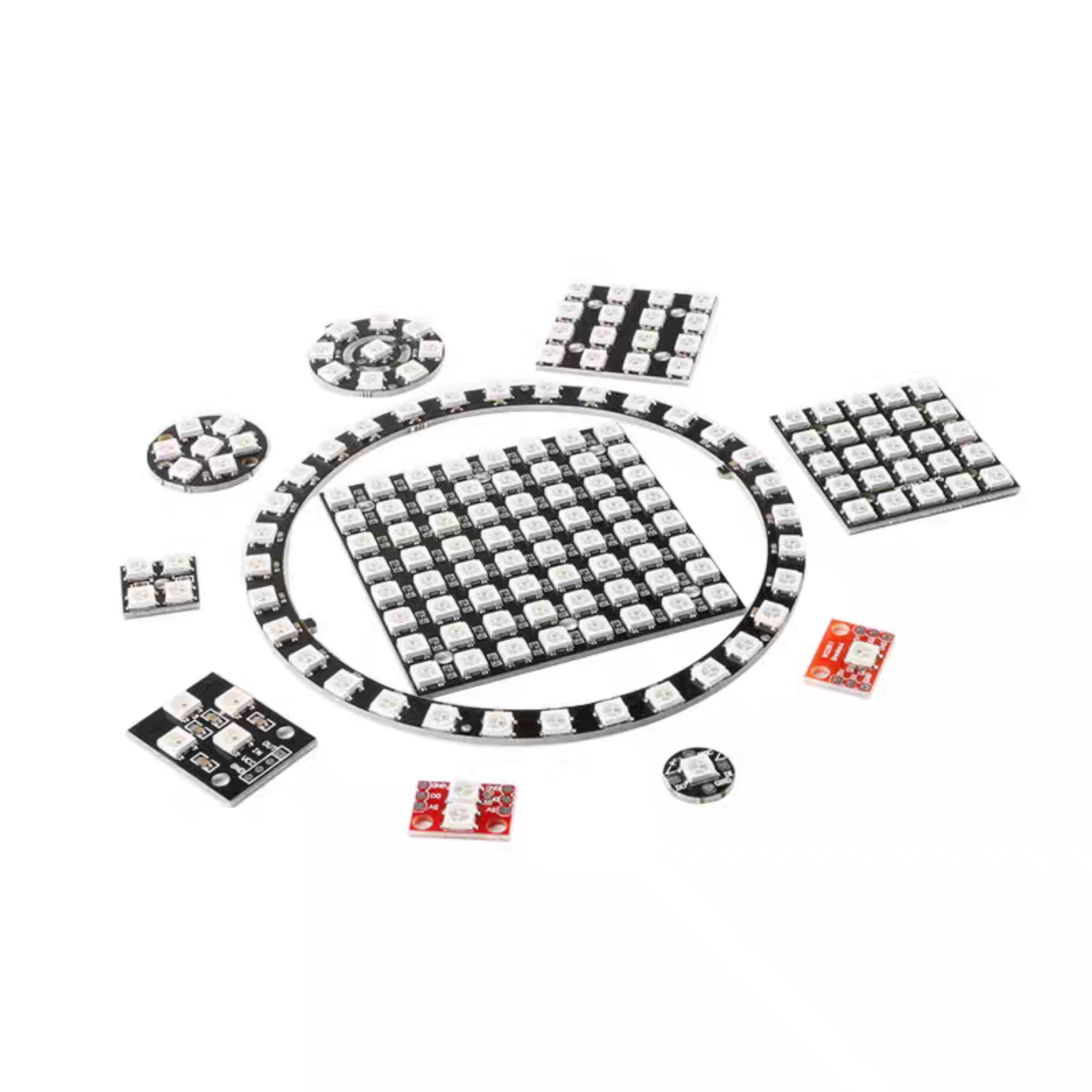

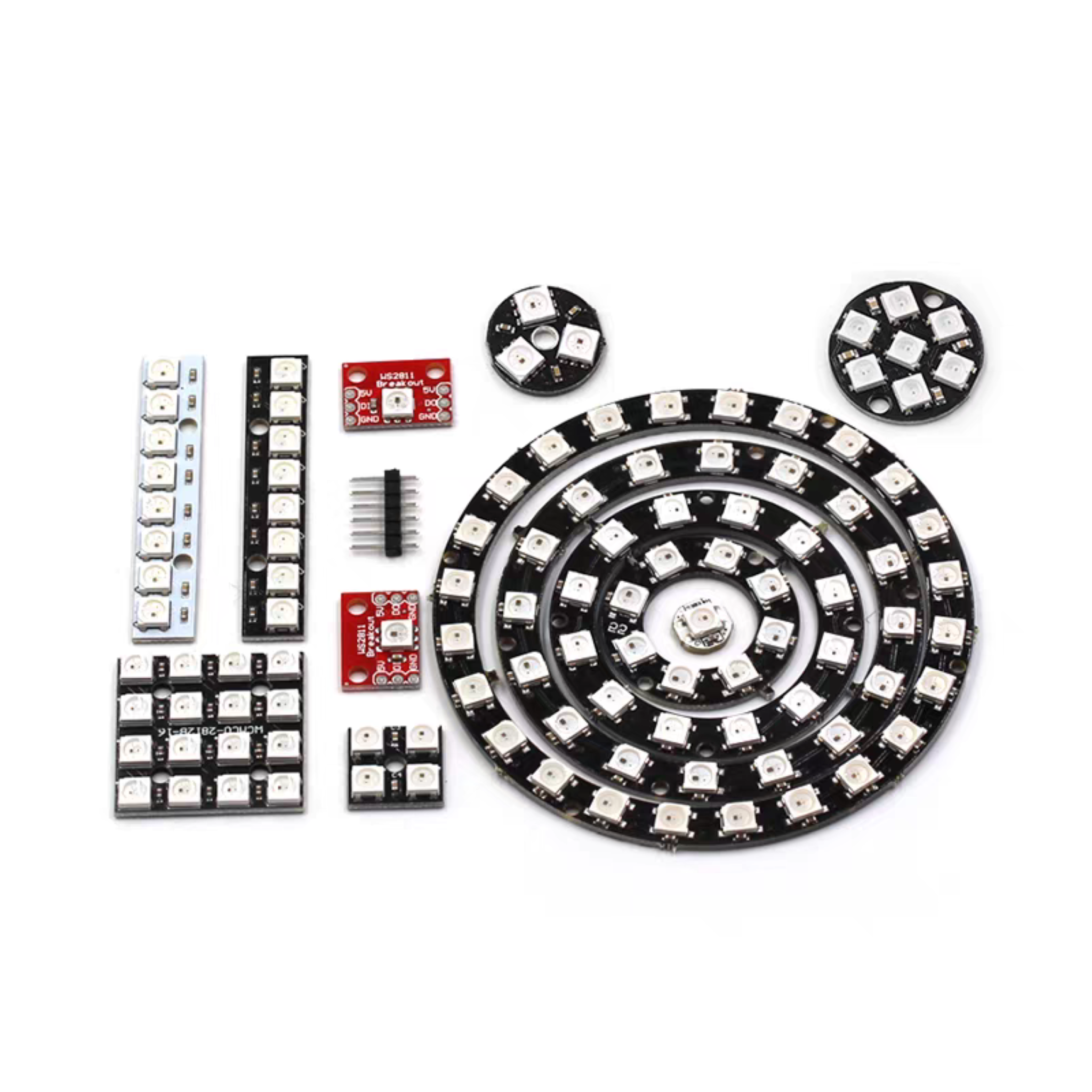

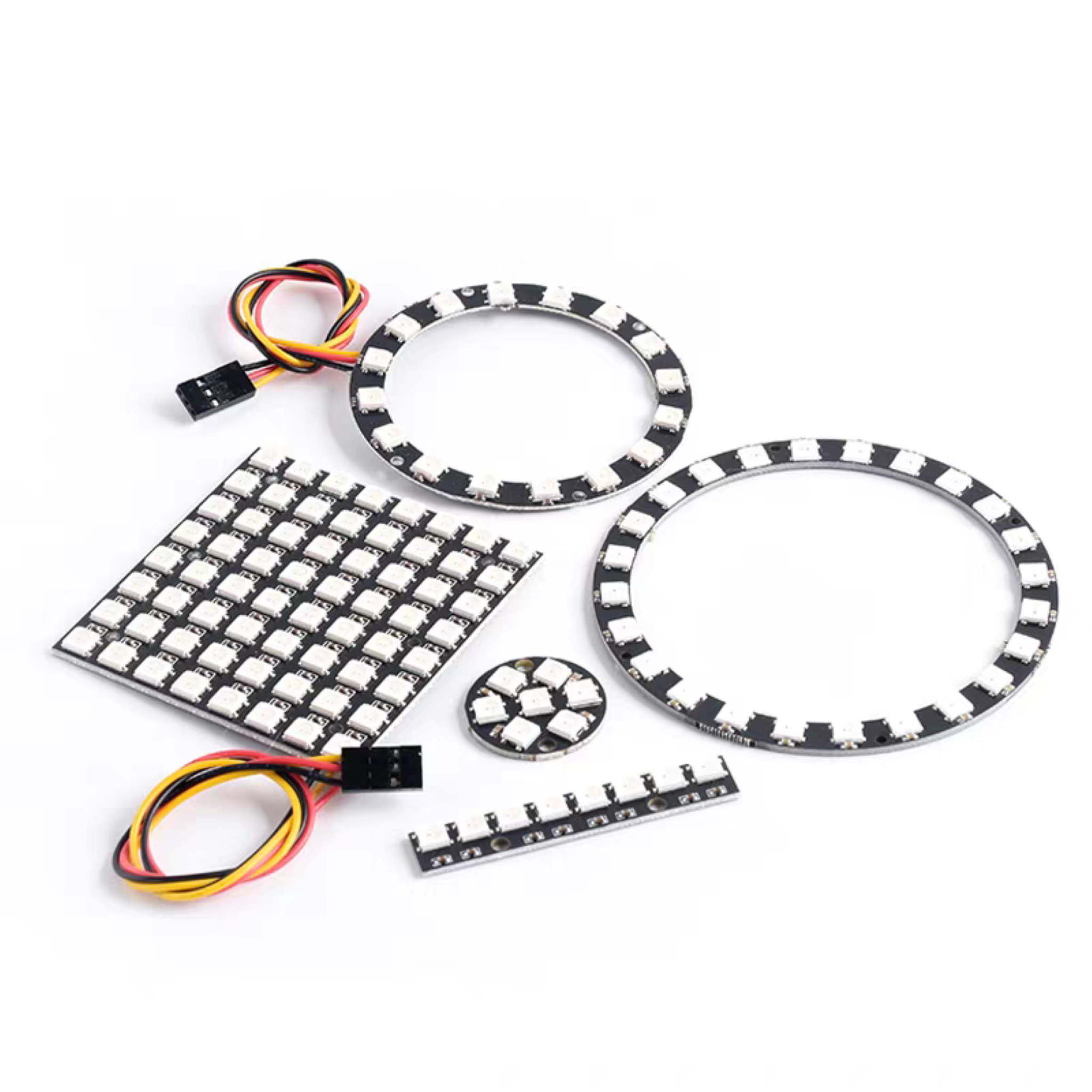

Product Effects Demo （Circular）
Circular 1 LED bead
Circular 7 LED bead
Circular 8 LED bead
Circular 12 LED bead

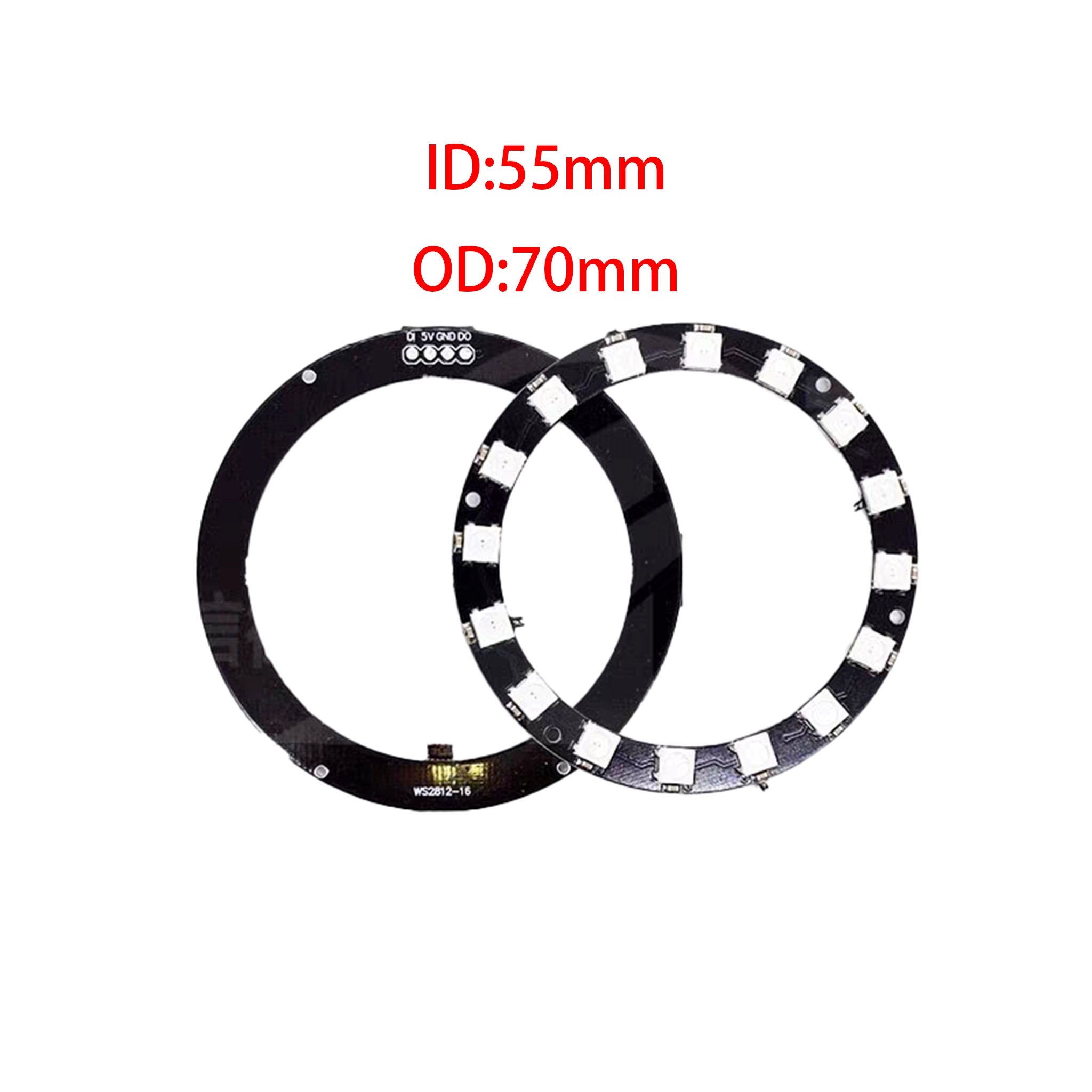

Circular 16 LED bead
Circular 24 LED bead
Circular 32 LED bead
Circular 61 LED bead
Product Effects Demo （Square）
Square 4-LED array

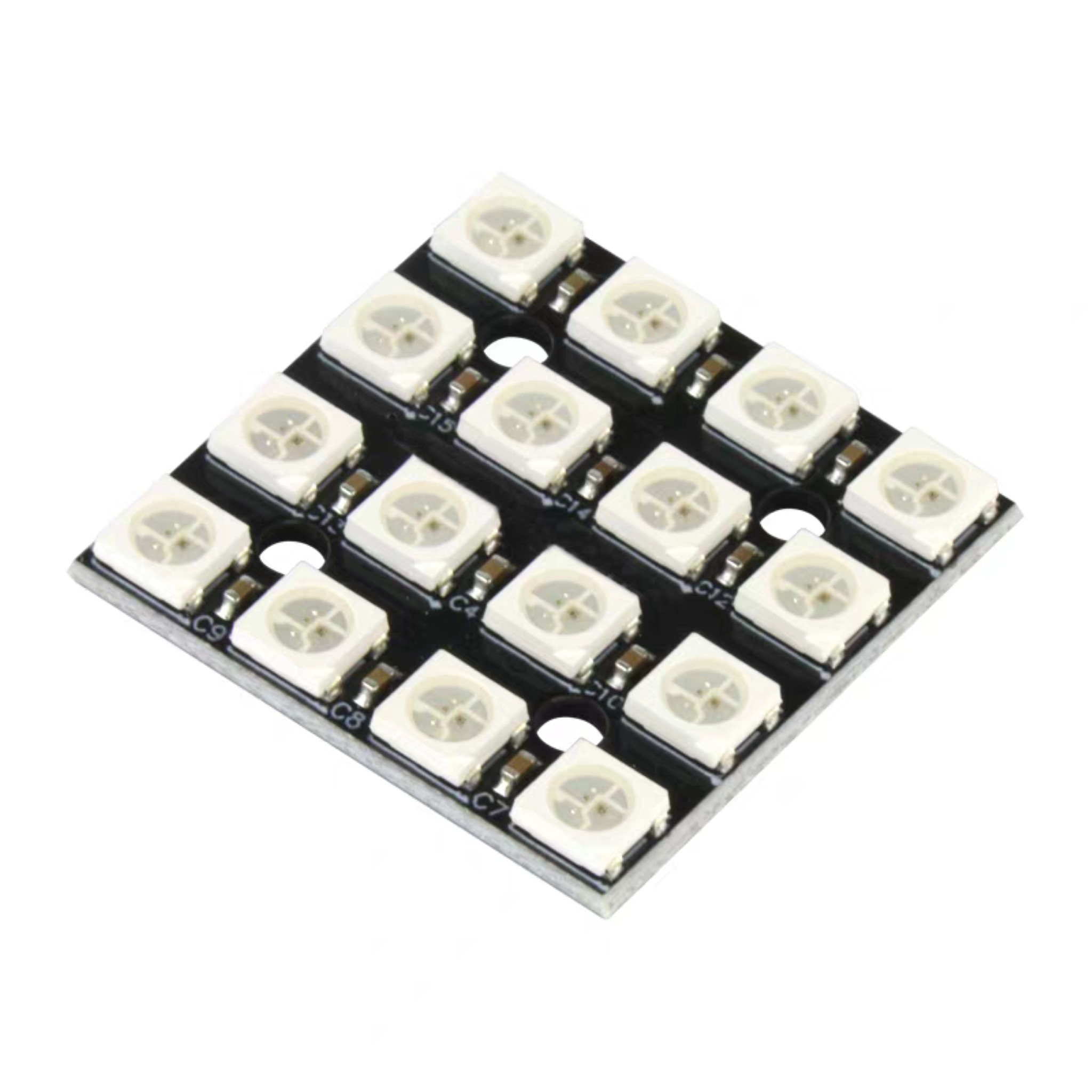

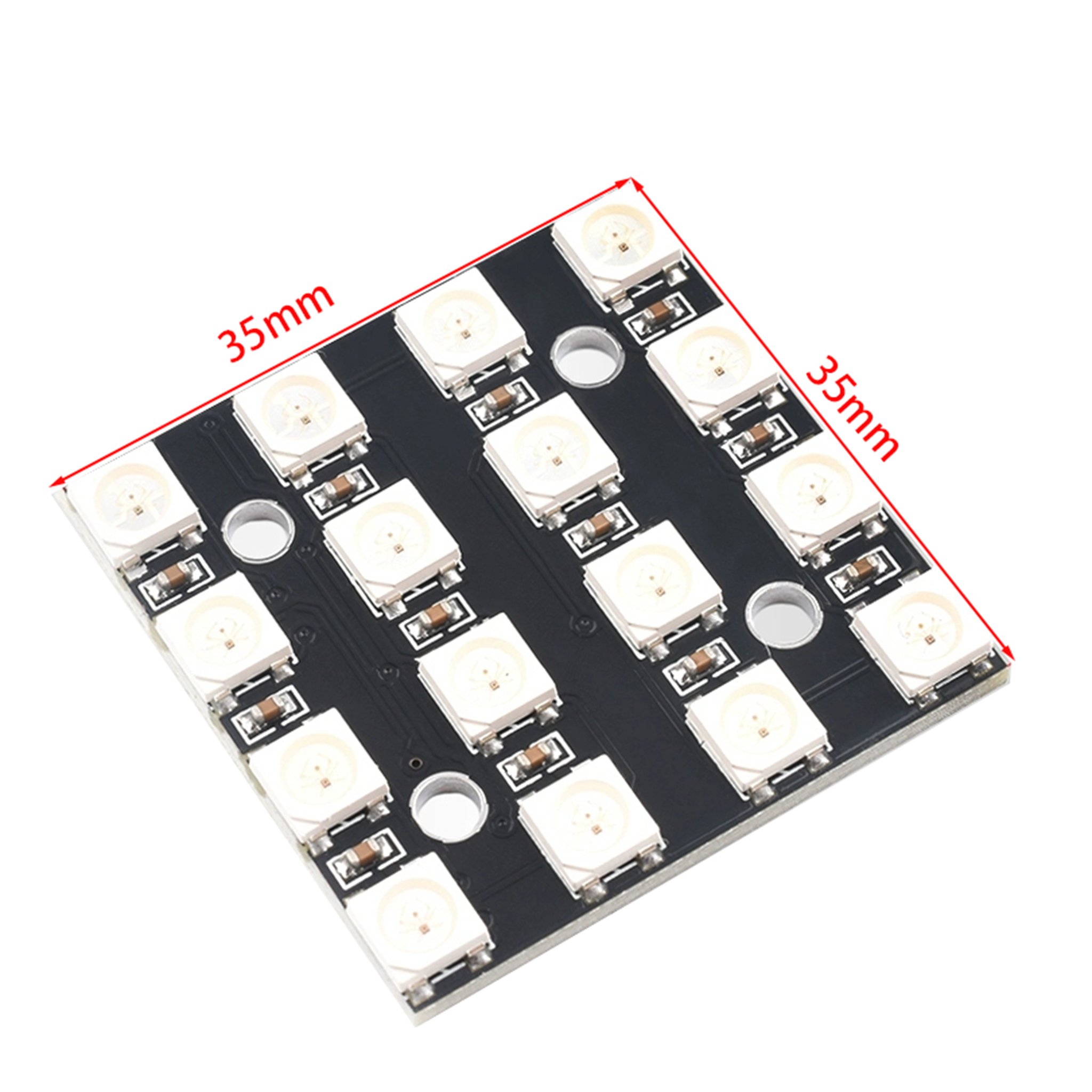

Square 16-LED array

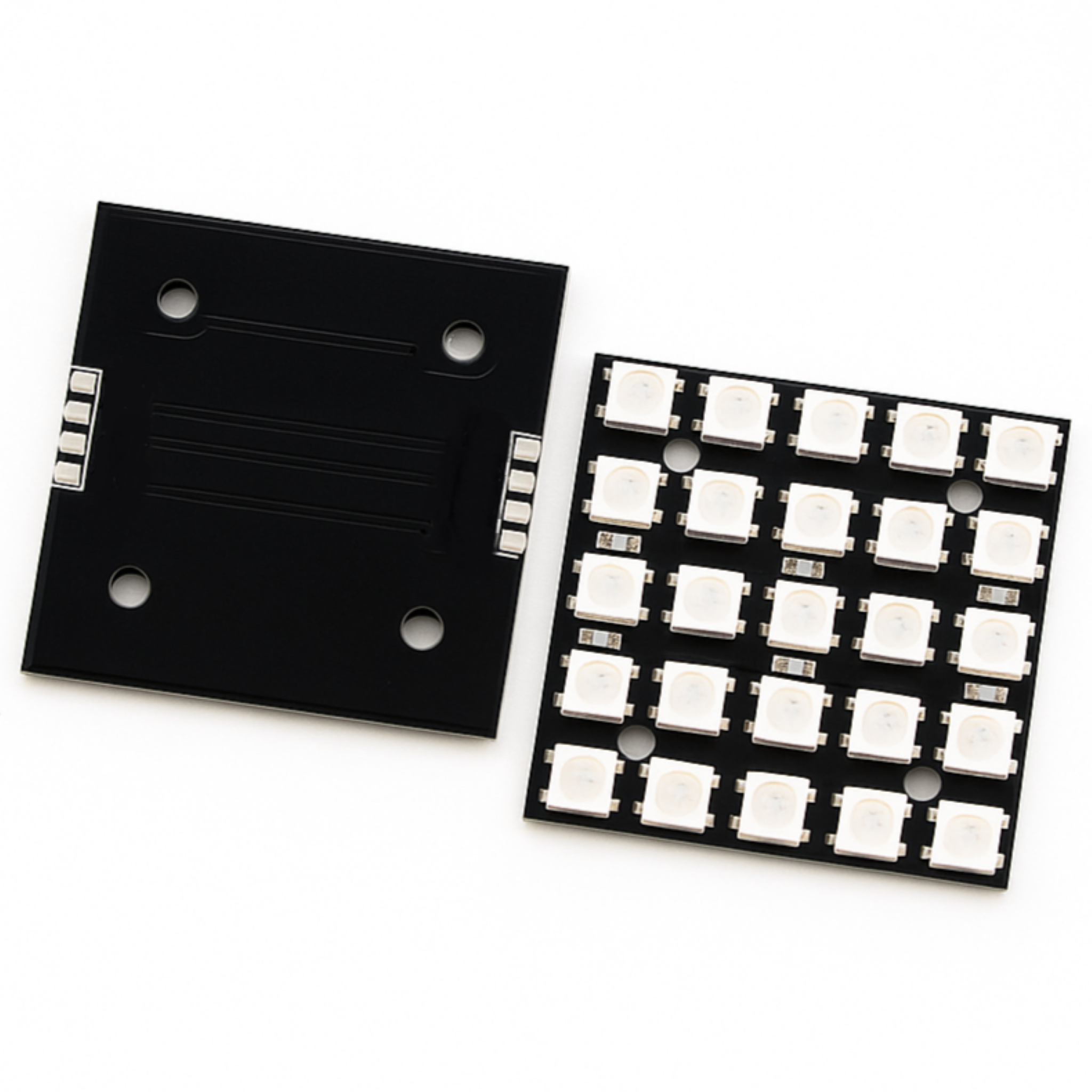

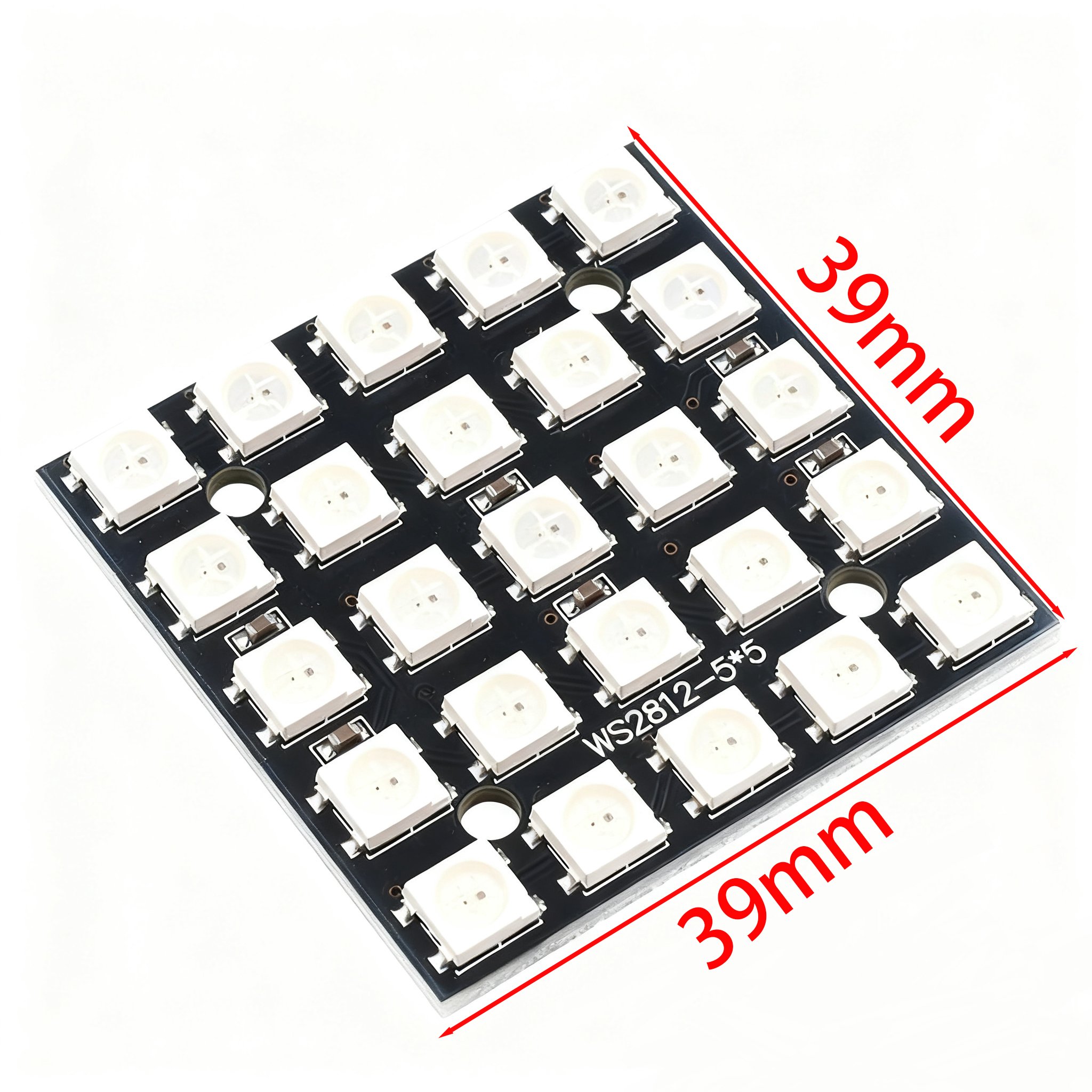

Square 25-LED array

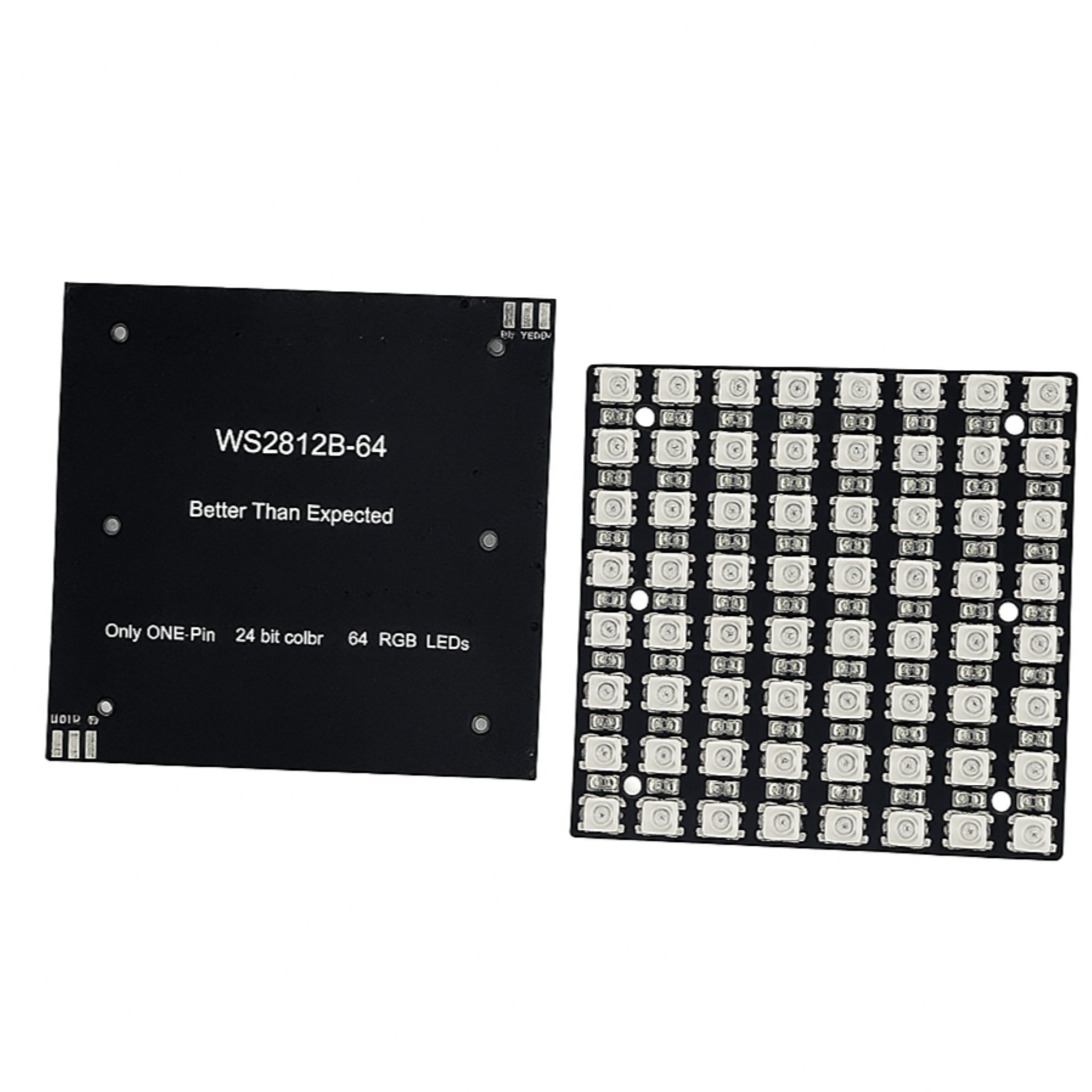

Square 64-LED array
Product Effects Demo Product Effects Demo
WS2812 Square Board - Black Version
WS2812 Square Board - White Version
Fun Little Projects
