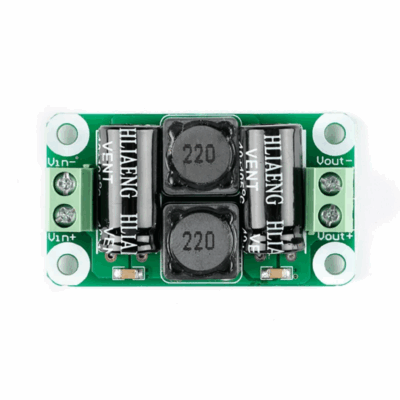

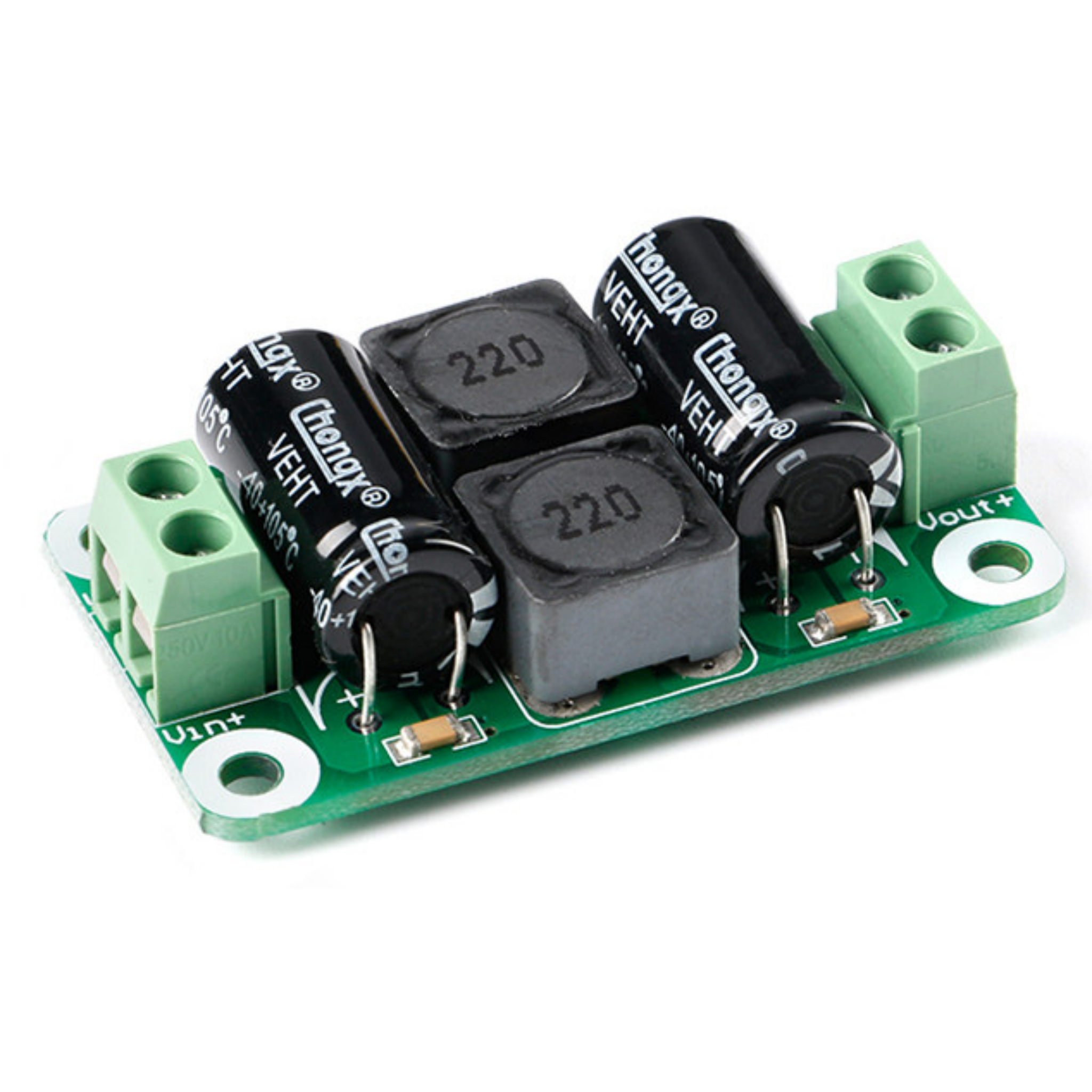

0-25V 2A DC Power Supply Filter Board
$0.991 pcs
0-25V DC automotive power filter board, Class D power amplifier, audio speaker corrugated interference EMI suppression module.
| Dimensions | 50 × 28 × 15 mm |
|---|---|
| Brand |
easyelecmodule |
684 in stock
Product Overview
This 2A DC power supply filter board works on the LC differential common-mode principle — it can suppress interference in switching power supplies or other DC power sources, reduce power supply ripple, and mitigate power-induced interference. It’s suitable for low-voltage DC (0V–50V) power circuits, such as audio amplifiers, in-vehicle devices, industrial control boards, and DC appliances.
- If the suppression effect is insufficient, connect multiple boards in series to enhance interference suppression.
- If the board’s operating current can’t meet demand, connect multiple boards in parallel to increase output current.
- For circuit boards using positive-negative power supplies, stack two boards to form a positive-negative power interference suppression board.
This board comes in two voltage specifications: 0–25V and 0–50V. You can choose a matching filter board based on your operating voltage range.
Wiring instructions
| Pin | Description |
|---|---|
| Vin+ | Input Positive Terminal |
| Vin- | Input Negative Terminal |
| Vout+ | Output Positive Terminal |
| Vout- | Output Negative Terminal |
Product Parameter
| Item | Specification / Description |
|---|---|
| Operating Voltage | 0-25V, 0-50V |
| Dimensions | 50mm × 28mm × 15mm |
| Pin Definition & Interface Description | Vin+: Input Positive Terminal |
| Vin-: Input Negative Terminal | |
| Vout+: Output Positive Terminal | |
| Vout-: Output Negative Terminal |
Applications
- Audio equipment: Such as Class D digital amplifier boards, desktop speakers, and headphone amplifiers. It effectively suppresses background noise caused by power ripple, enhancing sound quality purity.
- In-vehicle electronics: Compatible with car navigation systems, dashcams, and car audio. It mitigates clutter interference from car power supplies, ensuring stable device operation.
- Industrial control: Can be used in PLC modules, sensor power circuits, and industrial MCU control boards. It reduces electromagnetic interference in industrial environments, improving system reliability.
- DIY electronic projects: Suitable for various low-voltage DC circuits (e.g., MCU development boards, LED driver circuits), helping hobbyists resolve device malfunctions caused by power interference.
- DC appliances: Such as small DC motors, DC fans, and low-voltage lighting equipment. It reduces the impact of power fluctuations on device lifespan.
