2262/2272 Four-Channel Wireless Remote Control 315Mhz（Self-Locking）
$0.991 pcs
PT2262/PT2272 four-channel wireless remote control case,L4 self-locking receiving board, with four-key wireless remote control, suitable for remote control of devices
| Dimensions | 40.7 × 23.1 mm |
|---|---|
| Brand |
easyelecmodule |
451 in stock
Introduction
This kit features PT2262 encoder & PT2272 decoder chips, operating at 315MHz with SAW frequency stabilization for ultra-low drift. Its 4-channel self-locking mode keeps devices on/off until next command. With 6561 address combinations, it avoids interference. Transmitter works at 3-12V, receiver at 5V, supporting TTL level output. Ideal for home appliances, access control, motors—offering reliable short-range control up to 100m (open area). Easy to wire and integrate, perfect for DIY and industrial use.

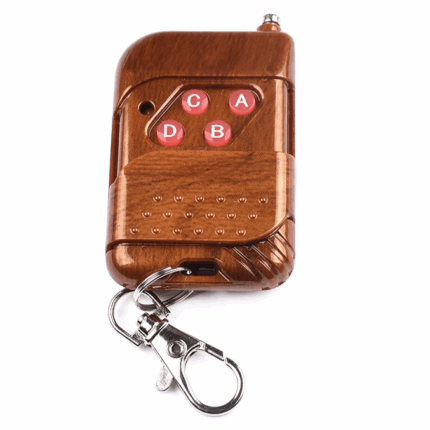

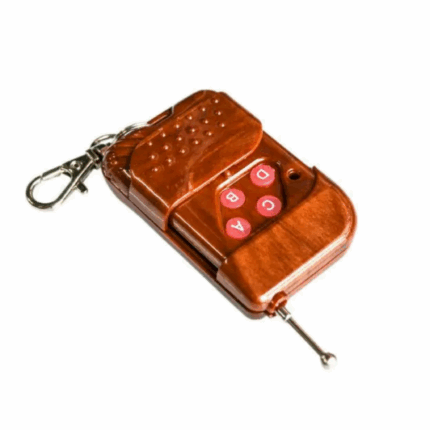

Product Name: Slide-Cover 4-Key Remote Control
Technical Specifications
| Specification | Details |
|---|---|
| Operating Voltage | DC12V (1x 23A/12V battery) |
| Operating Current | 10mA@12V |
| Radiation Power | 10mW@12V |
| Modulation Mode | ASK (Amplitude Shift Keying) |
| Transmitting Frequency | 315MHz |
| Transmission Distance | Approximately 10 meters |
| Encoder Type | Fixed code, learning code, rolling code |
| Applications | Motorcycle/car anti-theft devices, home security products, short-range wireless remote control products |

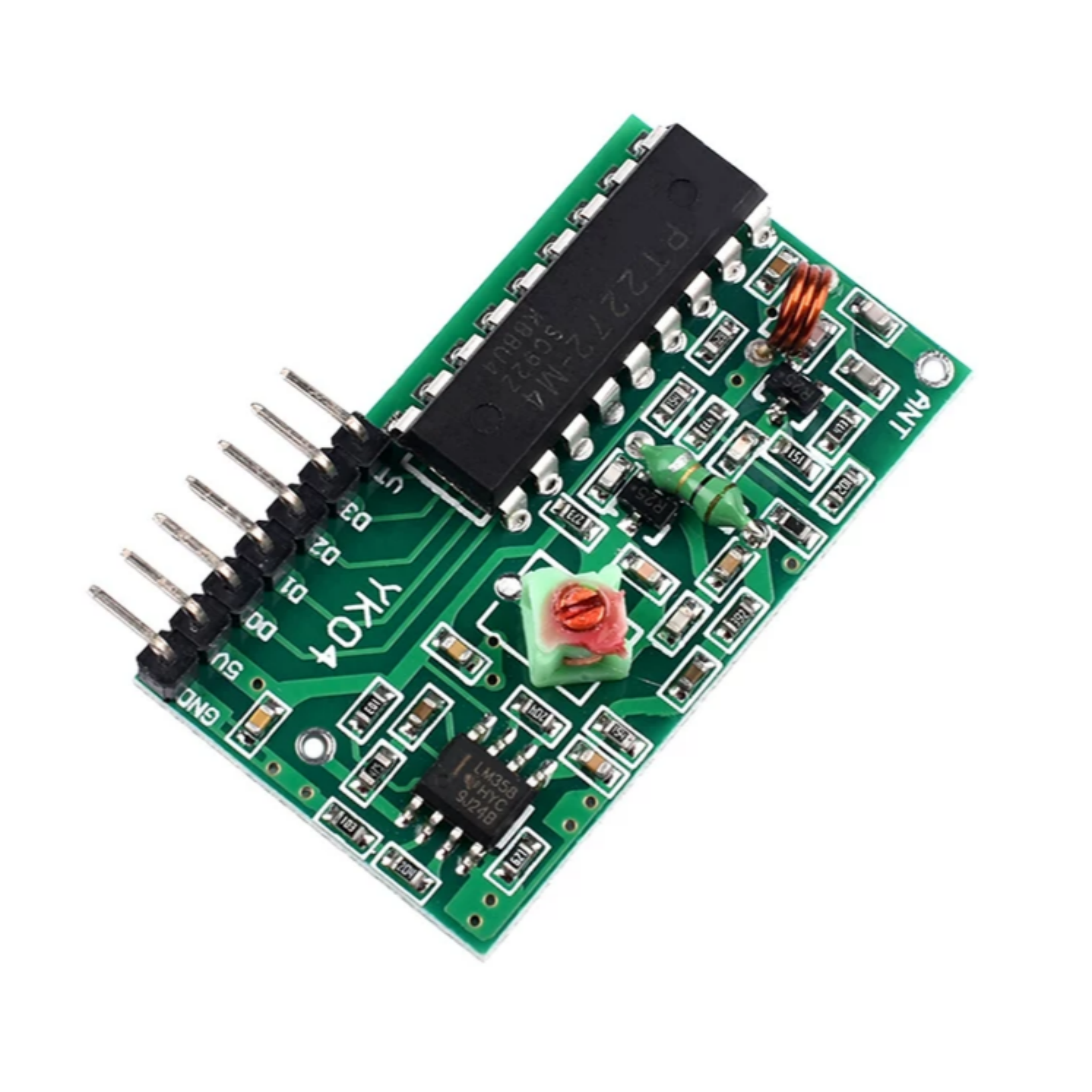

Product Name: 2272 5V High-Frequency Superregenerative 4-Channel Decoding Receiver Module
Technical Specifications
| Specification | Details |
|---|---|
| Operating Voltage (V) | DC5V |
| Quiescent Current (mA) | 4.5mA |
| Modulation Mode | OOK (On-Off Keying) |
| Operating Temperature | -10°C~+70°C |
| Reception Sensitivity (dBm) | -105dB |
| Dimensions (LWH) | 40.7*23.1mm |
| Operating Frequency (MHz) | 315 |
| Coding Mode | Pad coding (fixed code) |
| Working Modes | T4 (Latching: 4 channels output independently, no mutual interference; press once to start output, press again to stop) |
Product Features
Key highlights:
It has a wide reception bandwidth (typically ±10MHz). It’s factory-tuned to 315MHz or 433.92MHz (frequency can be adjusted between 266MHz–433MHz upon request). It usually runs on DC5V power, but the voltage range can be modified for special needs.
2262/2272 Four-Channel Wireless Remote Control Datasheet
If you want to learn more 2262/2272 Wireless Remote Control details, you can refer to this datasheet.
Pinout & Usage Instructions
Pin Functions:
| Pin Number | Label | Function Description |
|---|---|---|
| 1 | VT | Output status indicator |
| 2 | D3 | Data output |
| 3 | D2 | Data output |
| 4 | D1 | Data output |
| 5 | D0 | Data output |
| 6 | 5V | Positive power supply |
| 7 | GND | Negative power supply (ground) |
| 8 | ANT | Antenna connection terminal |
For optimal reception:You can connect a 50Ω 1/4-wavelength antenna (optional). Keep the antenna straight—wavelength = speed of light ÷ frequency.
Product Applications
Remote switches, receiver modules, motorcycle/car anti-theft devices, home security products, electric doors/gates/windows, remote sockets, remote LEDs, remote audio systems, remote garage doors, retractable doors, sliding doors, door access systems, remote-controlled windows, alarm hosts/sirens, remote motorcycles/e-scooters, remote MP3 players, remote lights, remote cars, and other civil/industrial remote control scenarios.
