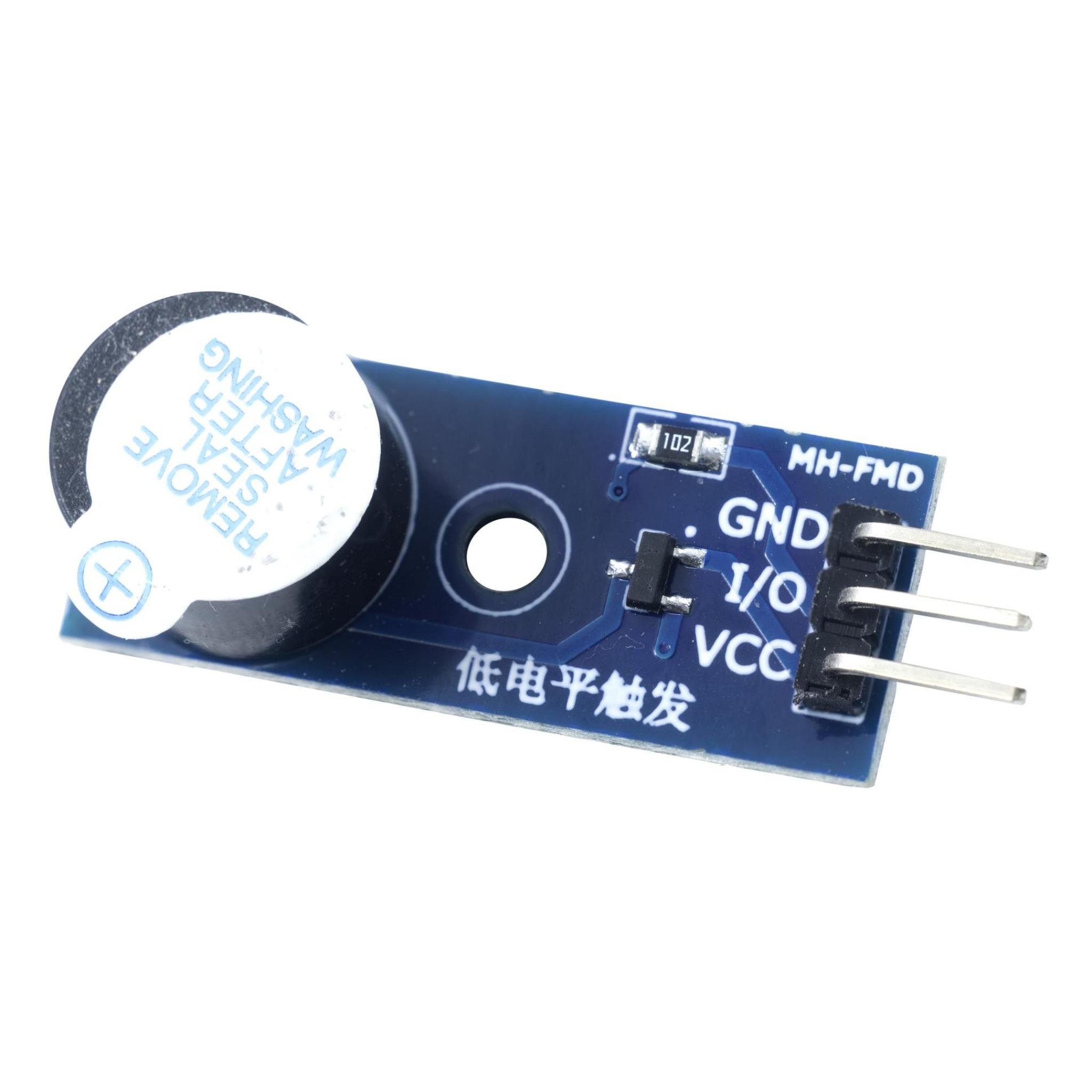

Active Buzzer Module Low Level Trigger
$0.991pcs
Buzzer activates on LOW signal. S8050-driven, 3.3V-5V ready. Fixed tones for alarms. No PWM needed, plug and play. Mounting holes for easy installation.

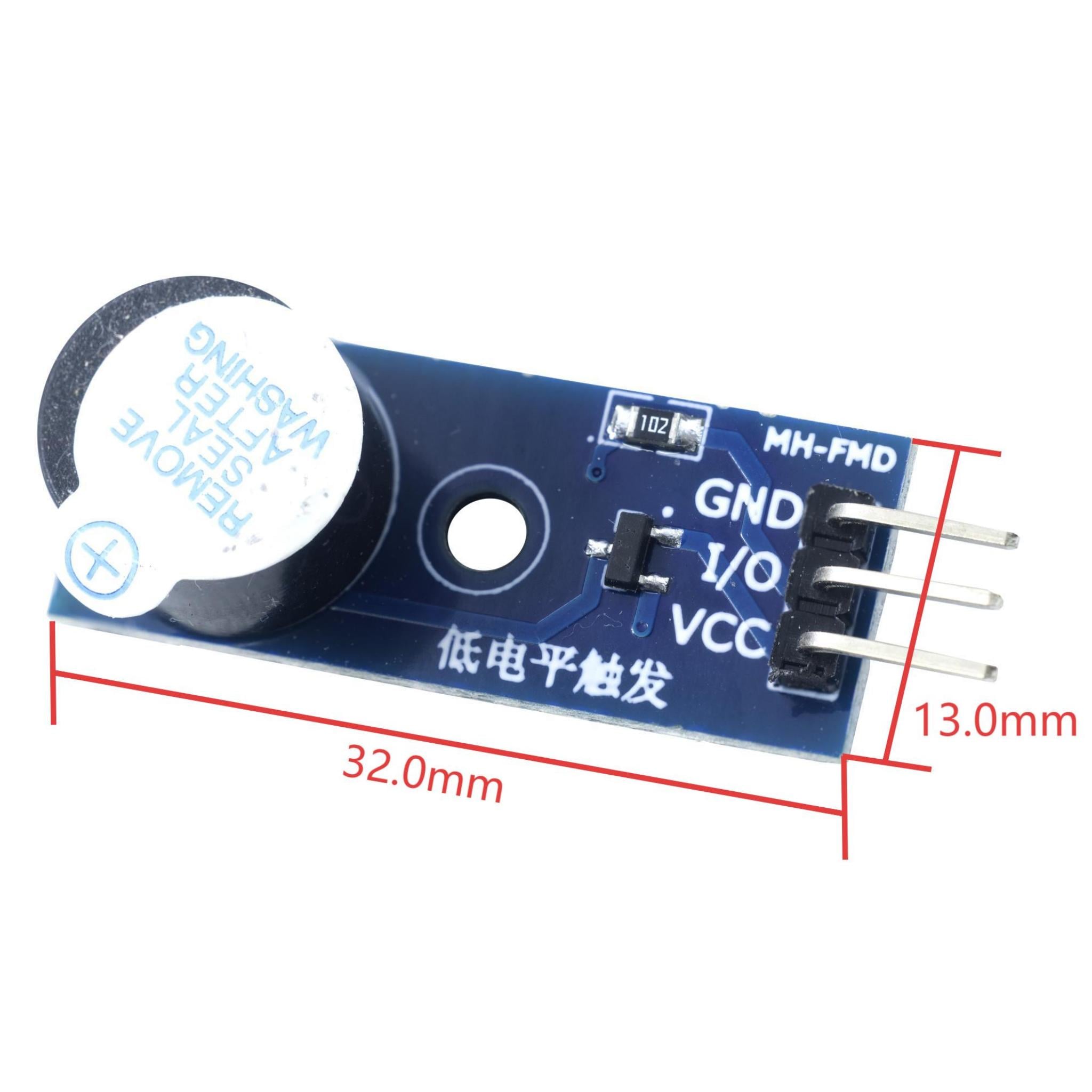

| Dimensions | 32.0 × 13.0 mm |
|---|---|
| Brand |
easyelecmodule |
4586 in stock
Product Introduction
An active buzzer has a built-in oscillation source. Therefore, it will sound as soon as it is powered on. It is convenient to control via program, a single low level from a microcontroller can make it emit sound, which a passive buzzer cannot achieve.
Product Feature
1. Active Buzzer Module is driven by S8050 triode.
2. The operating voltage is 3.3V – 5V.
3. There are fixed bolt holes for easy installation.
4. The size of the small board PCB : 32mm * 13mm.
Pin Function
| Parameter | Details |
|---|---|
| I/O PIN | GPIO control pin (used to control the buzzer) |
| VCC | Power supply |
| GND | Grounding |
