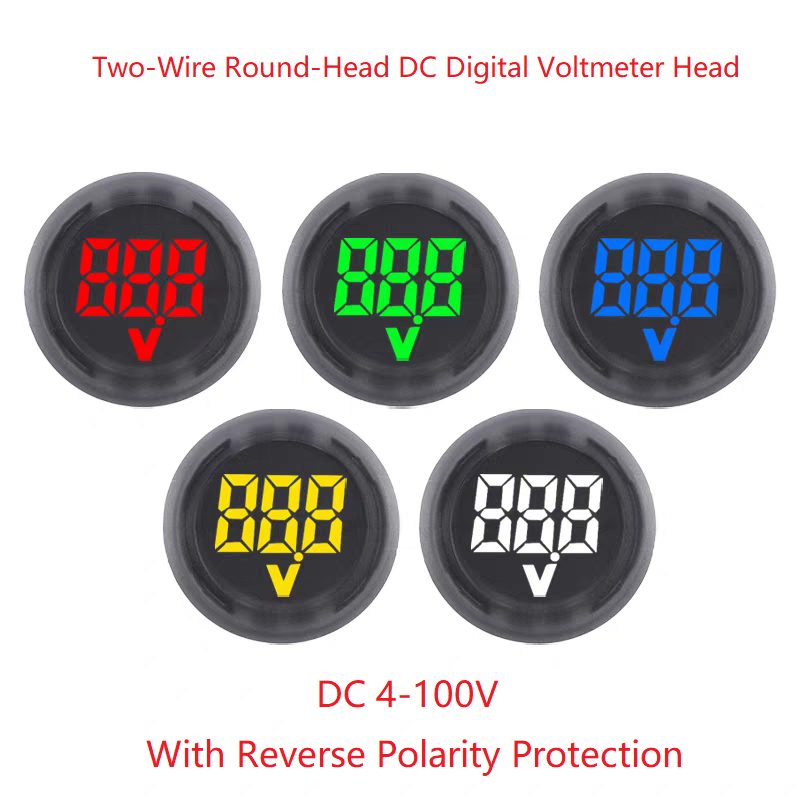

DC 4-100V DC Digital Voltmeter Head

1pcs

Dimensions

N/A

Brand

easyelecmodule

Item	Parameter
Measurement range	5V - 100V
Power supply range	5V - 100V
Minimum start-up	3.8V
Allowable error	±1%
Input impedance	>100K ohms
Operating current	Red < 15mA, Green < 12mA, Blue < 12mA
Refresh rate	Approximately 300mS/time
Display method	Three-digit circular LED nixie tube
Display color	Red, Green, Blue (optional)
Lead length	20cm
Overall dimension	Diameter 33.8
Mounting hole size	Diameter 30.0
Net weight	Approximately 4g
Gross weight	Approximately 8g
Operating temperature	-10℃～65℃

No External Power Supply Required

Connect the red wire to the positive terminal of the power source under test, and the black wire to the negative terminal. It is equipped with reverse polarity protection: the device will not be burned if the positive and negative terminals are connected incorrectly, but there will be no display in case of reverse connection.
It cannot display normally when the voltage is lower than 4V.
The voltmeter will be burned if used beyond its measurement range.

Shipping Cost

We only ship to the United States. Shipping costs are calculated based on the total order amount.

Shipping Method And Delivery Time

All orders will be processed and shipped within 72 hours of placing the order (excluding weekends and holidays). They will ship from Shenzhen, China, primarily via 4PX logistics. Depending on the destination and logistics conditions, other carriers such as DHL, FedEx, UPS, USPS, etc., may also handle the delivery. Estimated shipping time is 7-12 business days, with actual delivery occurring in 10-17 business days, depending on logistics conditions.

Payment:

We accept Visa, Master card, Maestro, American Express, JCB, Dinner's Club, Discover, Paypal, Apple Pay, Google Pay .

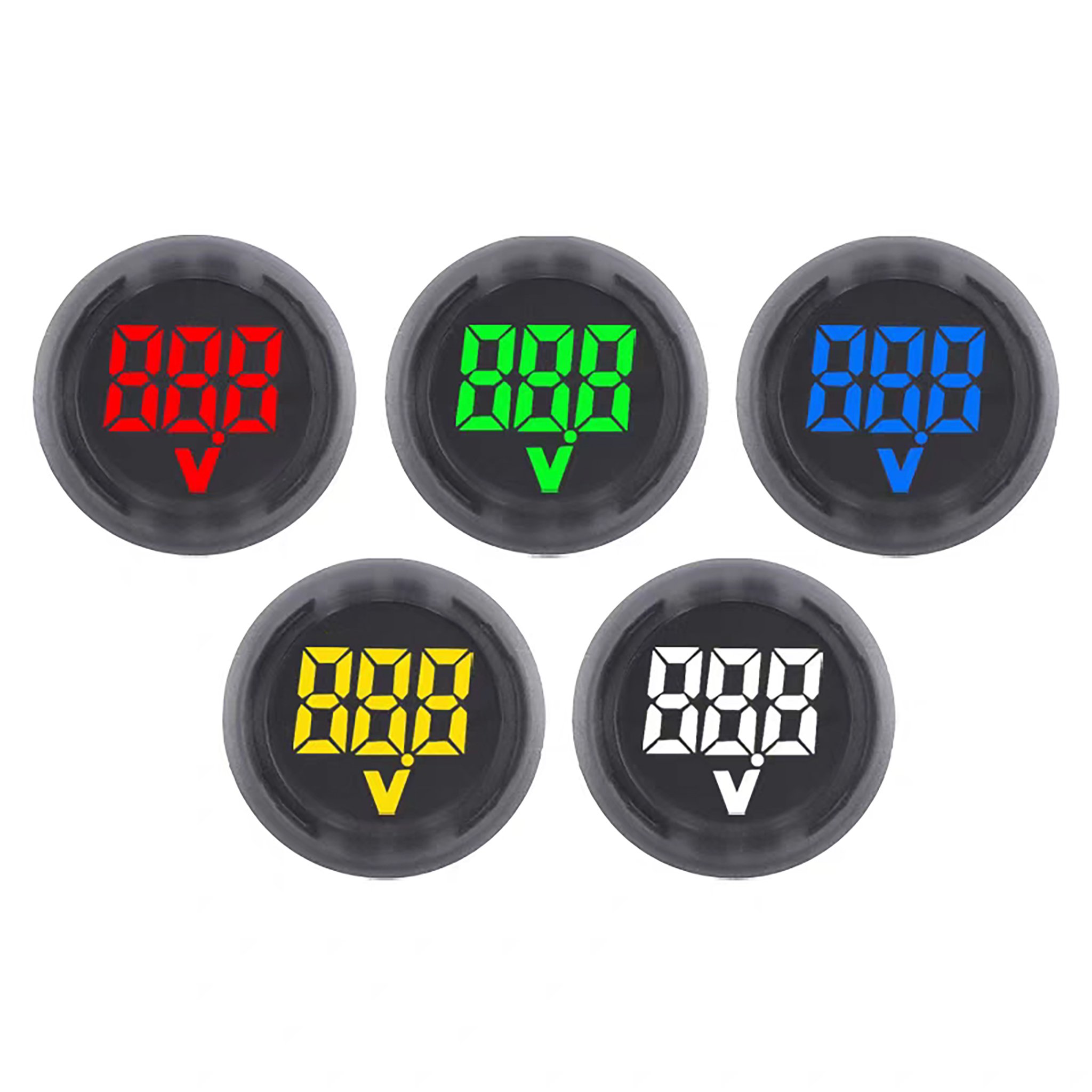

DC 4-100V DC Digital Voltmeter Head - Image 1

Click to enlarge

Price range: $1.29 through $1.601pcs

Dimensions	N/A
Brand	easyelecmodule

specification

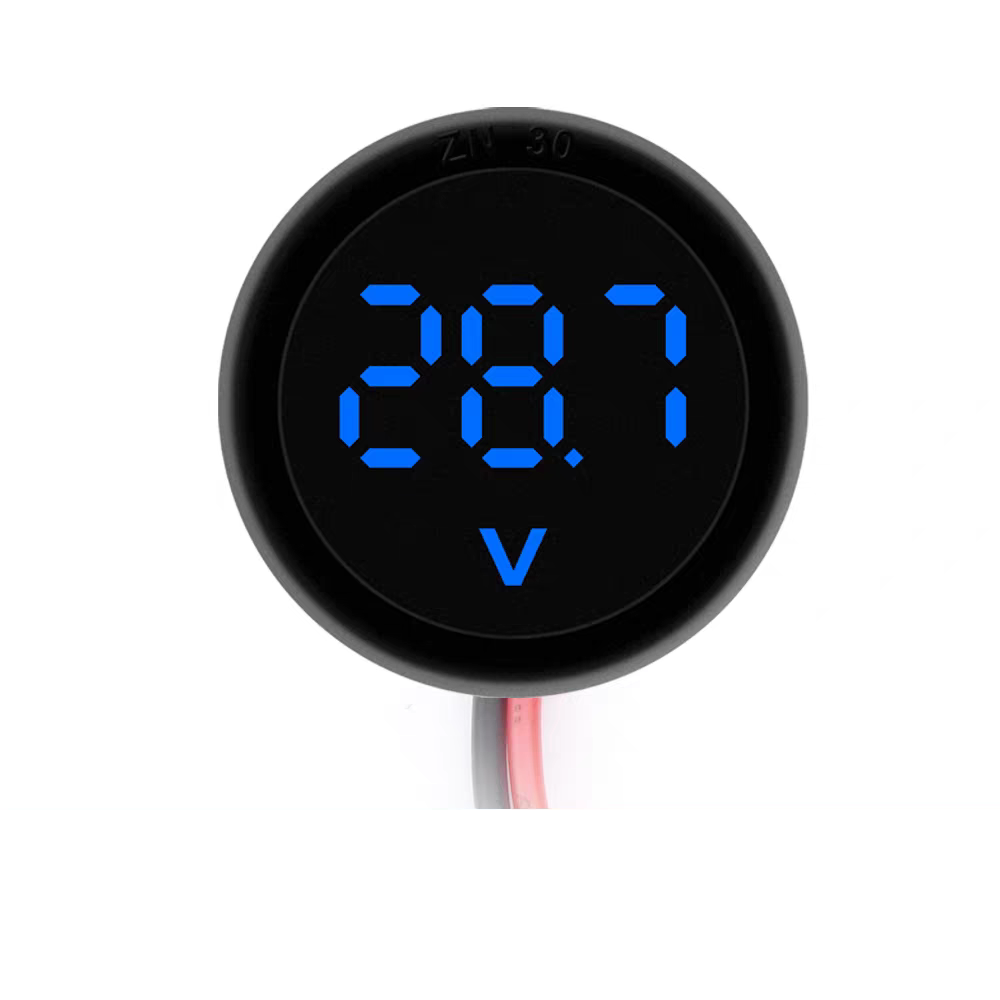

4-100V DC Digital Voltmeter Head with Circular Blue LED Display

4-100V DC Digital Voltmeter Head with Circular Green LED Display

4-100V DC Digital Voltmeter Head with Circular Red LED Display

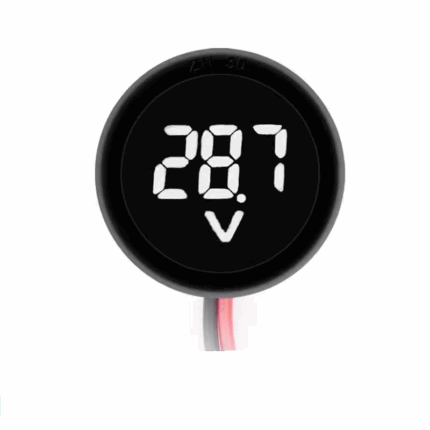

4-100V DC Digital Voltmeter Head with Circular White LED Display

4-100V DC Digital Voltmeter Head with Circular Yellow LED Display

Clear

Add to compare

Add to wishlist

SKU: N/A Category: Modules Tag: DC Digital Voltmeter Head

DESCRIPTION AND FEATURES

Item	Parameter
Measurement range	5V - 100V
Power supply range	5V - 100V
Minimum start-up	3.8V
Allowable error	±1%
Input impedance	>100K ohms
Operating current	Red < 15mA, Green < 12mA, Blue < 12mA
Refresh rate	Approximately 300mS/time
Display method	Three-digit circular LED nixie tube
Display color	Red, Green, Blue (optional)
Lead length	20cm
Overall dimension	Diameter 33.8
Mounting hole size	Diameter 30.0
Net weight	Approximately 4g
Gross weight	Approximately 8g
Operating temperature	-10℃～65℃
