TCRT5000 Infrared Sensor
$0.891pcs
TCRT5000 is an infrared reflective optical sensor, working on the principle of infrared reflection recognition.

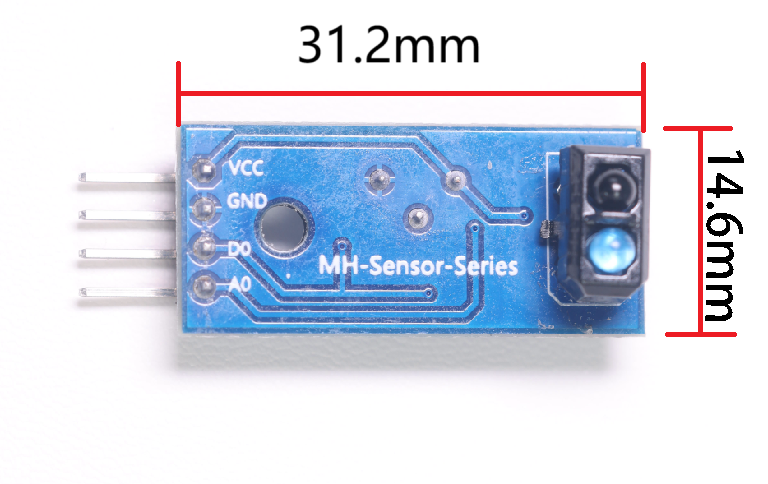

| Dimensions | 31.2 × 14.6 × 7 mm |
|---|---|
| Brand |
easyelecmodule |
3119 in stock
Shopping List
TCRT5000 Module*1

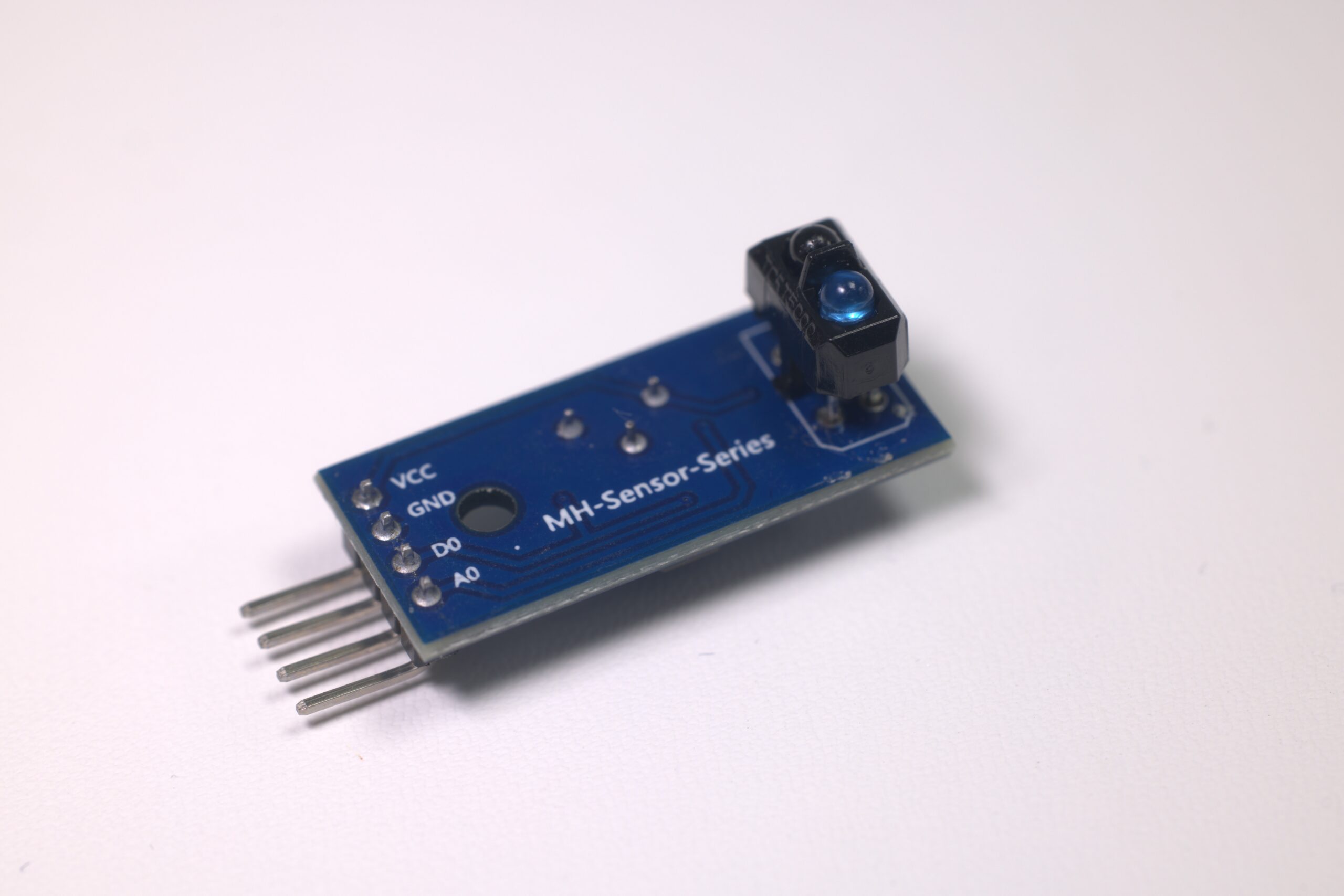

TCRT5000 Composition
TCRT5000 Infrared Reflective Sensor Composition:
- Infrared emitting diode (IR LED): Emits infrared light, achieves functionality through infrared reflection combined with phototransistor
- Phototransistor: Receives infrared light, converts received infrared signal into electrical signal
3. Peripheral circuit:Voltage stabilization, protection circuit, emission intensity control, operating voltage supply, detection threshold adjustment, etc.

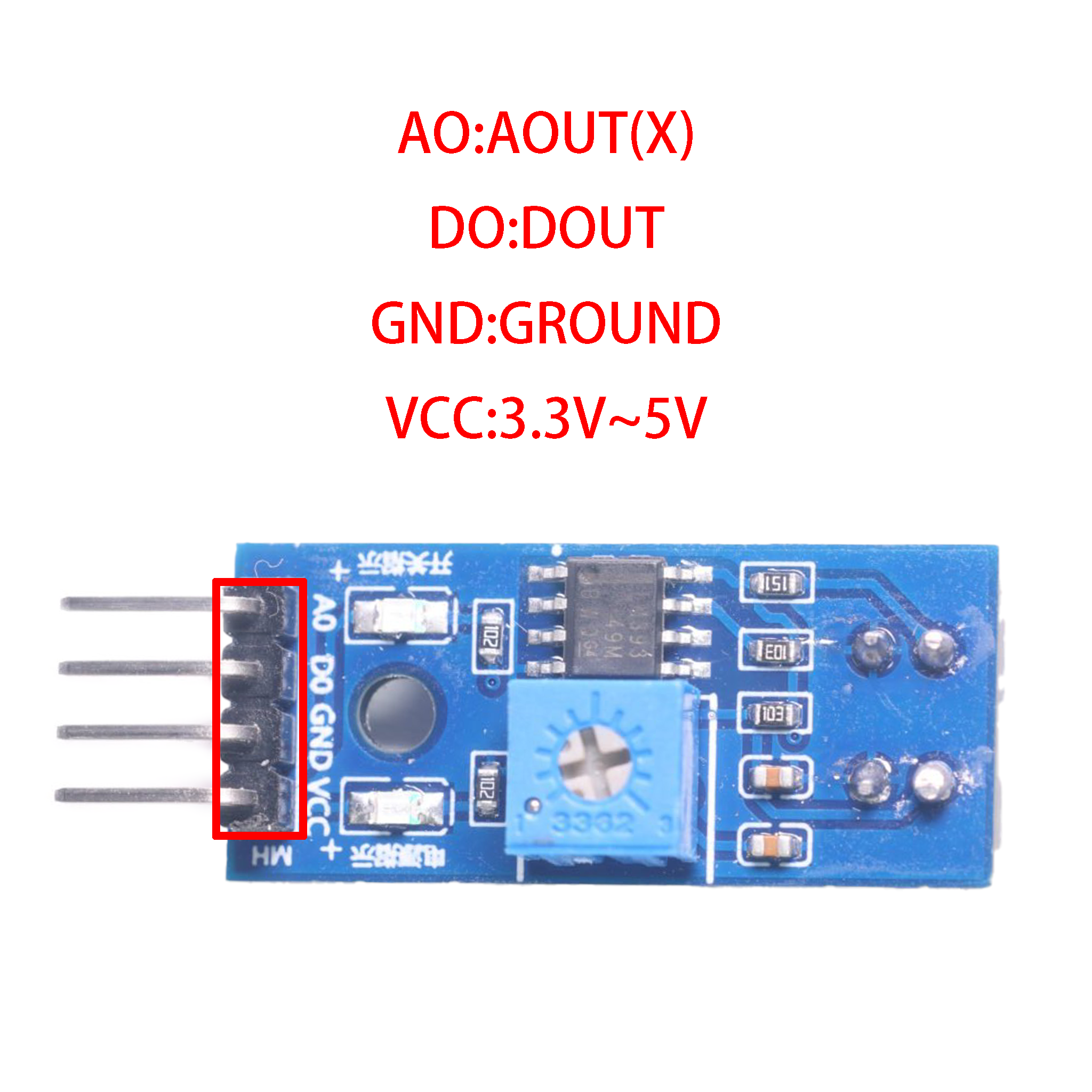

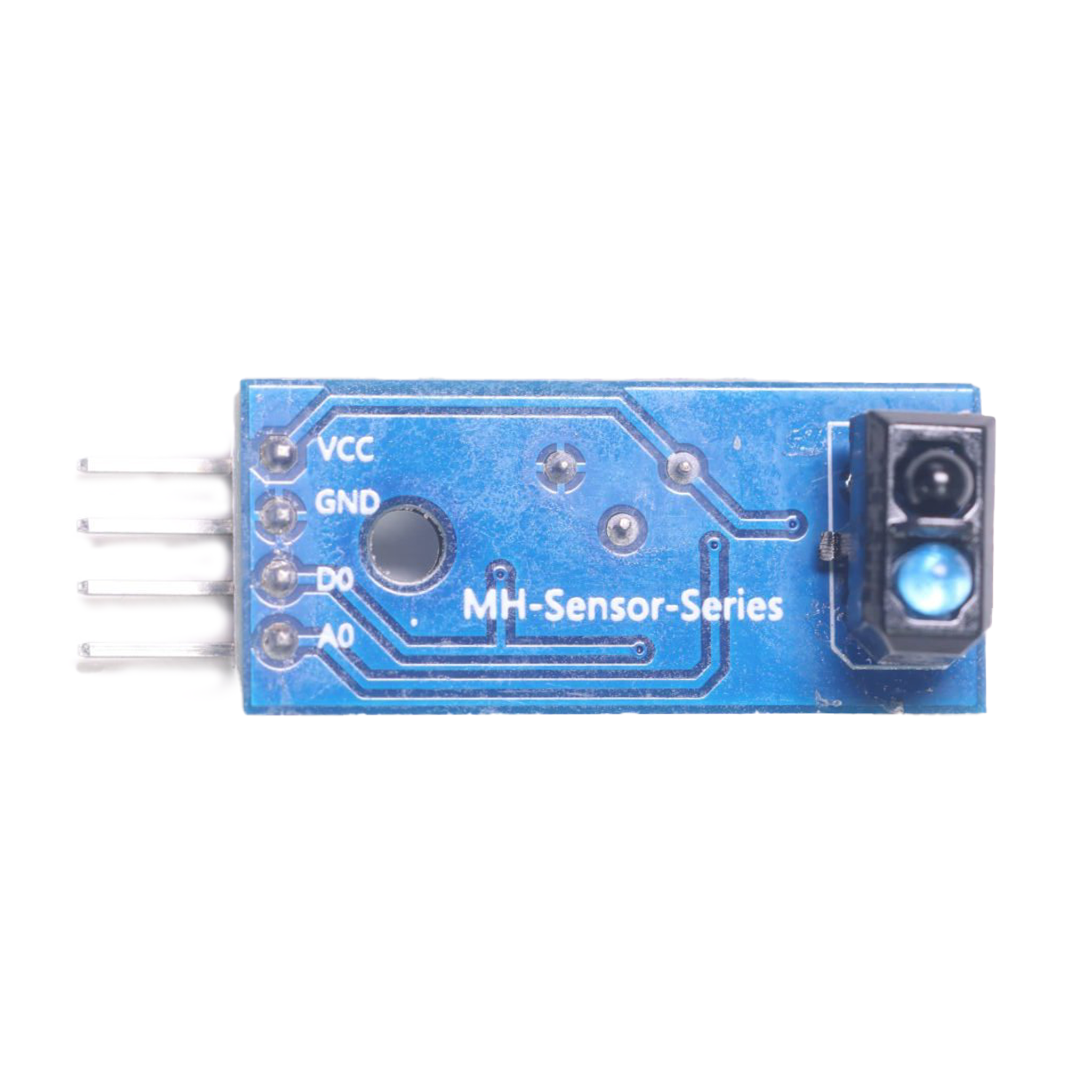

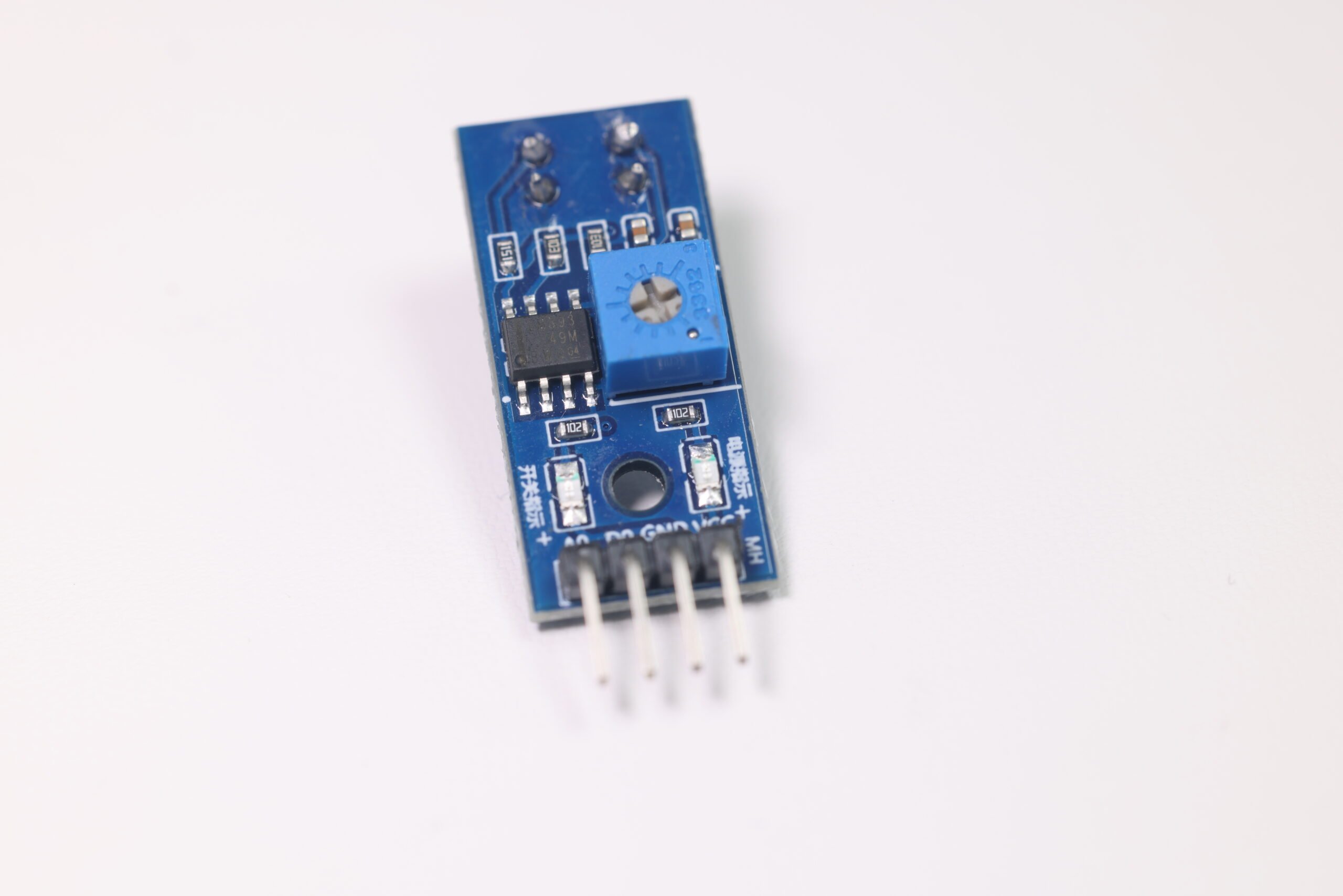

4. Pin
AOUT: Converts digital signal into analog voltage/current output, generally connected to corresponding serial port
DOUT: Digital signal output, provides binary signal, generally connected to correspoonding serial port
VCC: In TCRT5000 typically connected to 5V power supply
GND: Grounding, for noise reduction and anti-static protectiono
Data Performance Parameters
| Parameter | Min | Typical | Max |
|---|---|---|---|
| Operating Voltage | 3.0 V | 5.0 V | 5.5 V |
| Operating Current | – | 20 mA | 30 mA |
| Operating Temperature | -25 ℃ | 25 ℃ | +85 ℃ |
| Storage Temperature | -40 ℃ | – | +100 ℃ |
| Detection Distance | 0.2 mm | 1~10 mm | 15 mm |
| Response Time | – | 10~15 μs | – |
| Detection Angle | – | ±10° | – |
| Reflectivity Range | – | 5%~95% | – |
| Ambient Light Immunity | – | ≤10k Lux | – |

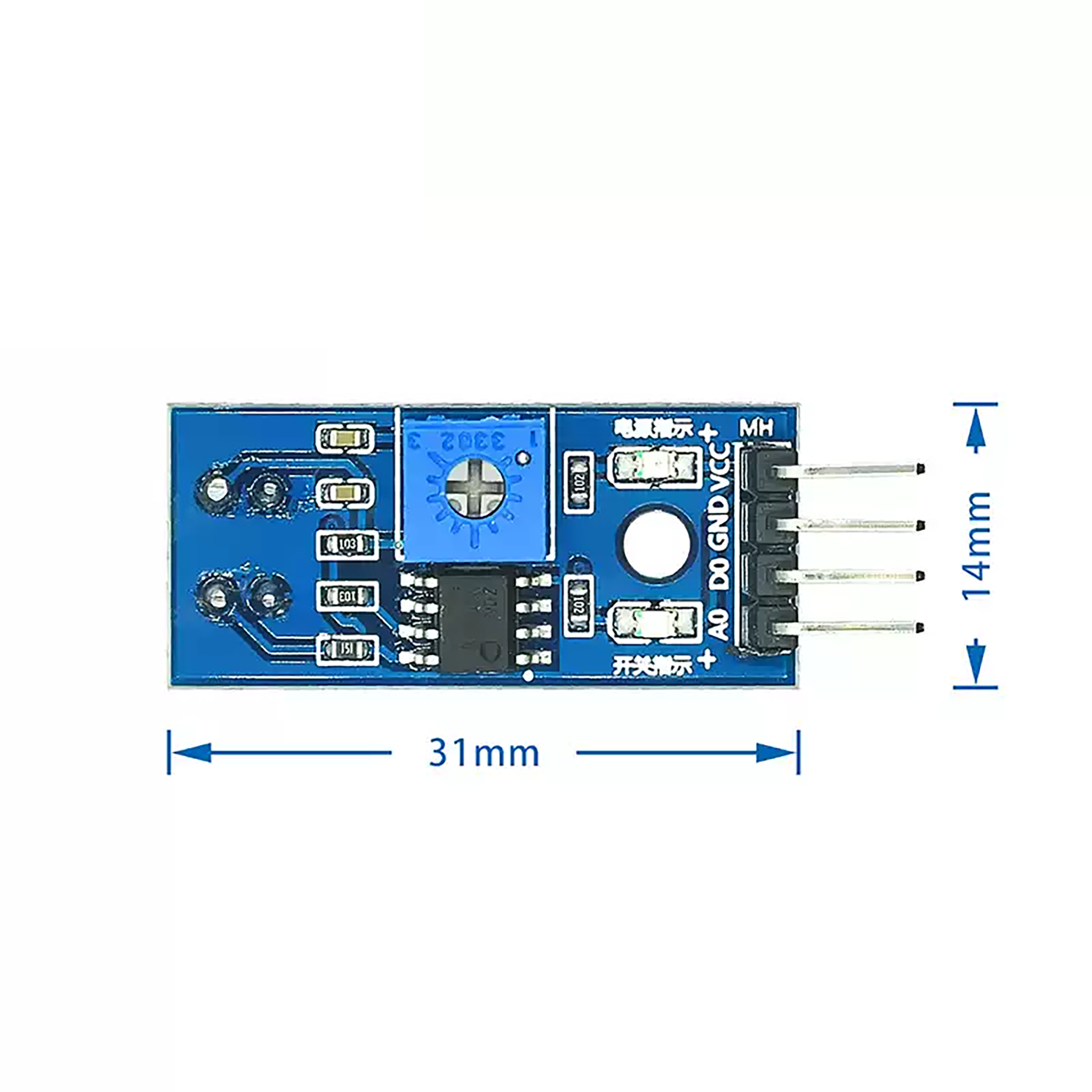

Product size
TCRT5000:10.2 x 5.8 x 7mm
PCB:31.2*14.6*3.1mm
Demo Video

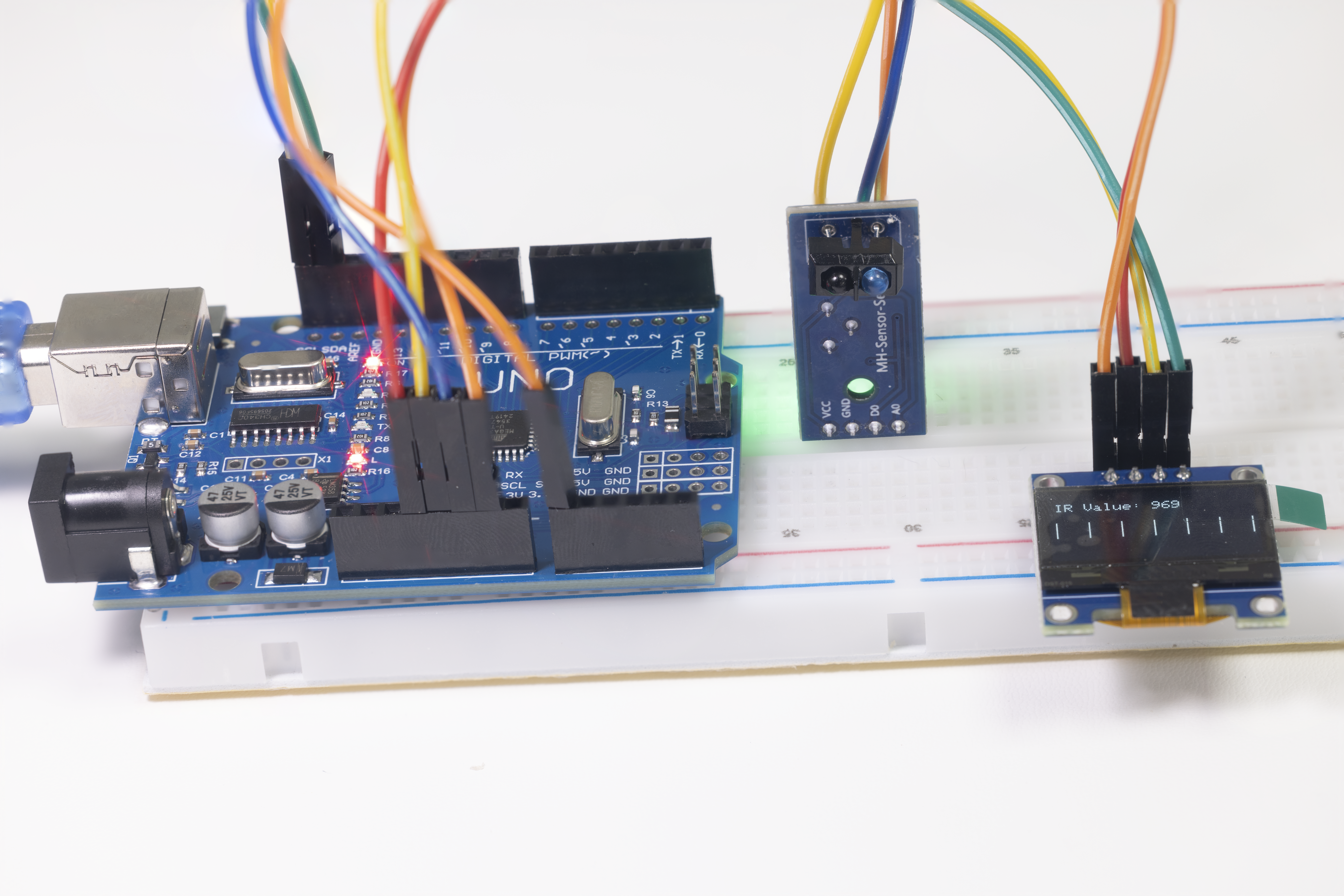

Using TCRT5000 as a sensor to activate the servo switch.
Application Fields
Obstacle avoidance, black/white line detection, counter, object detection, electronic DIY development.
