CJMCU-GUVA-S12SD UV Sensor
$3.701 pcs
The CJMCU-GUVA-S12SD ultraviolet sensor solar intensity detection sensor module is highly sensitive.The on-board LM358 amplifier boosts the photodiode’s weak output signals, with all components built to 1% precision.

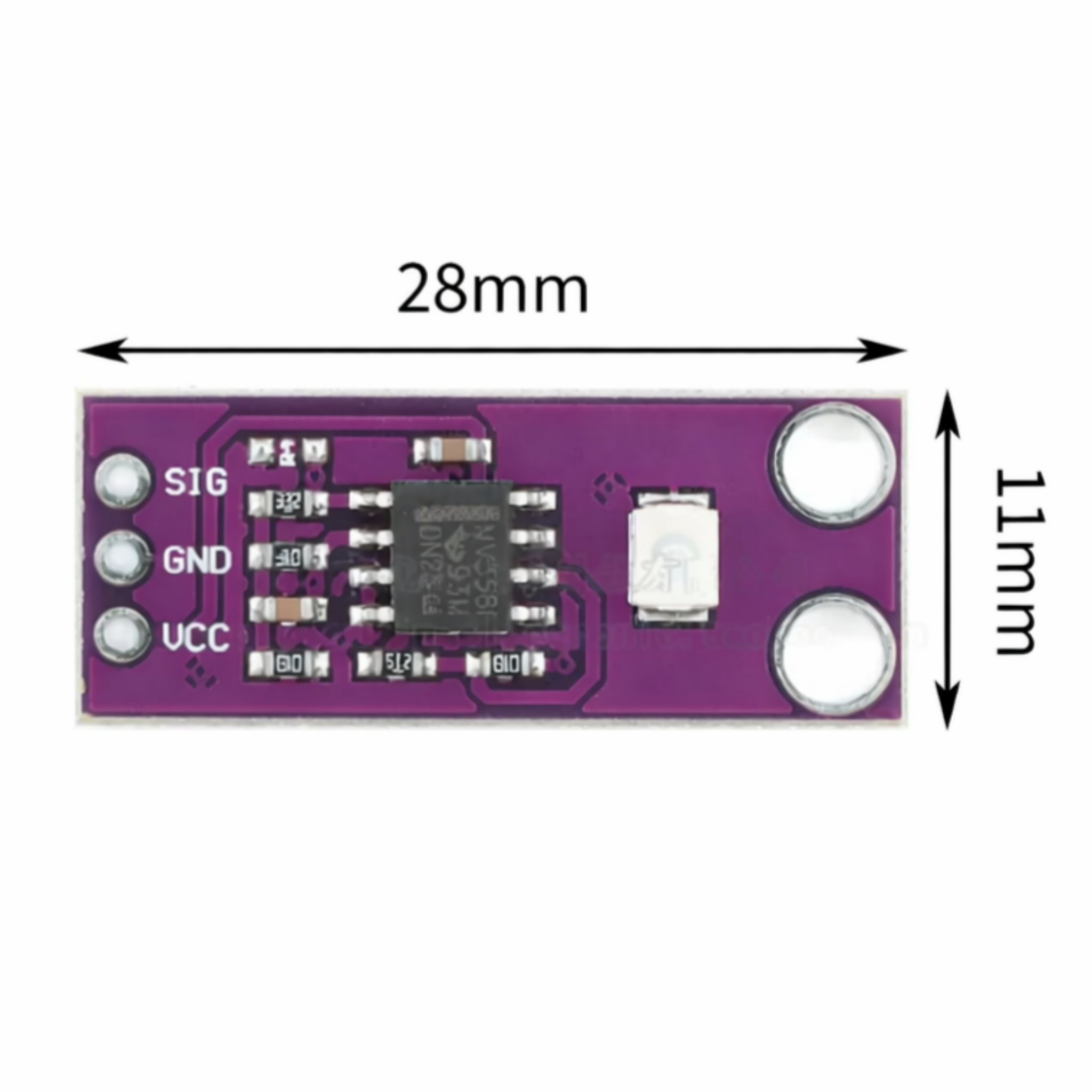

| Dimensions | 28 × 11 mm |
|---|---|
| Brand |
easyelecmodule |
893 in stock
Product Introduction

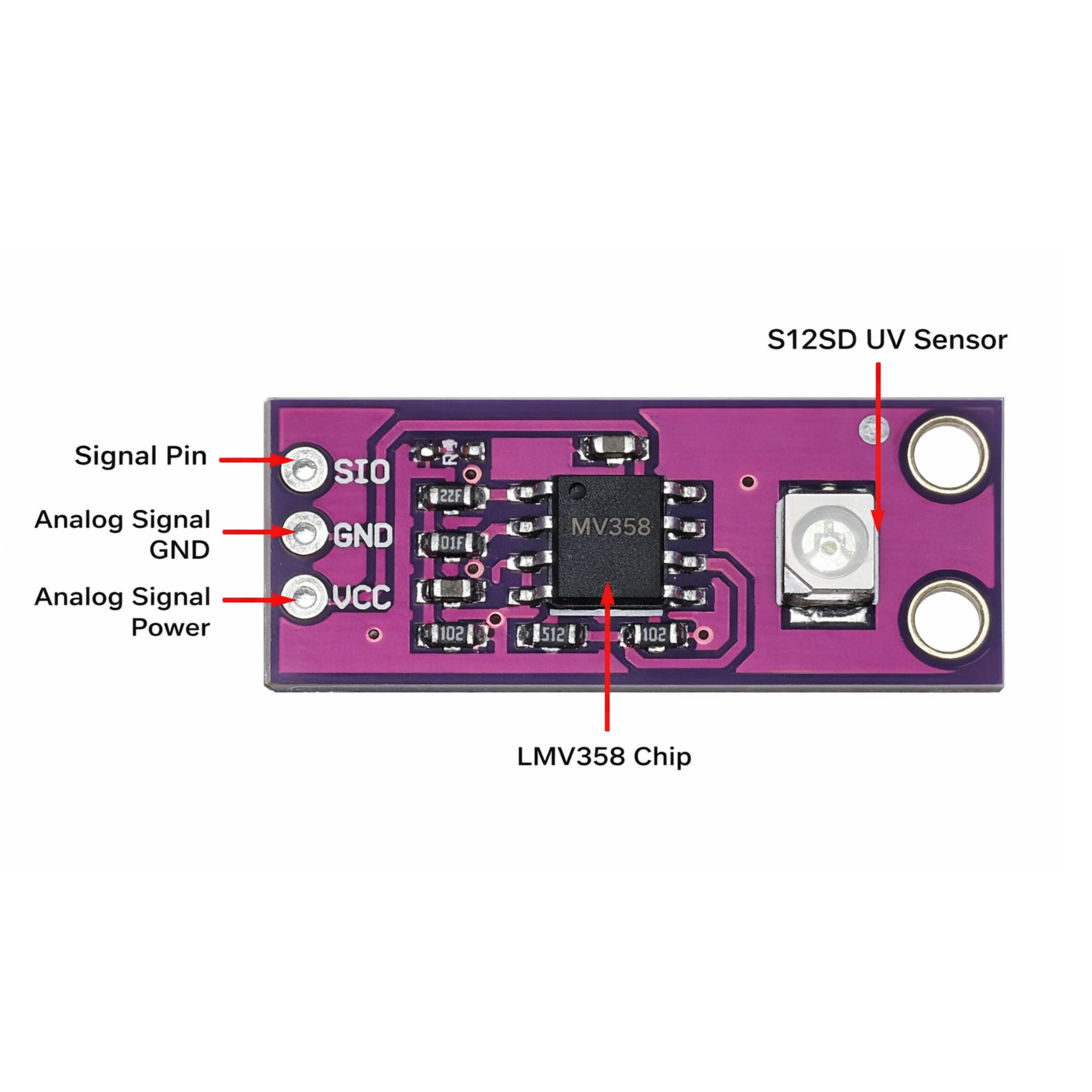

This UV detection module uses a Schottky photodiode made of aluminum nitride material, featuring high responsivity and low dark current. A built-in LMV358 amplifier amplifies the weak signal output by the photodiode, and all components are manufactured with 1% precision. It is applied in UV testers, UV watches, outdoor sports devices, mobile phones, etc.
Product Parameter
| Item | Details |
|---|---|
| Product Name | S12SD UV Sensor Module |
| Product Dimensions | 11mm*28mm |
| Supply Voltage | 2.5V~5V |
| Wide Detection Wavelength Range | 240nm~370nm |
| Wide Angle | 130 Degrees |
| Low Temperature Drift | 0.08%/°C |
Core Component Datasheet for CJMCU-GUVA-S12SD
If you want to learn more CJMCU-GUVA-S12SD product schematic details, you can refer to this datasheet.
Product Features
- Uses a Schottky photodiode made of gallium nitride material
- The detection sensor offers high responsivity and low dark current
- Built-in LM358 operational amplifier chip with stable performance
- Amplifies the weak signal output by the photodiode
- All components are manufactured with 1% precision
- Wide detection wavelength range: 240nm ~ 370nm
Product Schematic
The power supply is 5V, and the SIG amplifies the analog voltage signal output.
Application Scope
- Operates in photovoltaic mode
- Excellent visible light blindness
- High responsivity and low dark current
- UV index monitoring
- UV-A lamp monitoring
This product meets the specifications for the mobile phone field. It also provides a linear current that directly corresponds to the UV Index.
