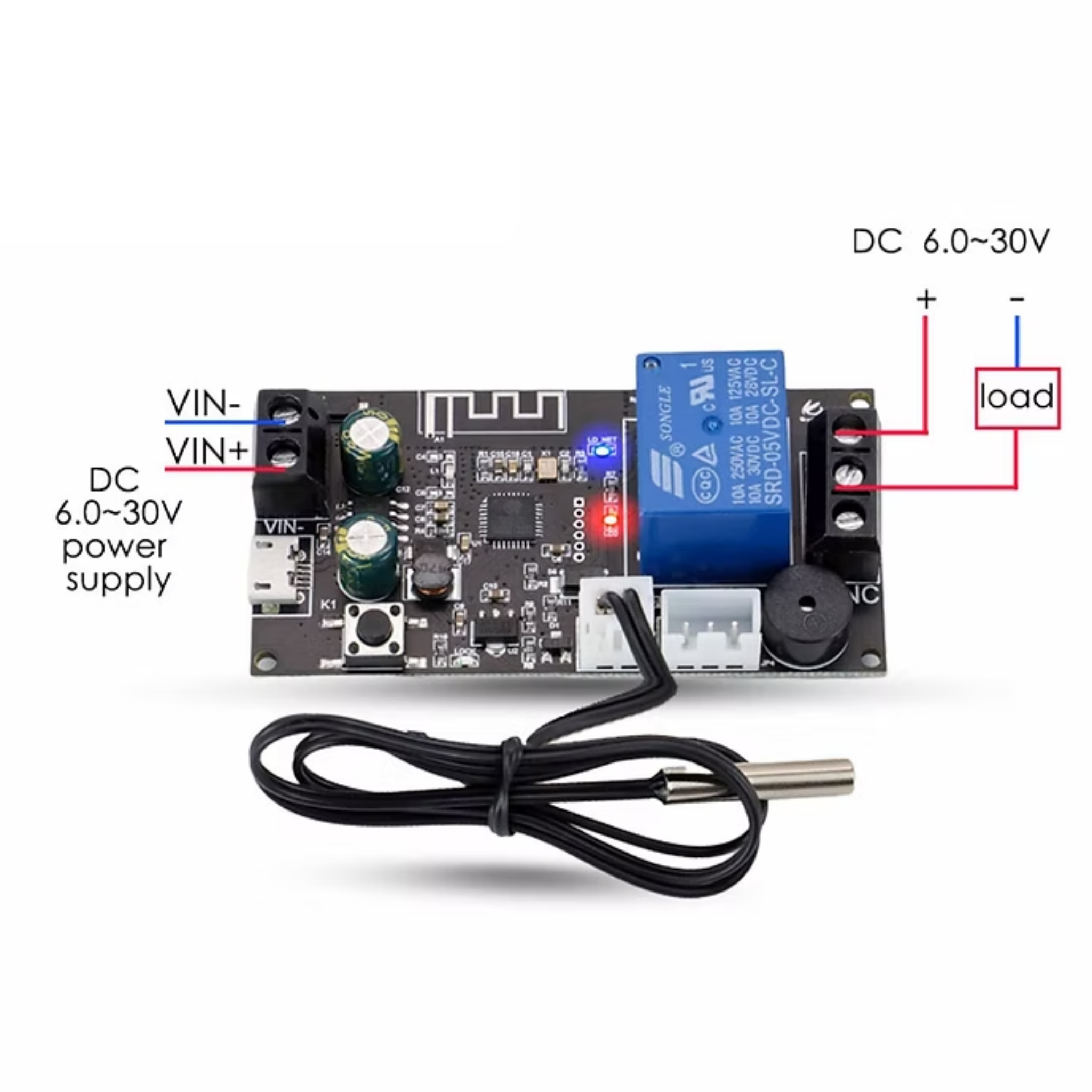

Remote WiFi Thermostat Modules
$14.001 pcs
High-precision temperature measurement, WiFi remote control, wide voltage compatibility, low-power stability, multi-mode operation, smart interconnection, traceable data
| Dimensions | 65 × 34 mm |
|---|---|
| Brand |
easyelecmodule |
2413 in stock
Product Introduction
The Remote Wi-Fi Thermostat High-Precision Temperature Control Module is an integrated electronic module designed for accurate temperature measurement, remote control, and intelligent adjustment. Its core advantage lies in integrating a highly sensitive temperature sensor (such as DS18B20, SHT30, or TMP117), a Wi-Fi communication chip (such as ESP8266/ESP32), a microcontroller (MCU), and a relay/output control circuit.
Remote WiFi Thermostat Module vs Traditional Thermostat Module vs Bluetooth Thermostat Module: Comparison
| Function Dimension | Remote WiFi Temperature Control Module | Traditional Temperature Control Module | Bluetooth Temperature Control Module |
|---|---|---|---|
| Communication Method | WiFi (supports internet remote access) | Wired (e.g., 485 bus) or no communication | Bluetooth (short-range, within 10 meters) |
| Temperature Measurement Accuracy | High (±0.1°C~±0.3°C) | Medium-Low (±1°C~±2°C) | Medium (±0.5°C~±1°C) |
| Control Range | Remote (no distance limit via cloud) | Local (limited by wired range) | Short-range (requires direct connection to mobile devices) |
| Core Advantages | High precision, remote access, intelligent linkage, data recording | Low cost, simple wiring, local stability | Low power consumption, convenient mobile phone pairing |
| Power Consumption | Low (5-15mA in working state, supports sleep mode) | Low (3-10mA, no wireless communication) | Extremely low (1-5mA, Bluetooth low energy) |
| Applicable Scenarios | Smart home, industrial remote monitoring, medical storage, agricultural greenhouses | Traditional residential heating, simple local temperature control | Short-range smart devices (e.g., small refrigerators, desktop heaters) |
Interface Definition
| Pin | Description |
|---|---|
| VCC | Power input (3.3V~5V, supports wide voltage input) |
| GND | Power ground, needs common ground with external devices to ensure stable operation |
| SDA | I2C communication pin (connects to I2C temperature sensors like SHT30) |
| SCL | I2C communication clock pin (cooperates with SDA to transmit sensor data) |
| DQ | 1-Wire communication pin (connects to 1-Wire sensors like DS18B20) |
| RELAY_OUT | Relay output pin (controls the on/off of external heating/cooling devices) |
| ALARM | Alarm output pin (triggers high/low level when temperature exceeds threshold) |
| RESET | Module reset pin (active low, restores factory settings or reboots) |
Auto Mode

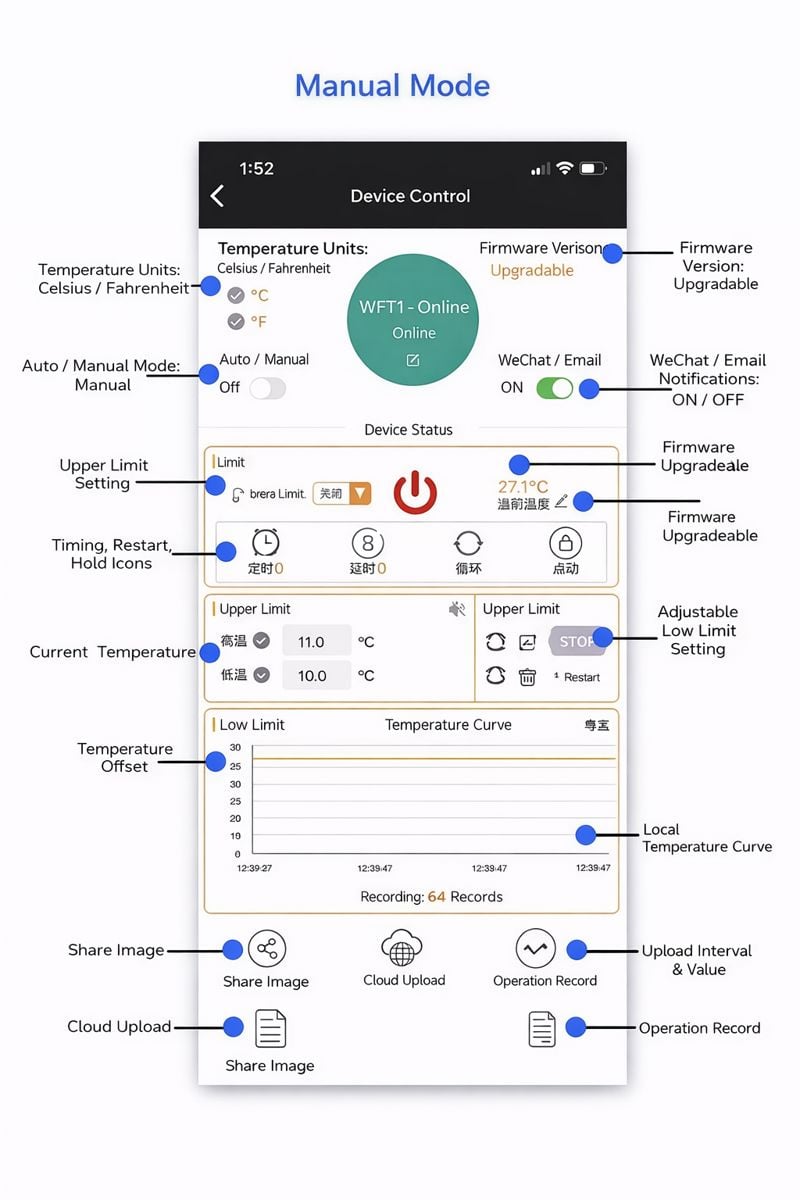

Manual Mode
Application Areas
- Smart Homes: Serves as the core of smart temperature control systems. It remotely controls air conditioners, underfloor heating, water heaters, and refrigerators via mobile apps, enabling scheduled temperature control (like”pre-heating before returning home”) or linkage with smart speakers (voice-controlled temperature adjustment) to enhance living comfort and energy efficiency.
- Industrial Control:Used for temperature monitoring and adjustment of machine tool cooling systems and production line heating equipment. It uploads real-time data to industrial IoT platforms, triggers alarms for abnormal temperatures, and automatically adjusts settings to ensure production safety and product quality.
- Healthcare: Compatible with medical equipment such as medicine refrigerators, blood storage cabinets, and incubators. It maintains precise temperature ranges (like2-8℃), records temperature data long-term, meets medical industry standards, and ensures the effectiveness of medicines/samples.
- Agricultural Scenarios:Applied in greenhouses, seedling rooms, and aquaculture ponds. It monitors ambient temperature in real time, automatically controls heating lamps, ventilation fans, and humidifiers, and creates a suitable growth environment for crops/aquatic products to improve yield and quality.
- Commercial Buildings:Integrated into central air conditioning systems of office buildings, shopping malls, and hotels. It supports zoned temperature control (different temperatures for different floors/areas), allowing property staff to manage remotely, reduce energy waste, and optimize user experience.
- Education & Maker Projects: Serves as a teaching tool for IoT and intelligent control experiments (learning Wi-Fi communication, sensor data collection, and cloud connection). It supports maker projects (likesmart temperature-controlled flower pots, small refrigerators) and competition development, with a low entry barrier.
