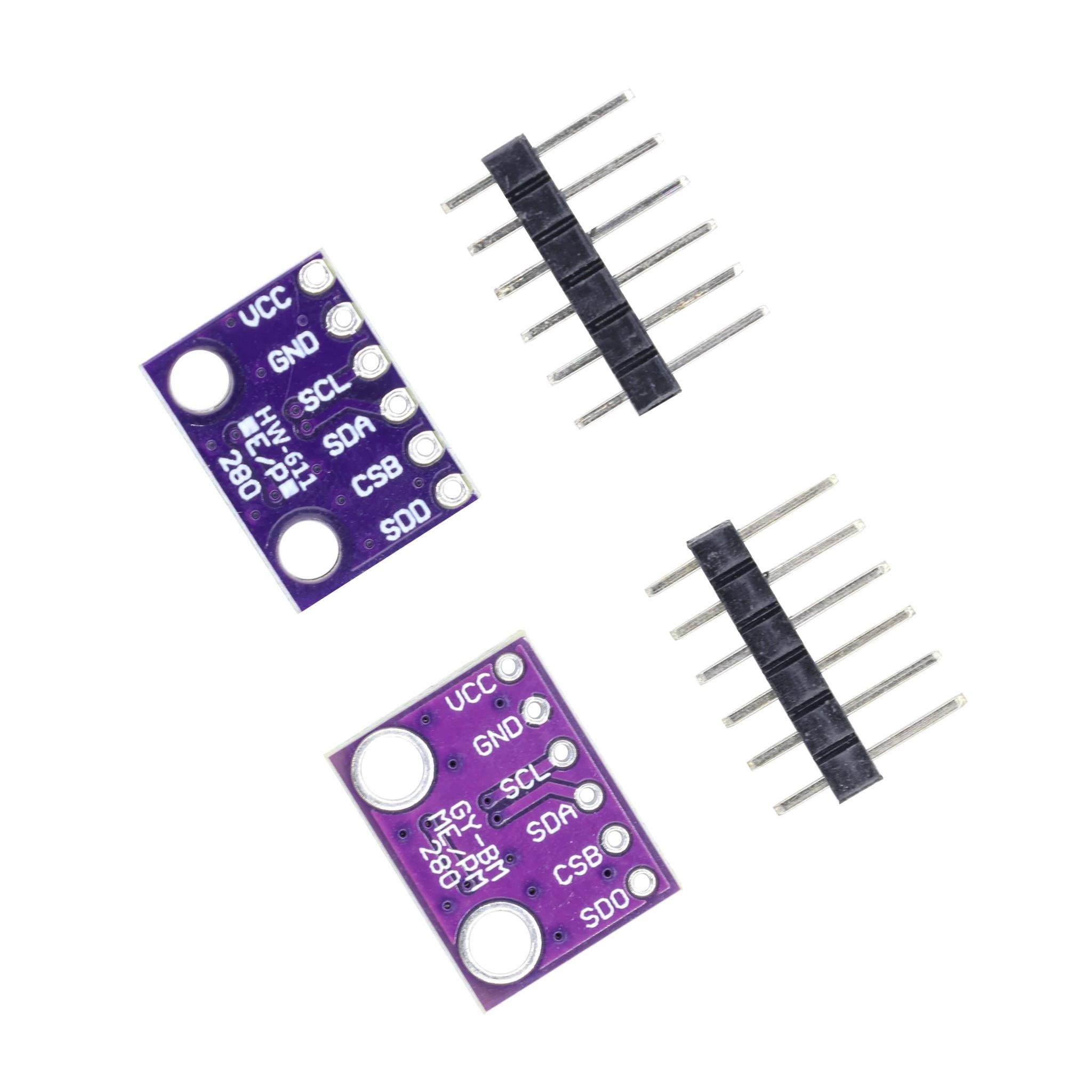

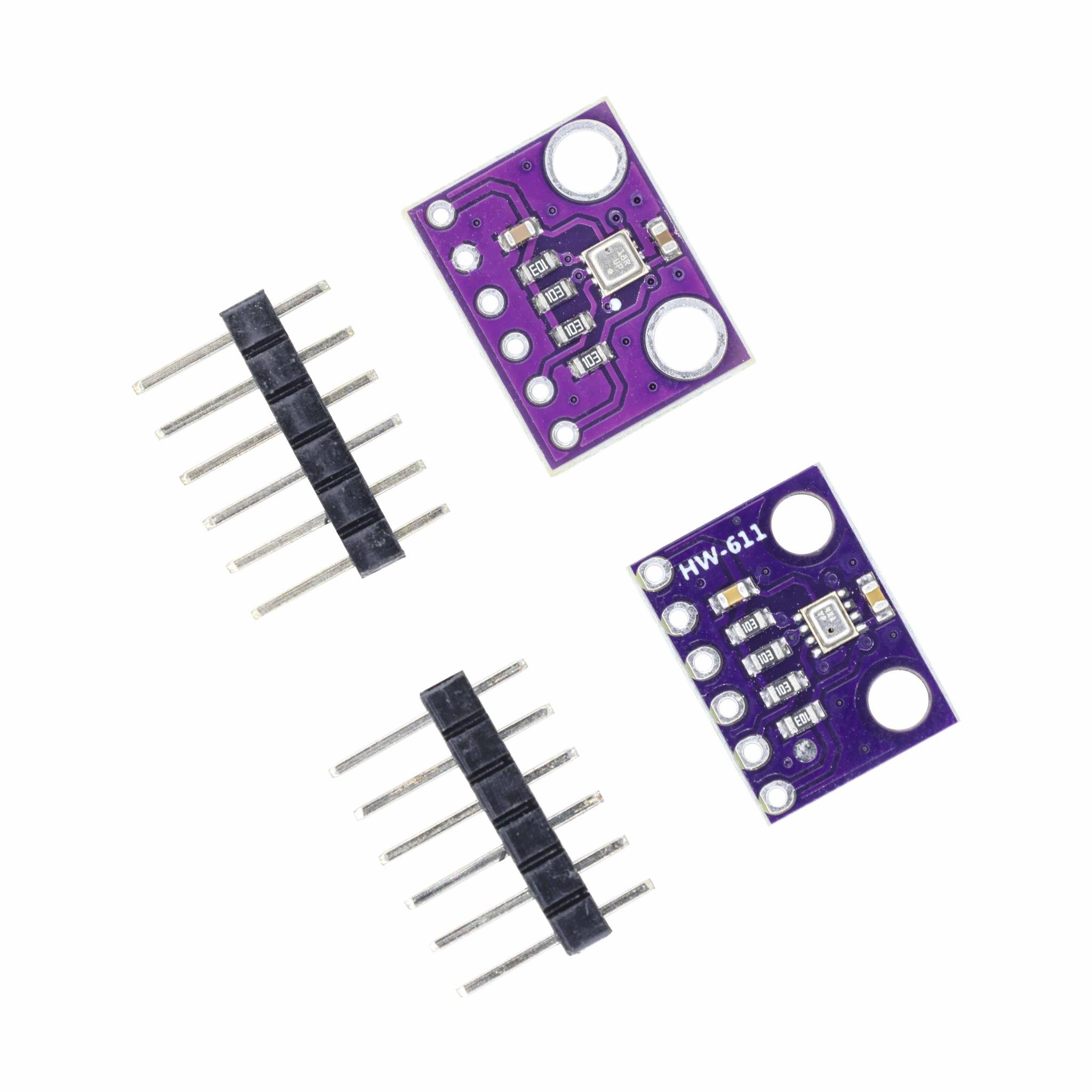

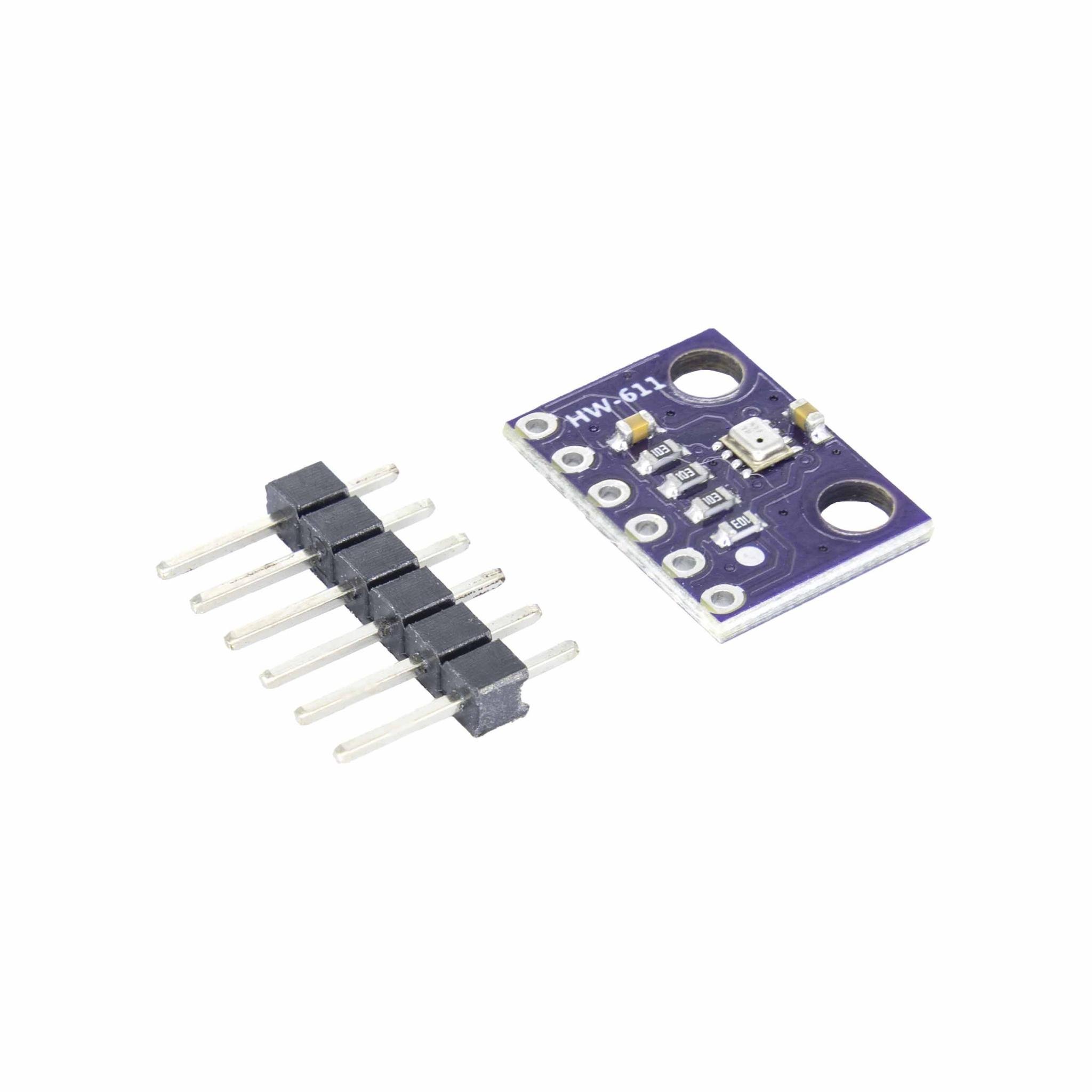

BMP280-3.3 BME280 High-precision Atmospheric Pressure Sensor Module
Price range: $1.10 through $25.20
Compact product with wide voltage input, low power consumption, some models measure humidity.
| Dimensions | N/A |
|---|
Product Introduction

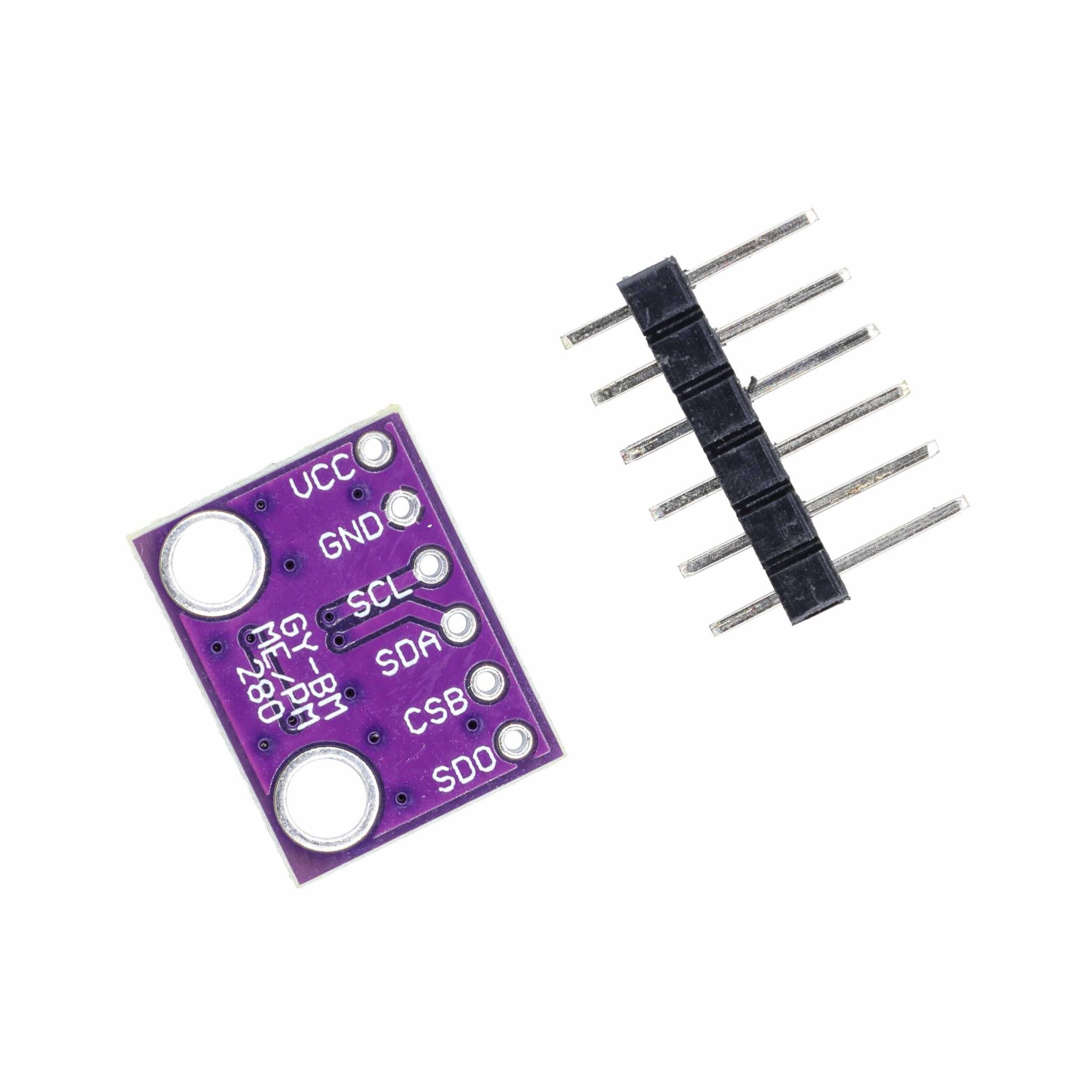

- BME280
The BME280 sensor is a small-sized, low-power digital multi-sensor that can measure the indoor environmental temperature and atmospheric pressure. It is backward compatible with the BMP280, and the control of the pressure and temperature registers as well as the data reading operation mode are the same. . The humidity sensor has a fast wake-up and response time, high accuracy and a wide temperature operating range. The air pressure sensor is a piezoresistive low-noise, high-precision, high-resolution absolute atmospheric pressure sensing element. The temperature sensing element has low-noise and high-resolution characteristics. The temperature value can perform temperature compensation and self-correction for humidity and atmospheric pressure. The humidity sensor and air pressure sensor can be independently enabled/disabled. By configuring the sampling rate register, the sampling rate of the sensitive element can be set. It is highly suitable for mobile devices with limited space, such as smartphones, tablets, smartwatches and wearable devices, weather forecasts, vertical speed indicators, flight control equipment, indoor and outdoor navigation, and smart home devices.
- BMP280
The BMP280 is a high-precision, compact, and low-power consumption pressure sensor that can be applied in mobile devices. lt features outstanding performance with an accuracy of up to 0.2 Pa and low power consumption of only 2.7 μA. The BMP280 is equipped with a powerful 8-pin ceramic leadless chip carrier (LCC) and can be directly connected to various microprocessors via I2C or SPI buses.
Technical Specifications
- BME280 Key Parameters
Supply Voltage | 1.71V~3.6V，suitable for various microcontroller platforms. |
Working Current | Low power consumption design. The typical operating current is 2.8 µA (pressure measurement) and 350 µA (temperature measurement), and it is only 0.1 µA in sleep mode. |
Operating Temperature Range | -40℃~+85℃，suitable for various environmental conditions. |
Temperature Measurement Accuracy | ±1℃（Within the range of -25℃ to +85℃） |
Humidity Range | 0-100% RH |
Humidity Measurement Accuracy | ±3% RH（At 25 degrees Celsius） |
Pressure Range | 300~1100hPa(hundred pascals)，it can cover a wide range of application scenarios from low altitudes to high altitudes. |
Air Pressure Measurement Accuracy | ±1 hPa（under standard conditions） |
Interface | Supports SPI and I2C communication interfaces, providing flexible connection options. |
I2C address | 0x76 or 0x77 |
- BMP280 Key Parameters
Supply Voltage | DC：1.71V~3.6V |
Operating Temperature Range | -40℃~+85℃ |
Pressure Range | 300~1100hPa(hundred pascals) |
Air Pressure Measurement Error | ±1hPa |
Digital Interface Type | IIC(slave mode 3.4MHz) or SPI (3-wire or 4-wire mode with a frequency of 10 MHz) |
I2C address | 0x76 or 0x77 |
Application Scenarios
- BME280
The BME280 sensor, due to its high accuracy and multi-functional features, has extensive applications in various fields. Some typical application scenarios include:
① Indoor and outdoor environment monitoring systems: It can monitor temperature, humidity and air pressure in real time, and is used in homes, offices or agricultural greenhouses.
② Weather stations: It is used to collect meteorological data and help analyze weather change trends.
③ Smart homes: Integrated into smart home systems, it is used to regulate indoor temperature, humidity and air pressure, improving living comfort.
④ Mobile devices: Due to its low power consumption feature, the BME280 can be used as an environmental monitoring sensor for mobile devices (such as smartphones, wearable devices).
⑤Drones and remote sensing equipment: It provides precise environmental information, which is crucial for improving flight safety and measurement accuracy.
- BMP280
The BMP280 stands out among various pressure sensors due to its high accuracy, low power consumption and compact package size. It not only can accurately measure pressure and temperature, but also can calculate altitude based on pressure changes, providing powerful functional support for modern equipment. Whether in meteorological monitoring, unmanned aerial vehicle flight control or indoor navigation, the BMP280 demonstrates outstanding performance and application potential.
Relative Information
The BMP280 sensor is a small-sized, low-power digital compound sensor based on Bosch’s APSM process.It can measure ambient temperature and atmospheric pressure.
The BME280 sensor is an environmental sensor that integrates temperature, humidity and pressure.
