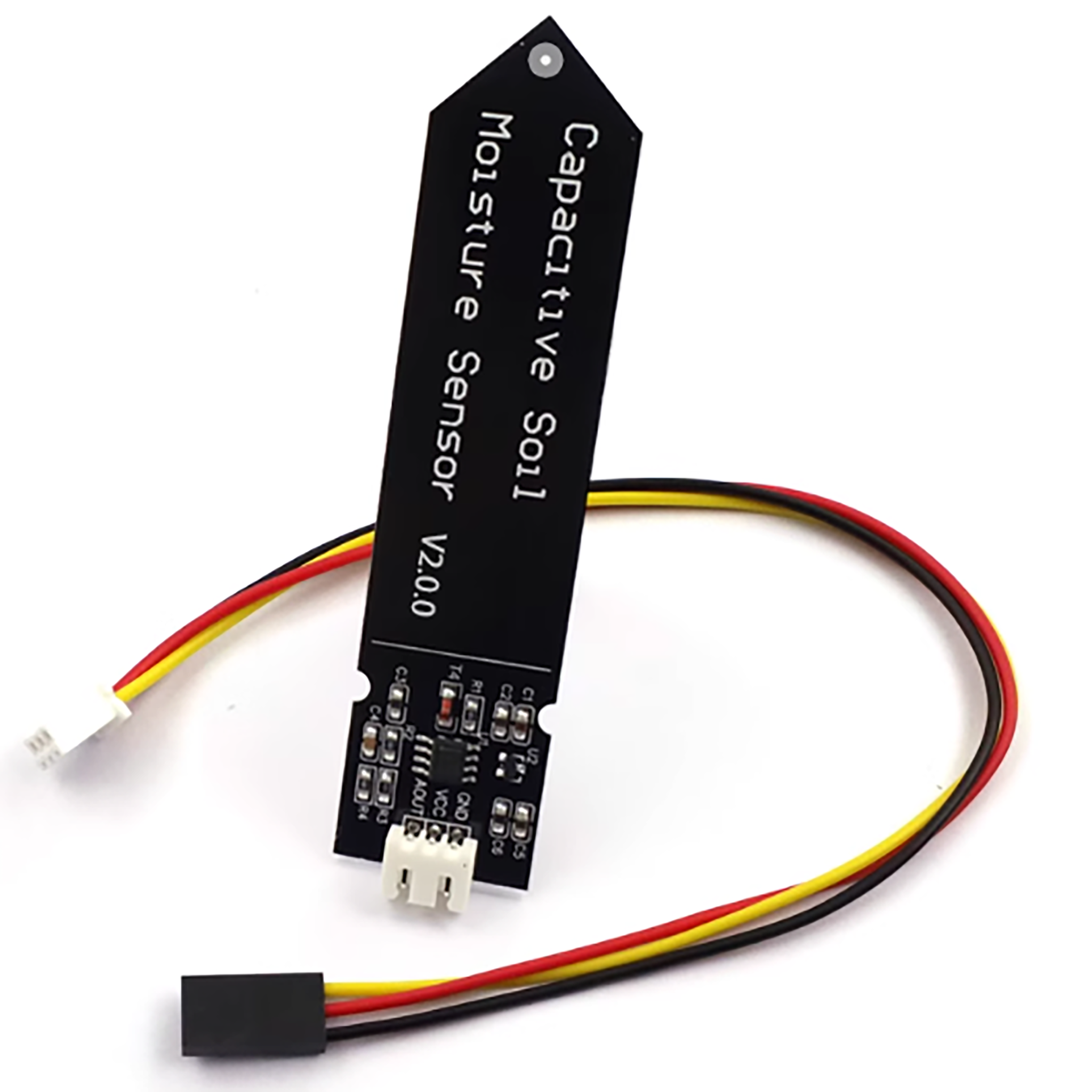

Capacitive Soil Moisture Sensor
$1.741pcs
Capacitive soil moisture sensors mainly rely on the principle of capacitive sensing to detect soil moisture and are suitable for most cultivated products.
| Dimensions | 98 × 23 mm |
|---|---|
| Brand |
easyelecmodule |
3487 in stock

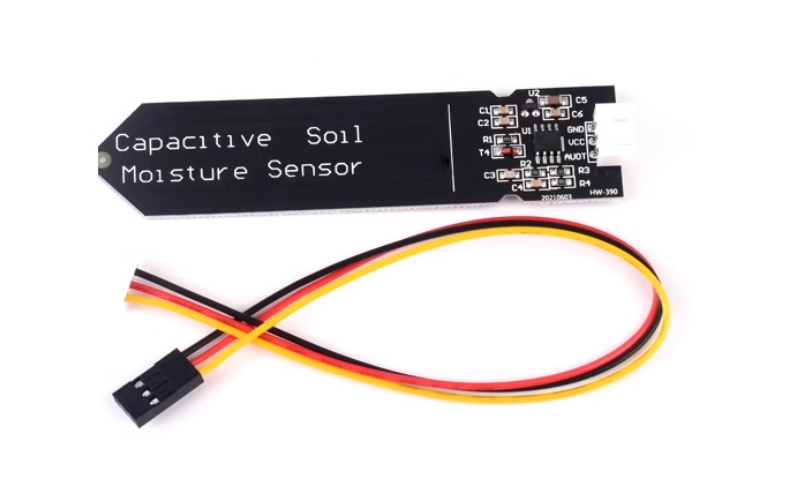

Introduction to Capacitive Soil Moisture Sensor
Different from most resistive sensors available on the market, this capacitive soil moisture sensor adopts the principle of capacitive sensing to detect soil moisture. It avoids the problem that resistive sensors are extremely prone to corrosion, thus greatly extending its service life. The sensor has a built-in voltage regulator chip and supports a wide voltage working environment of 3.3~5.5V, which means it can work normally even on a 3.3V ARDUINO main control board. For micro PCs like Raspberry Pi, it can work only by connecting an external ADC (Analog to Digital Converter) module.

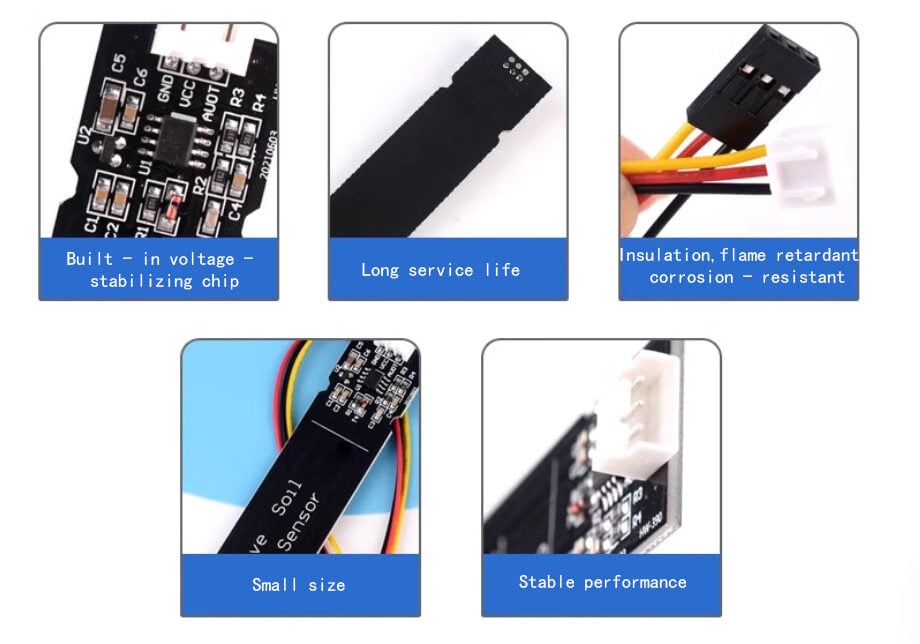

Product Features of Capacitive Soil Moisture Sensors
1. Adopts the principle of capacitive sensing, different from resistive sensing technology;
2. More accurate in measurement;
3. Corrosion resistance is far superior to resistive sensors;
4. Service life is significantly extended;
5. Built-in voltage regulator module, can automatically adapt to 3.3V or 5V voltage;
6. Equipped with a classic 3-pin interface for easy use;
7. Features high temperature resistance and high water resistance.
Product Parameters of Capacitive Soil Moisture Sensors
| Product Name | Capacitive Soil Moisture Sensor |
|---|---|
| Operating Voltage | 3.3~5.5 VDC |
| Output Voltage | 0~3.0 VDC |
| Interface | PH2.0-3P |
| Dimensions | 98(L) × 23(W) | mm |
Introduction to the Pinout of Capacitive Soil Moisture Sensors
Capacitive Soil Moisture Sensors Introduction to pins and warning lines:
Capacitive Soil Moisture Sensors Size:
Capacitive Soil Moisture Sensors Overall dimensions: 98 (length) * 23 (width) mm
soil moisture sensor range: 71.5mm
Applicable Groups for Capacitive Soil Moisture Sensors
electronic enthusiasts, college students, science and technology education industry
DIY Small Projects with Capacitive Soil Moisture Sensors
