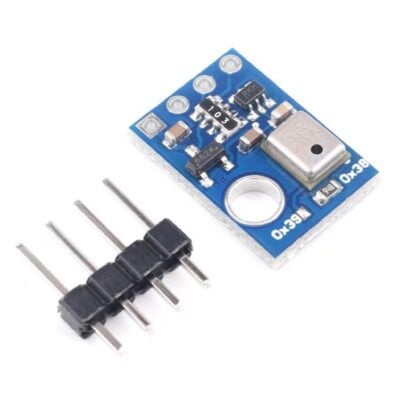

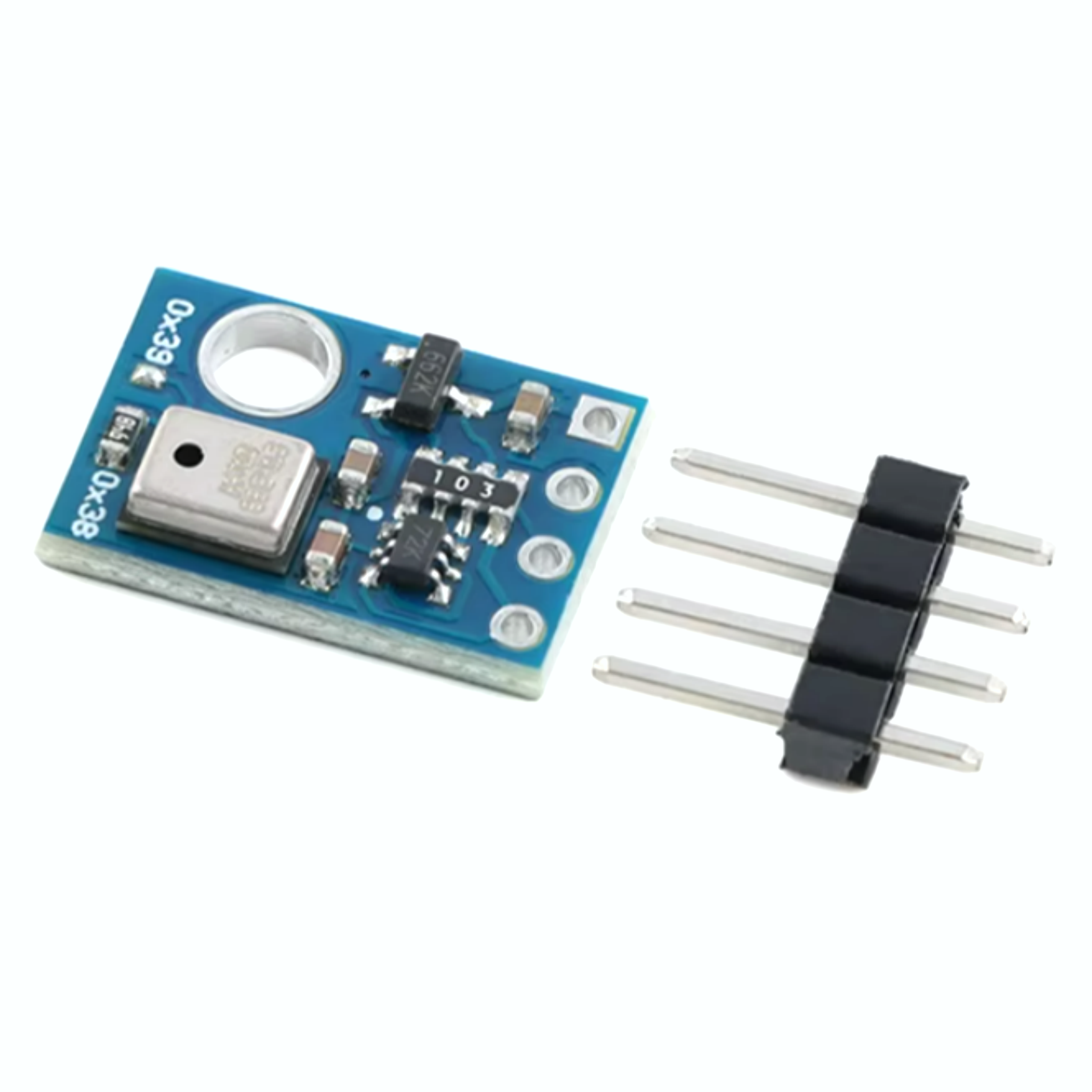

AHT10 Temperature and Humidity Sensor Module
$2.461pcs
AHT10 compact yet powerful. Grab exact temp and humidity fast. Easy I2C, low drain, ideal for makers and smart tools. Bring live sense to your ideas.
| Dimensions | 15.0 × 11.0 mm |
|---|---|
| Brand |
easyelecmodule |
5120 in stock
AHT10 Introduction
The AHT10 sensor is a high precision, fully calibrated, surface-mount package temperature and humidity sensor. The MEMS manufacturing process ensures extremely high reliability and excellent long-term stability of the product. The sensor includes a capacitive humidity-sensitive element connected to a high performance CMOS microprocessor. This product has the advantages of excellent quality, ultra-fast response, strong anti-interference ability, and extremely high cost performance.
The AHT10 adopts the standard I2C communication protocol. Its ultra-small size and extremely low power consumption make it the optimal choice for various applications, even the most demanding ones. The AHT10 supports a wide operating supply voltage range, offering cost-effective and low-power advantages for various common application scenarios. Temperature and humidity sensors are factory-calibrated in high-precision constant temperature and humidity chambers, directly outputting temperature-compensated humidity, temperature. Users can obtain accurate temperature and humidity data without the need for additional temperature compensation for humidity.
AHT10 Feature
1. Digital output, I²C interface
2. Excellent long-term stability
3. Adopts SMD package suitable for reflow soldering
4. Fast response and strong anti-interference capability
AHT10 Pin Function
AHT10 Parameter
| Interface type | IIC |
|---|---|
| Working voltage | 1.8-6.0 V |
| Interface size | 4 * 2.54mm pitch |
| Humidity accuracy | Typical ±2%RH |
| Humidity resolution | 0.024%RH |
| Humidity range | 0~100%RH |
| Temperature accuracy | Typical ±0.3℃ |
| Temperature resolution | 0.01℃ |
| Operating temperature | -40℃~85℃ |
| Module size | 15.0 * 11.0 mm |
AHT10 Application
HVAC, dehumidifiers, testing and measurement equipment, consumer products, automotive, automatic control, data loggers, weather stations, home appliance humidity regulation, medical and other related humidity detection and control…
