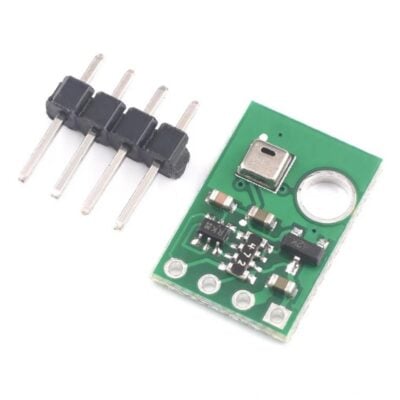

AHT20 Temperature and Humidity Sensor Module
$2.511pcs
AHT20 gives ultra precise, low power temperature and humidity sensing via I2C. Quick, steady results, simple linkup. Ideal for IoT, wearables, smart devices.
| Dimensions | 15.0 × 10.4 mm |
|---|---|
| Brand |
easyelecmodule |
6805 in stock

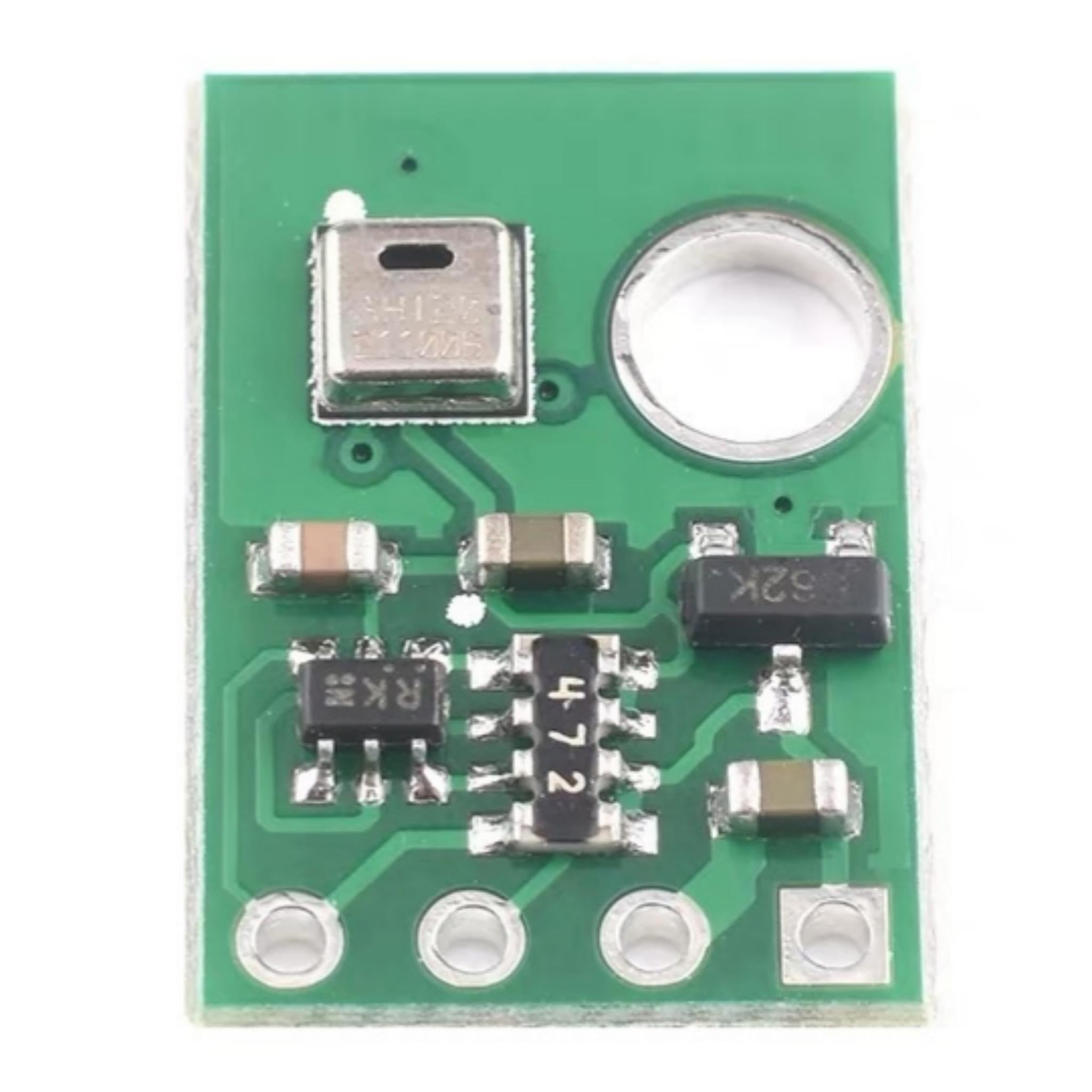

AHT20 Introduction
The AHT20 module is a digital temperature and humidity sensor that features high precision, low power consumption, and digital output, making it suitable for a variety of applications including industry, agriculture, meteorology, home automation, and others.
AHT20 Feature
- High-Precision Measurement
Built-in 24-bit ADC, supporting synchronous acquisition of temperature and humidity with a data refresh rate of approximately 0.5Hz (default mode).
Integrated calibration function with factory pre-calibration, eliminating the need for additional calibration.
- Low-Power Design
Sleep mode current as low as 5μA, suitable for battery-powered devices (such as weather stations, sensor nodes).
- I2C Communication
Standard I2C protocol (100kHz/400kHz), default slave address is 0x38 (can be modified via hardware).
AHT20 Pin Function
AHT20 Parameter
| Model | AHT20 |
|---|---|
| Working voltage | 2.0-5.5V DC |
| Interface size | 4*2.54 mm pitch |
| Humidity measurement range | 0~100% RH |
| Temperature measurement range | -40~+85 °C |
| Humidity accuracy | ±2%RH (25℃) |
| Temperature accuracy | ±0.3℃ |
| Resolution | Temperature: 0.01℃ Humidity: 0.024%RH |
| Interface type | I²C |
AHT20 Application
1. Automatic temperature and humidity adjustment (such as linkage with air conditioners and humidifiers).
2. Greenhouses, warehousing and logistics (real-time monitoring of temperature and humidity abnormalities).
3. Fitness bands/watches (judging human sweating status combined with humidity).
4. Equipment cabinet cooling systems (activating fans based on temperature).
