SD6303 boost module
$0.691PCS
The SD6303 boost module can output up to 5V with a maximum current of 600mA. With a single AA battery, it is capable of delivering an output current of 200mA.

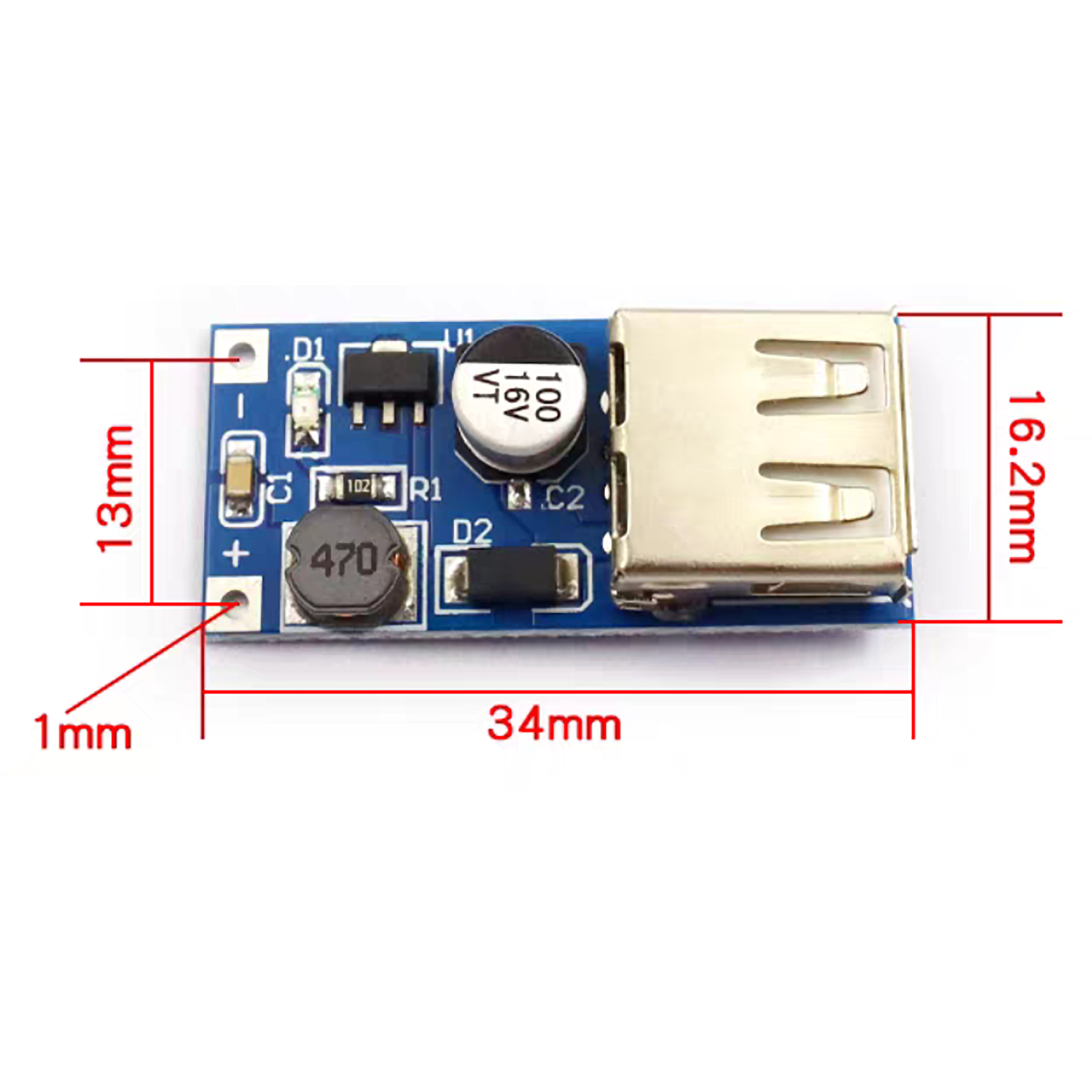

| Dimensions | 17 × 35 mm |
|---|---|
| Brand |
easyelecmodule |
6522 in stock
Product Introduction

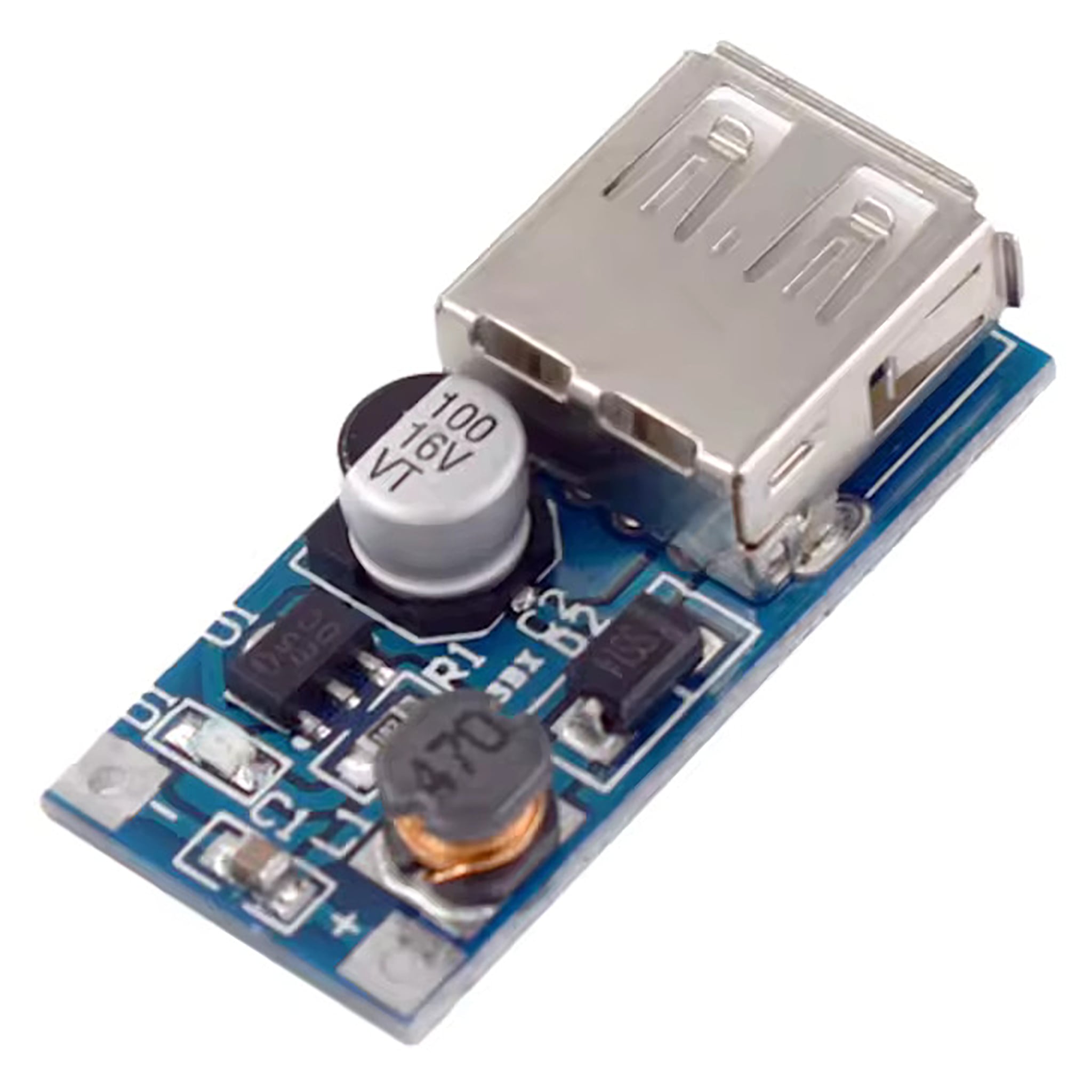

The SD6303 boost module is a compact step-up converter built around the SD6303 controller IC, featuring the following characteristics:
Utilizes PFM (Pulse Frequency Modulation) for boost conversion, delivering higher efficiency under light loads.
Accepts a wide input voltage range of 0.9 V to 5 V, making it ideal for devices powered by solar panels or dry cells where voltage fluctuates significantly and output power requirements are modest.
Capable of delivering up to 600 mA output current; a single AA (dry) battery can supply 200 mA.
Onboard USB port for direct connection to USB-powered devices, expanding its application scope.
Small form factor for easy integration into various equipment.
Built-in LED indicator for operational status.
Product Parameters
| SD6303 | VALUE | SD6303 | VALUE |
|---|---|---|---|
| Input voltage | 0.9–5V | Output voltage | 5V |
| Max current | 600mA | Max efficiency | 89% |
| Max frequency | 300kHz | Output accuracy | ±2.5% |
| Standby current | 1µA | Maximum duty cycle | 83% |
Using video
If you would like to learn about related boost converter circuits, please visit simple-step-up-converter-chip-sd6303.
