XL6009 DC-DC Boost Adjustable Voltage Regulator Module

Price range: $1.60 through $9.111pcs

Dimensions N/A
Brand

easyelecmodule

SKU: N/A Categories: ,
DESCRPIPTION AND FEATURES

XL6009 DC-DC Boost Adjustable Voltage Regulator Module

  • Product Introduction

     The XL6009 DC-DC Boost Adjustable Voltage Regulator Module is a high-performance boost module with a 4A switching current. This module uses the XL6009E1, which adopts the second-generation high-frequency switching technology, as its core chip. Its performance is better than that of the LM2577 with the first-generation technology. The XL6009 boost module has lower cost and better performance.

  • Product Feature

1.Wide input voltage: 3V~32V, optimum operating voltage range : 5~32V

2.Wide output voltage: 5V~35V

3.Built-in 4A high-efficiency MOSFET switch, enabling an efficiency of up to 94%. (the LM2577 current is only 3A)

4.High switching frequency of 400KHZ, which allows small capacity filter capacitors to achieve very good results with smaller ripple and smaller size. (the LM2577 frequency is only 50KHZ)

  • Hardware Diagram
XL6009 DC-DC Boost Adjustable Voltage Regulator Module Hardware Diagram
  • Product Parameter
Model XL6009 DC-DC Boost Adjustable Voltage Regulator Module Module nature Non-isolated Boost
Rectification mode Asynchronous rectification Input range 5V-32V (Input must be no less than 5V)
Output range 5V-35V (Set the output voltage higher than the input voltage) Input current Load: 4A (maximum); No-load: 18mA (with 5V input and 8V output, the no-load current is less than 18mA. The higher the voltage, the larger the no-load current)
Conversion efficiency <94% (The greater the voltage difference, the lower the efficiency) Switching frequency 400KHZ
Output ripple 50mV (The higher the voltage and the larger the current, the greater the ripple) Load regulation ±0.5%
Voltage regulation 0.5% Operating temperature -40℃~85℃
  • Test Comparison Example Reference
    IN+ : Input Positive Pole           IN- : Input Negative Pole           OUT+ : Output Positive Pole            OUT- : Output Negative Pole
InputOutput
5V12V 0.8A
7.4V12V 1.5A
12V15V  2A
12V16V  2A
12V18V 1.6A
12V19V 1.6A
12V24V 1A
3V12V  0.4A

    Vin * Iin * Efficiency=Vout * Iout

    Vin : Input voltage  Iin : Input current

    Vout : Output voltage Iout : Output current

    Exempli gratia : Input 5V,1A  Output 10V,0.45A

    Efficiency : 90%    5*1*90%=10*0.45A

    Note :

    When testing, if the output voltage is not higher than the input voltage, please adjust the potentiometer counterclockwise to increase the output voltage. Remember, do not adjust it        clockwise to use it as a buck module. It is necessary to ensure that the set output voltage is higher than the input voltage to avoid damaging the module!

XL6009 DC-DC Wide Voltage Automatic Boost Buck Blue Version

  • Product Feature

    When a car starts, the voltage may be pulled down to below 7V or even lower, and when the engine is running at high speed, the voltage may be as high as 15V or higher. Electrical appliances operating at 12V can hardly work normally. This automatic buck-boost module solves this problem. Regardless of whether the input voltage is 5V, 12V or 32V, the output can be stabilized at 12V.

  1. Wide input voltage range: 5V~32V
  2. Wide output voltage range: 1.25V~35V (automatic buck-boost, within the operating range, any input voltage can stabilize any output voltage)
  3. Built-in 4A high-efficiency MOSFET switch, enabling a maximum efficiency of 94%. (LM2577 current is only 3A)
  4. The module circuit is a mature buck-boost solution.
  5. The main chip adopts XL6009, with an ultra-high switching frequency of 400KHz, small ripple and small size. (LM2577 frequency is only 50KHz)
  • Tutorial
  1. Connect the power supply (5~32V), the power indicator light is on, and the module works normally.
  2. Adjust the blue potentiometer knob (generally, rotate clockwise to step down, rotate counterclockwise to step up), and use a multimeter to monitor the output voltage until the required voltage is reached.
  3. Some customers reported that the output voltage of the module cannot be adjusted and is always equal to the input voltage. When you encounter this problem, please first rotate the potentiometer counterclockwise for more than 10 turns, and then use the module to adjust the voltage normally.
  • Product Parameter
ModelXL6009 DC-DC Wide Voltage Automatic Boost Buck Blue VersionModule natureNon-isolated Buck-Boost
Rectification modeAsynchronous rectificationInput range5V~32V
Output range1.25V~35VInput current4A(maximum),no-load 18mA (with 5V input and 8V output, the no-load current is less than 18mA. The higher the voltage, the larger the no-load current)
Conversion efficiency94%(The greater the voltage difference, the lower the efficiency)Switching frequency400KHZ
Output ripple50mA(The higher the voltage and the larger the current, the greater the ripple)Load regulation±0.5%
Voltage regulation±0.5%Operating temperature-40℃~85℃
  • Hardware Diagram
XL6009 DC-DC Wide Voltage Automatic Boost Buck Hardware Diagram
  • Application Cases
  1. Vehicle-mounted regulated power supply, simply connect the input end of this module to the car cigarette lighter for power supply, then adjust the potentiometer, and the output voltage can be arbitrarily adjusted within 1.25~30V, which can supply power to many devices such as your mobile phone, MP3, MP4, PSP for charging, which is very simple and convenient.
  2. System working voltage test, when doing projects, this module can be used to debug various voltages to test the working voltage range of the system, which is very easy and convenient.
  3. Applications with unstable voltages such as automobile voltage stabilization, solar photovoltaic power generation, wind power generation, etc.

Note :

  1. It is recommended to use a current within 2.7A for long-term operation. To ensure stable output, please maintain a minimum voltage difference of 1.5V.
  2. The wiring should be connected as shown in the connection diagram of the hardware diagram. Do not reverse the connection, as incorrect wiring may cause the power module to burn out.

XL6009 DC-DC Adjustable Boost Buck Voltage Regulator Module Red Version

  • Product Introduction
  1. Up to 400KHz operating frequency and filter circuit, very low output ripple.
  2. TDK inductor minimizes heat generation and interference.
  3. 3 MLCC multilayer ceramic capacitors for input and output, enhancing anti-interference and stability.
  4. PCB uses KB’s Class A sheet material, eliminating paper-based boards and inferior boards.
  5. Built-in MOSFET enables high efficiency up to 94%.
  6. Added enable port to control whether the boost circuit works.
  • Product Parameter

ModelXL6009 DC-DC Adjustable Boost Buck Voltage Regulator Module Red VersionModule natureNon-isolated Buck-Boost Module

Input voltage5~32VOutput voltageContinuously adjustable (1.2~35V)
Input current4A(MAX)Output current1.5A(MAX)
Output powerNatural cooling 20W, with heat sink 25W (MAX) actual powerMaximum output powerInput voltage * 4A * Conversion efficiency
Operating temperatureIndustrial grade (-40℃~+85℃) (When the ambient temperature exceeds 40℃, please reduce the power usage or enhance heat dissipation)Temperature Rise at Full Load45℃
Working frequency400KHZNo-load CurrentTypical 15mA (5V to 12V)
Load regulation±0.5%Voltage regulation±0.5%
Enable control portHigh level 1.4V~VIN (ON), low level 0~0.8V (OFF), default high levelShort circuit protectionNone (Please add a fuse or protection circuit at the input)
Input reverse connection protectionNone, please use our reverse connection protection board or connect a diode in series at the inputMounting methodCan be fixed with screws (fixing hole 3mm), 2 fixing holes
  • Hardware Diagram
XL6009 DC-DC Adjustable Boost Buck Voltage Regulator Module Hardware Diagram

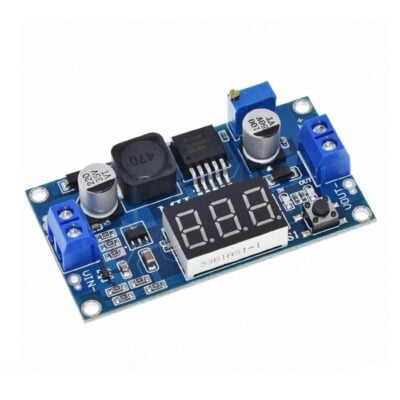

XL6009 Boost Adjustable Voltage Regulator Module with Digital Display

  • Product Introduction

XTW6009 is a high-performance boost module with 4A switching current. This module adopts the second-generation high-frequency switching technology.

XL6009E1 is the core chip, with better performance than LM2577. The XL6009 boost module has low cost and good performance, and the LM2577 module is about to be eliminated.

  • Product Feature

1. Wide input voltage range: 3V~32V (Boost works normally when below 5V, but the nixie tube does not work), the optimal operating voltage range is 5~32V.

2. Wide output voltage range: 5V~35V.

3. Built-in 4A high-efficiency MOSFET switch, enabling efficiency up to 94% (LM2577 current is only 3A).

4. High switching frequency of 400KHZ, which allows small capacity filter capacitors to achieve very good results, with low ripple and small size. (LM2577 frequency is only 50KHZ).

5. With power indicator light.

6. Equipped with a voltmeter display that supports self-calibration. Adopts a more advanced voltage microprocessor, with a voltmeter error of ±0.05V and a measuring range of 0~35V. (Note: To ensure the accuracy of the voltmeter, please keep the input voltage above 4.5V.)

7. A touch button can switch between measuring input or output voltage, with an indicator light showing which voltage is being measured. The setting is saved even after power-off and restart.

8. The voltmeter can be turned off. Touch the left button when display is not needed.

9. Comes with terminal blocks for easy use without a soldering iron, and retains the soldering points.

10. Features over-temperature protection and short-circuit protection functions.

  • Hardware Diagram
XL6009 Boost Adjustable Voltage Regulator Module with Digital Display Hardware Diagram
  • Product Parameter
Model XL6009 Boost Adjustable Voltage Regulator Module with Digital Display Module nature Non-isolated boost
Rectification mode Asynchronous rectification Input current 4A(maximum), no-load 18mA (5V input, 8V output, no-load current less than 18mA. The higher the voltage, the larger the no-load current)
Conversion efficiency ≤94%(The greater the voltage difference, the lower the efficiency) Switching frequency 400KHz
Output ripple 50mv(The higher the voltage and the larger the current, the greater the ripple) Load regulation ±0.5%
Voltage regulation ±0.5% Operating temperature -40℃~+85℃

IN+ : Input Positive Pole             IN- : Input Negative Pole              OUT+ : Output Positive Pole             OUT- : Output Negative Pole

InputOutput
5V12V     0.8A      9.6W
7.4V12V     1.5A      18W
12V15V       2A         30W
12V16V       2A         32W
12V18V      1.6A      28.8W
12V19V       1.5A     28.5W
12V24V       1A         24W
3V12V       0.4A     4.8W

Note :

  1. Nixie tube:

      Used to display input voltage and output voltage, which can be switched by short-pressing the button. When the IN indicator is on, it indicates that the input voltage is displayed. When the OUT indicator is on, it indicates that the output voltage is displayed.

  1. Potentiometer:

      Used to adjust the output voltage. Press the button to switch the nixie tube to display the output voltage (the OUT indicator is on), then rotate the potentiometer counterclockwise to decrease the voltage and clockwise to increase the voltage.

  1. Calibration function:

      ① Input and output voltage measurement error calibration: Long press the switch for more than 4 seconds, then release it to enter the voltage measurement error calibration function. At this time, the IN light is on (calibrating the input end), and the nixie tube flashes to display the calibration value (the factory parameter is 0.0). Short press the button to change this value (the value range is -0.5~0.5, unit is V). A positive number indicates upward calibration, and a negative number indicates downward calibration. After adjusting the calibration value of the input end, long press the button for more than 2 seconds, then release it to enter the error calibration of the output end. At this time, the OUT light is on (calibrating the output end) and displays the calibration value of the output end. The adjustment method is the same as that of the input end. After adjusting the calibration value of the output end, long press the button for more than 2 seconds, then release it to save the set value and return to normal voltage display. The set calibration value takes effect immediately and is not lost when power is off. (With this function, it can meet your higher precision requirements).

      ② Turn off the voltmeter: Long press the switch for more than 1 second and less than 4 seconds, then release it to turn off. After the voltmeter is turned off, just short press the switch to turn it on.

DC-DC Adjustable Boost Power Supply Module XL6019 5A High Current

  • XL6019 Feature
  1. Adopts a conventional fully integrated constant voltage output scheme with few peripheral components and low system cost.
  2. Wide voltage range input with high input voltage up to 35V.
  3. Adjustable output voltage, supporting up to 40V.
  4. Built-in over-temperature protection, over-current protection, and a full set of reliability protection circuits, with high reliability.
  5. The system conversion efficiency can reach more than 90%, facilitating thermal design.
  6. 5V to 40V wide input voltage range
  7. 1.25V output voltage sampling voltage
  8. SW built-in overvoltage protection function
  9. Fixed 220KHz switching frequency
  10. Large 5A switching current
  11. Conversion efficiency of over 94%
  12. EN pin TTL shutdown function
  13. Excellent line and load regulation
  14. Built-in power MOS
  15. Built-in frequency compensation function
  16. Built-in soft-start function
  17. Built-in thermal shutdown function
  18. Built-in current limit function
  • XL6019  Hardware Diagram
DC-DC Adjustable Boost Power Supply Module XL6019 5A High Current DC-DC Adjustable Boost Power Supply Module XL6019 5A High Current Hardware Diagram
  • XL6019 Parameter
ModelXL6019 boost moduleModule natureIsolated boost
Rectification modeAsynchronous rectificationInput rangeLimit: 4.5~40V, recommended value: 4.5~35V
Output rangeLimit: 5~45V, recommended value: 5~40V (via rotating potentiometer)Input currentLimit: 0~5A, recommended value: 0~3A
Conversion efficiencyUp to 94%Switching frequency20KHz, Second-generation switching power supply technology
Output rippleLess than 100mVLoad regulation±0.5%
Voltage regulation±0.5%Operating temperature-40℃~+150℃
Recommended value-20℃~+85℃Reverse connection protectionInput 40V reverse connection protection

LTC1871 Boost Power Supply Module High Power 100W

  • LTC1871 Parameter
ModelLTC1871 Boost Power Supply ModuleSize67*43*12 mm(without copper standoffs)
Input voltage3~35V DC (Note: If the input voltage is less than 4V, the onboard voltmeter will fail)Input current9A(MAX)
Output voltage3.5~35V DC (This board is a boost board, output voltage ≥ input voltage)Output current6A(MAX)
Output power75W(When both input and output voltages are higher than 20V, the power can reach 128W)Conversion efficiency96.7%(maximum)
Output ripple24mV(TYP)Onboard voltmeter range4~40V, error ±0.1V
Short circuit protectionhave (Current limited to 14A)Input reverse connection protectionNo (If needed, please connect a high-current diode in series with the input)

Note:

             When connecting a high-power load, the inrush current is very large at startup, which may trigger current limiting and self-locking protection. It is recommended to start the device first and then connect the load.

  • LTC1871  Hardware Diagram
LTC1871 Boost Power Supply Module High Power 100W Hardware Diagram
  • LTC1871 New Advantage
  1. Onboard LED working indicator, making the working status more intuitive.
  2. One-key switch for the on/off of the nixie tube, and one-key switch for the measurement of input and output voltage. (When the onboard voltage indicator “IN” is on, it displays the input voltage. When “OUT” is on, it displays the output voltage.)
  3. This product strongly introduces the program self-calibration function for voltage display value! There will never be a problem of inaccurate voltmeter.
  • LTC1871 Application
  1. DIY a regulated power supply, with an input of 5V, and an adjustable output of 5-35V.
  2. Power your electronic devices, and the output value can be set according to your system voltage. For example, 7.4V or 12V can be boosted to 19V to power a laptop.
  3. It can power your various digital products.
