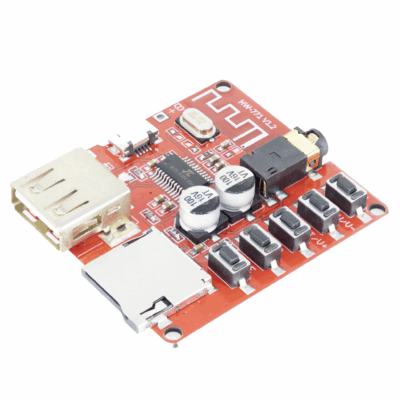

4.1 MP3 WAV Decoding Board Speaker Amplifier Audio Receiver Module
$5.001 pcs
Audio Receiver Module combines Bluetooth wireless reception, audio decoding, and signal amplification into one unit.
| Dimensions | 45 × 37 mm |
|---|---|
| Brand |
easyelecmodule |
364 in stock
The Car Audio 4.1 MP3 WAV Decoding Board is a compact audio module. It’s not just a single chip, but an integrated product module that combines Bluetooth wireless communication, audio decoding, and power amplification. Its core consists of three parts:
- Bluetooth 4.1 communication chip (responsible for receiving wireless audio signals from devices like phones and tablets).
- MP3/WAV decoding chip (converts digital audio files into analog audio signals).
- Audio amplification circuit (boosts the power of the analog signal to drive speakers).
It also comes with peripheral components like a USB port, TF card slot, and audio input/output interfaces, offering a “plug-and-play” experience.
4.1 MP3 WAV Decoding Board Interface Specifications
| Interface | Description |
|---|---|
| Power Interface | Standard Micro USB port for 5V power input. |
| 3.7-5V Pads | Soldering pads for external 3.7V to 5V power input (for custom installations). |
| USB Port | Supports playing MP3/WAV/APE files from USB drives. Requires FAT16/FAT32 format. |
| TF Card Slot | Supports playing MP3/WAV/APE files from TF (MicroSD) cards. Requires FAT16/FAT32 format. |
| LED Indicator | Bluetooth mode: Blue light solid. Music playing: Blue light blinking. |
| 3.5mm Stereo Output | Standard 3.5mm jack for stereo audio output. Can connect to headphones, amplifiers, etc. |
4.1 MP3 WAV Decoding Board Buttons and Their Functions
| BUTTON | FUNCTION DESCRIPTION |
|---|---|
| RPT | Short press to switch between single track and loop play. |
| PREV/V- | Short press to play the previous track; long press to decrease volume. |
| NEXT/V+ | Short press to play the next track; long press to increase volume. |
| P/P | Short press to play/pause. |
| MODE | Short press to switch among TF card, U disk, and Bluetooth modes. |
