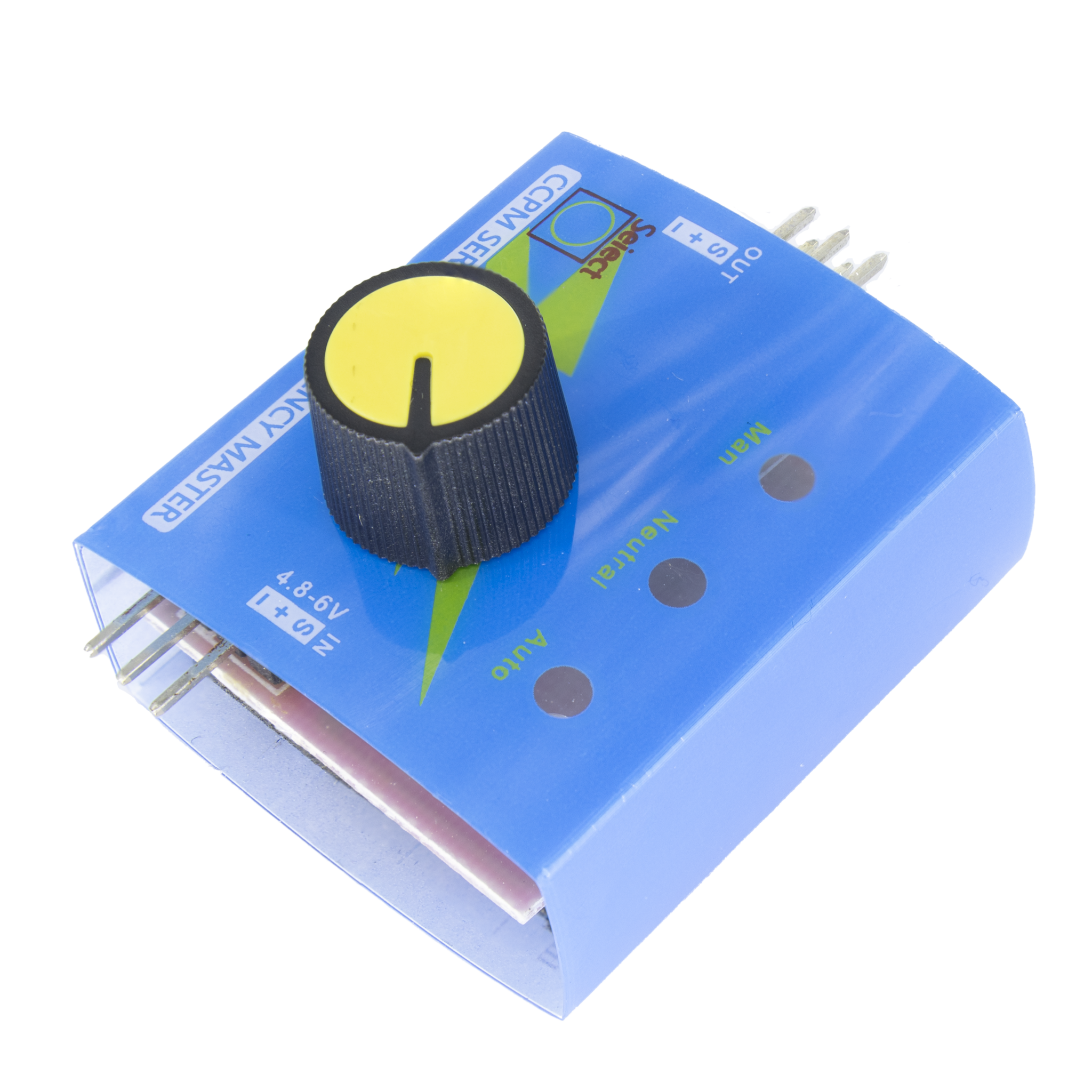

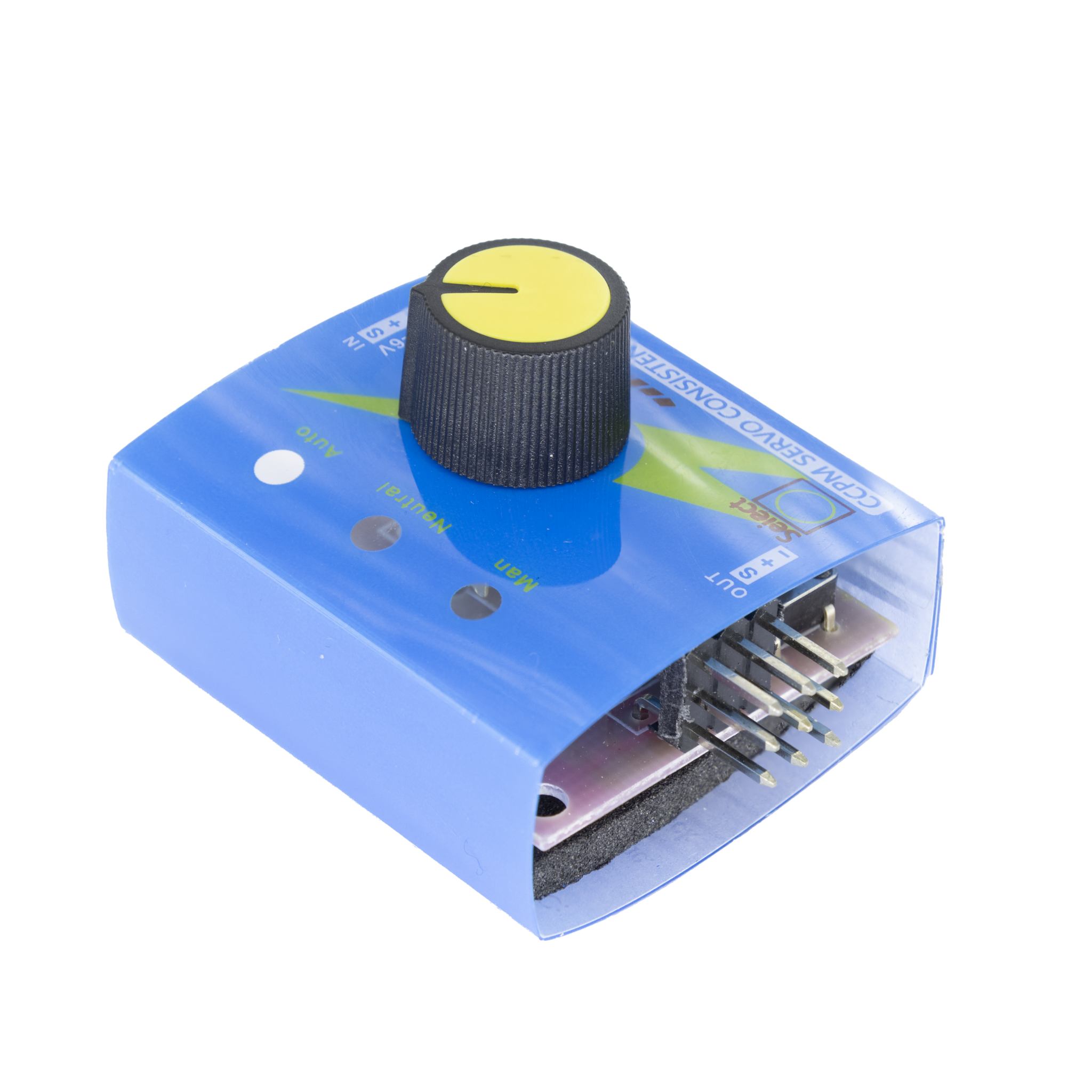

Digital Multi Servo Tester
$2.501 pcs
Compact and durable, with adjustable parameters, effortlessly handles servo performance testing and debugging.
| Dimensions | 46 × 32 × 17 mm |
|---|---|
| Brand |
easyelecmodule |
6532 in stock
The advantages of SERVER TEST CCPM SERVO CONSISTENCY MASTER
- Dedicated CCPM Mode Calibration: Supports 3 or 4-channel CCPM swashplate modes (common in model helicopters). It can simulate swashplate tilting and pitch changes, calibrating the synchronous response of multiple servos. This solves the limitation of standard testers which “can only adjust angles per channel, not test coordination.”
- Intuitive Consistency Checking: By comparing the rotation angles and response speeds of multiple servos, it quickly identifies servos with excessive deviation (e.g., Servo A turns 10°, Servo B only turns 8°). This prevents performance issues caused by mixing servos with different characteristics.
- Integrated Power & Testing: Has a built-in 4.8-6V DC power input, allowing it to power both the tester itself and the connected servos simultaneously. No need for an external power supply, simplifying field debugging.

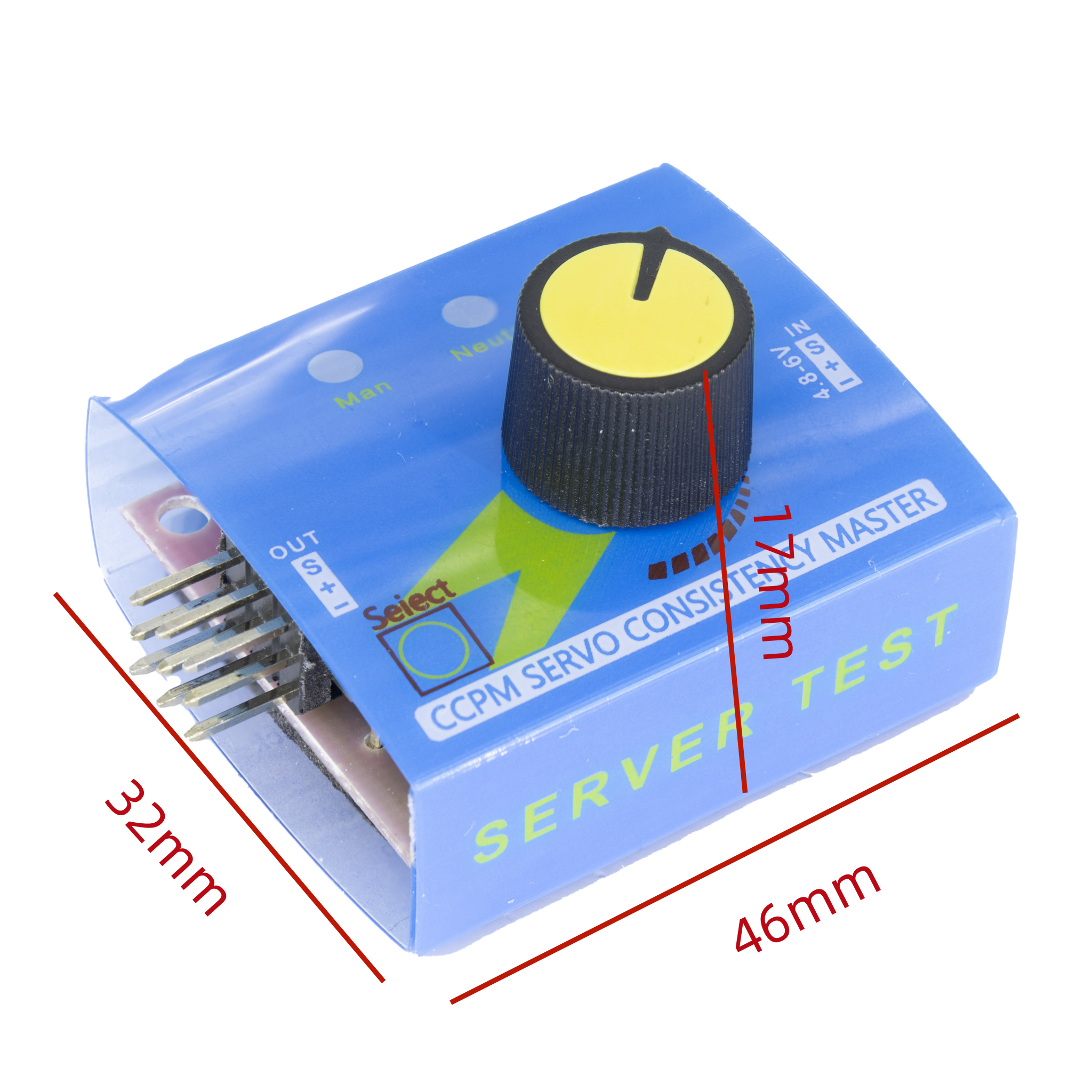

- Optimized for Aeromodeling: Compact size (about 46mm x 32mm x 17mm), lightweight, and comes with a portable case, making it easy to take to the flying field for on-site testing and adjustments.
- Wide Compatibility: Works with all standard digital and analog servos, compatible with common 9g, 12g, and 20g servo sizes used in aeromodeling. It’s plug-and-play, regardless of servo brand.
What are the differences between the CCPM servo consistency master controller for server testing and a standard multi-channel servo tester?
| Comparison Point | SERVER TEST CCPM SERVO CONSISTENCY MASTER | Standard Multi-Channel Servo Tester |
|---|---|---|
| Core Function | Supports CCPM mode calibration, focuses on “multi-servo consistency”, can simulate coordinated swashplate movements. | Only supports independent angle adjustment per channel (single/multi), lacks consistency calibration. |
| Primary Use Case | CCPM helicopters, RC models requiring multi-servo coordination. | Robotics, general DIY projects (no CCPM needs). |
| Signal Difference | Can generate CCPM mixed signals (multi-channel PWM). | Only generates independent PWM signals per channel, no mixing function. |
| Calibration Ability | Supports angle deviation fine-tuning, can save CCPM calibration parameters. | Can only adjust angles, no deviation calibration or parameter saving. |
| Power Supply | 4.8V~6V standard aeromodelling power input, compatible with LiPo batteries. | Mostly uses 5V USB power, requires adapter for field use with model batteries. |
Product Parameter Sheet for SERVER TEST CCPM SERVO CONSISTENCY MASTER
| ELECTRICAL PARAMETERS | DETAILS |
|---|---|
| Output Current | <= 15mA (per channel at 5.0V) |
| Input Voltage | DC 4.2V ~ 6V |
| Output Signal | 1.5ms ± 0.5ms (Pulse Width Range) |
| Adjustment Modes | Manual Adjustment, Auto-Sweep, Center Position Set |
| Product Dimensions | 46mm x 32mm x 17mm |
