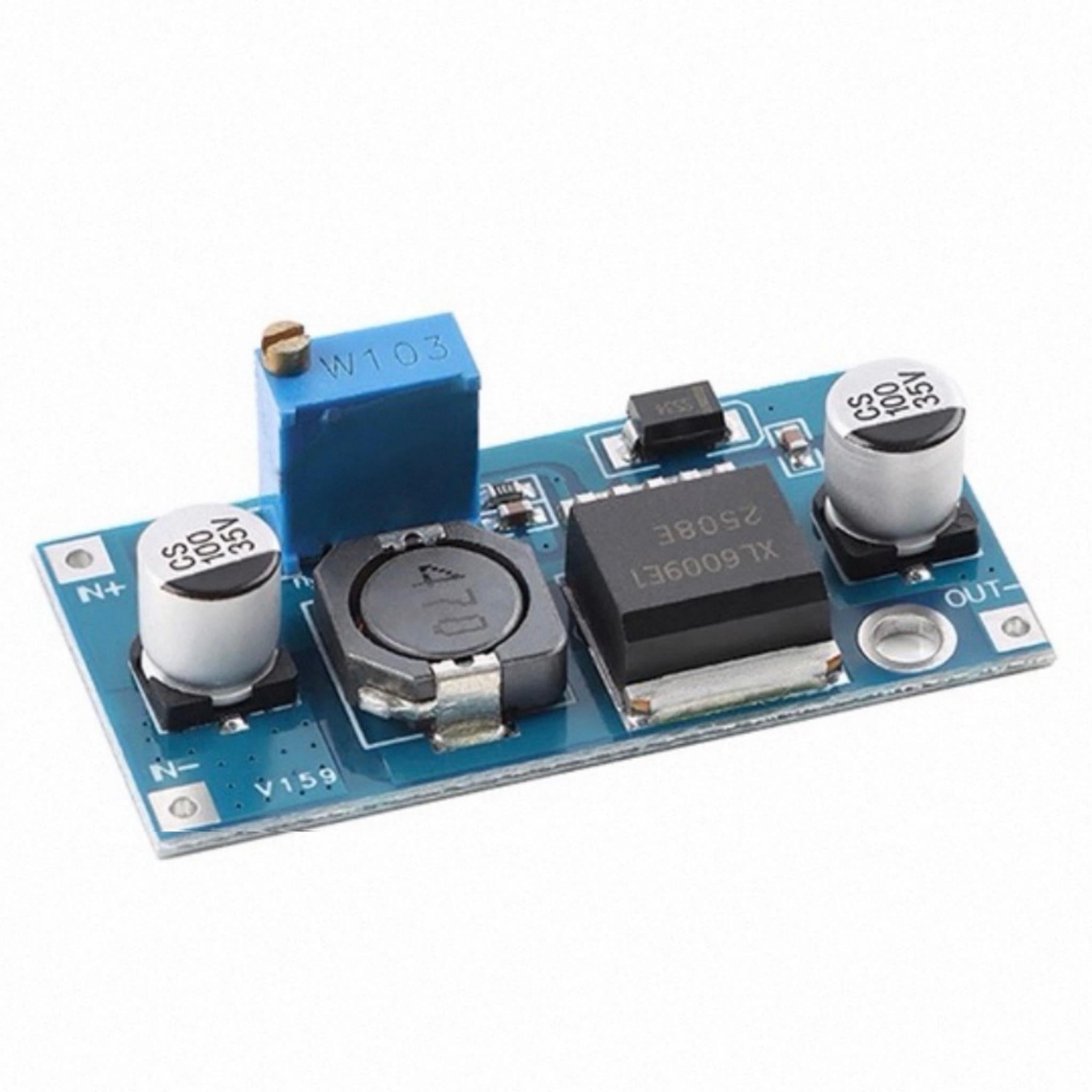

XL6009 DC-DC Boost Adjustable Voltage Regulator Module
$1.601pcs
XL6009 adjustable boost regulator, precise voltage tuning for versatile power needs! High efficiency, low heat, stable output. Compact and easy to install, perfect for DIY and portable devices.
| Dimensions | 43.0 × 21.0 mm |
|---|---|
| Brand |
easyelecmodule |
3770 in stock
Product Introduction
The XL6009 DC-DC Boost Adjustable Voltage Regulator Module is a high-performance boost module with a 4A switching current. This module uses the XL6009E1, which adopts the second-generation high-frequency switching technology, as its core chip. Its performance is better than that of the LM2577 with the first-generation technology. The XL6009 boost module has lower cost and better performance.
Product Feature
1. Wide input voltage: 3V~32V, optimum operating voltage range: 5~32V
2. Wide output voltage: 5V~35V
3. Built-in 4A high-efficiency MOSFET switch, enabling an efficiency of up to 94%. (the LM2577 current is only 3A)
4. High switching frequency of 400KHZ, which allows small capacity filter capacitors to achieve very good results with smaller ripple and smaller size. (the LM2577 frequency is only 50KHZ)

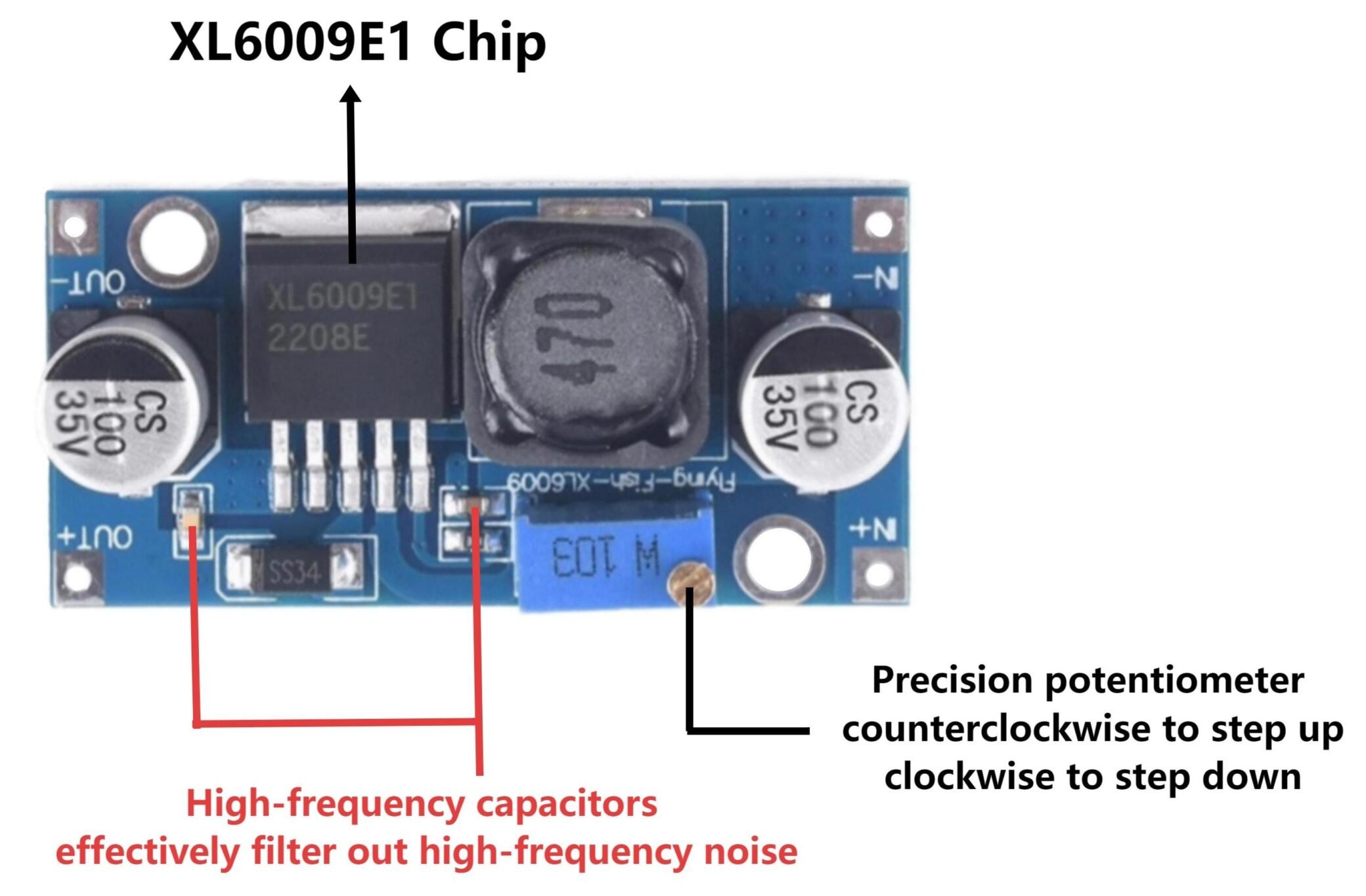

Hardware Diagram
Product Parameter
| Model | XL6009 DC-DC Boost Adjustable Voltage Regulator Module |
|---|---|
| Rectification mode | Asynchronous rectification |
| Output range | 5V-35V (Set the output voltage higher than the input voltage) |
| Input range | 5V-32V (Input must be no less than 5V) |
| Input current | Load: 4A (maximum); No-load: 18mA (with 5V input and 8V output, the no-load current is less than 18mA. The higher the voltage, the larger the no-load current) |
| Conversion efficiency | <94% (The greater the voltage difference, the lower the efficiency) |
| Output ripple | 50mV (The higher the voltage and the larger the current, the greater the ripple) |
| Voltage regulation | 0.5% |
| Module nature | Non-isolated Boost |
| Switching frequency | 400KHZ |
| Load regulation | ±0.5% |
| Operating temperature | -40°C~85°C |
Test Comparison Example Reference
| Input | Output |
|---|---|
| 5V | 12V 0.8A |
| 7.4V | 12V 1.5A |
| 12V | 15V 2A |
| 12V | 16V 2A |
| 12V | 18V 1.6A |
| 12V | 19V 1.6A |
| 12V | 24V 1A |
| 3V | 12V 0.4A |
Vin * Iin * Efficiency=Vout * Iout
Vin : Input voltage Iin : Input current
Vout : Output voltage Iout : Output current
Exempli gratia : Input 5V，1A Output 10V，0.45A
Efficiency : 90% 5*1*90%=10*0.45A
Note :
When testing, if the output voltage is not higher than the input voltage, please adjust the potentiometer counterclockwise to increase the output voltage. Remember, do not adjust it clockwise to use it as a buck module. It is necessary to ensure that the set output voltage is higher than the input voltage to avoid damaging the module!
