DC 005 DC Power Supply Module
$0.591pcs
it’s a standardized DC power interface module. Its primary function is to provide a safe and convenient port for external power input to circuit boards.

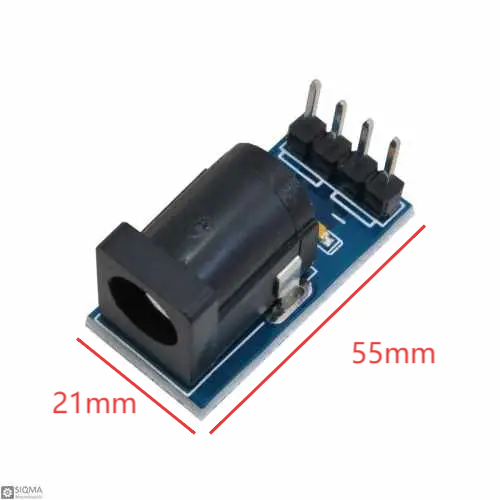

| Dimensions | 55 × 21 mm |
|---|---|
| Brand |
easyelecmodule |
2078 in stock
Product Introduction

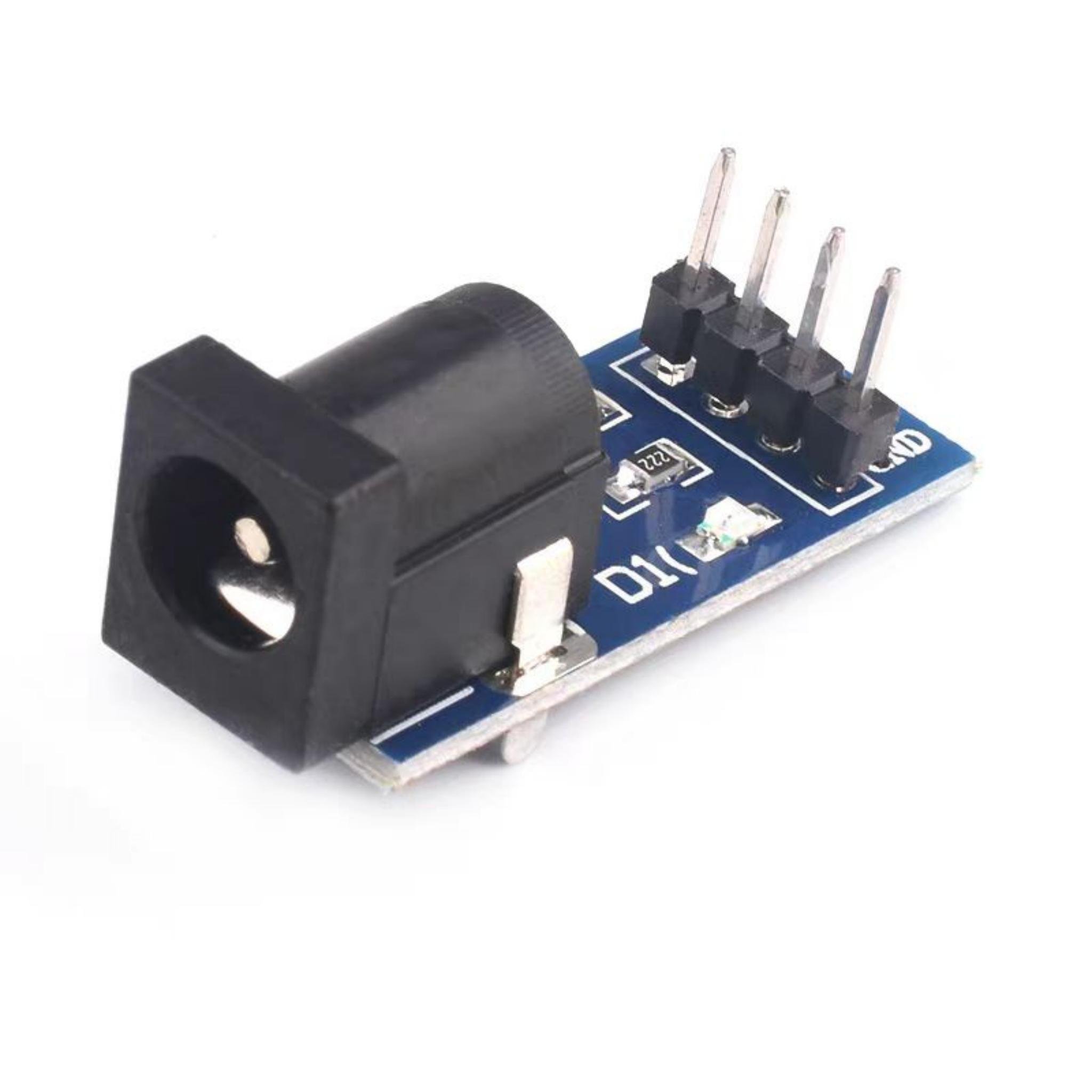

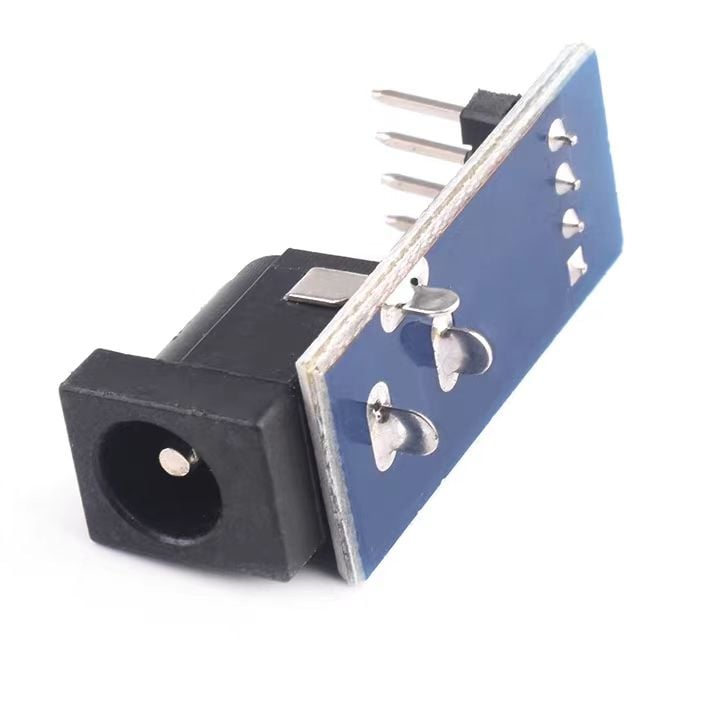

This module is a DC power adapter board. It can convert the power from a DC 5.5×2.1mm connector into a 2 – pin Bluetooth header interface, and can be directly mounted on a breadboard for convenient testing.
Product Features
The module adopts a DC-005 power socket design, facilitating power conversion. It is user-friendly, features stable performance, and offers a wide range of applications.
Interface
The power socket on the module is compatible with 5.5×2.1mm connectors, ensuring stable connection and transmission, and delivering reliable performance for long-term use.
Stable Connection & Protective Circuit
This module is a DC power adapter board that converts power from a DC 5.5×2.1mm connector into a 2 – pin header interface. It boasts stable connection, low – temperature operation without overheating, ensuring reliable performance for worry – free use.
8 Key Features --- Every detail reflects meticulous craftsmanship
Parameter Table
| Item | Specification |
|---|---|
| Product Series | DC Socket (Through – Hole Series) |
| Model | DC – 005C |
| Operating Temperature | -40℃ to 55℃ |
| Rated Load | DC 30V, 0.5A |
| Contact Resistance | ≤0.03Ω |
| Insulation Resistance | ≥100MΩ @ DC 250V |
| Withstand Voltage | AC 500V (50Hz) / min |
| Insertion/Extraction Force | 3–20N |
| Mechanical Life | 5000 Cycles |
Product Advantages
- Can be mounted on a breadboard for convenient testing.
- The interface is made of PVC flame – retardant plastic, boasting corrosion resistance, high conductivity, enhanced safety, ease of use, and wider application scenarios.
- Output interfaces: 2 channels of VCC (positive output) and 2 channels of GND (negative output).
