Sipeed Lichee NanoKVM: Remote control, KVM operation and maintenance, server remote desktop
$96.001pcs

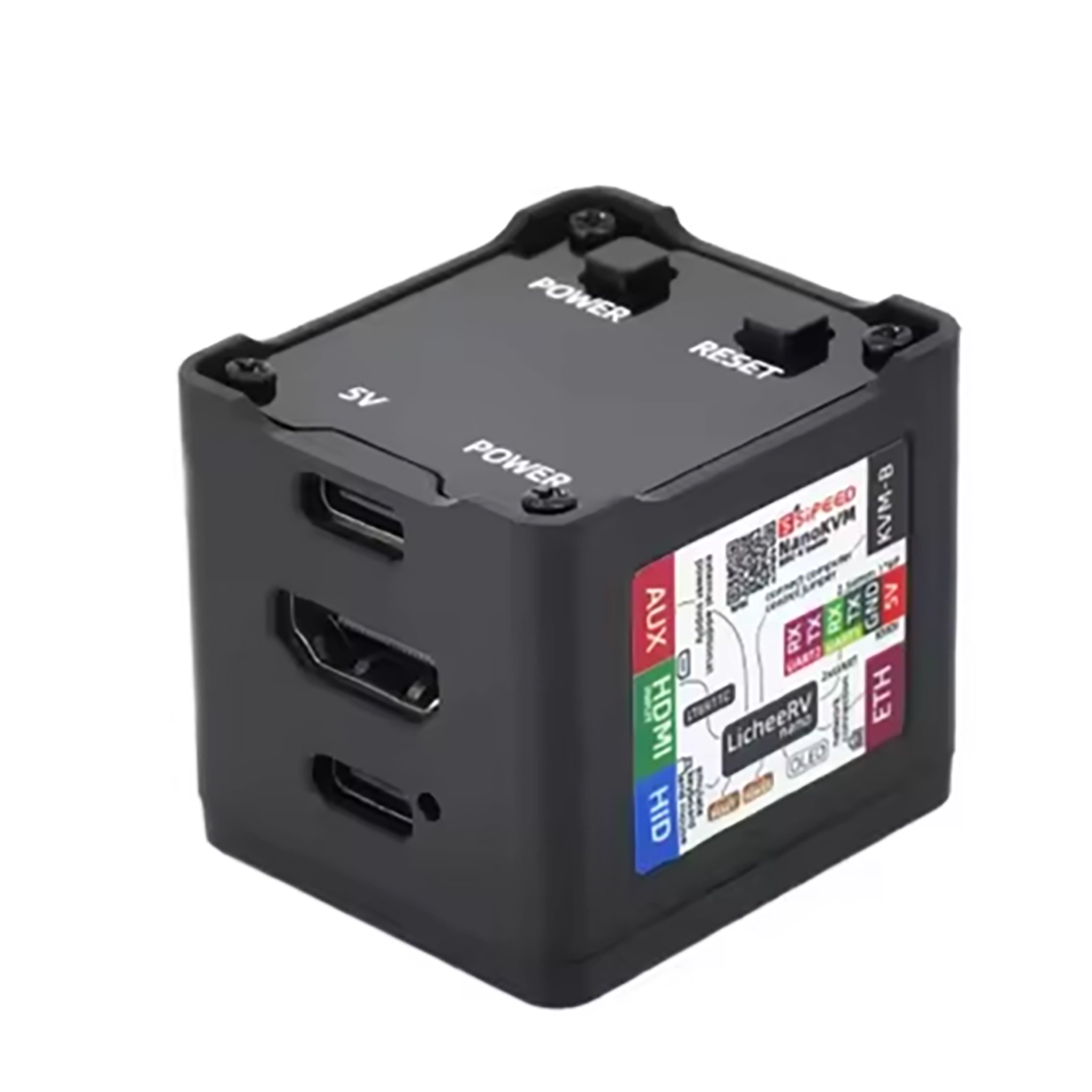

Sipeed Lichee NanoKVM is an IP-KVM product based on the LicheeRV Nano, inheriting the ultra-compact size and powerful functionality of the LicheeRV Nano.

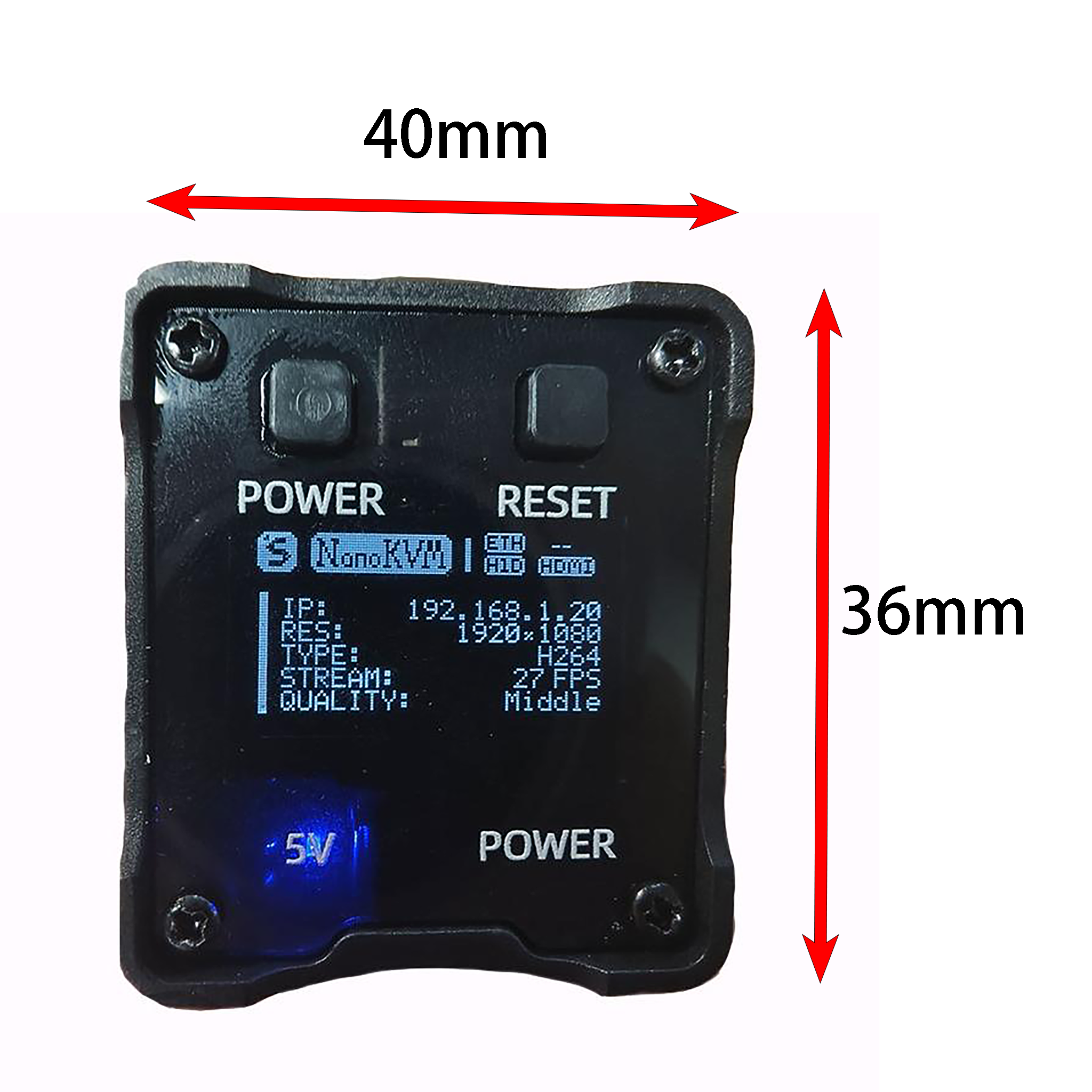

| Dimensions | 40 × 36 × 36 mm |
|---|---|
| Brand |
easyelecmodule |
2364 in stock
Product Introduction of Sipeed nanoKVM
The Lichee NanoKVM is an IP-KVM product based on the LicheeRV Nano, featuring a compact size and powerful functionality. It can be connected via a USB-A to USB-C cable, an HDMI cable, and an Ethernet cable. One USB port is used for virtual mouse and keyboard. Once connected, it receives virtual signals from other control terminals and converts them into real output signals to the controlled device, enabling remote control. After proper connection, you can control the target computer by connecting to its IP address from any device within the local area network. It is suitable for application scenarios such as server operation and maintenance, and stands as a cost-effective NanoKVM with rich functionalities.

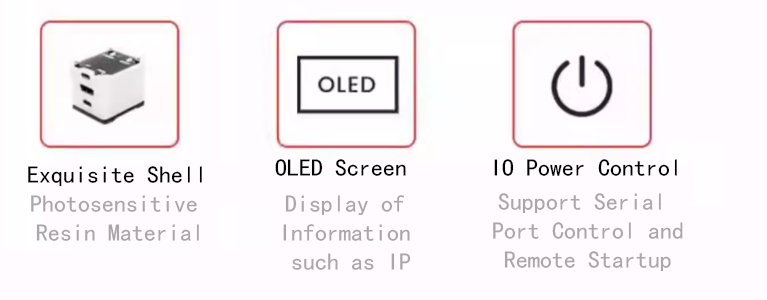

Features of the Sipeed NanoKVM product

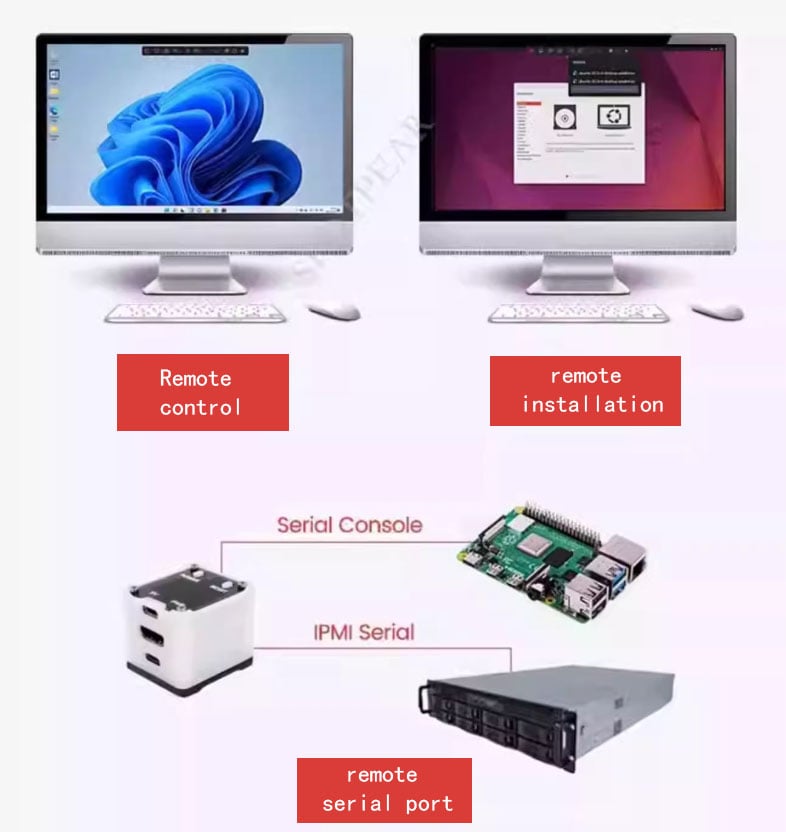

Application Scenarios of Sipeed NanoKVM

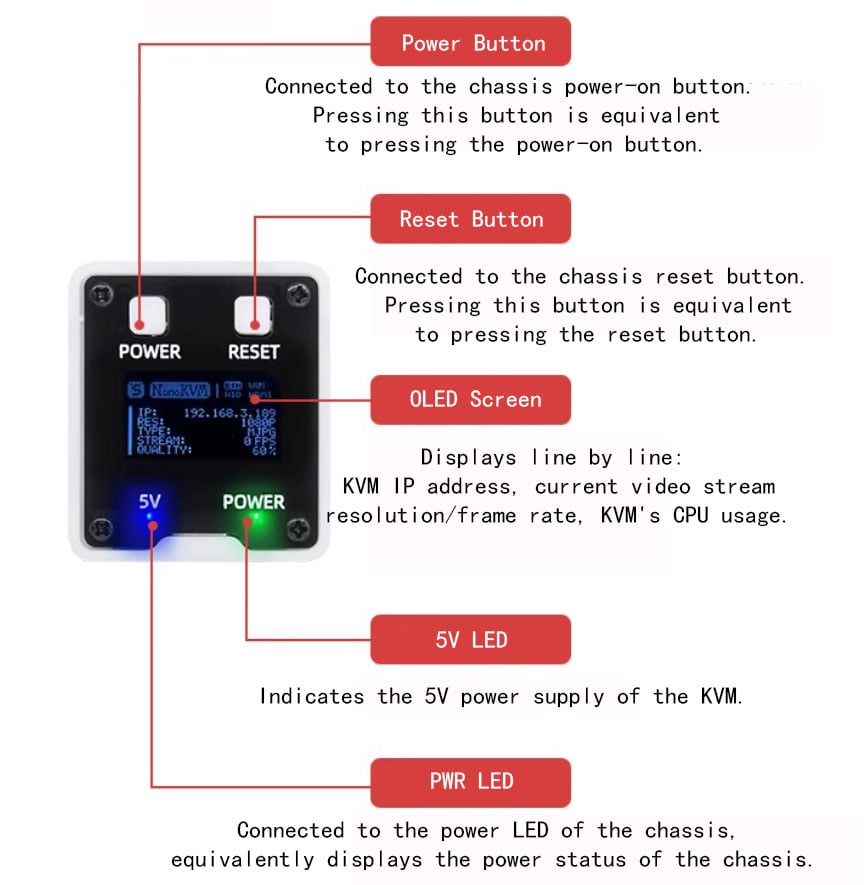

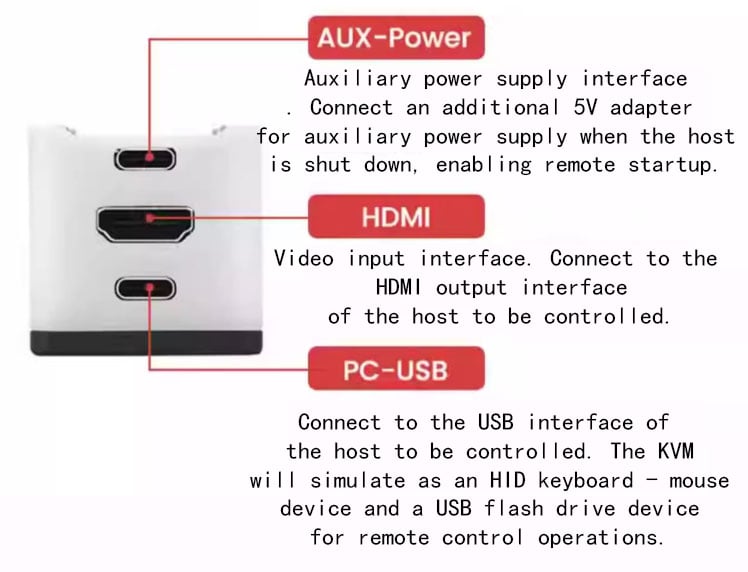

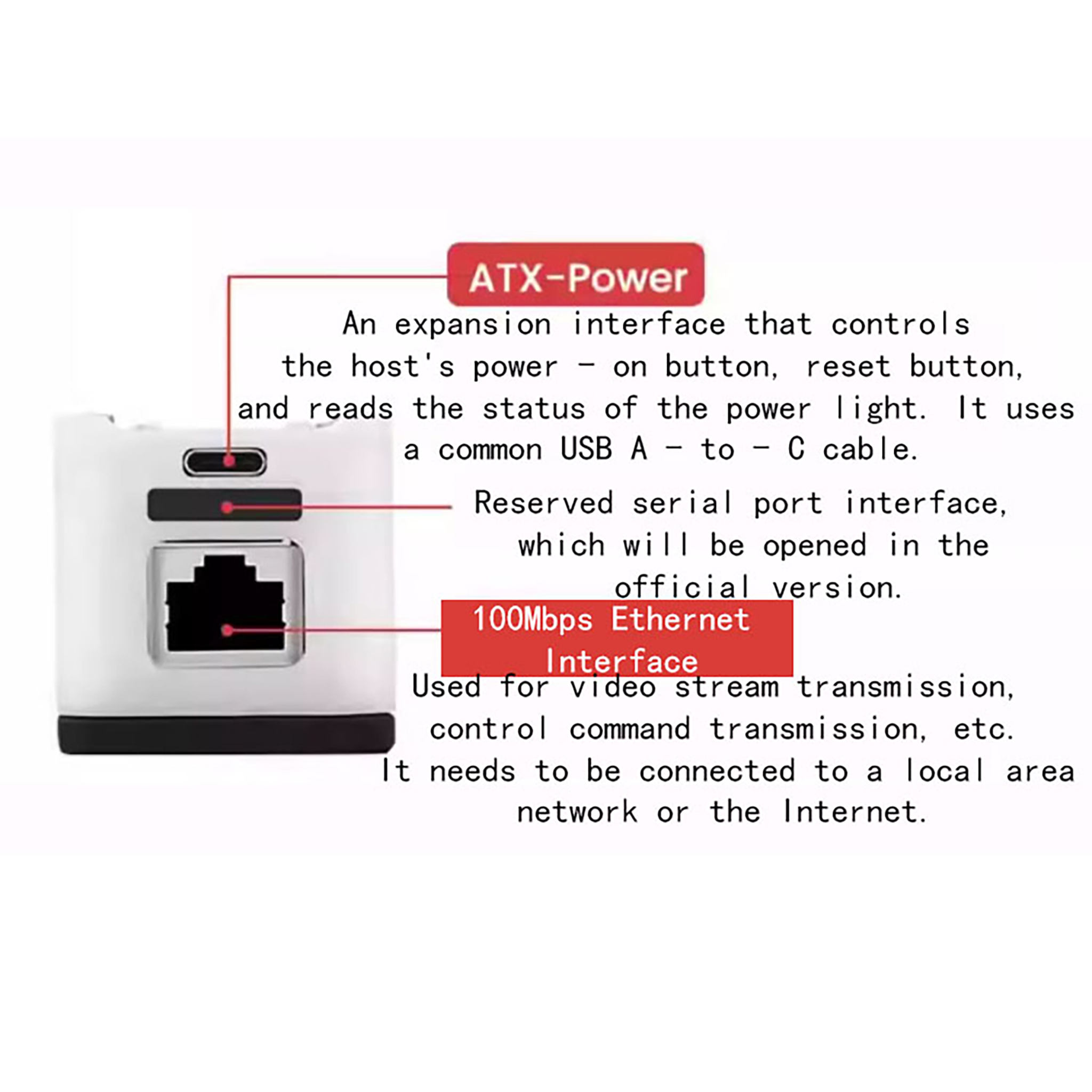

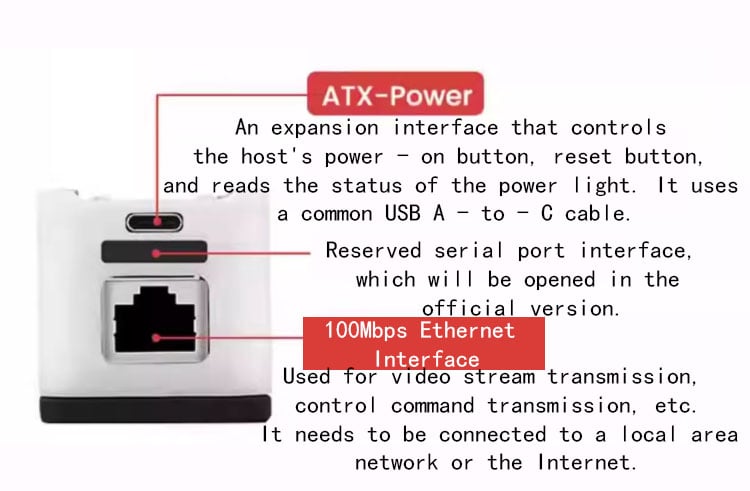

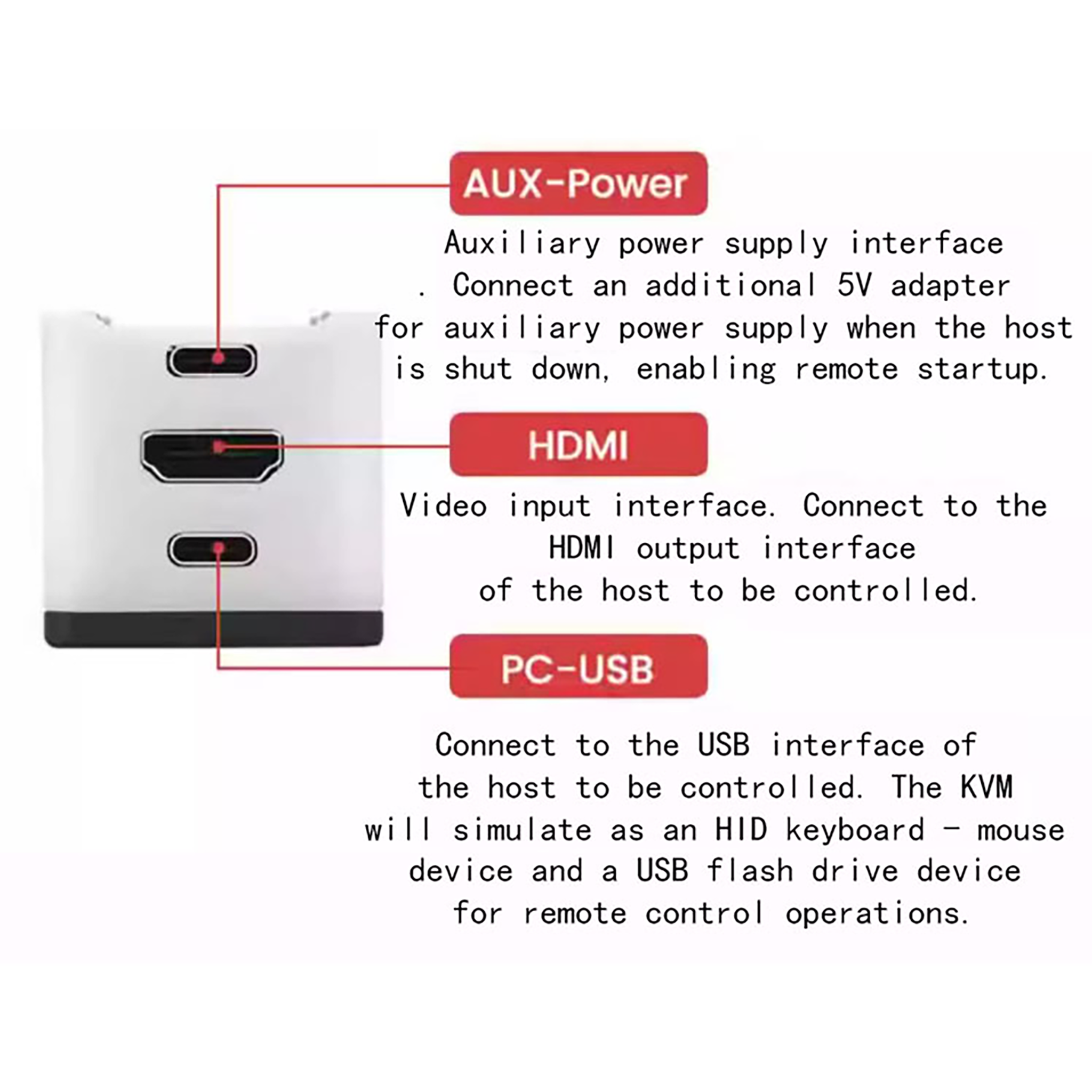

Sipeed NanoKVM Pinout

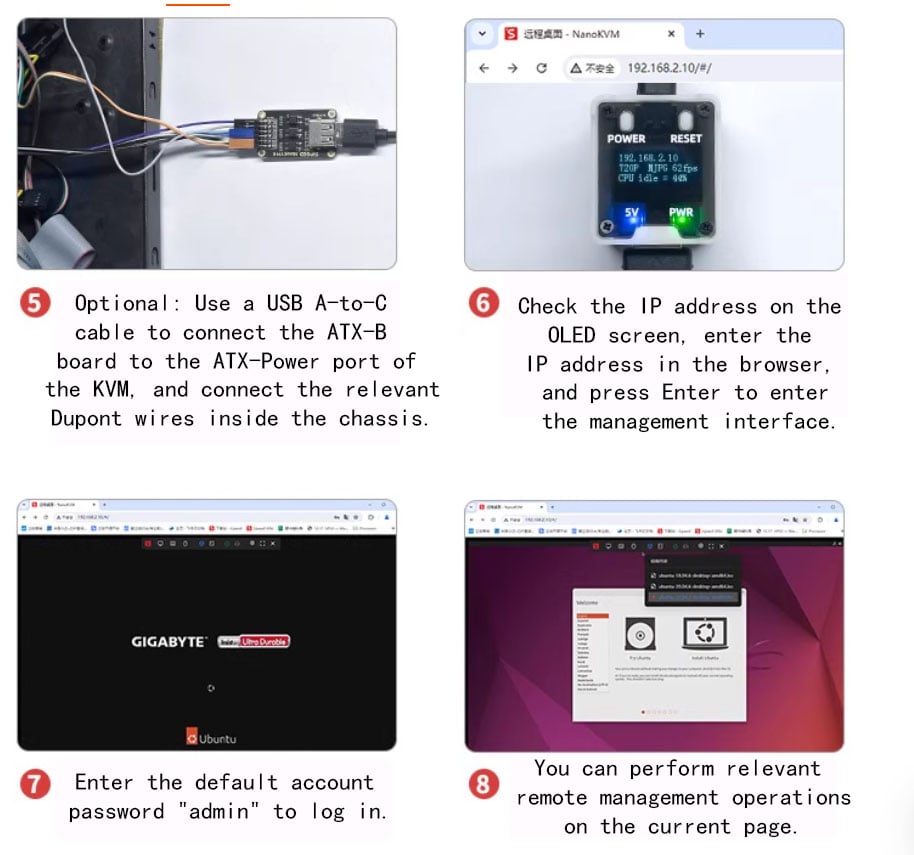

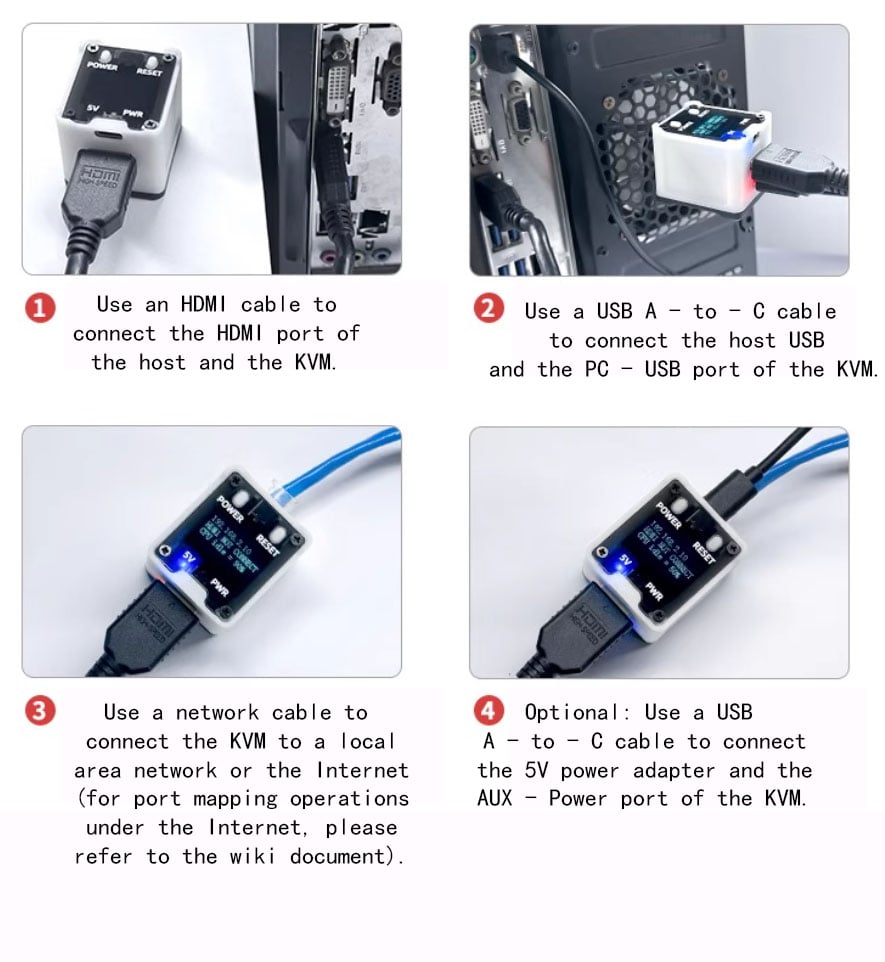

Sipeed NanoKVM Quick Start Guide
Sipeed NanoKVM Parameter Description
| Feature | NanoKVM (Full) |
|---|---|
| Computing Unit | LicheeRV Nano (RISCV) |
| Resolution | 1080P @ 60fps |
| Video Encoding | MJPEG, H264 (developing) |
| Video Latency | 90 ~ 230ms |
| UEFI/BIOS Support | ✓ |
| USB Keyboard/Mouse Emulation | ✓ |
| USB Storage Emulation | ✓ |
| IPMI | ✓ |
| Wake-on-LAN | ✓ |
| ATX Power Control | USB Interface IO Control Board |
| OLED Display | 128×64 0.96″ white |
| External Serial Port | 2 ports |
| TF Card | Included, ready to use |
| Expansion Accessories | WiFi or PoE |
| Power Consumption | 0.2A@5V |
| Power Input | PC USB powered, also supports auxiliary power |
| Cooling | Fanless, silent |
| Dimensions | 40x36x36mm ~1/7 PiKVM V4 volume |

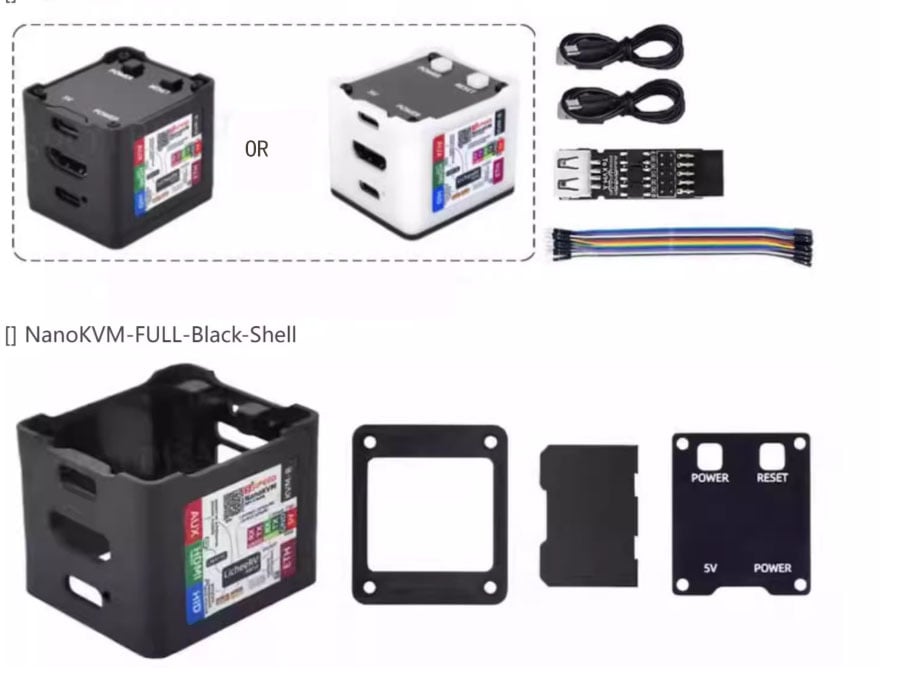

Sipeed NanoKVM Shipment List
Sipeed NanoKVM Demo Video
