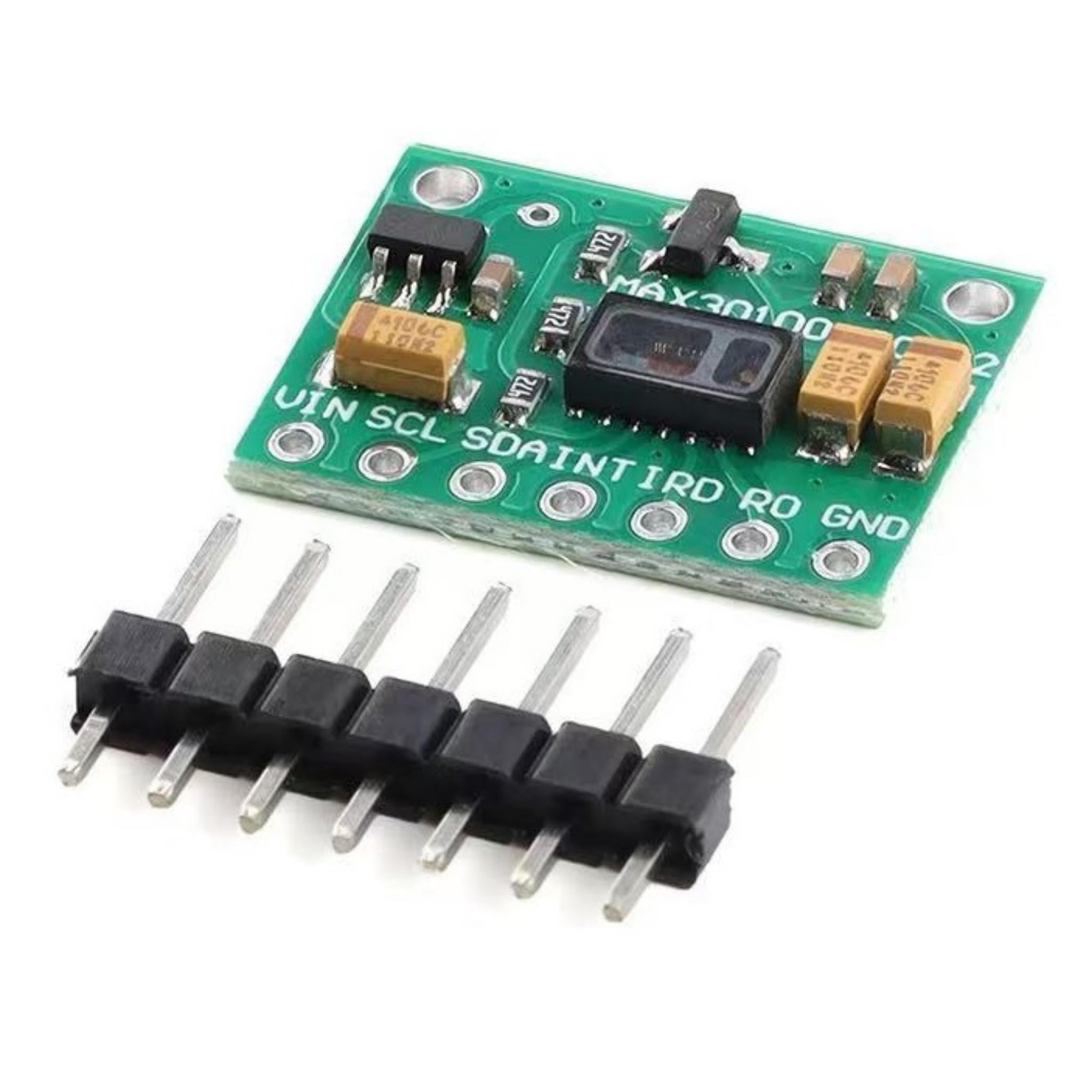

MAX30102 Pulse Oximeter and Heart Rate Sensor

$2.501pcs

MAX30102 delivers high‑accuracy and heart‑rate sensing in a miniature, low‑power package. With integrated LEDs, photodetector and smart algorithms, it enables real‑time, reliable monitoring via simple I²C.

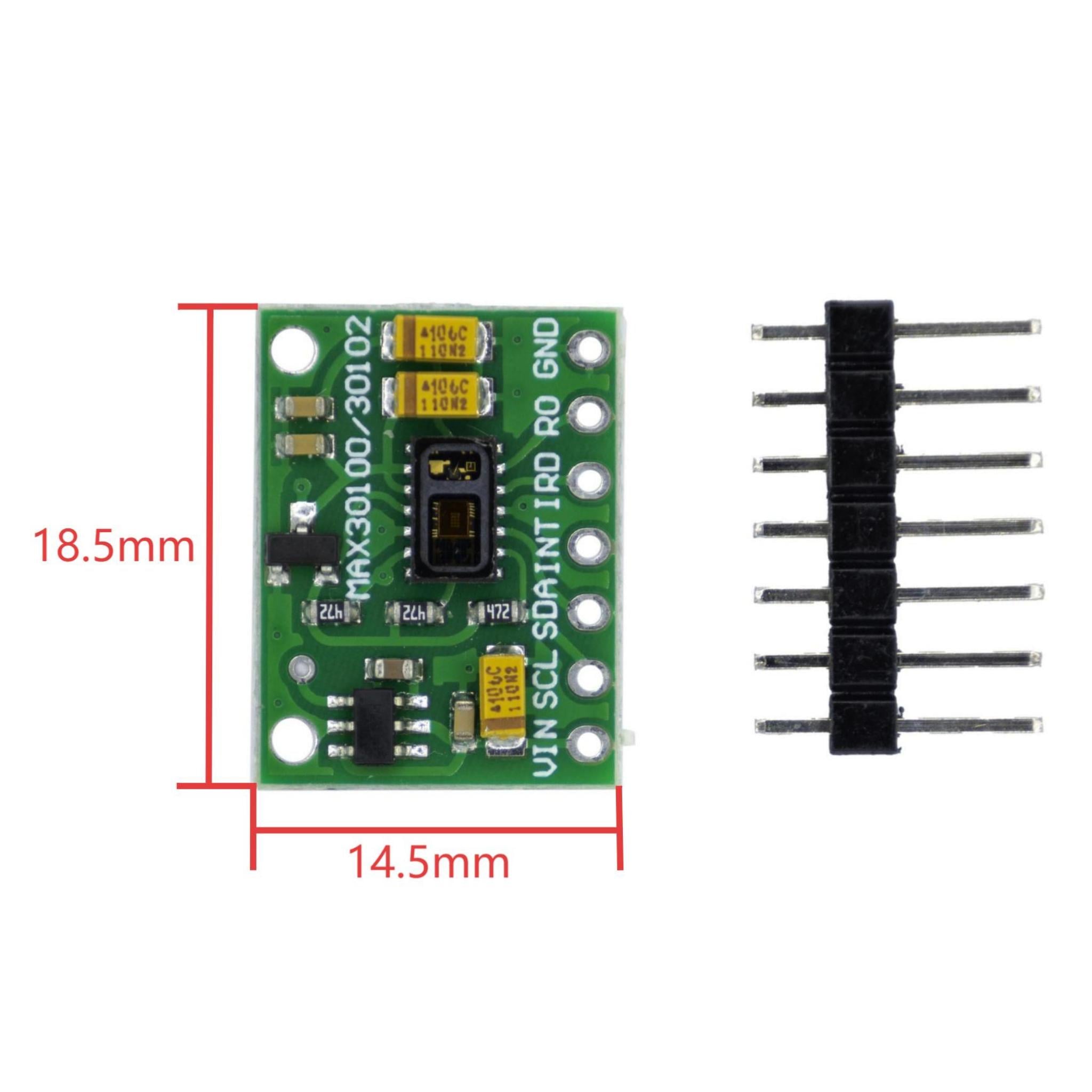

Dimensions 18.5 × 14.5 mm
Brand

easyelecmodule

2772 in stock

DESCRPIPTION AND FEATURES

MAX30102 Introduction

MAX30102 is a module integrating a pulse oximeter and heart rate monitor biosensor. It incorporates a red light LED and an infrared light LED, a photodetector, a light device, as well as a low-noise electronic circuit with environmental light suppression.

MAX30102 Feature

  • In the LED reflection solution, there are heart rate monitors and pulse oximeters with biological sensors that are relatively small in size and feature 14-pin optical modules.
  • With an integrated glass cover, reliable performance is achieved, enabling mobile devices to operate with relatively low power consumption.
  • Programmable sampling rate and LED current, which save power consumption.
  • Low-power heart rate monitor (<1mw).
  • Ultra-low off-state current (0.7μA, typical value).
  • Fast data output, high sampling rate.
  • Reliable motion artifact suppression.
  • Product applications: medical monitoring devices, fitness assistance devices, wearable devices.

MAX30102 Pin Function

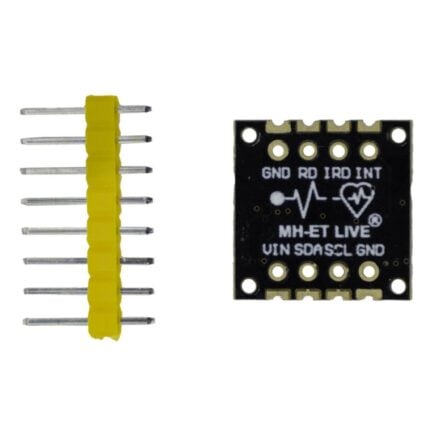

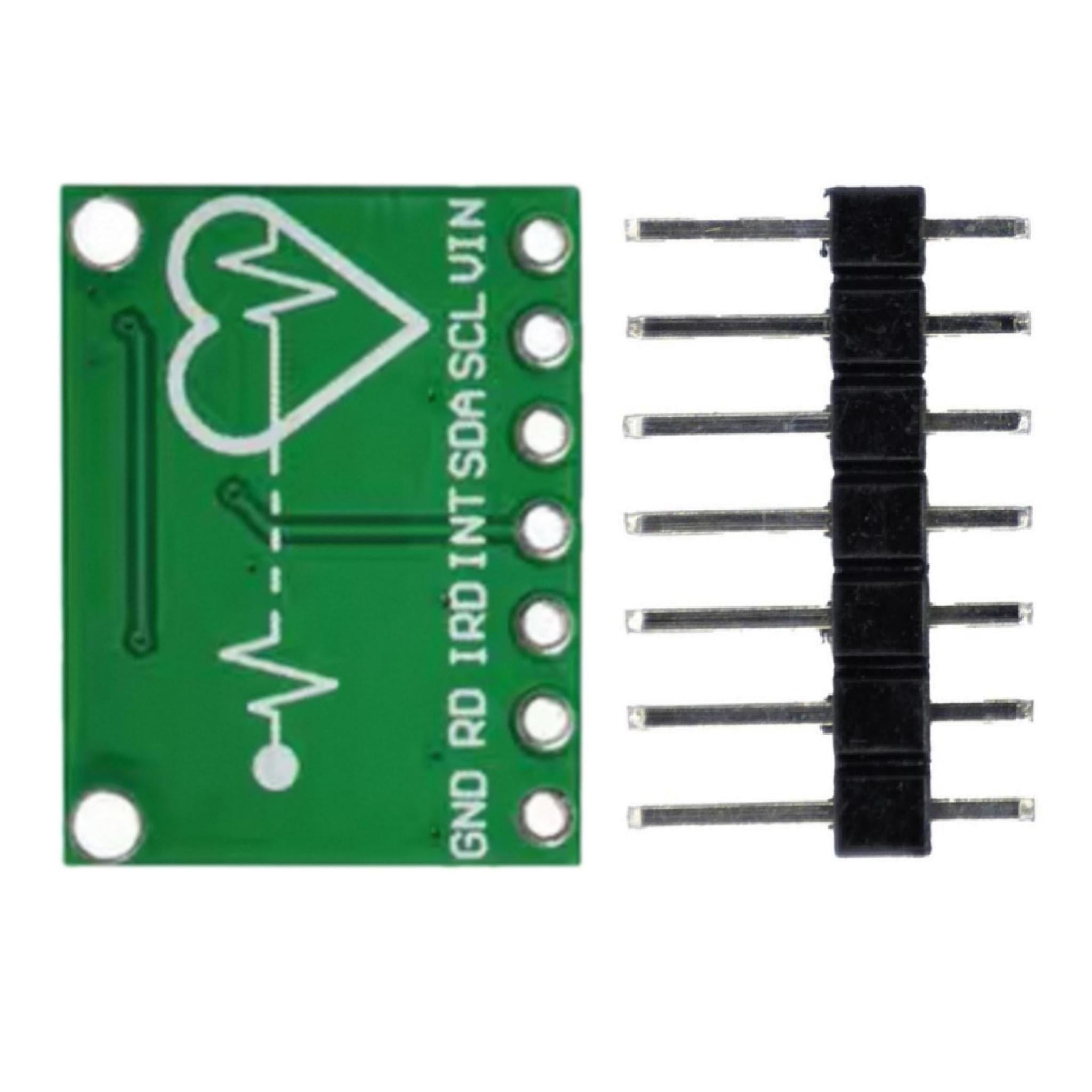

MAX30102 Pinout

MAX30102 Application

1、Wearable Devices

2、Fitness Assistant Devices

3、Smartphones

4、Tablets
