MAX30100 Pulse Oximeter and Heart Rate Sensor
$2.221pcs
MAX30100 fuses pulse oximetry and heart‑rate sensing in a tiny, low‑power chip. Plug‑and‑play I²C ease, and precise optical sensing make health monitoring effortless.

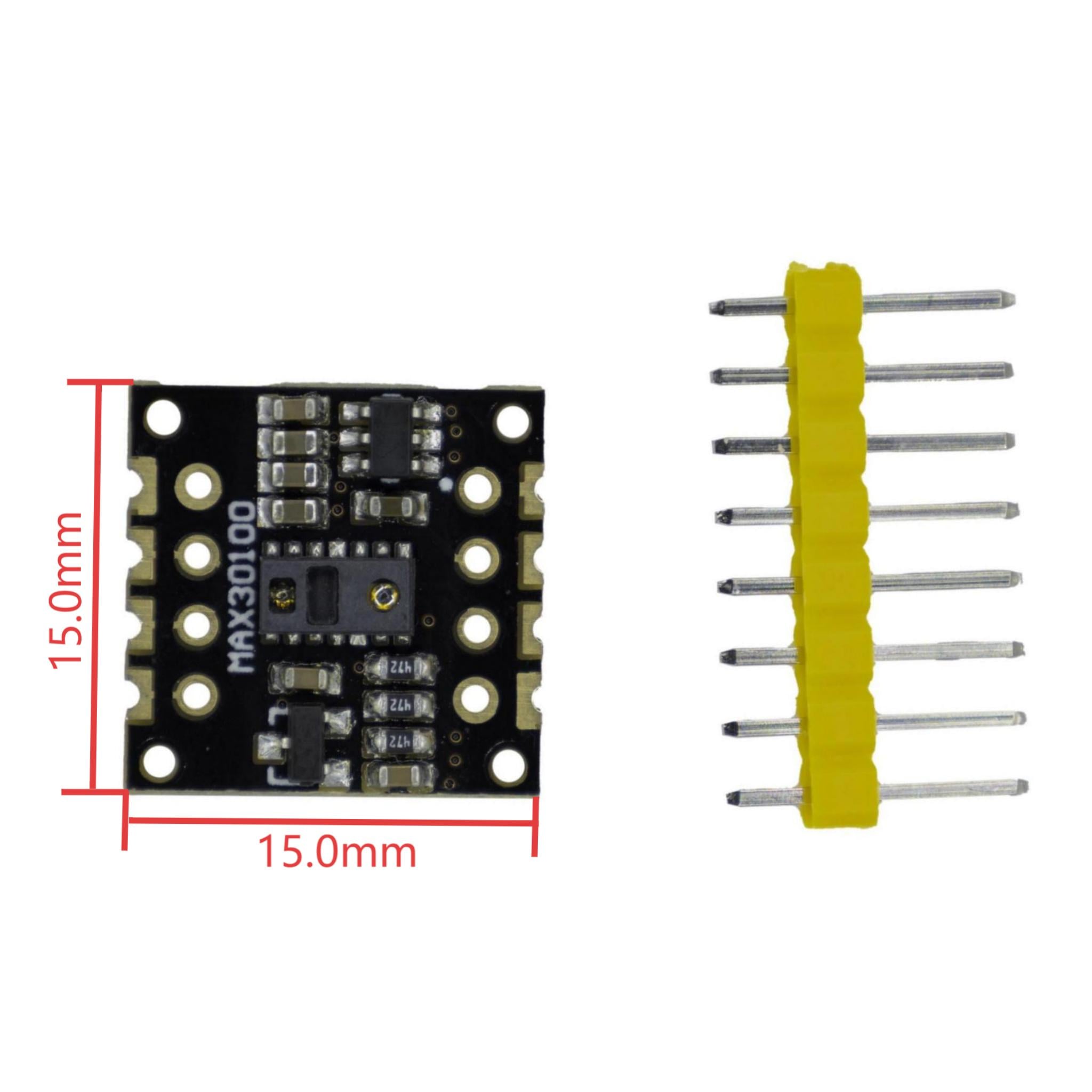

| Dimensions | 15.0 × 15.0 mm |
|---|---|
| Brand |
easyelecmodule |
3024 in stock
MAX30100 Introduction
MAX30100 is a module integrating a pulse oximeter and heart rate monitor biosensor. It incorporates a red light LED and an infrared light LED, a photodetector, a light device, as well as a low-noise electronic circuit with environmental light suppression.
MAX30100 Feature
- The complete pulse oximeter and heart rate sensor solution simplifies the design
- Integrated with LEDs, light sensors and high-performance analog front-end
- Ultra-low power consumption mode extends the battery life of wearable devices
- Programmable sampling rate and LED current saves power
- Ultra-low off-state current (0.7 µA, typical value)
- Advanced functions enhance measurement performance
- High SNR can reliably eliminate the influence of motion interference
- Integrated environmental light compensation
- High sampling rate
- Fast data output

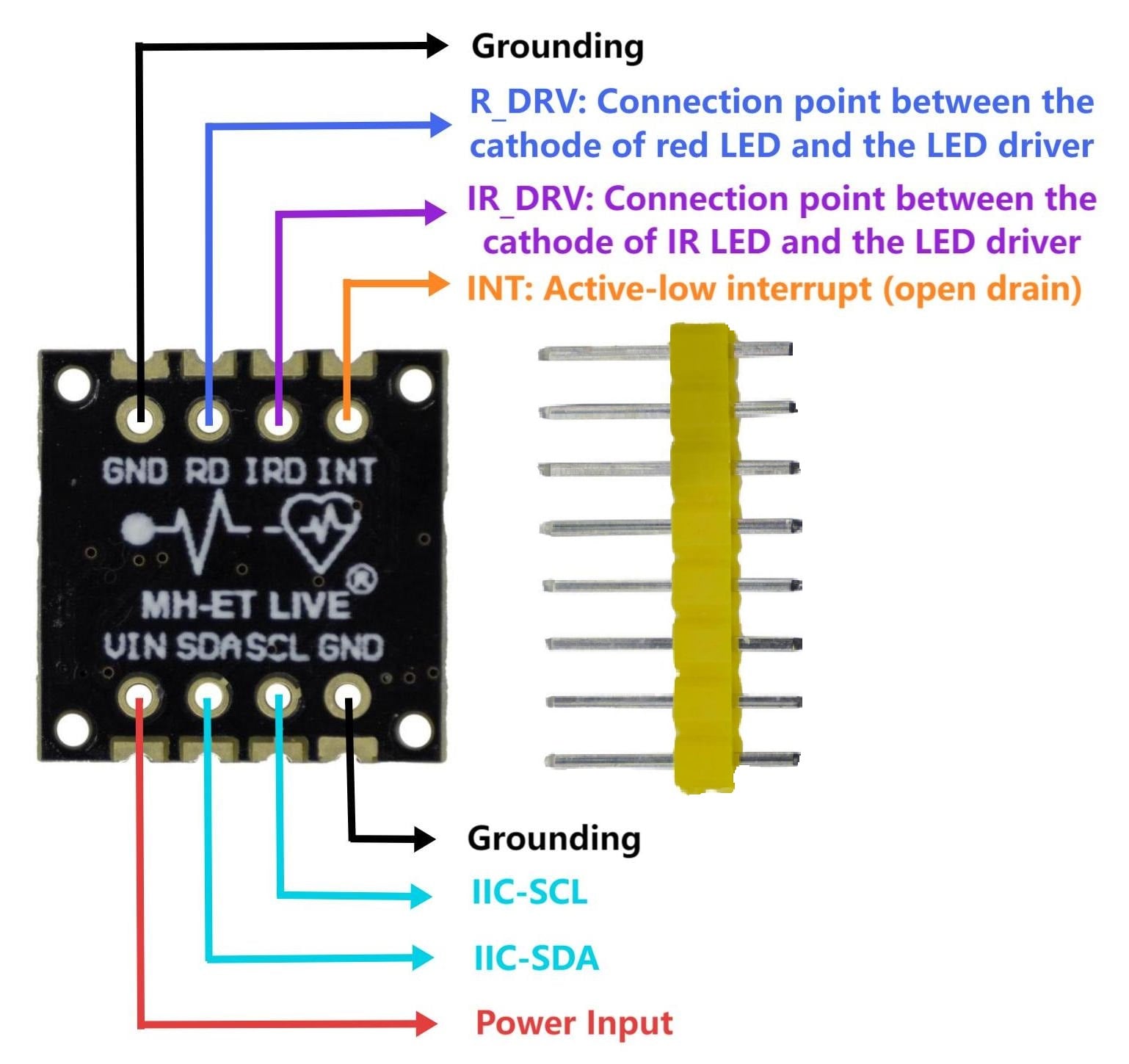

MAX30100 Pin Function
MAX30100 Application
1、 Wearable Devices
2、 Fitness Assistant Devices
3、 Medical Monitoring Device
