5 Pin HY-SRF05 Ultrasonic Module

$2.621pcs

HY-SRF05 5-pin ultrasonic sensor, 5V-powered 2-450cm ranging with 3mm precision, anti-light/smoke interference, multi-trigger flexible control for robots/smart home/parking systems！

Dimensions

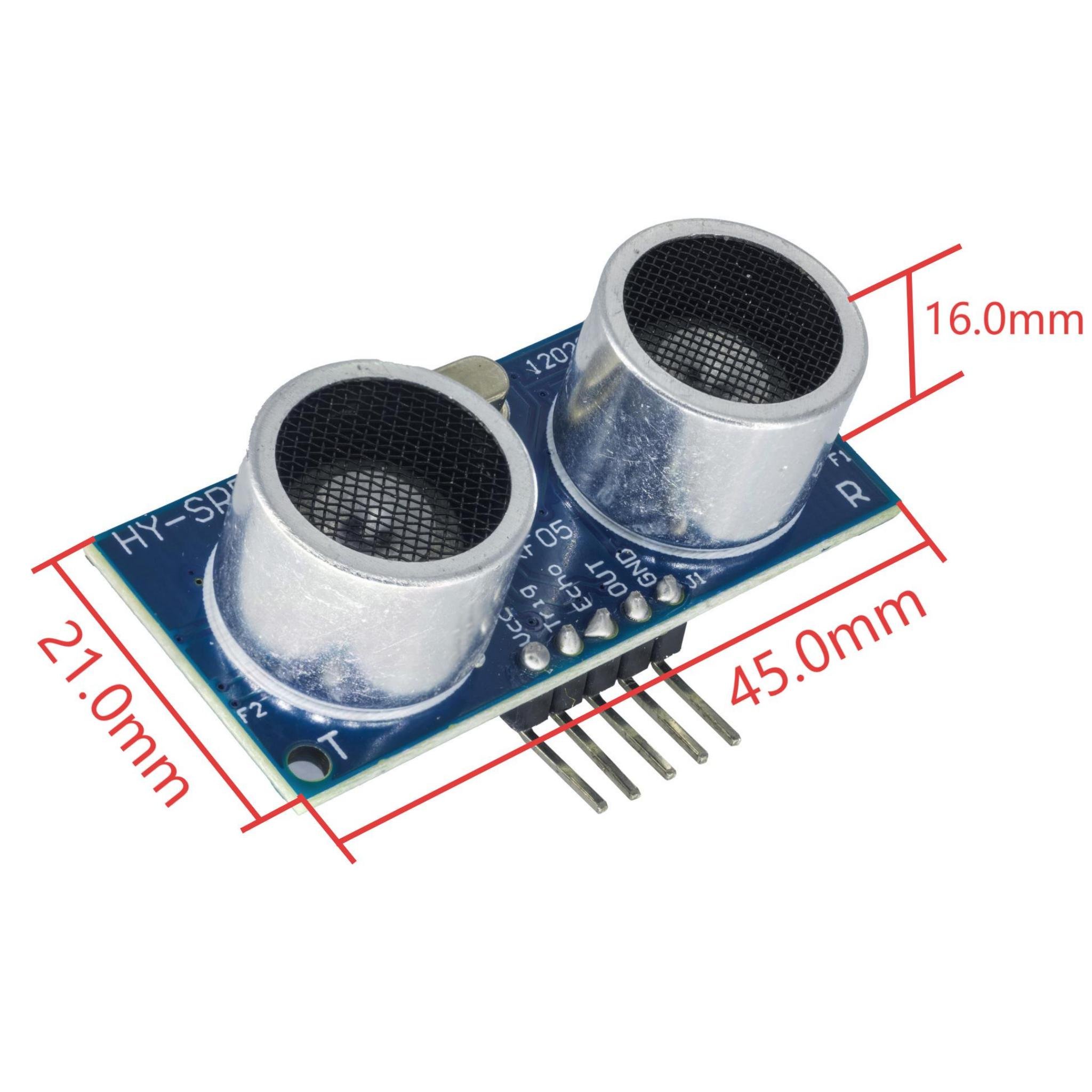

45.0 × 21.0 × 16.0 mm

Brand

easyelecmodule

2544 in stock

Product Introduction

The HY-SRF05 is a distance measurement module based on the ultrasonic principle. It emits 40kHz ultrasonic waves and receives the echoes to calculate the distance from the obstacle. It has 5 pins (VCC, Trig, Echo, OUT, GND), supports multiple triggering methods, and can be controlled by a microcontroller or used independently, which is very flexible!

Its working voltage is 5V, the measurement range is usually between 2cm and 450cm, and the accuracy can reach up to 3mm. It is very suitable for scenarios such as robot obstacle avoidance, smart home sensing, and automatic parking systems. What’s great is that it has strong anti-interference ability, is not sensitive to environmental factors such as light, color, and smoke, and has good stability.

HY-SRF05 Feature

The HY-SRF05 ultrasonic distance measurement module offers non-contact distance sensing capabilities ranging from 2cm to 450cm.
The measurement accuracy can reach up to 3mm.
The module consists of an ultrasonic transmitter, receiver, and control circuit.

HY-SRF05 Parameter

Parameter	Value
Working Voltage	DC 5V
Operating Current	15mA
Working Frequency	40Hz
The Farthest Shooting Range	4.5m
The Most Recent Range	2cm
Measuring Angle	15°
Measurement Accuracy	±3mm
Input Trigger Signal	A 10us TTL pulse
Output Echo Signal	Output TTL level signal, proportional to the range
Specification and Dimension	45mm * 21mm * 16mm

HY-SRF05 Application Note

This module should not be connected with power. If you want to connect it with power, please first connect the GND terminal of the module. Otherwise, it will affect the normal operation of the module.
During distance measurement, the area of the measured object should be no less than 0.5 square meters and the surface should be as flat as possible. Otherwise, the measurement result will be affected.

HY-SRF05 Application

The HY-SRF05 has a wide range of applications!

For example:

Robot obstacle avoidance system: enables the car to automatically identify obstacles ahead and avoid them.

Intelligent parking system: detects whether the parking space is occupied and combines with LED lights for indication.

Automatic door control device: automatically opens the door when someone approaches.

Water level monitoring system: determines the water level in the tank by distance measurement.

Toy remote control car: enables automatic braking or steering.

Whether you are a student doing a course design, a maker presenting a project, or an electronics enthusiast working on home automation, the HY-SRF05 can handle it with ease!

In conclusion, the five-needle ultrasonic module HY-SRF05 is a “compact yet powerful” sensor. It is affordable, stable in performance, and easy to use. It is a “magical tool” that every electronic enthusiast should consider having! If you are looking for a reliable distance measurement module, then don’t hesitate any longer. Just give it a try!
