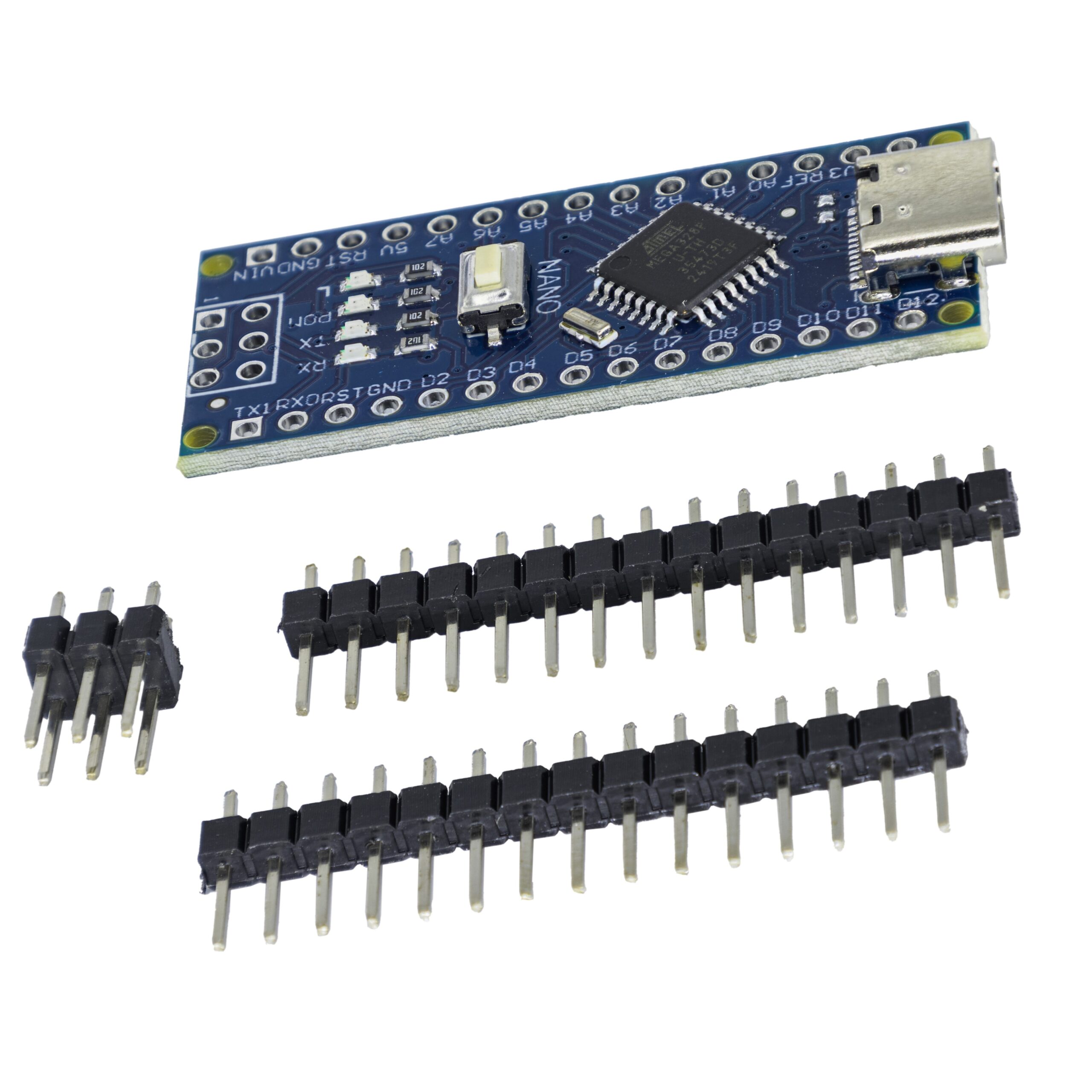

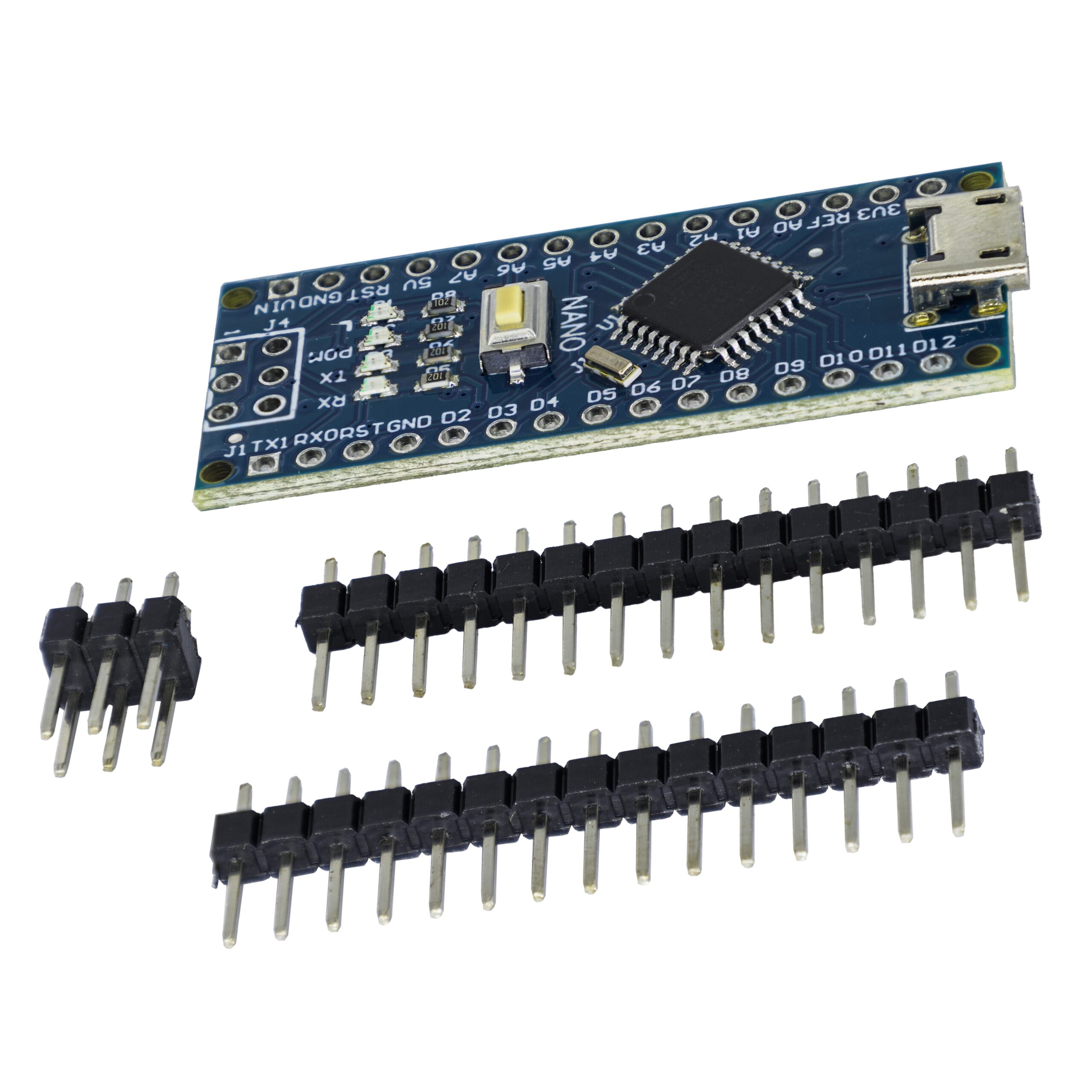

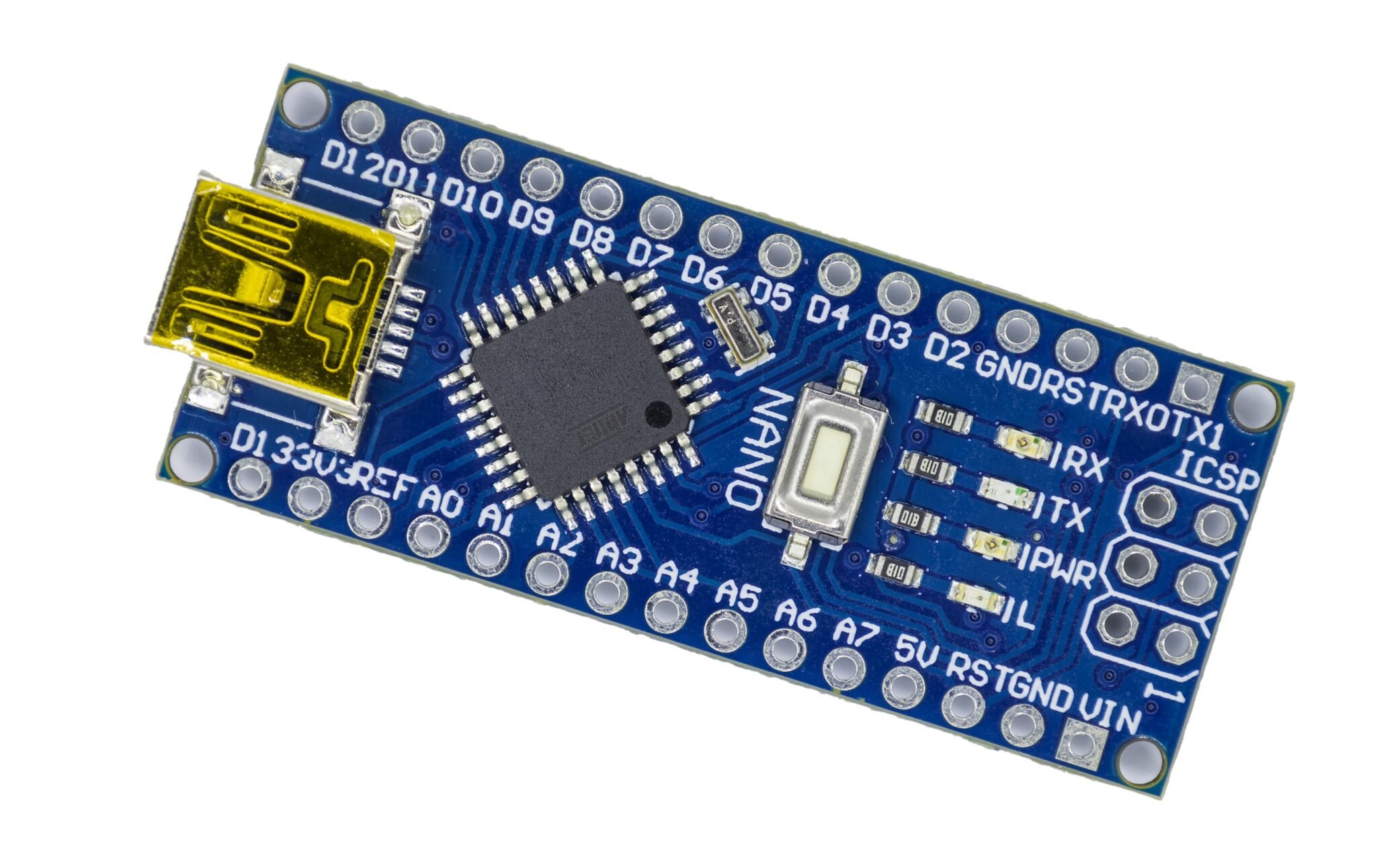

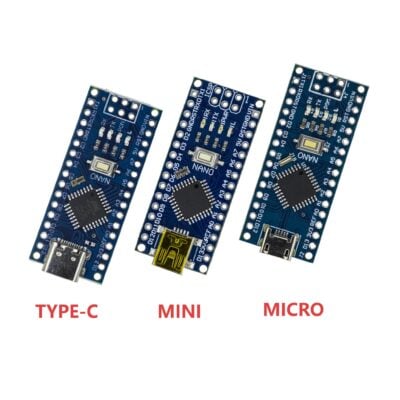

Arduino NANO V3.0 CH340 ATMEGA328P
$3.66
| Size |
22mm * 9mm |
|---|---|
| Product Status |
New (Not welded) |
Product Introduction
ARDUINO NANO V3.0 is a tiny SIMPLE I/O platform based on the development of original code. Compared with the previous USB version of ARDUINO DICE MILA, ARDUINO NANO has a significant advantage in terms of size. ARDUINO can be used to develop electronic products that require independent operation and have interactive effects, as well as interactive works that are connected to the computer and work together with software such as FLASH, PROCESSING, MAX/MSP, PD, etc.
Feature

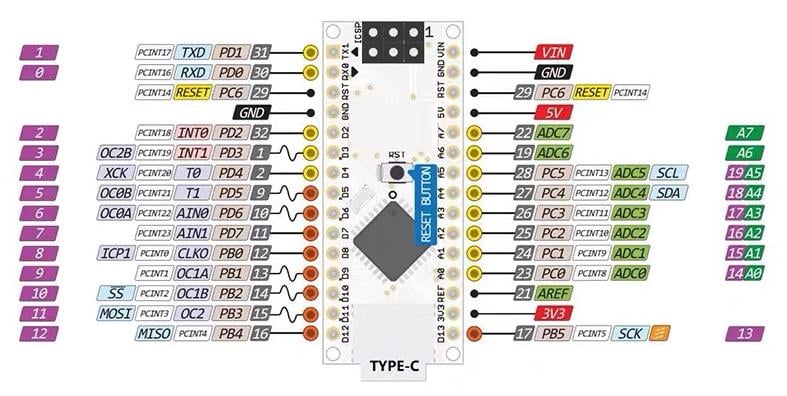

- 12 digital input/output ports D2 to D13
- 8 analog input ports AO to A7
- 1 TTL level serial port RX/TX
- 6 PWM ports, D3, D5, D6, D9, D10, D11
- Utilizes Atmel Atmega328p-AU microcontroller
- Supports USB download and power supply
- Supports external 3.3V – 12V DC power supply
- Supports lithium battery and 9V battery power supply
- Supports ISP download
Usage Instructions
- Download the Arduino IDE.
Download link: http://arduino.cc/en/Main/Software
- Download the USB chip driver.
- Plug in the NANO development board, and the driver will be installed automatically.
- In the IDE, select the board as NANO.
- Choose the COM port. You can check this in My Computer. It’s the same port as your UNO development board.
- It’s best to first select a built-in example program and burn it in.
Application
Arduino NANO V3.0 CH340 ATMEGA328P is widely used in various scenarios such as IoT prototype development, robotics, drones, wearable devices, automation gadgets, and medical training equipment.
Relative Information
ARDUINO NANO V3.0 is a tiny SIMPLE I/O platform based on the development of original code. Compared with the previous USB version of ARDUINO DICE MILA, ARDUINO NANO has a significant advantage in terms of size. ARDUINO can be used to develop electronic products that require independent operation and have interactive effects, as well as interactive works that are connected to the computer and work together with software such as FLASH, PROCESSING, MAX/MSP, PD, etc.
