Product Information

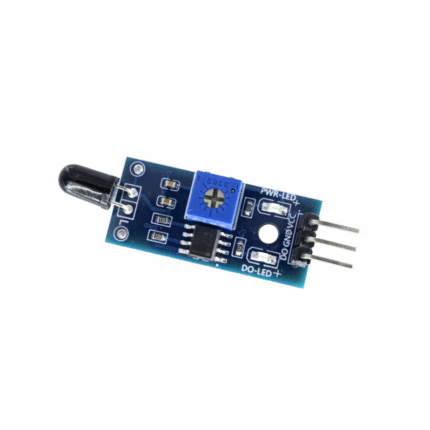

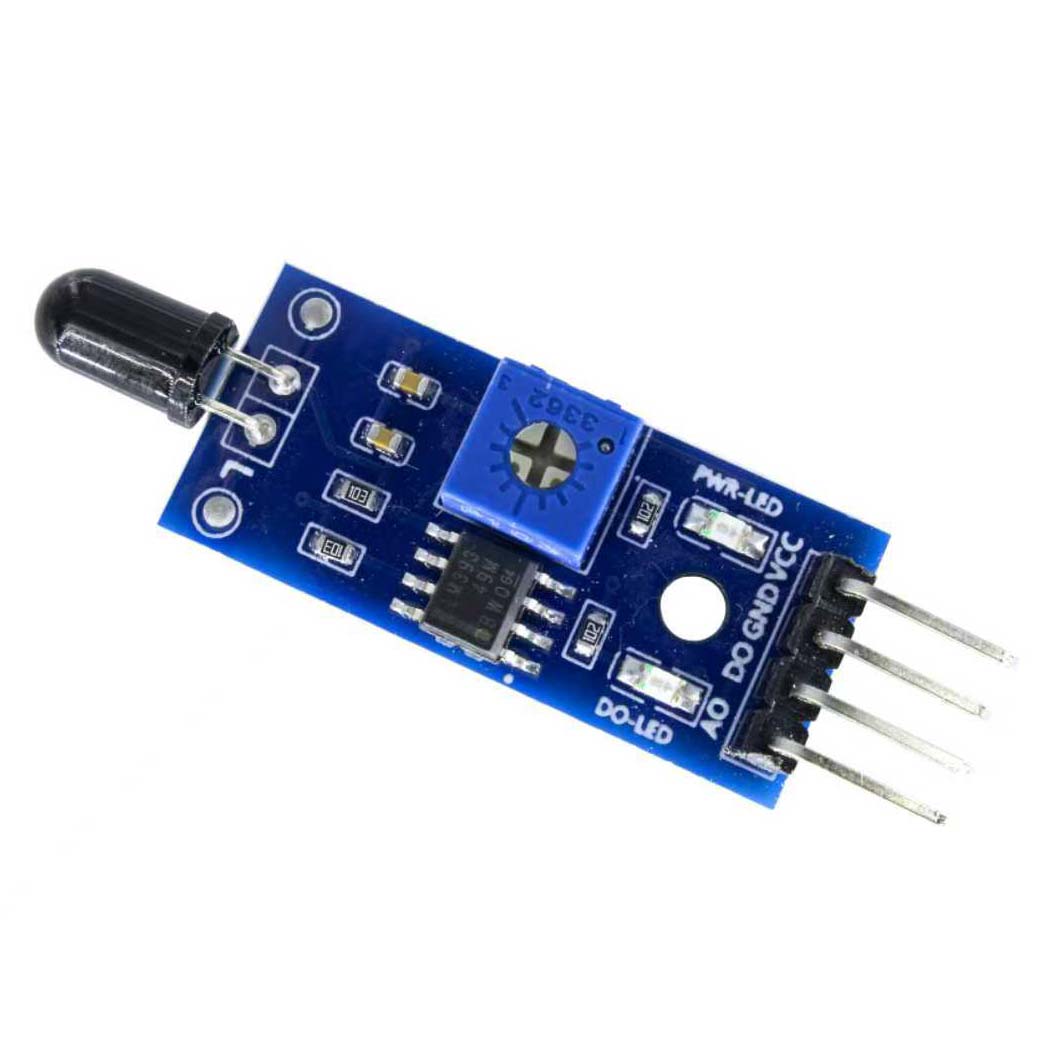

The flame sensor is specifically designed for detecting flames. It works by detecting light in a certain wavelength range, and applicate in smart homes and small fire prevention equipment. Its features are as follow:

1.Can detect flames or light sources with a wavelength between 760nm and 1100nm, and is especially sensitive to flame spectra (sensitivity is adjustable, use a small screwdriver to turn the blue potentiometer).
2.The signal is clean, the waveform is good, and the driving capability is strong, over 15mA.
3.Wide working voltage range, 3.3V to 5V.

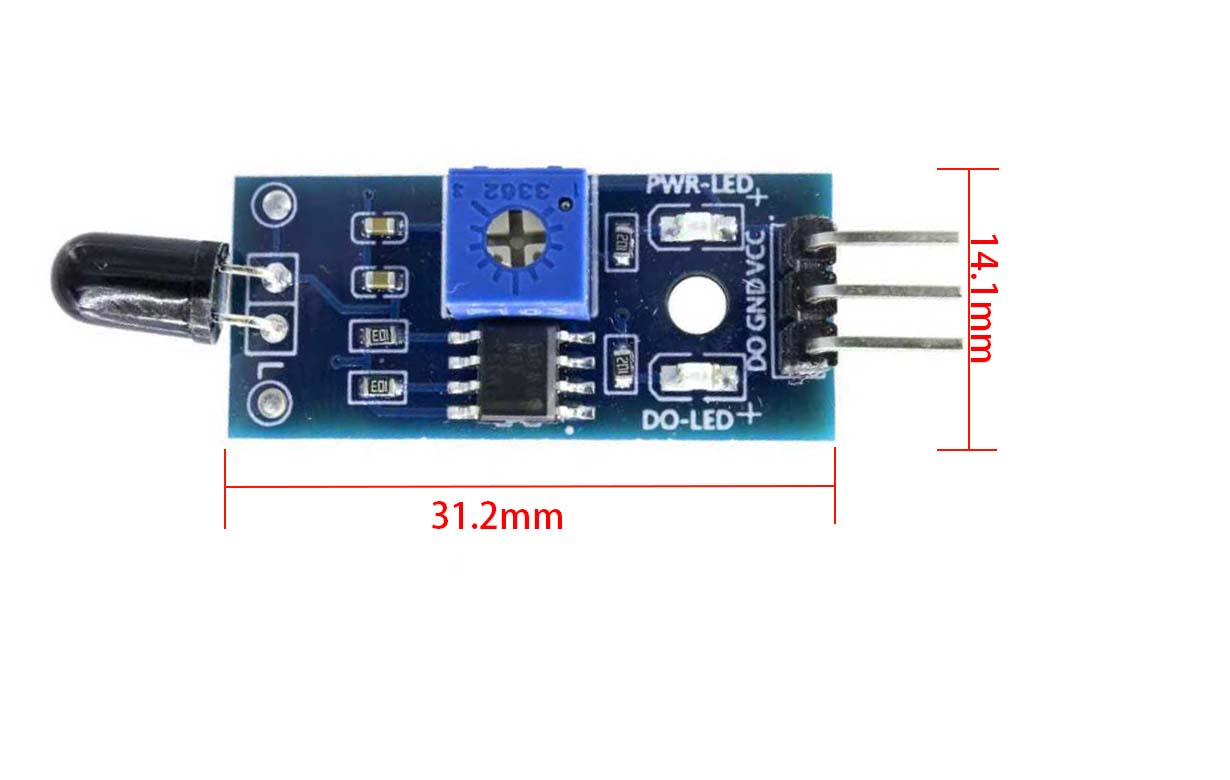

4.Designed with screw holes, can fit 3mm screws.
5.Dual output modes, can output both digital signals and voltage analog signals.

Wiring&Schematic

VCC: Positive power output. Connect 3.3V to 5V power supply.
GND: Zero potential reference point. It forms a current loop with VCC, so connect it to the power supply’s GND or negative pole.
DOUT: Digital output. It compares the sensor’s reading with the set threshold and then outputs a high or low level to the control system.
AOUT: Analog output. It directly sends the sensor’s original voltage signal to the control system.
