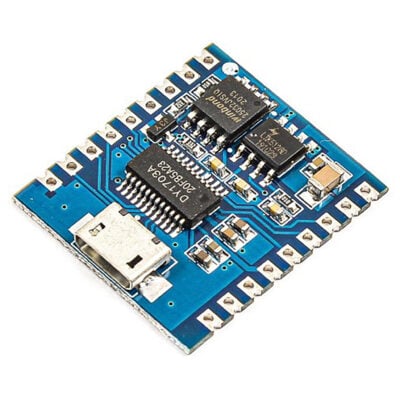

DY-SV17F – Mini voice playback device with built-in flash storage

$2.29

The DY-SV17F is really easy to use. It supports multiple ways to operate—you can just plug it into a computer with a USB cable to download audio files, and it works with MP3 and WAV formats.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “DY-SV17F – Mini voice playback device with built-in flash storage”

SV17F

Product Introduction

The DY-SV17F is a compact audio output module, with the following features:

24-bit DAC (Digital-to-Analog Converter) output, offering an audio dynamic range of up to 90dB and a maximum signal-to-noise ratio of 85dB.
Supports sample rates (in KHz): 8/11.025/12/16/22.05/24/32/44.1/48.
Built-in 4MB flash memory; you can use a USB cable to read/write audio files to it just like a USB drive.
Supports MP3 and WAV decoded files.
On-board 5W Class D power amplifier chip, which can directly drive 4Ω 3-5W speakers.
Supports up to 7 operation methods, including but not limited to UART, independent IO port control, combined IO port control, and single-bus control; you can switch between them using a DIP switch.
Supports controls like play, pause, track selection, and volume adjustment (up/down).
Can handle a maximum of 65,535 audio tracks, with a baud rate of 9600.

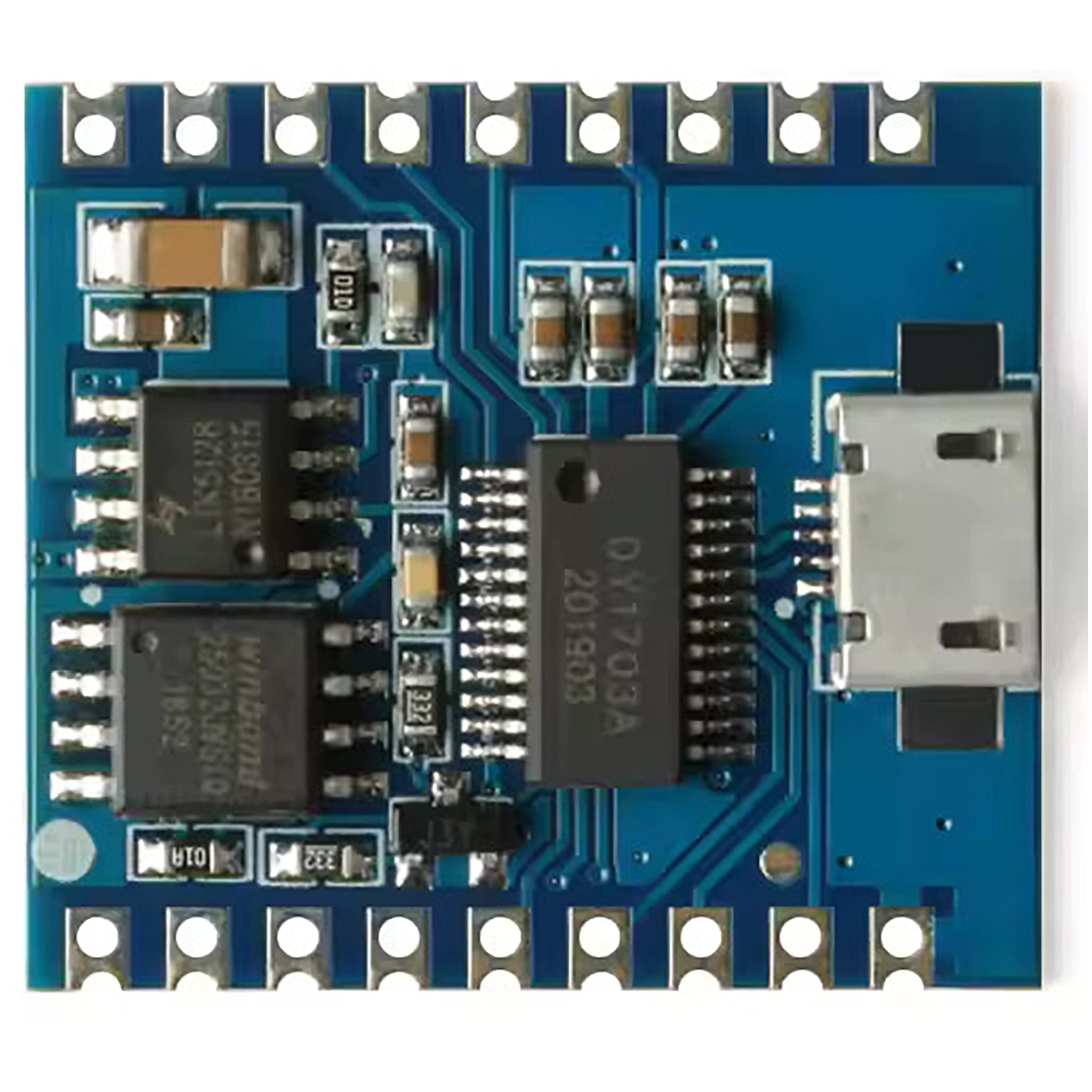

Pin Definition

con1: Mode setting pin 1. After power-on, use it with the other two setting pins to configure the operation mode of the DY-SV17F. A 4.7K resistor must be connected in series.
con2: Mode setting pin 2. After power-on, use it with the other two setting pins to configure the operation mode of the DY-SV17F. A 4.7K resistor must be connected in series.
con3: Mode setting pin 3. After power-on, use it with the other two setting pins to configure the operation mode of the DY-SV17F. A 4.7K resistor must be connected in series. Once mode setting is complete, it automatically switches to a BUSY function pin to output the song playback status.
5V: VCC
33V: 3.3V power output, maximum current 80mA
DACR: Right-channel audio signal output pin
DACL: Left-channel audio signal output pin
SPL-: Speaker negative terminal
SPL+: Speaker positive terminal
GND: Ground, zero potential reference point
IO7: Control input pin 7
IO6: Control input pin 6
IO5: Control input pin 5
IO4: Control input pin 4 / Single-wire input (single-wire mode)
IO3: Control input pin 3
IO2: Control input pin 2
IO1: Control input pin 1 / RX (UART mode)
IO0: Control input pin 0 / TX (UART mode)
