PN532 NFC RFID V3 Module

$5.901 pcs

Multi-mode (I2C、SPI、HSU), widely compatible cards, plug and play, Arduino adapter, built-in antenna, level conversion, multi-communication range, durable gold-plated, strong data interaction

Dimensions

42.7 × 40.5 mm

Brand

easyelecmodule

7747 in stock

Introduction

Meet the PN532 NFC RFID V3 Module—the price is low and you can afford it, DIY – friendly short – range wireless magic. Ideal for projects like a budget – intelligent NFC door lock. This module turns ideas into reality, whether you’re unlocking doors with a tap of your phone, enabling contactless interactions, or adding smart features to physical products. Dive into a world where 13.56 MHz electromagnetic induction powers seamless data exchange！

Datasheet and technical specification

Model Type:	RFID Reader, Writer Module
Operating Voltage (V):	3.3V ~ 5V
Communication Distance	5cm~7cm
Module Size (LxWxH) mm	42.7 × 40.4 × 4 mm (LxWxH)
Shipping Weight	0.05 kg
Shipping Dimensions	6 × 5 × 2 cm
Communication Protocols	I2C, SPI, UART
Supported Standards	ISO/IEC 14443 Type A & B, NFC
Operating Temperature	-25°C to +85°C

Pinout diagram

Working Interface	Channel 1	Channel 2
HSU	OFF	OFF
I2C	ON	OFF
SPI	OFF	ON

The PN532 module is a versatile NFC controller that supports multiple communication protocols, including I2C, SPI, and HSU (High-Speed UART). Depending on your requirements, you can select the desired communication mode by setting the small switches to the appropriate positions.

VCC: 3.3V~5V
12C/UART: 3.3V~24V TTL
SPl:3. 3V TTL with 100 ohm resistors in series. It could be connected directly to 5V interface of microcontroller such as Arduino.

Features

1.Work in NFCMode or RFlD reader/writer Mode

2.RFID reader/writer mode support

Mifare 1k, 4k, Ultralight, and DesFire cards
ISO/lEC 14443-4 cards such as CD97BX, CD light, DesFire, P5CNO72 (SMX)
Innovision Jewel cards such as IRT5001 card
FeliCa cards such as RCs_860 and RCs_854

3.Plug and play, Arduino compatible

4.Built in PCB Antenna, with 4cm~6cm communication distance

5.On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI

6.Work as RFlD reader/writer

7.Work as 1443-A card or a virtual card

8.Exchange data with other NFC devices such as smartphone

9.Gold plated PCB, more durable under extreme environment

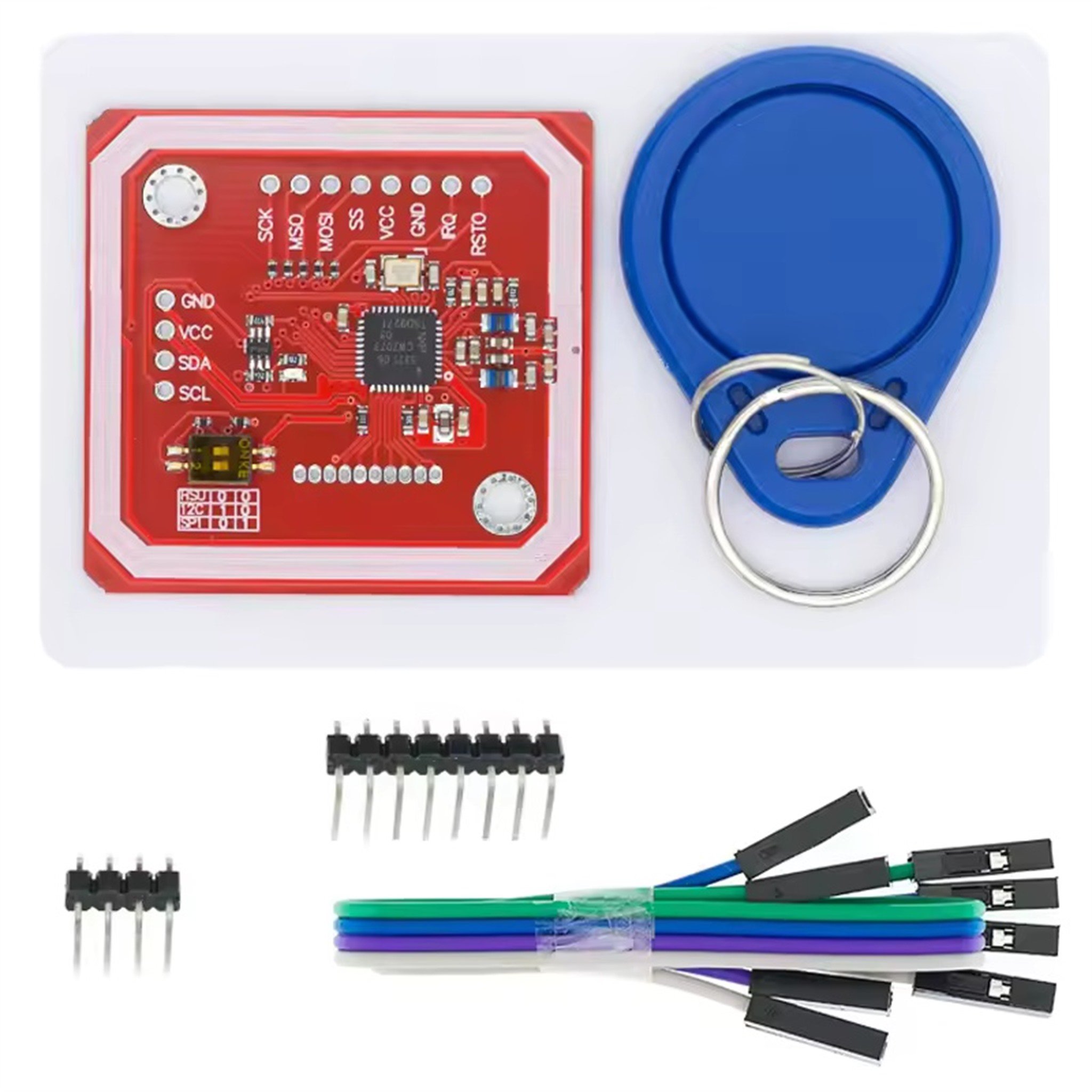

Product list

Item	Quantity
PN532 NFC RF Identification Module	1
2.54 mm Pitch 4 – Pin Cable	1
Mifare One S50 White Card	1
One S50 Key Card	1
12P Bended Male Pins	1

Main Applications of PN532 NFC Module

Mobile payments：Apple Pay NFC, Google Wallet.
Tap-to-Pair：Pairing Bluetooth devices just by tapping, instead of manual entering.
Embedding digital experience in physical products: NFC’s small form factor allows for it to be embedded into physical products, enabling a unique experience when interacted.
Identity verification: NFC technology can be widely used in access control systems, smart cards and passports to ensure the authenticity of the identities of people entering specific areas.
Electronic ticketing: In fields such as transportation and tourism, NFC electronic ticketing systems are gradually replacing traditional paper tickets. Users can quickly enter and exit venues through electronic tickets on their mobile phones, improving the efficiency of passage.
