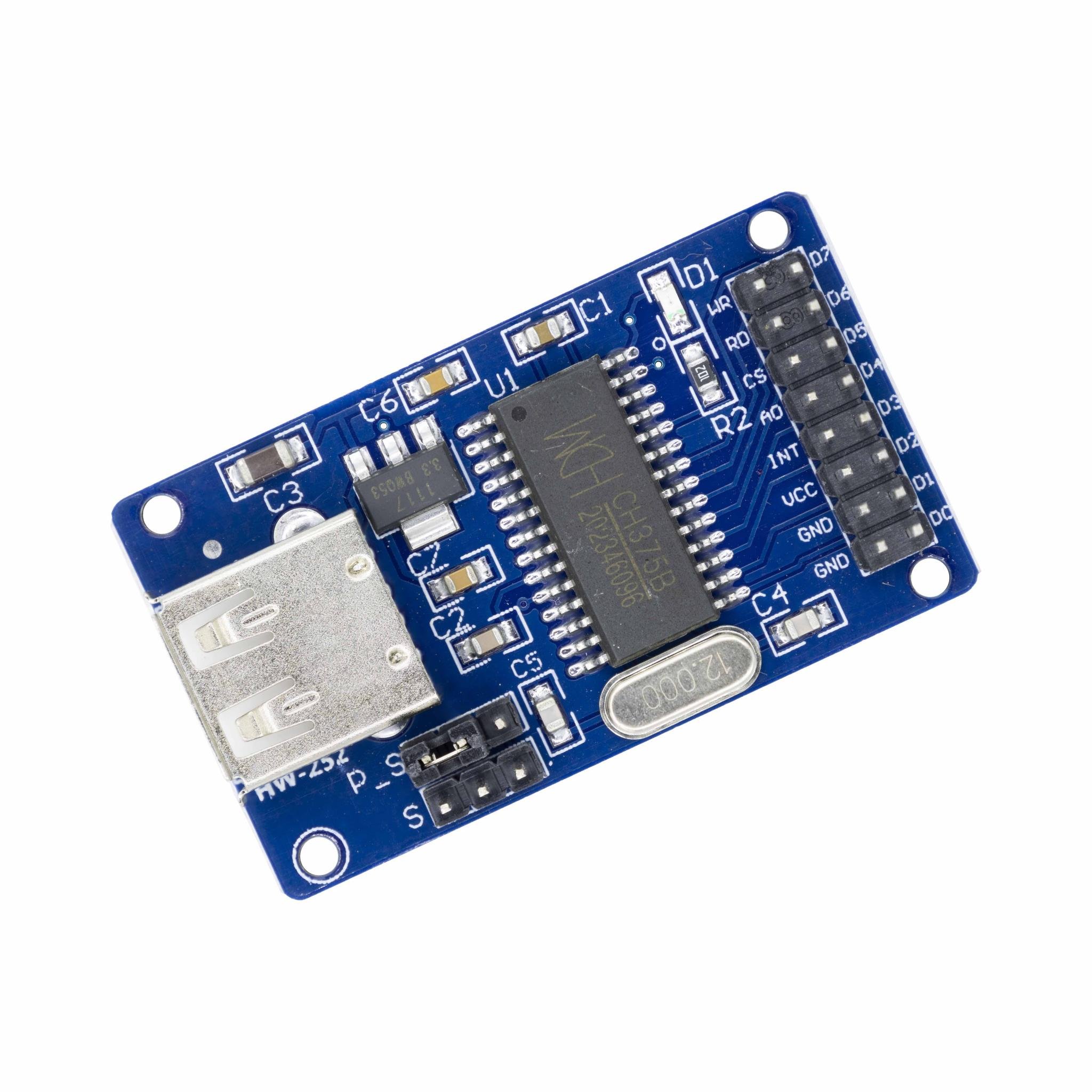

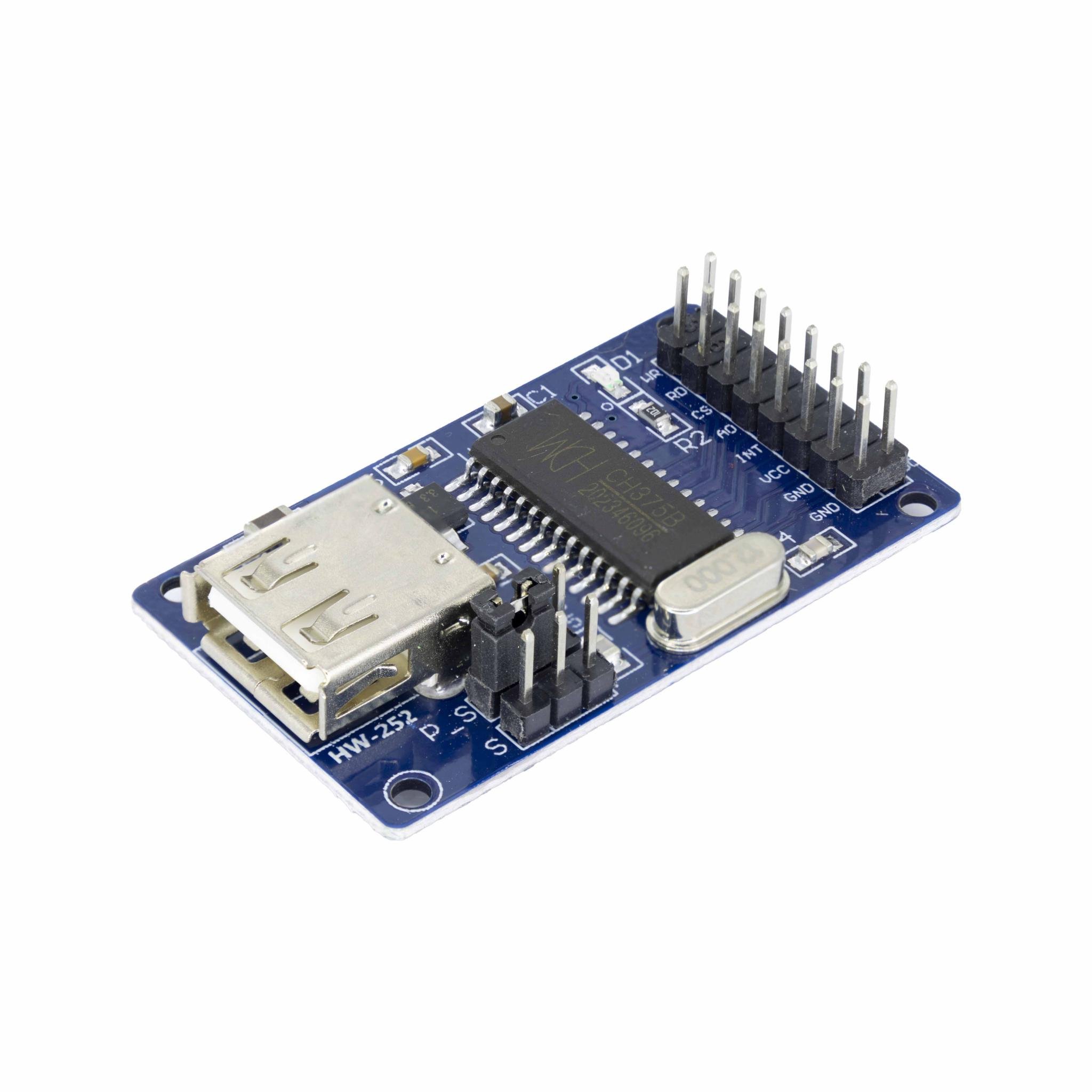

CH375B U-Disk Read Write Module USB Interface Communication
$5.381pcs
CH375B U-disk Module: No complex USB protocol needed, dual serial/parallel modes for MCUs, plug-and-play! Compact integrated, smooth reading/writing, breaks storage bottlenecks easily, embedded development must-have!

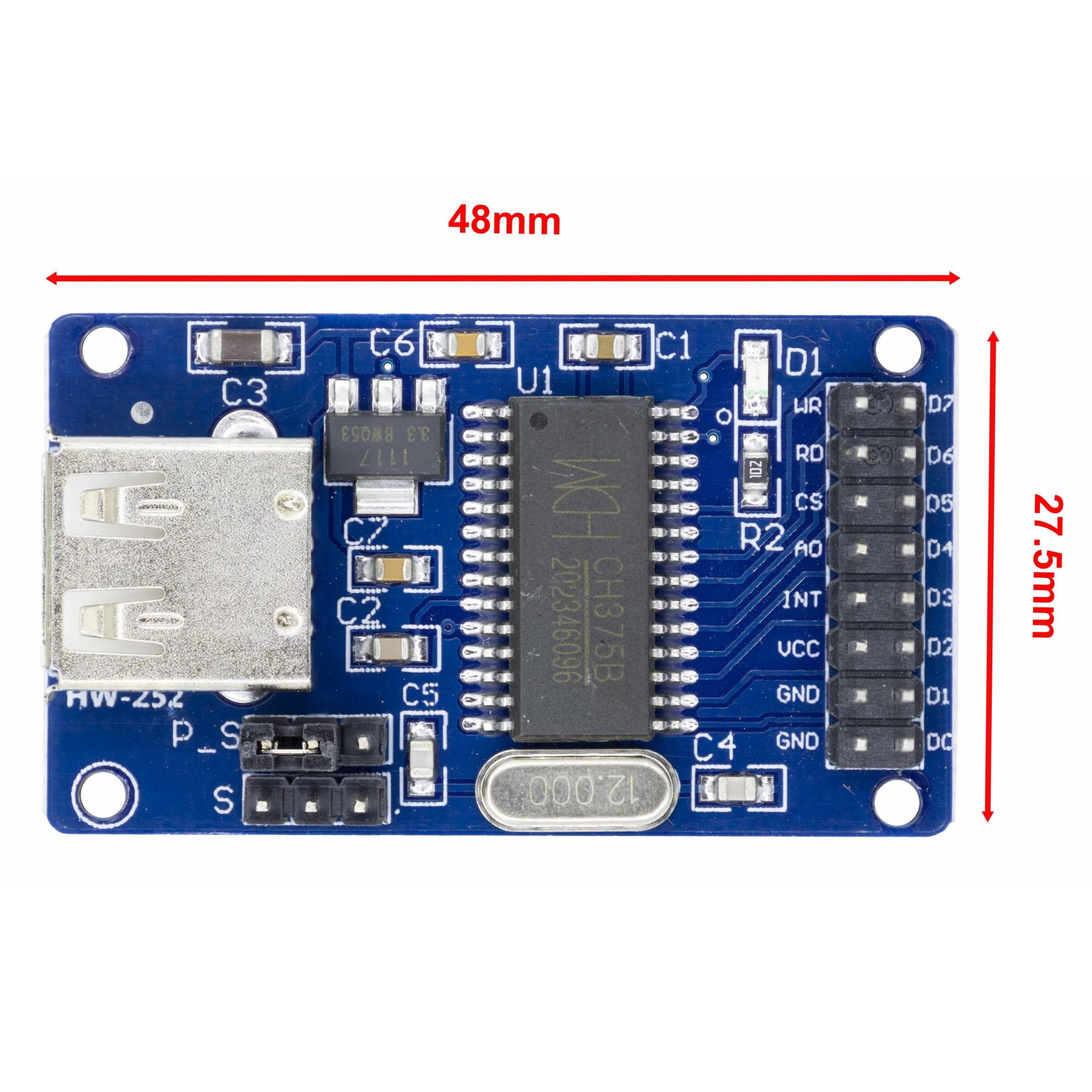

| Dimensions | 48 × 27.5 mm |
|---|---|
| Brand |
easyelecmodule |
2542 in stock
Product Introduction
CH375B is a general-purpose interface chip for the USB bus, featuring an 8-bit data bus, read, write, chip select control lines, and interrupt output, which can be easily connected to the system bus of controllers such as microcontroller/DSP/MCU/MPU. In USB host mode, CH375B also provides a serial communication mode, connecting to microcontroller/DSP/MCU/MPU through serial input, serial output, and interrupt output.

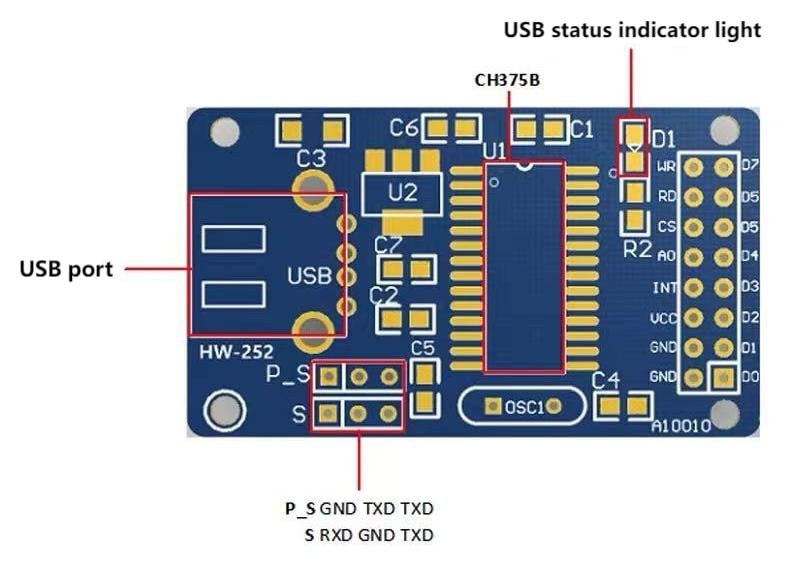

CH375B Feature
- 2×8 connector for easy connection to MCU
- Can work in parallel or serial mode according to jumper selection
- USB status indicator light
- Onboard 3.3V LDO 1117, providing a maximum current of 800mA
- 5V power supplied by the target board
- 12MHz crystal oscillator
CH375B Parameter
Model | CH375B |
Mechanical rigidity | rigidity |
Number of layers | Single-sided |
Base material | Aluminum |
Insulating material | Metal base |
Insulation layer thickness | Thin board |
Flame-retardant property | VO board |
CH375B Application
- Data collection and recording
- Offline update of firmware or configuration parameters
- Portable data exchange and export
- As an expansion storage device
