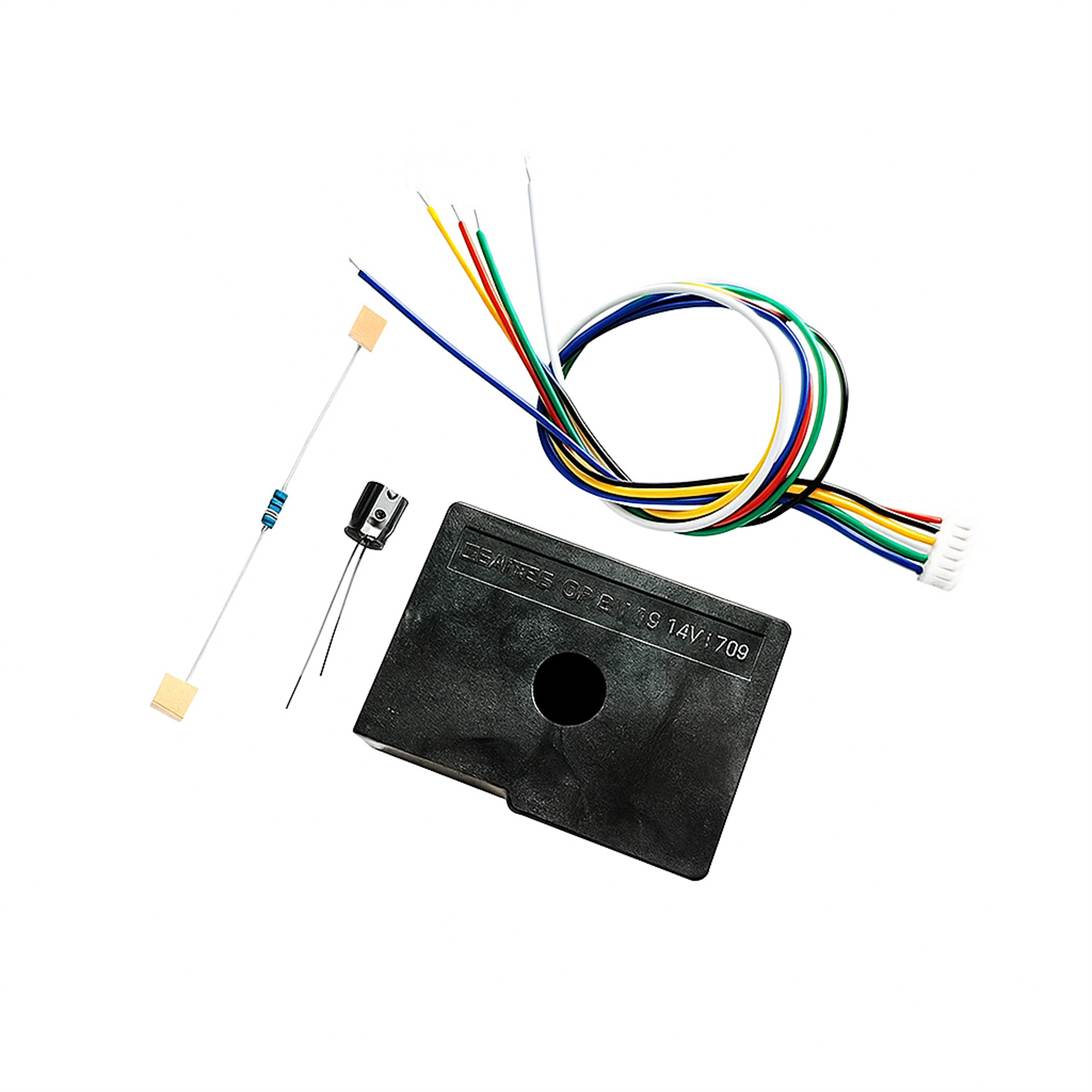

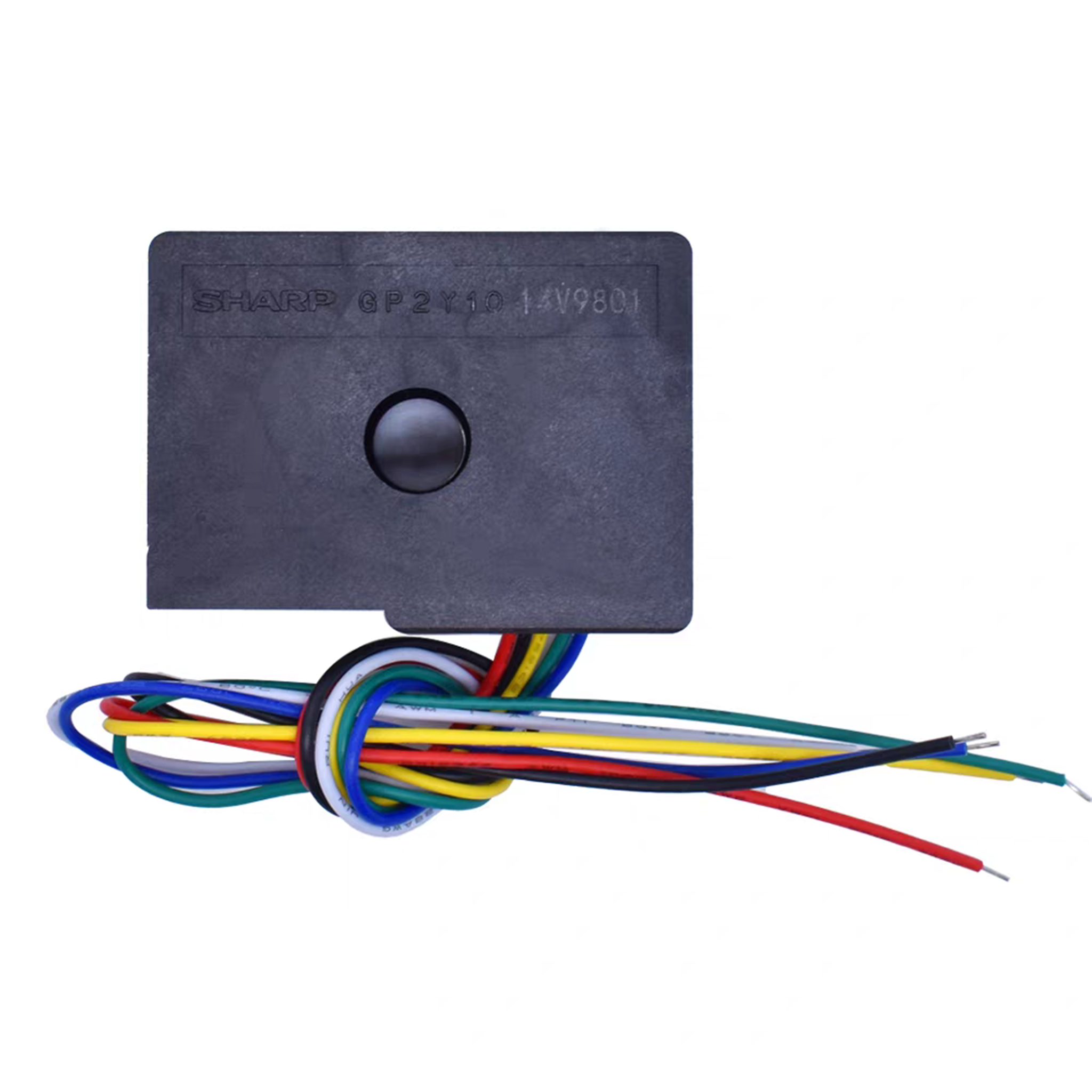

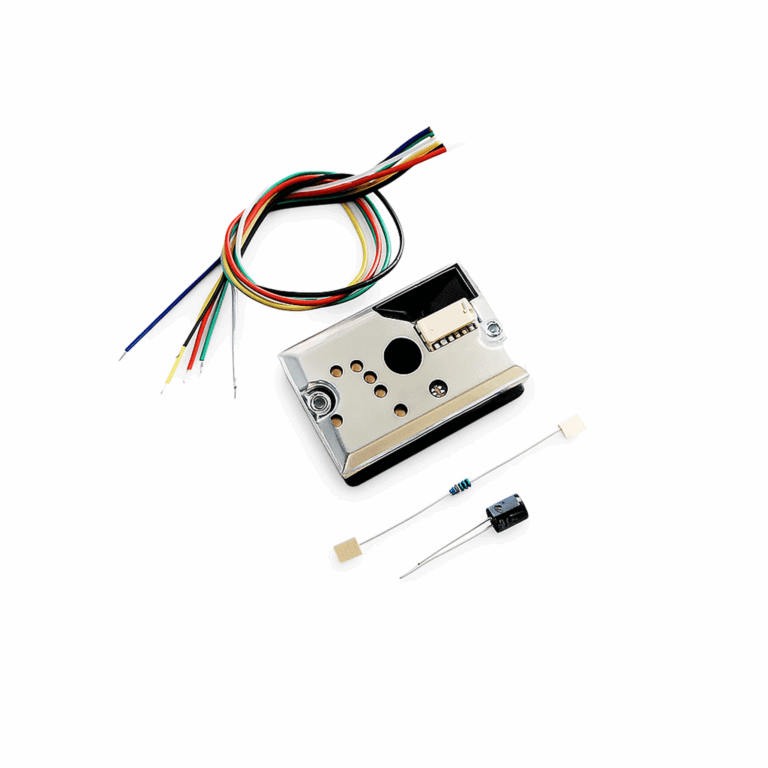

GP2Y1014AUOF PM2.5 Optical Dust Sensor Module
$9.90
| Weight | 0.0331 g |
|---|---|
| Dimensions | 1.81 × 1.18 × 0.689 mm |

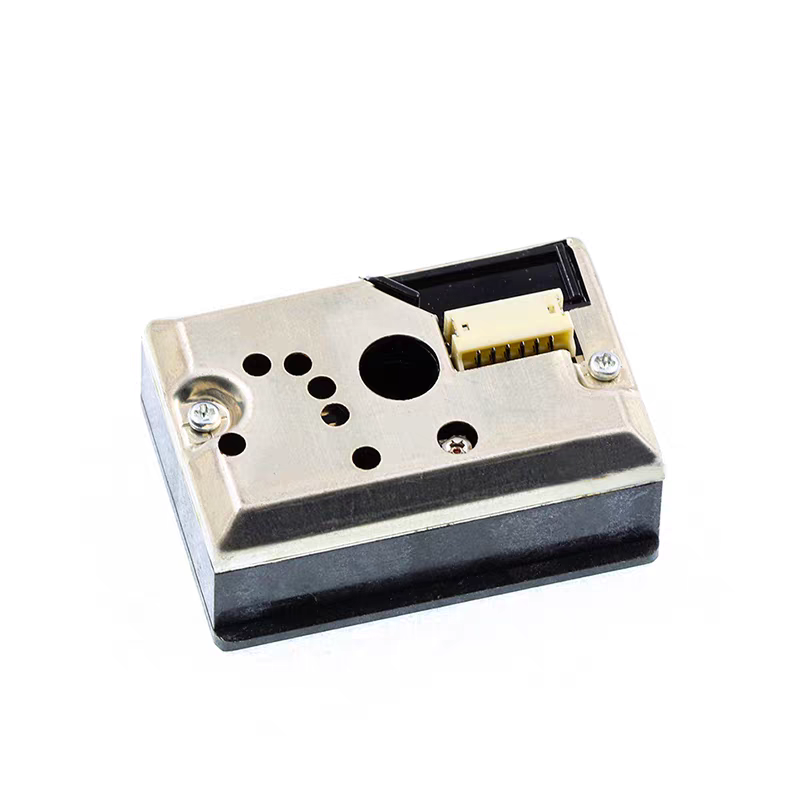

The optical dust sensor (GP2Y1014AUOF) is very effective in detecting extremely fine particles, such as cigarette smoke, and is commonly used in air purifier systems. In this device, an infrared emitting diode and a phototransistor are arranged diagonally to detect the reflected light from dust particles in the air.
This sensor features very low current consumption (maximum 20 mA, typically 11 mA) and can operate with a supply voltage of up to 7 VDC. The output is an analog voltage proportional to the measured dust concentration, with a sensitivity of 0.5 V per 0.1 mg/m³.
| Parameter | Value |
|---|---|
| Power Supply Voltage | 5 - 7V |
| Operating Temperature | -10 - 65 °C |
| Current Consumption | Max 20mA |
| Small Particle Detection Value | 0.8μm |
| Zero Sensitivity | 0.5V/(0.1mg/m³) |
| Voltage in Air | Typical 0.9V |
| Storage Temperature | -20 - 80 °C |

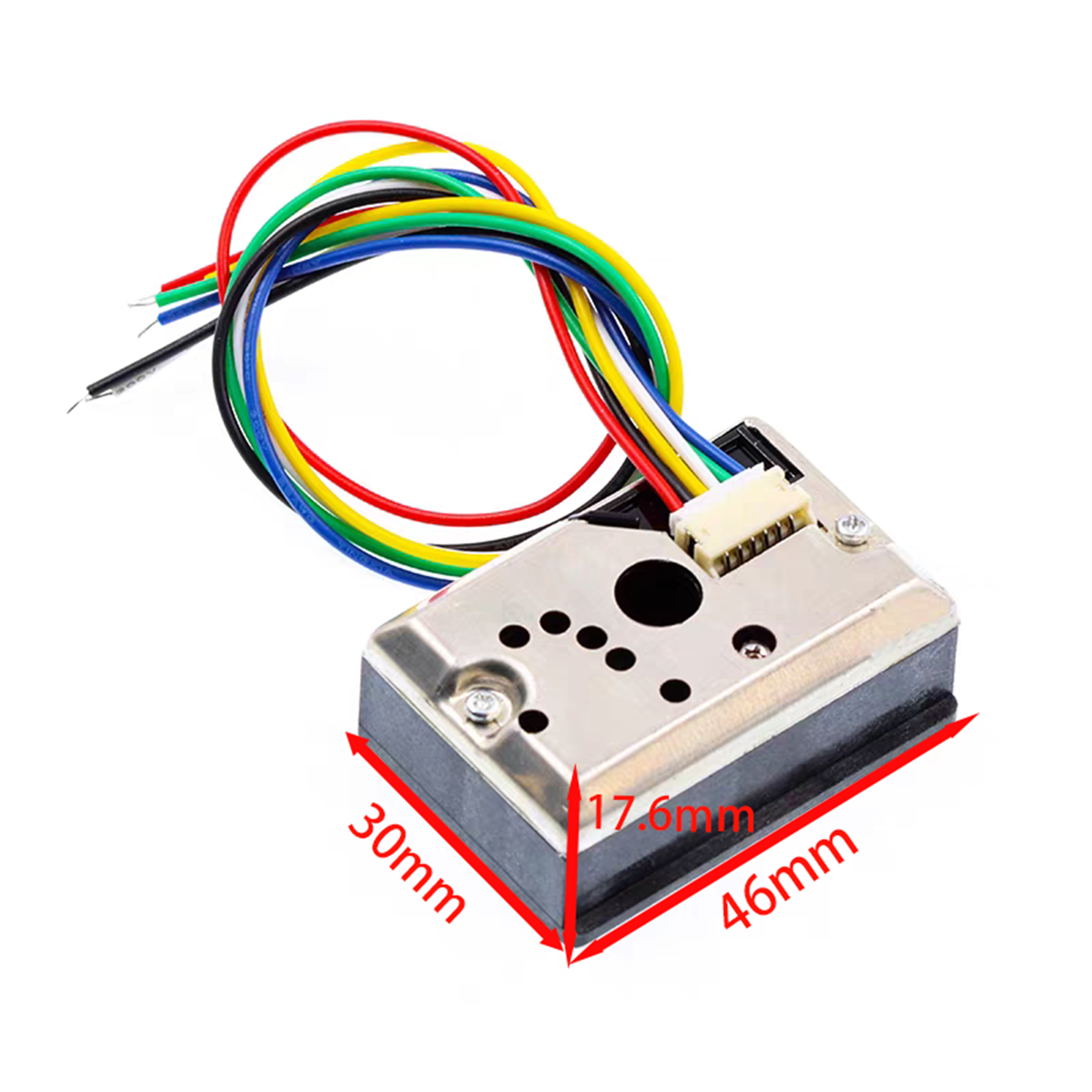

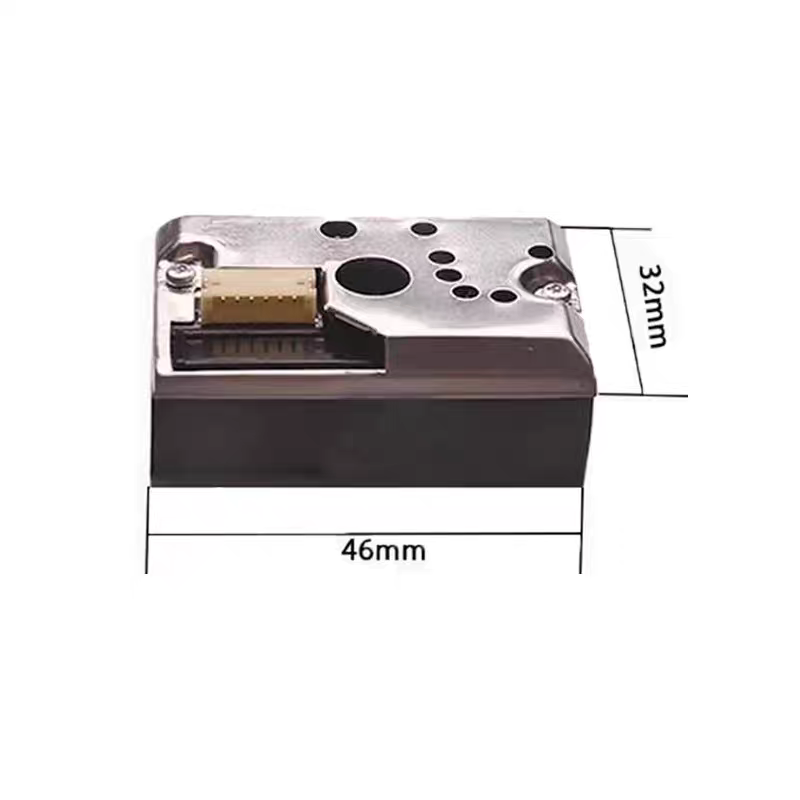

| Dimension | 46*30*17.6mm |
| Approximate Weight | 15g |

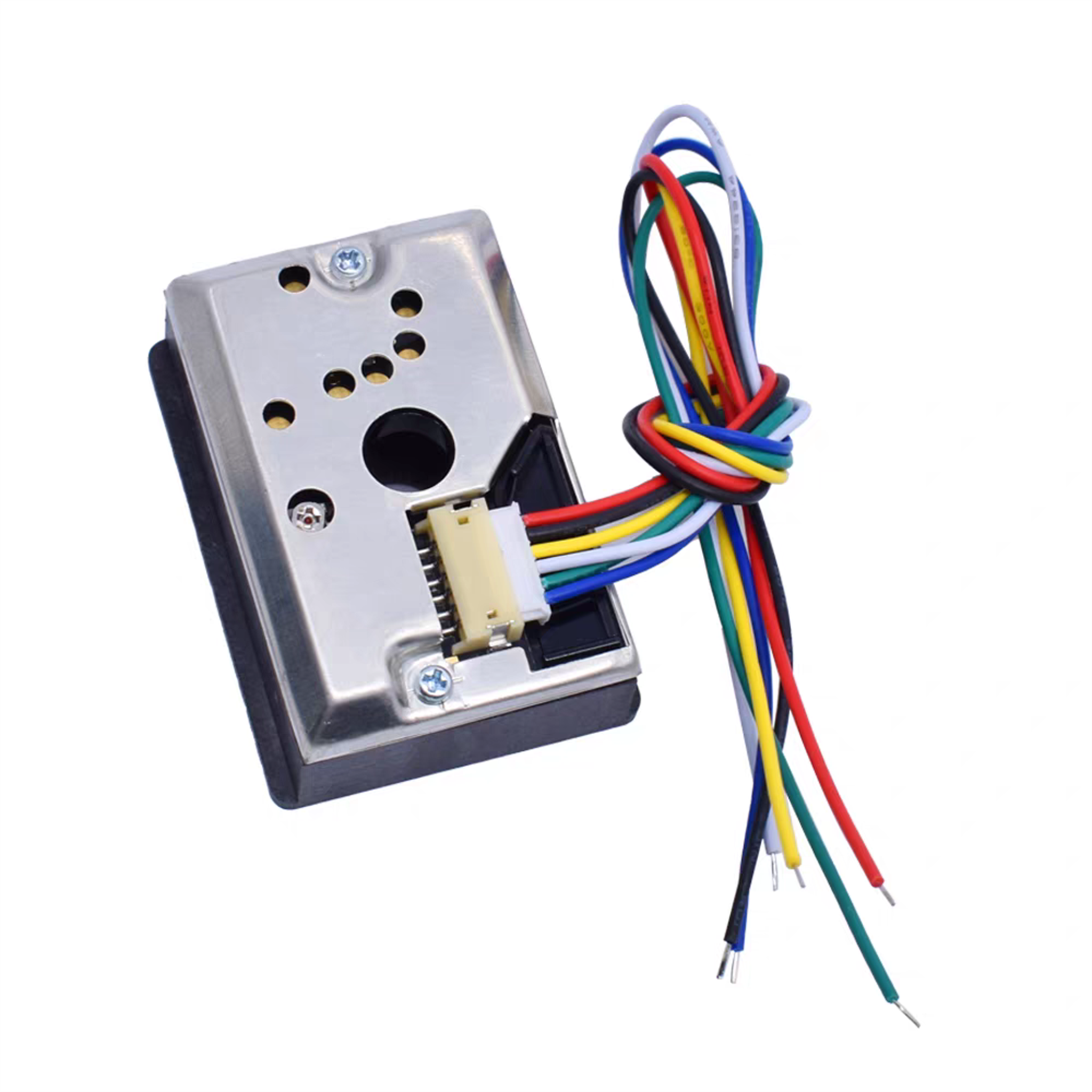

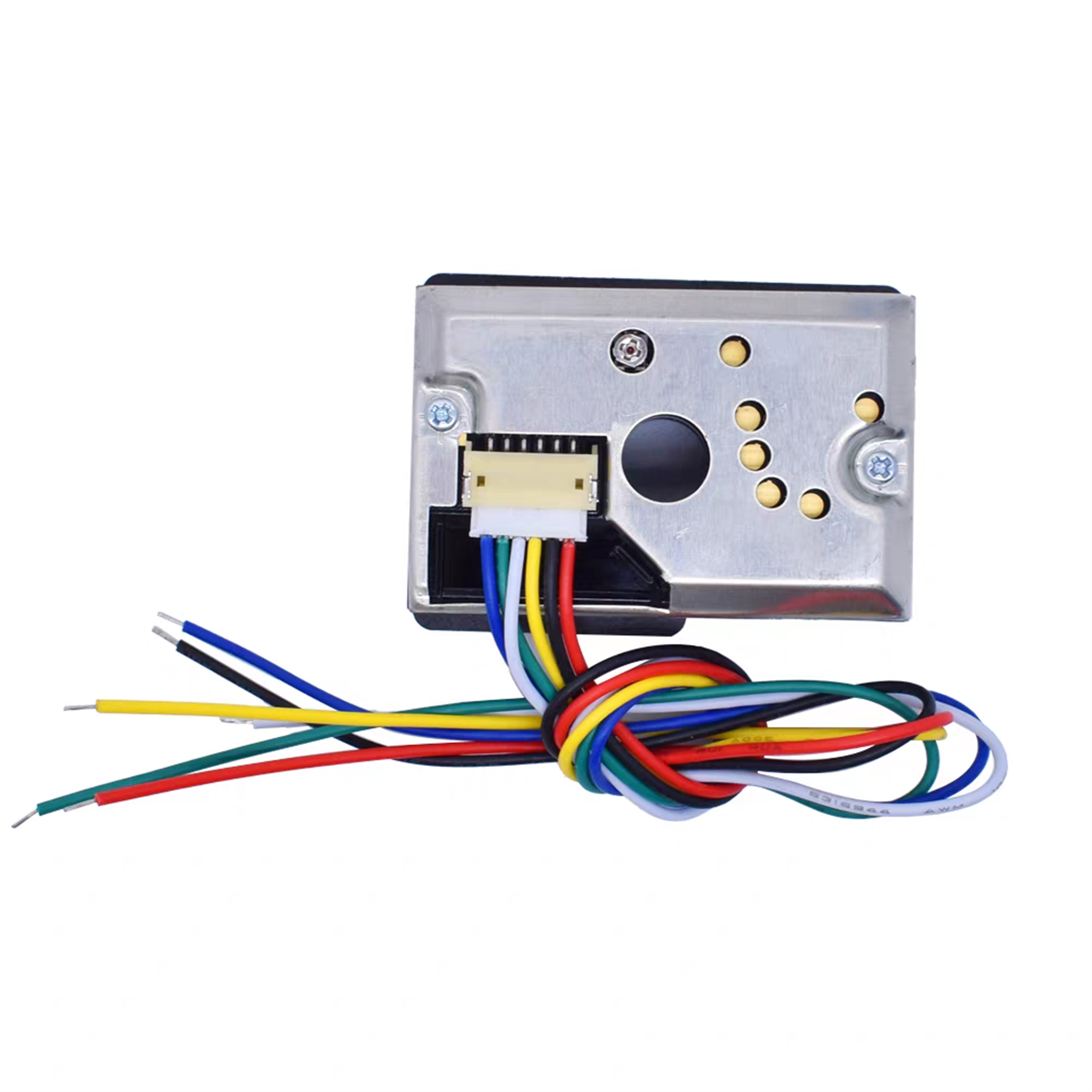

Pin Definition
V-LED This is the VCC pin of the LED. Connect this pin to the 5V pin of the Arduino with a 150Ω Current Limiting Resistor.
LED-GND This is the Ground Pin of the LED. Connect this pin to the Ground pin of the Arduino.
LED This Pin can be used to toggle the LED On/Off. Connect it to any digital pin of Arduino.
S-GND is the ground pin of the pulse Dust Sensor module, and it should be connected to the ground pin of the Arduino.
VoutThis is the output of the Dust Sensor Module; you can connect it to any analog pins of the Arduino.
VCC Power Pin of the Dust Sensor Module connects to the 5V or 3.3V pin of the Arduino.
Dust Sensor GP2Y1010AU0F Key Features
∗ Low Budget: An economical alternative to costly PM sensors
∗ Simple Interface: One analog output, making Arduino integration straightforward
∗ Dependable Detection: Dust and smoke optical sensing technology
∗ Compact Design: Small size ideal for mobile projects
∗ Versatile Uses: Air quality monitoring, HVAC, and industrial automation
