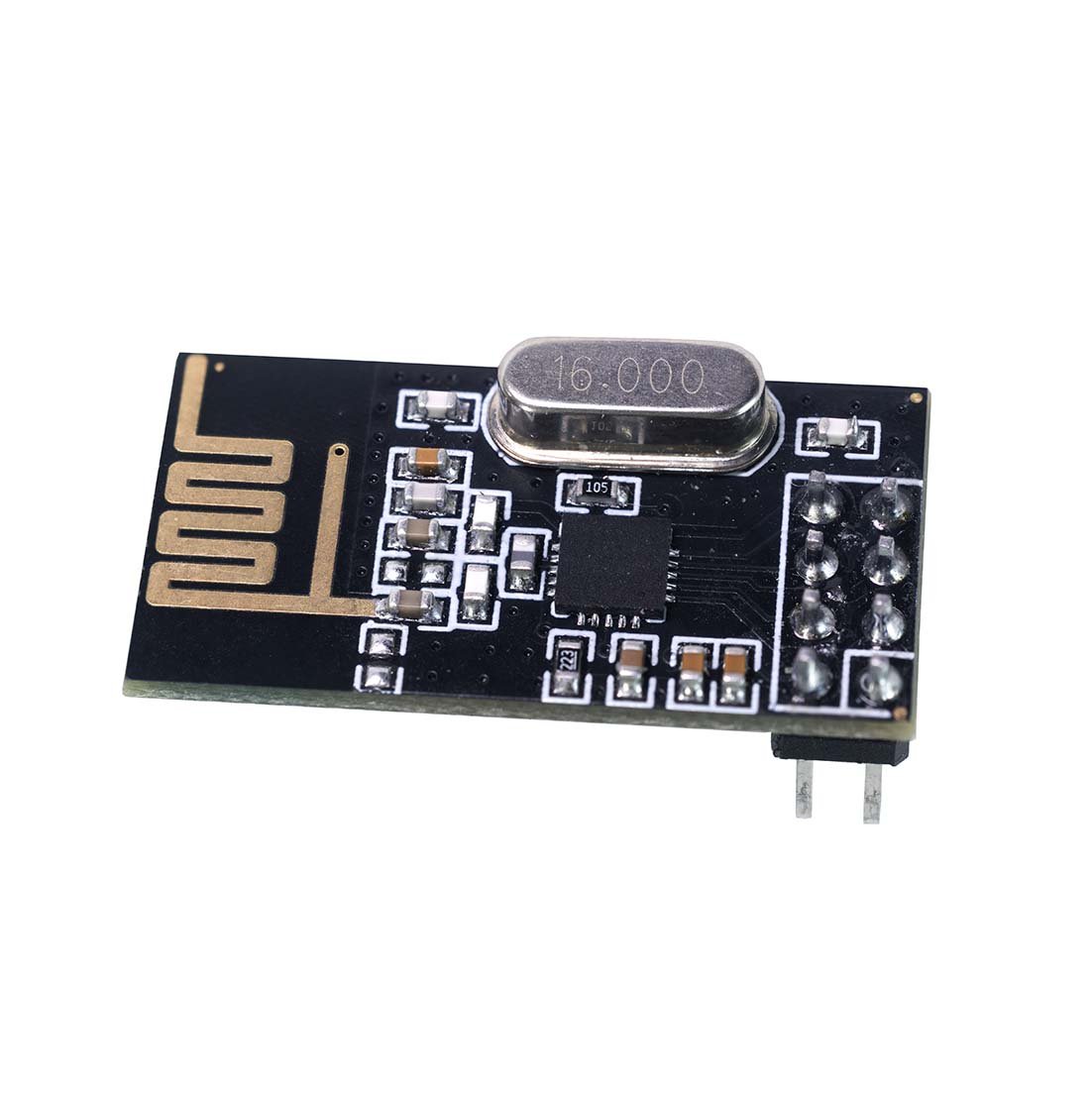

NRF24l01-2.4G communication module
$1.991pcs
The nRF24L01 is a popular 2.4GHz wireless transceiver module. With tons of projects and resources available, it’s the ideal starting point for learning.

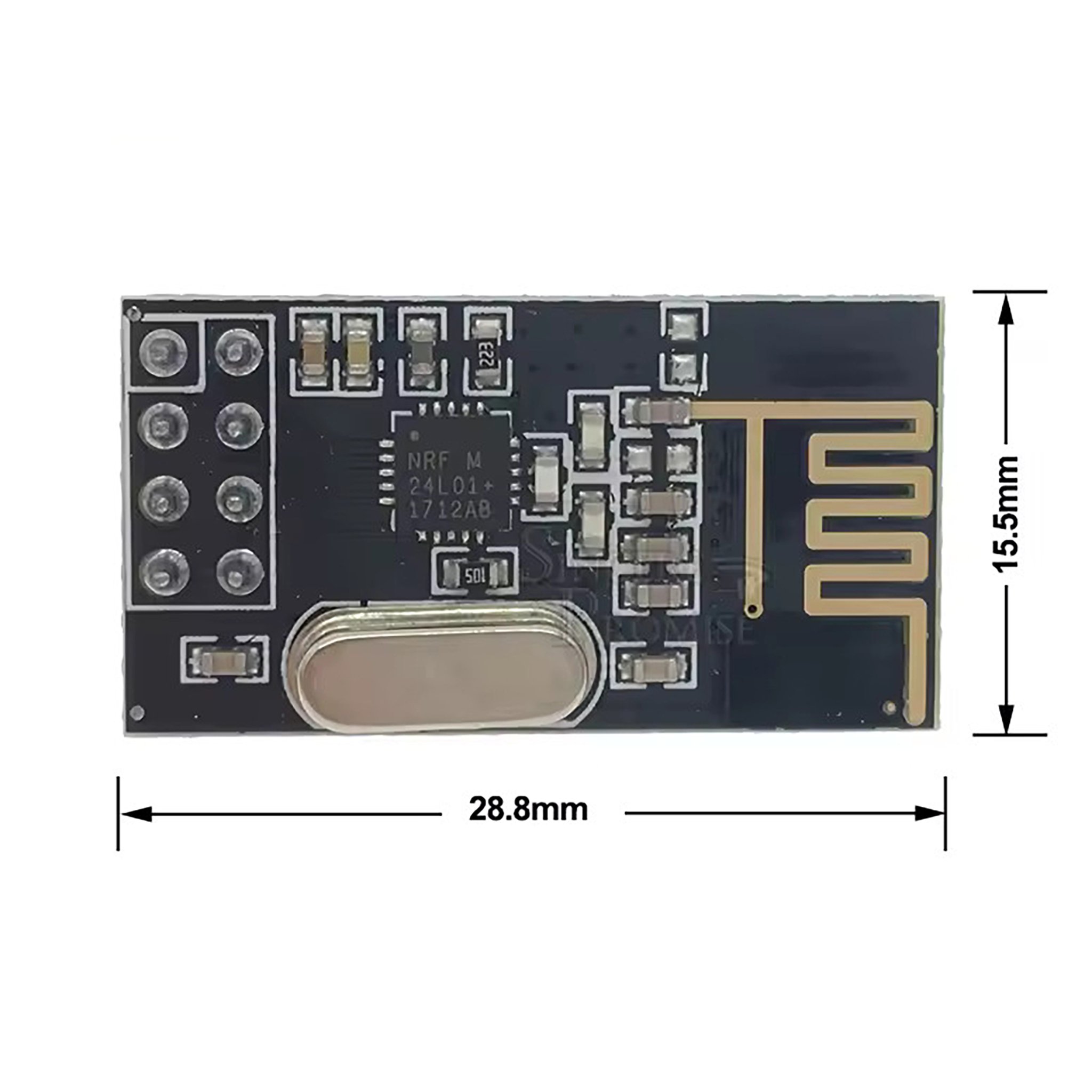

| Dimensions | 28.8 × 15.5 mm |
|---|---|
| Brand |
easyelecmodule |
2646 in stock
Product Introduction
NRF24L01 is a module specifically designed for 2.4G data transmission. It can transmit a maximum of 32 char-type data each time, and the communication frequency band, transmission rate, and transmission power are all adjustable. With reasonable settings, the nRF24L01 can avoid data loss caused by interference even in environments with severe electromagnetic interference such as urban areas. It uses SPI communication, with a maximum communication speed of 8MHz, which reduces the time for multi-group data transmission. In addition, it can receive data sent by up to 5 other nRF24L01 modules.
Parameter
| PRODUCT | NRF24L01 |
|---|---|
| Input Voltage | 3 to 3.3V |
| Maximum working currents | 12.3mA |
| Standby currents | 22μA |
| Total Power Dissipation | 60mW |
| Maximum Output Power | 0dBm |
Schematic&Pinout define
GND:Power ground terminal
VCC:Power input voltage.must be between 1.9-3.6v,exceeding this range will cause damage to the module
CE:control line，which can control the state of the NRF24 module
CSN:SPI chip select pin
SCK:clock line（SPI clock）
MOSI:Master Out Slave In pin, through which the microcontroller sends data to the NRF24L01 module
MISO:Master In Slave Out pin, through which the NRF24L01 module sends data to the micro-controller.
IRQ:Interrupt signal output pin

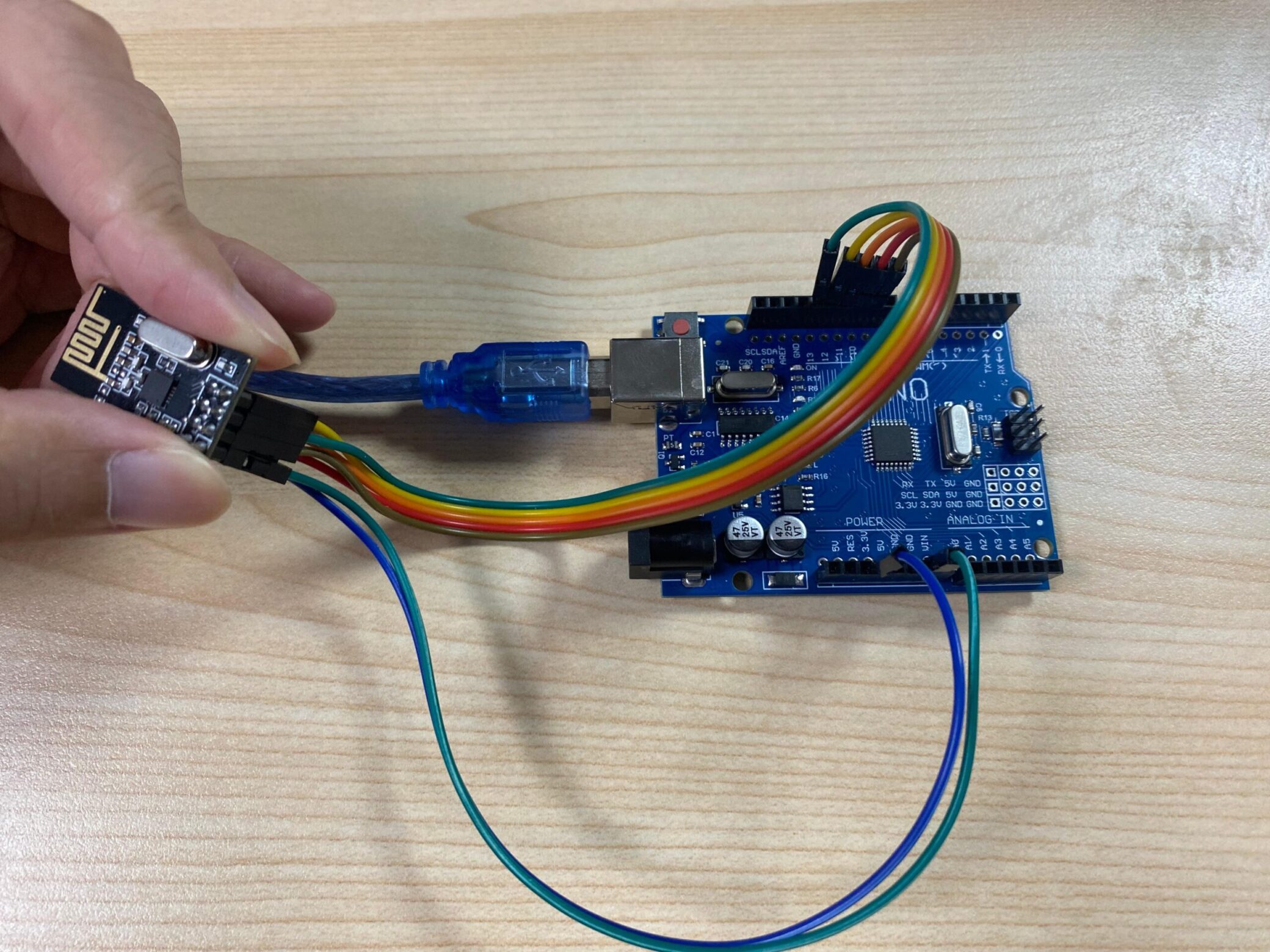

The nRF24L01 is relatively difficult to use, and it’s inevitable to encounter problems when using it for the first time. But that’s okay; we have prepared a detailed tutorial on using the nRF24L01 with Arduino.If you are an engineer and want a smaller size, our store also has ones of 18*12mm.nRF24l01-mini module.
