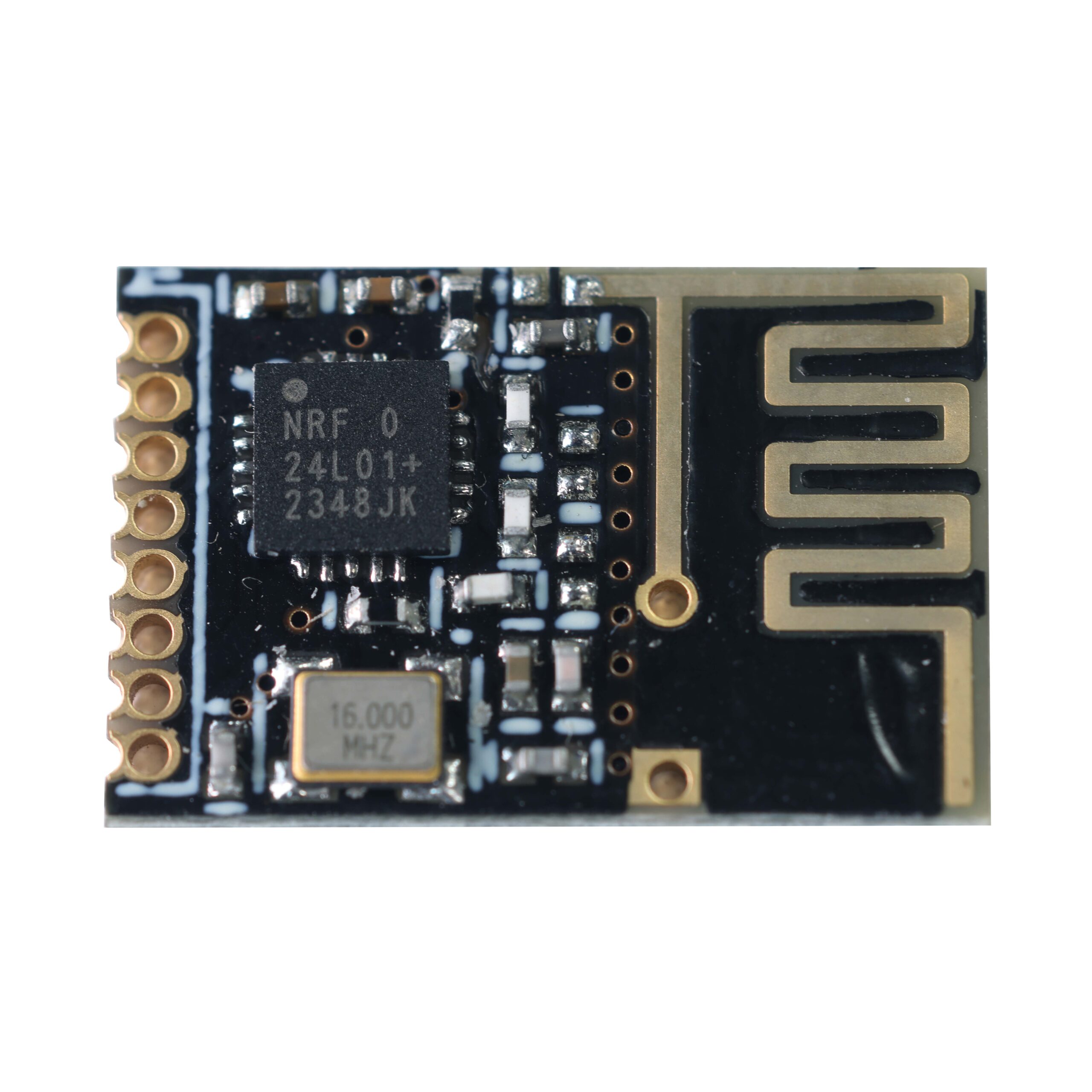

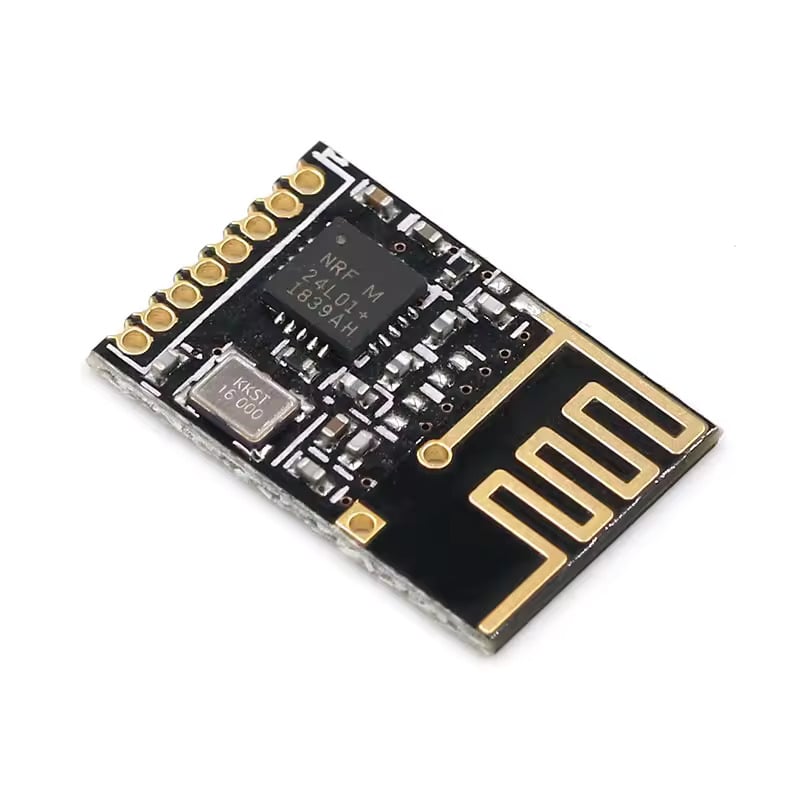

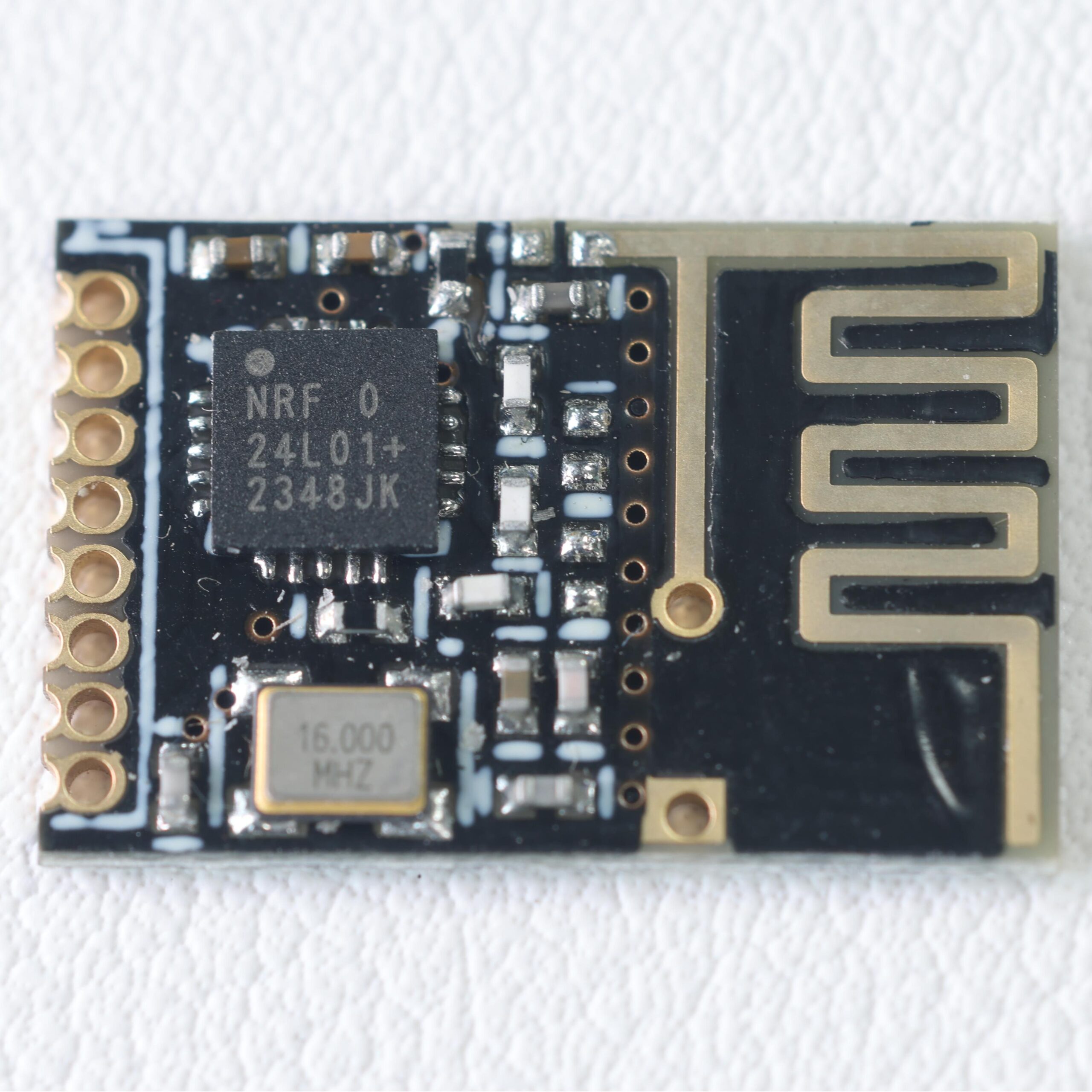

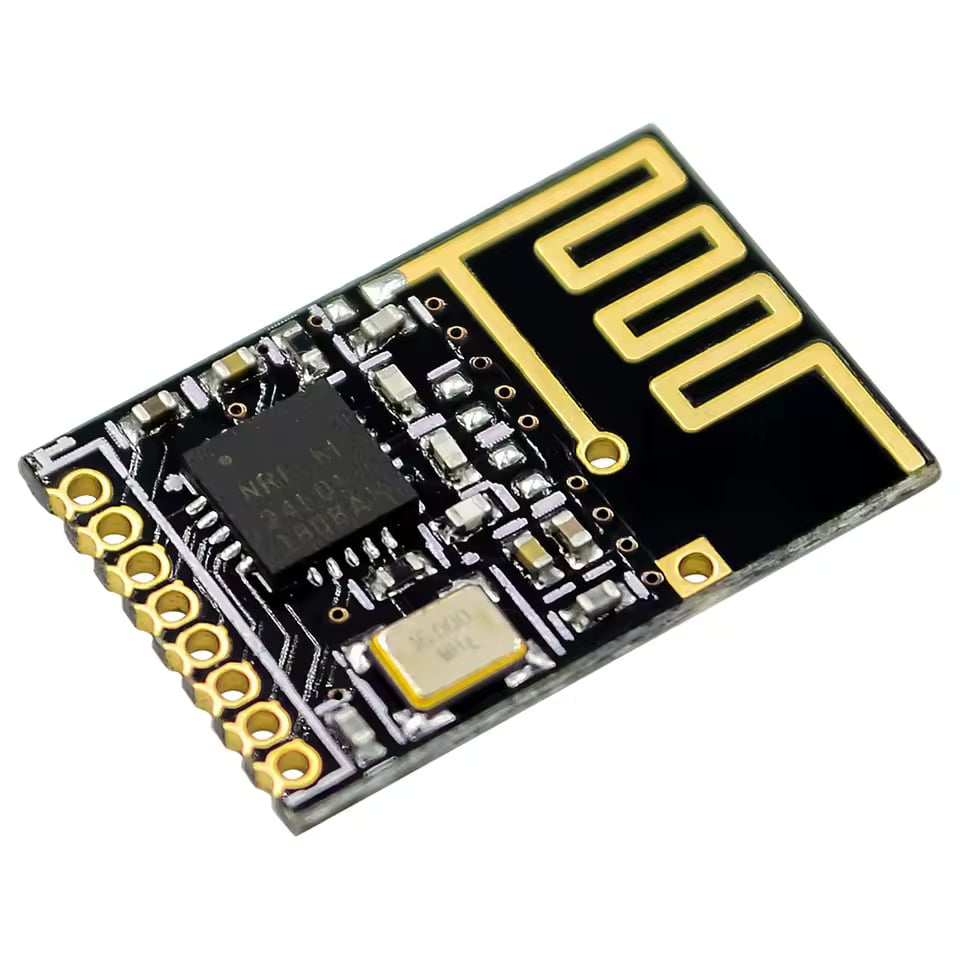

NRF24l01 mini-Ultra small 2.4G communication module

$1.991pcs

The extremely compact 2.4G wireless transmission module, with a size of only 12 * 18mm while maintaining the same antenna area, is only half of the same type of module

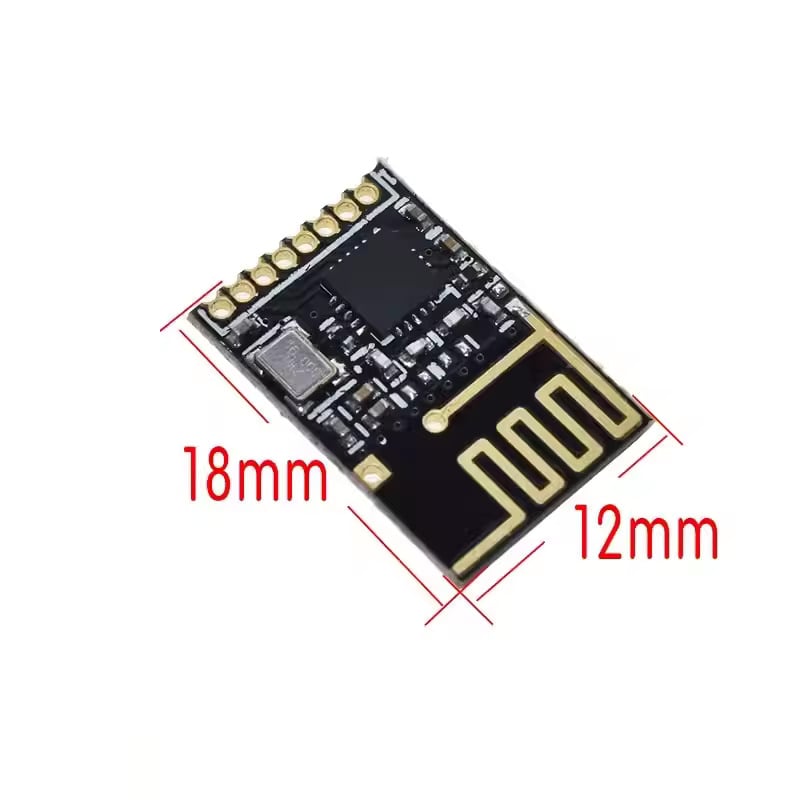

Dimensions	18 × 12 mm
Brand	easyelecmodule

6462 in stock

Add to wishlist

Categories: Modules, Wireless & loT Tag: 2.4G

DESCRIPTIONS AND FEATURES

Product Introduction

This product is specially designed for engineers pursuing extreme cloest. While extremely reduce the size, it retains the same wires area and surrounding circuits. Its usage method and communication are completely consistent with the standard version of nRF24L01. It is particularly suitable for devices such as drones that are highly sensitive to size and weight but require more stable performance and longer transmission distance.However, it should be noted that the pin pitch is only half of the standard value, 1.27mm, which makes soldering more difficult. It is only suitable for advanced users. Ordinary users are advised to use the standard version NRF24l01.

Parameters

PRODUCT	NRF24L01 MINI
Input Voltage	3.0V to 3.3V
Maximum working currents	12mA
Standby Current	22uA
Total Power Dissipation	60mW
Maximum Output Power	0dB

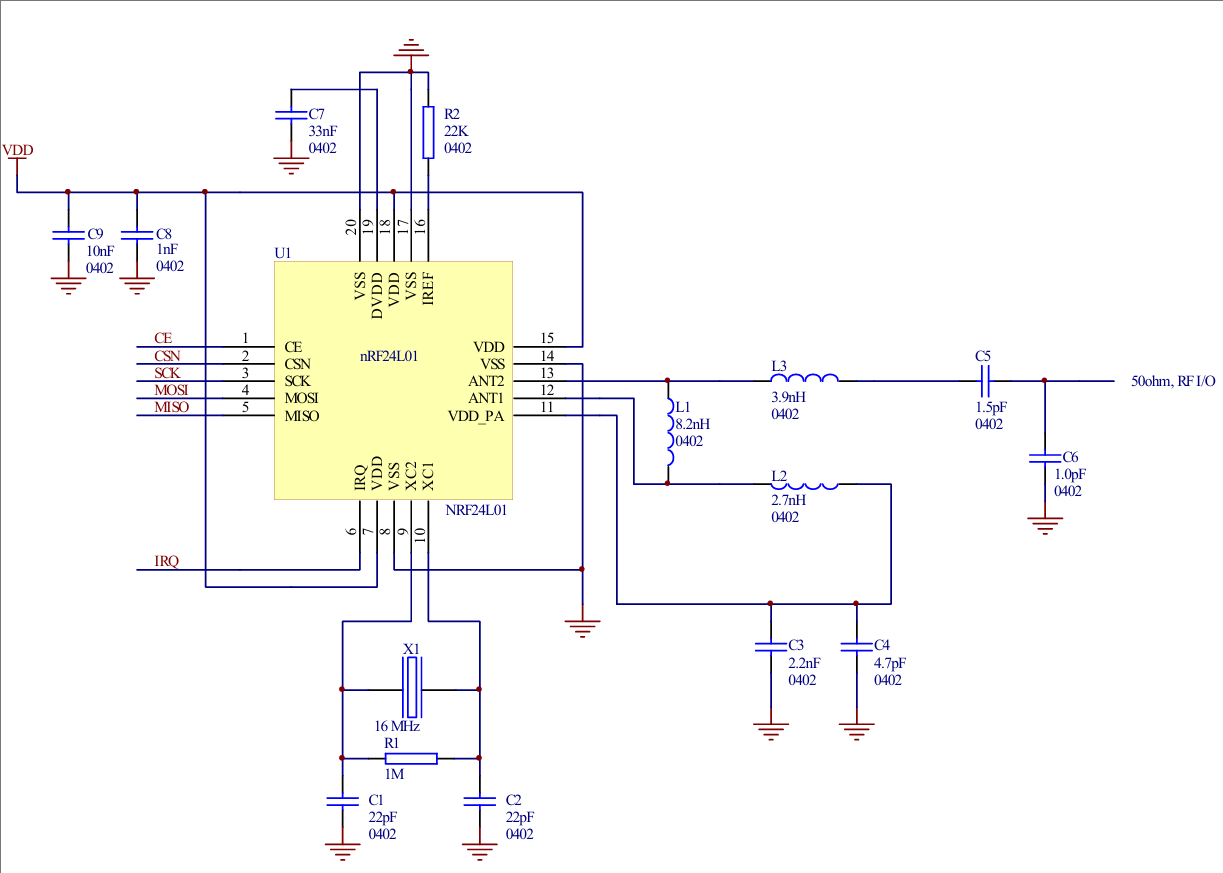

Schematic&Pinout Define

GND: Power ground terminal
VCC: Power input voltage. Must be between 1.9-3.6V, exceeding this range will cause damage to the module
CE: Control line, which can control the state of the NRF24 module
CSN: SPI chip select pin
SCK: Clock line (SPI clock)
MOSI: Master Out Slave In pin, through which the microcontroller sends data to the NRF24L01 module
MISO: Master In Slave Out pin, through which the NRF24L01 module sends data to the microcontroller
IRQ: Interrupt signal output pin
