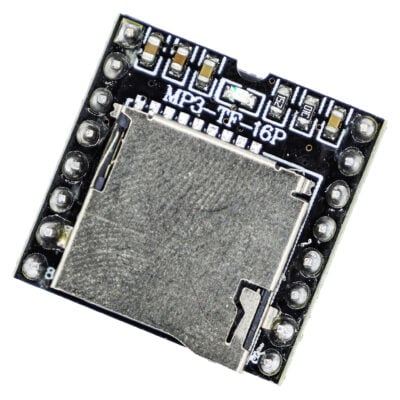

DFPlayer Mini MP3 Player

$1.99

This MP3 Player is an open-source one—it’s cheap and small. It supports multiple control modes, and you only need two buttons to use its basic functions. You can connect it directly to a speaker (3W or less) to play music.

Product Introduction

The DFPlayer Mini MP3 Player is an open-source MP3 player. It’s small in size and cheap in price. You can use it as a standalone player, or connect it to MCUs like Arduino via a serial port for custom control.

Features :

supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
a variety of control modes, I/O control mode, serial mode, AD button control mode
audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
30 level adjustable volume, 6 -level EQ adjustable

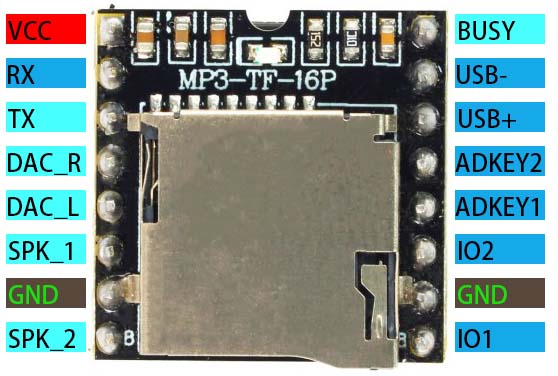

Pinout&Function

VCC: Power output terminal. It’s recommended to input 5V, and the voltage must not exceed 5.2V.
RX: Serial communication input terminal.
TX: Serial communication output terminal.
DAC_R: Right channel audio output. Connect it to the input of headphones or an amplifier.
DAC_L: Left channel audio output. Connect it to the input of headphones or an amplifier.
SPK_1: Speaker output 1.
GND: Zero potential reference point. Connect it to the power supply’s GND or negative terminal.
SPK_2: Speaker output 2.
BUSY: Playback status output.
USB-: USB communication negative terminal.
USB+: USB communication positive terminal.
ADKEY2: ADC trigger port 2.
ADKEY1: ADC trigger port 1.
IO2: Trigger port 2.
IO1: Trigger port 1.

Application

Car navigation voice announcements
Voice prompts for road transport inspectors and toll booths
Voice prompts for security checks at railway stations and bus stops
Voice prompts in electric power, communications, and financial service halls
Voice prompts for vehicle entry/exit channel verification
Voice prompts at public security border control channels
Multi-channel voice alarms or device operation guidance voices
Safe driving voice prompts for electric tourist vehicles
Voice alarms for mechanical and electrical equipment malfunctions
Fire alarm voice prompts
Automatic broadcasting devices for scheduled announcements
