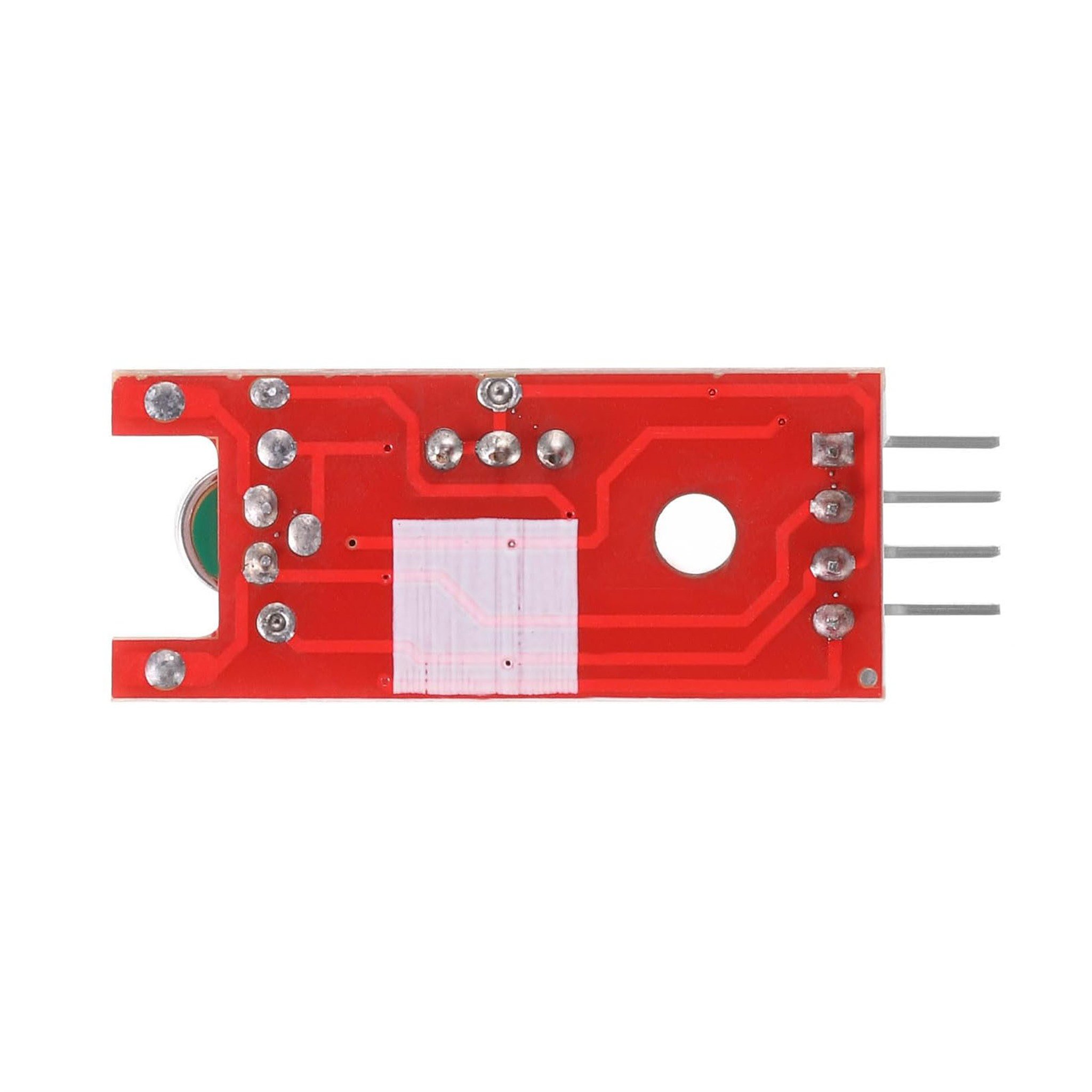

Sound Sensor Module
Price range: $1.50 through $2.501pcs
| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |
DESCRIPTIONS AND FEATURES
| Parameter | Details |
|---|---|
| Operating Voltage | 3.3V-5V or 4V-6V (slight variations in different data sources) |
| Input Voltage Range | 3V-24V |
| Chip | LM393 |
| Microphone Type | Electret Condenser Microphone (ECM) |
| Sensitivity | -46±2dB (0dB=1V/Pa) at 1kHz, sensitivity threshold adjustable via potentiometer |
| Minimum Detectable Noise | 58dB |
| Frequency Range | 100-10000Hz |
| Output Signal | Analog output AO, real-time microphone voltage signal output; Digital output DO, high-low level signal output (0 and 1), digital output state determined by adjustable threshold via potentiometer |
| Maximum Sensing Distance | 0.5 meters |
| Indicator Lights | Power indicator and sensor status indicator. Power indicator remains on when powered; sensor status indicator lights up when sound reaches set threshold |

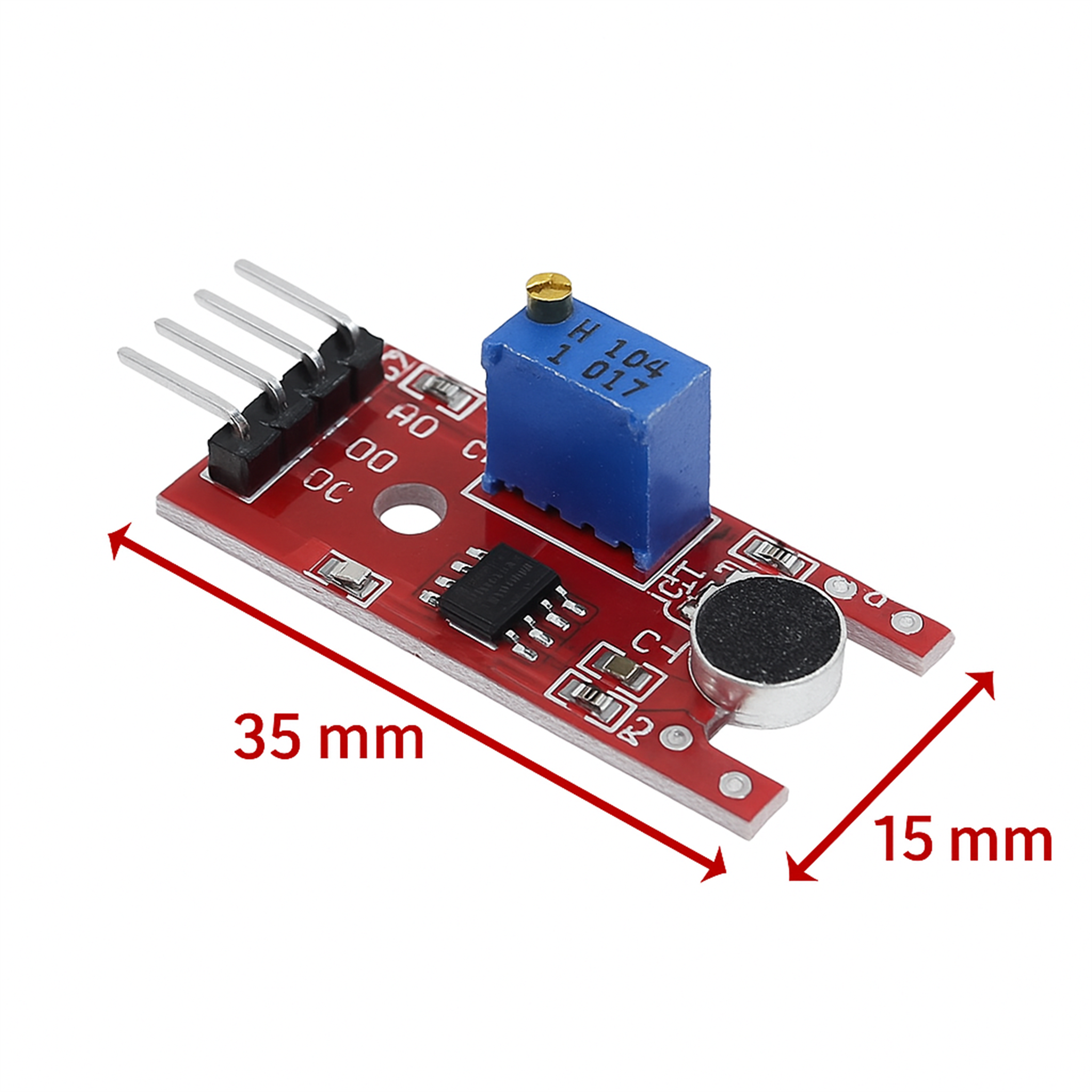

| Dimensions | 35x15x13mm |
| Weight | Approximately 3g |

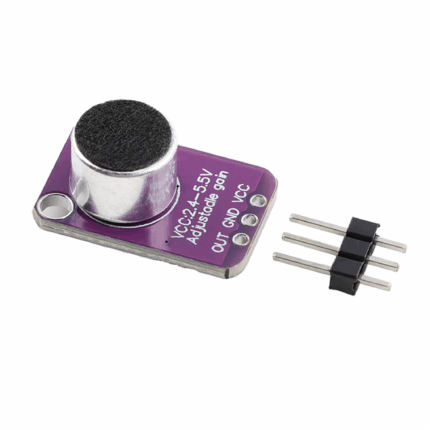

| Parameter | Details |
|---|---|
| Operating Voltage | 2.4V to 5.5V |
| Supply Current | 160µA (typical) |
| Gain | 60dB (fixed, typical) |
| Bandwidth | 20Hz to 20kHz |
| Input Noise | 10nV/√Hz (typical at 1kHz) |
| Total Harmonic Distortion (THD) | 0.05% (typical) |
| Output Voltage Swing | 1.2Vpp (minimum, at 3V supply) |
| Input Impedance | 100kΩ |
| Output Impedance | 100Ω |
| Microphone Compatibility | Electret condenser microphones (requires external bias) |
| Package Type | SOT23-5 |
| Operating Temperature Range | -40°C to +85°C |
