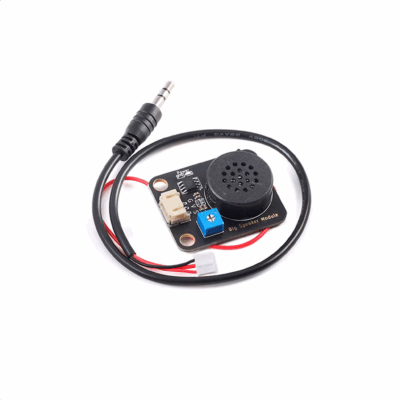

YwRobot big speaker module
$5.071pcs
YWROBOT BIG SPEAKER MODULE WITH POWER AMPLIFIER MUSIC PLAYING HORN BOARD FOR ARDUINO
| Dimensions | 41 × 32 mm |
|---|---|
| Brand |
easyelecmodule |
4557 in stock
Description:
| SPECIFICATIONS | DETAL |
|---|---|
| Size | 41 x 32mm |
| Fixed Hole | 3mm |
| Loudspeaker Power | 0.5W / 8Ω |
| Speaker Diameter | 29.3mm |
| Power Amplifier Chip | NS8002 |
| Voltage | 2-5V |
| Port | Digital |
| Platform | Arduino, MCU |
There are two ways to use the YwRobot big speaker module.

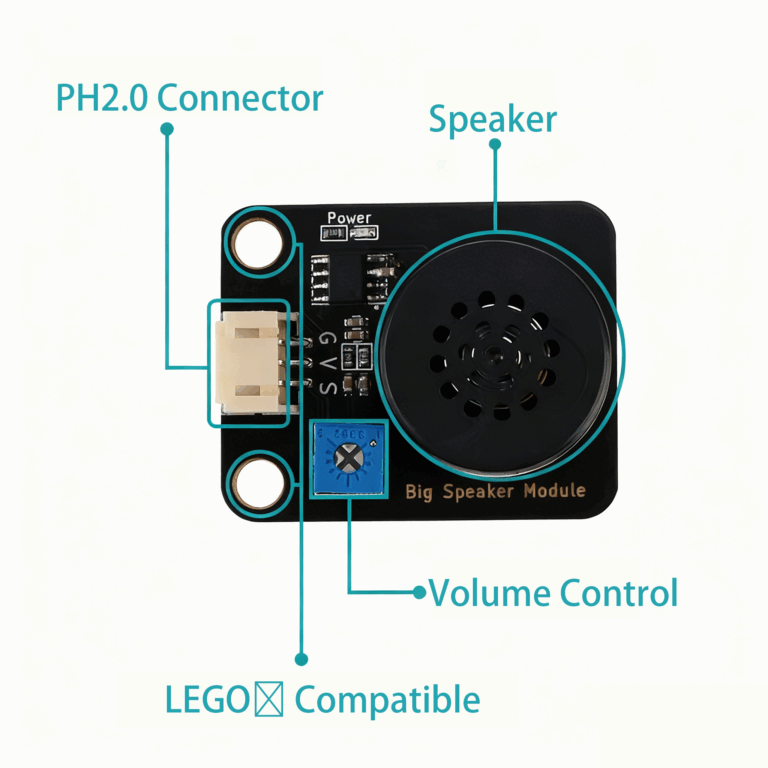

| PIN | FULL NAME | FUNCTION |
|---|---|---|
| G | GND | Ground |
| V | VCC | Power Supply (typically 5V) |
| S | Signal | Audio/Buzzer Signal Input |
Method 1: As an External Speaker
It can be used as an external speaker. Use a 3.5mm audio input cable to connect the ‘S’ and ‘G’ interfaces, then plug it into the headphone jack of a phone or computer. Supply 5V DC power to the ‘VCC’ pin, and you can use it as an external speaker.
Method 2: Using the Arduino tone() Function
tone() function to send square waves of different frequencies to the ‘SIG’ pin. This will allow you to play your pre-programmed music. Example Code
| Pin | Full Name | ARDUINO |
|---|---|---|
| G | GND | GND |
| V | VCC | Power Supply (typically 5V) |
| S | Signal | 8 |
