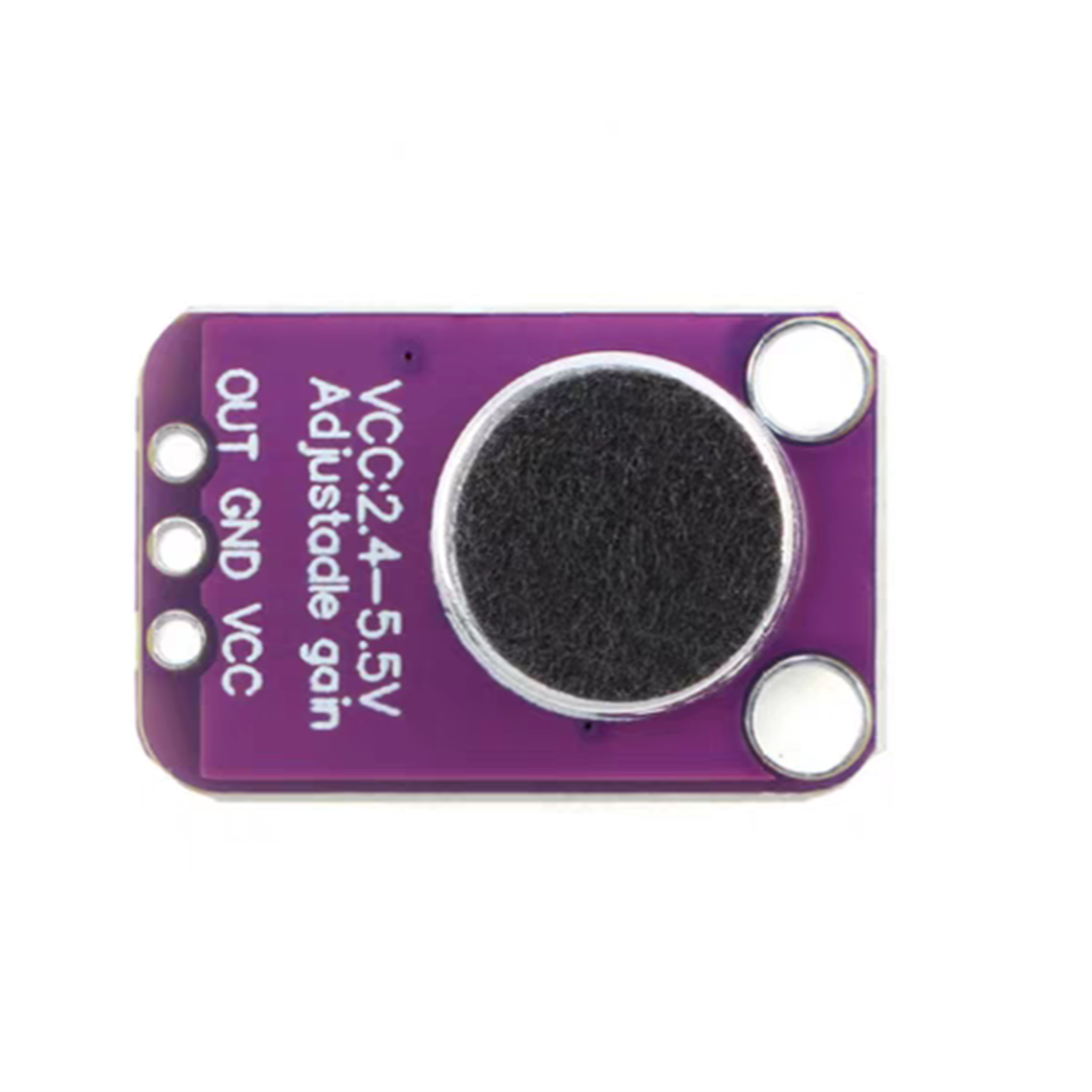

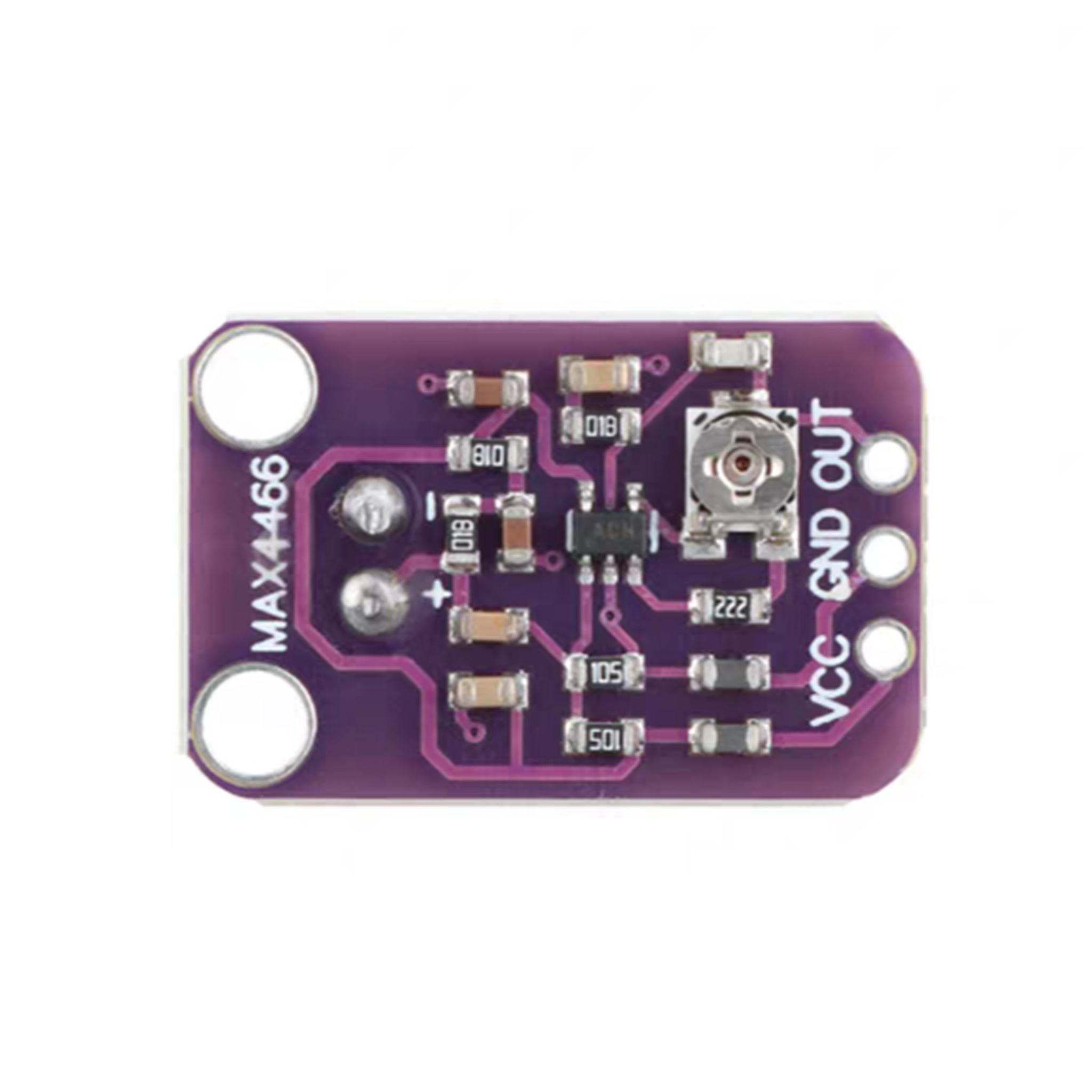

MAX4466 Sound Sensor Module
$2.501pcs
The MAX4466 is a low-noise microphone amplifier module with adjustable gain, providing high-quality audio signal amplification for sound detection and recording applications.
| Dimensions | 21 × 14 mm |
|---|---|
| Brand |
easyelecmodule |
5232 in stock
| Parameter | Details |
|---|---|
| Operating Voltage | 2.4V to 5.5V |
| Supply Current | 160µA (typical) |
| Gain | 60dB (fixed, typical) |
| Bandwidth | 20Hz to 20kHz |
| Input Noise | 10nV/√Hz (typical at 1kHz) |
| Total Harmonic Distortion (THD) | 0.05% (typical) |
| Output Voltage Swing | 1.2Vpp (minimum, at 3V supply) |
| Input Impedance | 100kΩ |
| Output Impedance | 100Ω |
| Microphone Compatibility | Electret condenser microphones (requires external bias) |
| Package Type | SOT23-5 |
| Operating Temperature Range | -40°C to +85°C |
