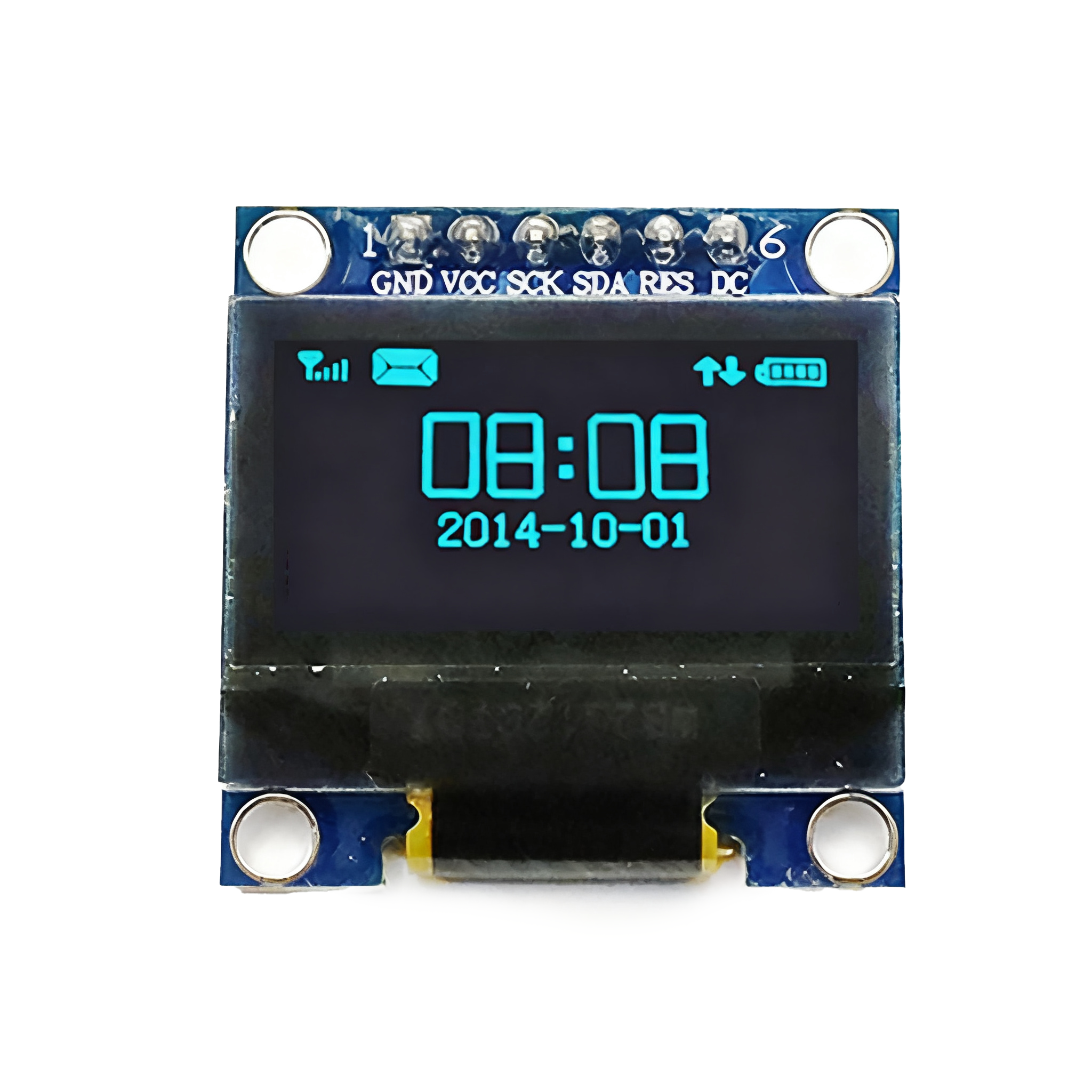

0.96-inch Screens SSD1306 6 Pin Version
$4.391pcs
The 0.96-inch screen with the SSD1306 6-pin controller is a compact OLED display module featuring low power consumption and high contrast. With a streamlined pin configuration and standard interfaces, it is suitable for small embedded and display applications.
| Dimensions | 27 × 27 mm |
|---|---|
| Brand |
easyelecmodule |
2116 in stock
0.96-inch Screens SSD1306 6 Pin Version
The difference with this one is that it defaults to the SPI interface, but it can be switched to the IIC interface.

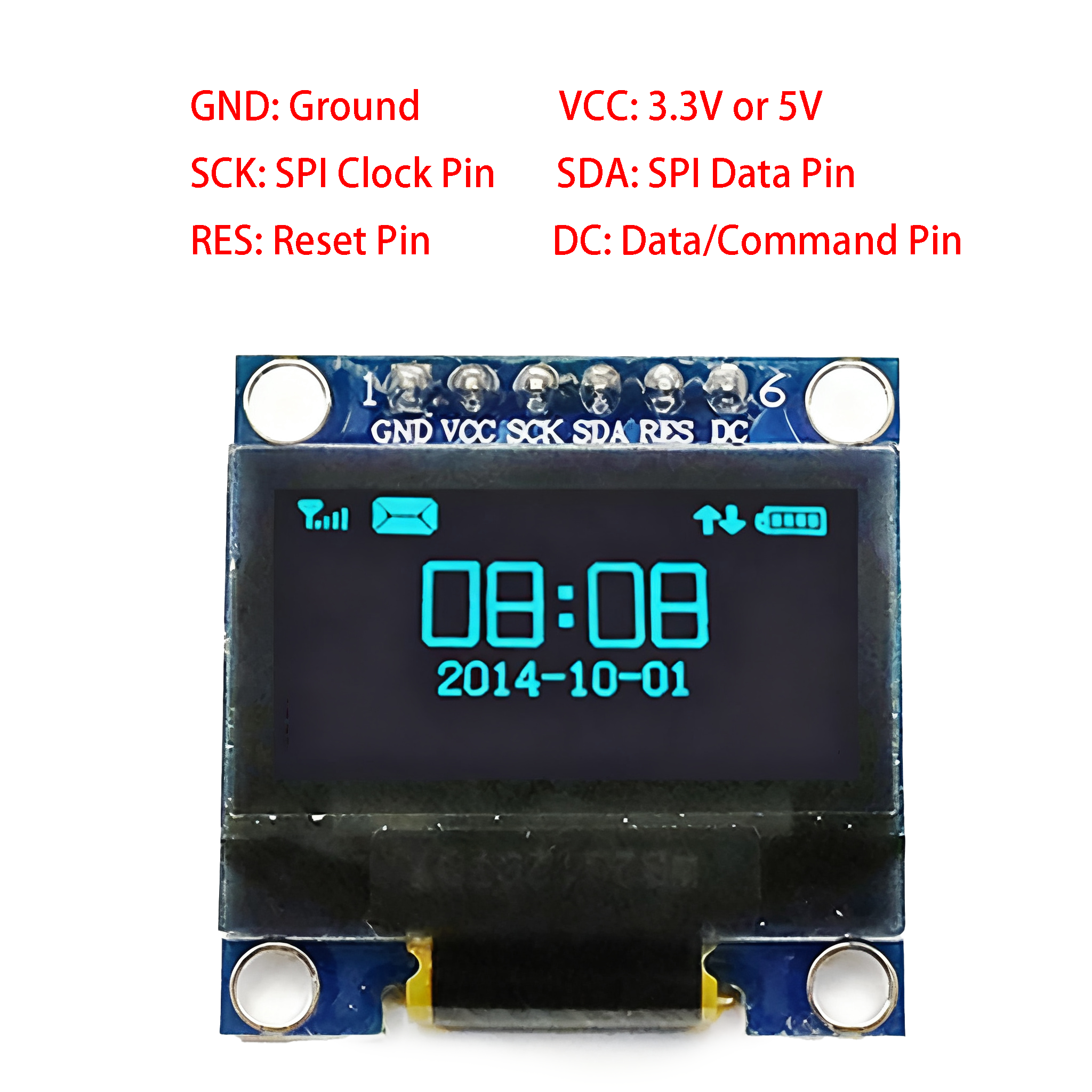

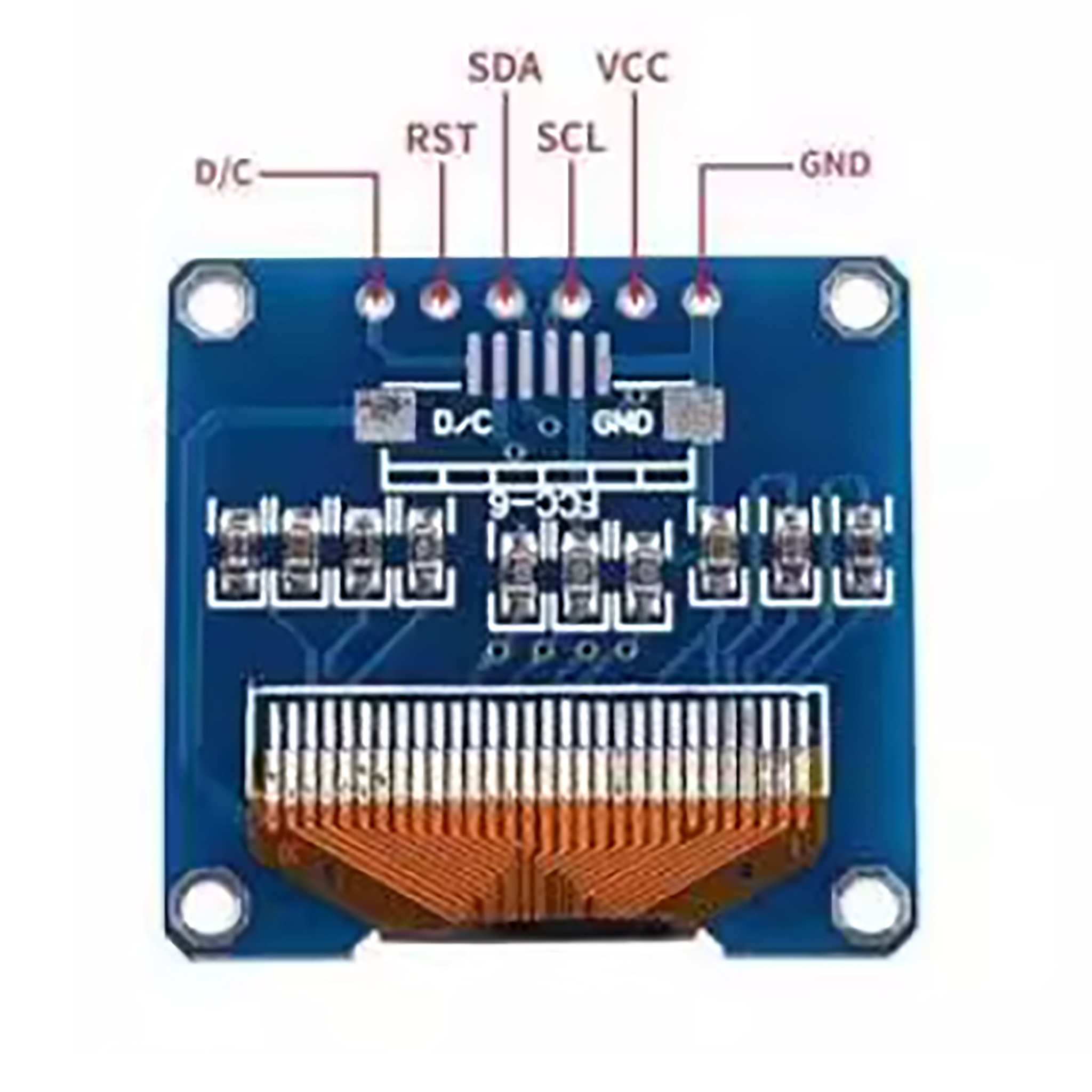

Interface definition:
1. GND – Power ground
2. VCC – Power positive (3.3V ~ 5V)
3. SCK – IIC clock line
4. SDA – IIC data line
5. RES – Reset line
6. DC – Data/command control line
Parameters:
- Material: PM OLED
- Resolution: 128*64
- Control chip: SSD1306
- Display area: 21.744*10.864mm
- Interface type: SPI interface/IIC interface (default SPI interface, can be switched to IIC interface)
- Operating voltage: 3.3V ~ 5V
- Pixel size: 0.154*0.154mm
- Pixel pitch: 0.17*0.17mm
- Number of pins: 6
- Viewing angle: Full angle
- Operating temperature: -40 ~ 70℃
