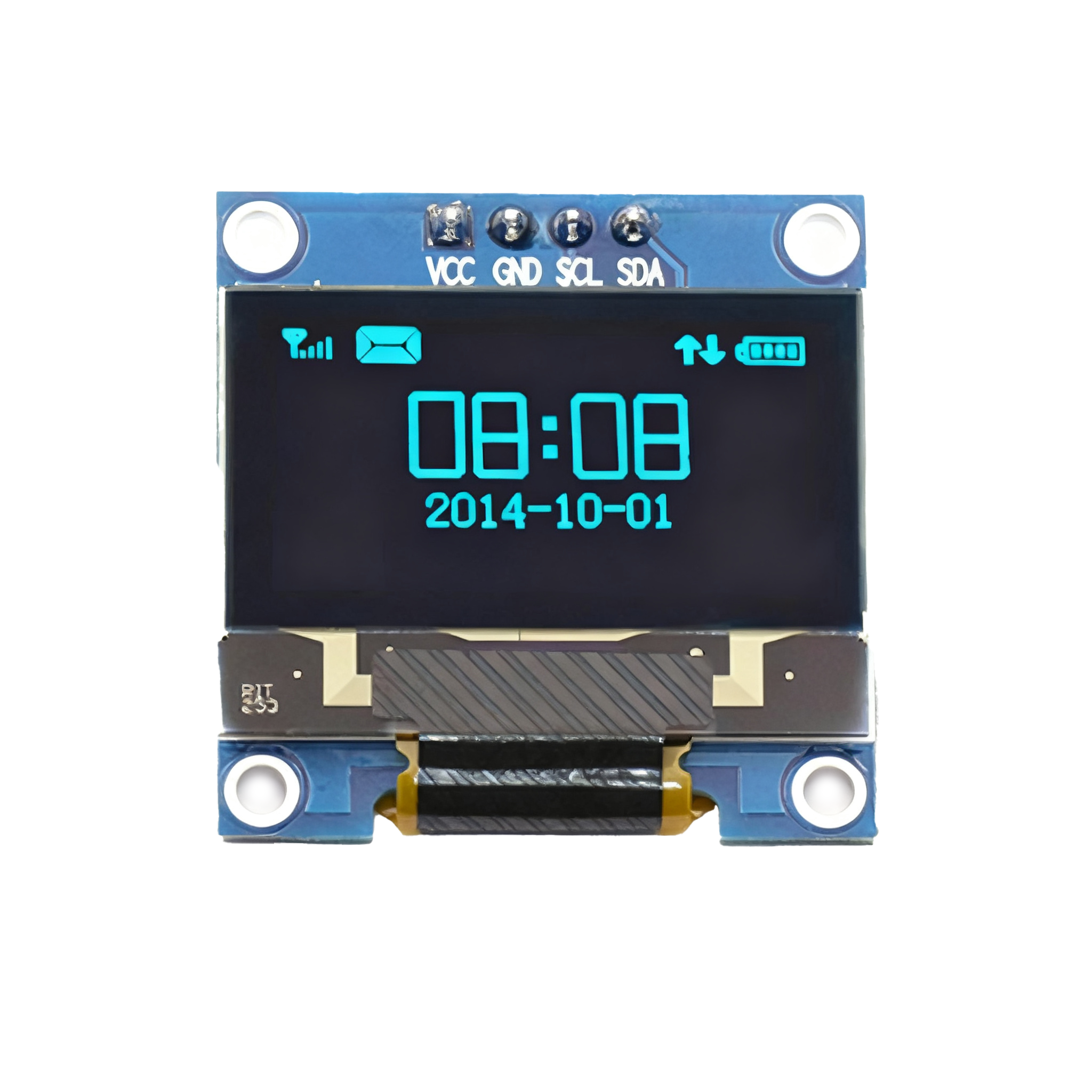

0.96-inch Screens SSD1306 4 Pin Version
$4.991pcs
The 0.96-inch screen with the SSD1306 4-pin controller is a compact OLED display module characterized by low power consumption and high contrast. Using a minimal pin interface, it is suitable for space-constrained embedded systems and simple display applications.
| Dimensions | 27 × 27 mm |
|---|---|
| Brand |
easyelecmodule |
3731 in stock
0.96-inch Screens SSD1306 4 Pin Version
The chip used in this model is still SSD1306, and only the IIC interface is adopted.

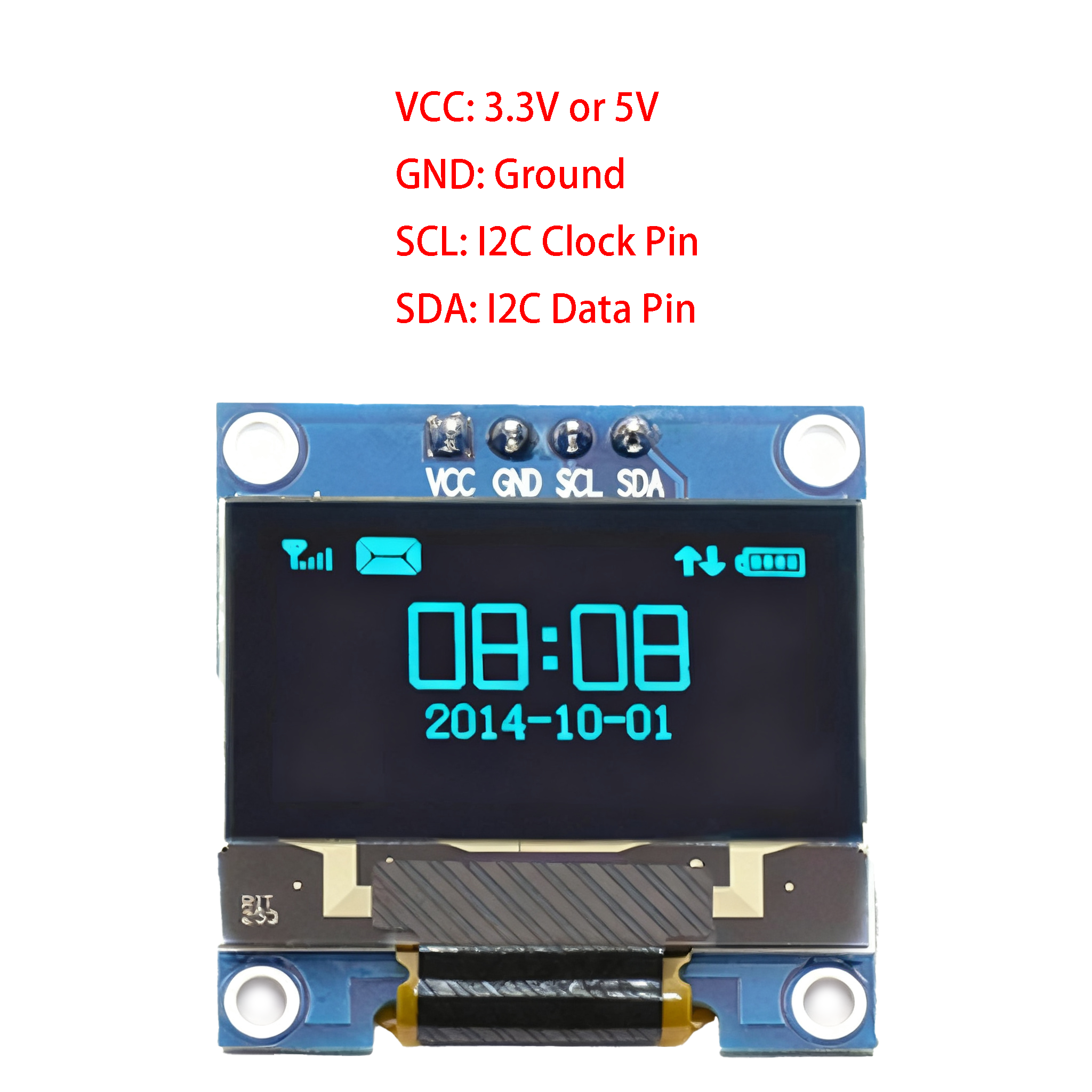

Interface definition:
1. VCC – Power positive (3.3V ~ 5V)
2. GND – Power ground
3. SCL – IIC clock line
4. SDA – IIC data line
Parameters:
- Resolution: 128*64
- Interface type: IIC interface
- Operating voltage: 3.5V
- Control chip: SSD1306
- Display area: 21.744*10.864 (mm)
- Number of pins: 4
- Viewing angle: Full angle
- Operating temperature: -40 ~ +70℃
- Brightness: Contrast can be controlled through program instructions for the OLED screen
- Driver chip: SSD1306
