0.96-inch Screens (OLED LCD)
Price range: $2.99 through $6.591psc
Most 0.96-inch monochrome screens use SSDXXXX series chips (such as SSD1306) as the main control chip, while full – color ones use STXXXX series chips (such as ST7789). SSD1306 has multiple interface types, including IIC and SPI protocol interfaces. Moreover, its driving method is simple, making it suitable for electronic DIY enthusiasts. As for ST7789, if it is used for displaying color images, it requires a lot of memory. So, you need to use a development board with large memory; otherwise, it is prone to burning failure. Thus, it is suitable for people with electronic knowledge.
0.96-inch Screens SSD1315 Version
The biggest difference between the SSD1315 and SSD1306 is that the SSD1315 offers higher brightness and contrast, making it a newer OLED chip.
Interface definition:
1. GND – Power ground
2. VDD – Power positive (3.3V ~ 5V)
3. SCK – IIC clock line
4. SDA – IIC data line
Parameters:
Resolution: 128*64
Interface type: IIC interface
Operating voltage: 3.5V
Control chip: SSD1315
Display area: 21.744*10.864 (mm)
Number of pins: 4
Viewing angle: Full angle
Operating temperature: -20 ~ +60℃
Brightness: Contrast can be controlled through program instructions for the OLED screen
Driver chip: SSD1315
Other Color Versions
Blue Version:
Yellow-Blue Version (SCL)
White Version (SCL)

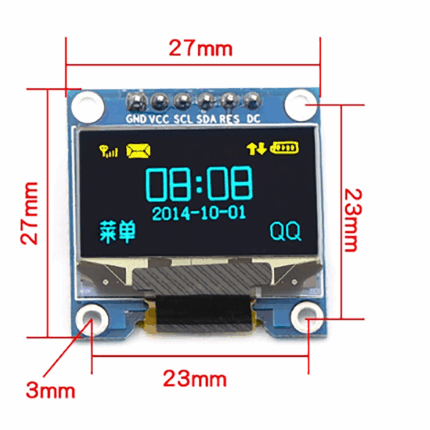

0.96-inch Screens SSD1306 7 Pin Version
The 7-pin version supports SPI or IIC protocol, and can be used according to your needs.
Interface definition:
GND – Power ground
VCC – Power positive (3.3V ~ 5V)
SCK – Clock line
SDA – Data line
RES – Reset line
DC – Data/command control line
CS – Chip select line
Parameters:
No backlight required: The display unit can emit light on its own
Resolution: 128*64
Wide voltage: Supports 3V ~ 5V DC
Operating temperature: -40℃ ~ +70℃
Driver chip: SSD1306
Low IO usage: Uses SPI or IIC communication, requiring only 4 IO pins to drive
Other Color Versions
White Version
Blue-Yellow Version:

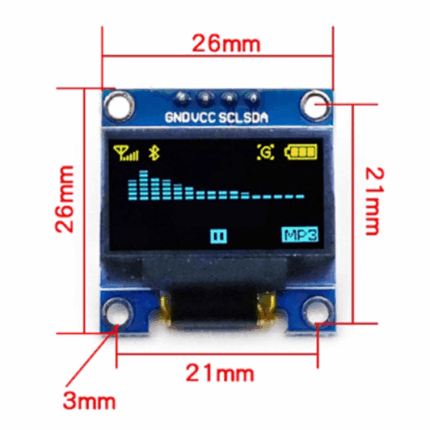

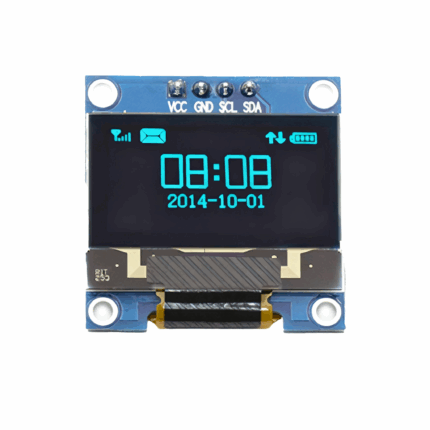

0.96-inch Screens SSD1306 4 Pin Version
The chip used in this model is still SSD1306, and only the IIC interface is adopted.
Interface definition:
1. VCC – Power positive (3.3V ~ 5V)
2. GND – Power ground
3. SCL – IIC clock line
4. SDA – IIC data line
Parameters:
Resolution: 128*64
Interface type: IIC interface
Operating voltage: 3.5V
Control chip: SSD1306
Display area: 21.744*10.864 (mm)
Number of pins: 4
Viewing angle: Full angle
Operating temperature: -40 ~ +70℃
Brightness: Contrast can be controlled through program instructions for the OLED screen
Driver chip: SSD1306
Other Color Versions
White Version:
Blue-Yellow Version:
0.96-inch monochrome screens（Full-color-ST7735-LCD）
This screen is a full-color display using the ST7735 chip. Unlike OLED, it is an LCD screen type. To drive images, a microcontroller or chip with a larger memory is required.
Interface definition:
GND: Power ground
VCC: Power positive 3.3V ~ 5.0V (DC)
SCL: SPI clock line
SDA: SPI data line
RES: Reset connection
DC: SPI data/command selection
CS: Chip select connection
BLK: Backlight control, default floating, backlight off at low level
Parameters:
Material: New IPS color screen, more vibrant colors than O-TFT LCD
Resolution: 80160, display orientation can be adjusted for both landscape and portrait
LCD color: 65K full color
Hardware interface: SPI interface
Driver IC: ST7735
Operating temperature: -20 ~ 70℃
Operating power: 3.3V
Pinout: 8PIN
Display area: 10.8*21.696mm
Viewing direction: Full viewing angle (IPS)

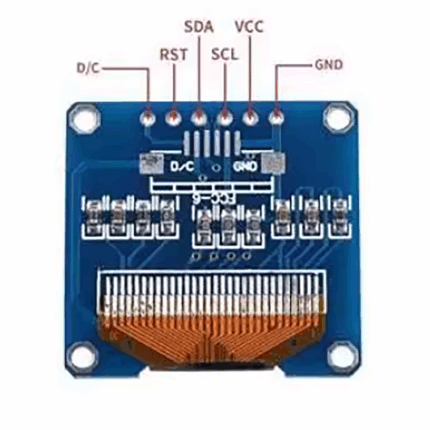

0.96-inch Screens SSD1306 6 Pin Version
The difference with this one is that it defaults to the SPI interface, but it can be switched to the IIC interface.
Interface definition:
1. GND – Power ground
2. VCC – Power positive (3.3V ~ 5V)
3. SCK – IIC clock line
4. SDA – IIC data line
5. RES – Reset line
6. DC – Data/command control line
Parameters:
Material: PM OLED
Resolution: 128*64
Control chip: SSD1306
Display area: 21.744*10.864mm
Interface type: SPI interface/IIC interface (default SPI interface, can be switched to IIC interface)
Operating voltage: 3.3V ~ 5V
Pixel size: 0.154*0.154mm
Pixel pitch: 0.17*0.17mm
Number of pins: 6
Viewing angle: Full angle
Operating temperature: -40 ~ 70℃
Other Color Versions
Blue Version:
Blue-Yellow Version:
0.96-inch Screens SSD1306 Pin & 4*4 Keypad Version
This OLED screen combines the SSD1306 OLED screen and a 4×4 key matrix. They do not have a direct functional relationship and need to be configured separately for the keys and the screen. The combination is for convenience and aesthetic purposes.
Interface definition:
VCC: 2.2V ~ 5.5V
GND: Power ground
SCL: CLK clock (High level 2.2V ~ 5.5V)
SDA: MOSI data (High level 2.2V ~ 5.5V)
4×4 Keypad interface: R1/R2/R3/R4/C1/C2/C3/C4
Demo Video
