0.96-inch monochrome screens（Full-color-ST7735-LCD）
$4.791pcs
The 0.96-inch monochrome screen (Full-color ST7735 LCD) is a compact display module that provides clear visual output and stable performance. It supports standard interfaces and is suitable for embedded applications requiring a small, reliable display solution.
| Dimensions | 30 × 24 mm |
|---|---|
| Brand |
easyelecmodule |
2339 in stock
0.96-inch monochrome screens（Full-color-ST7735-LCD）

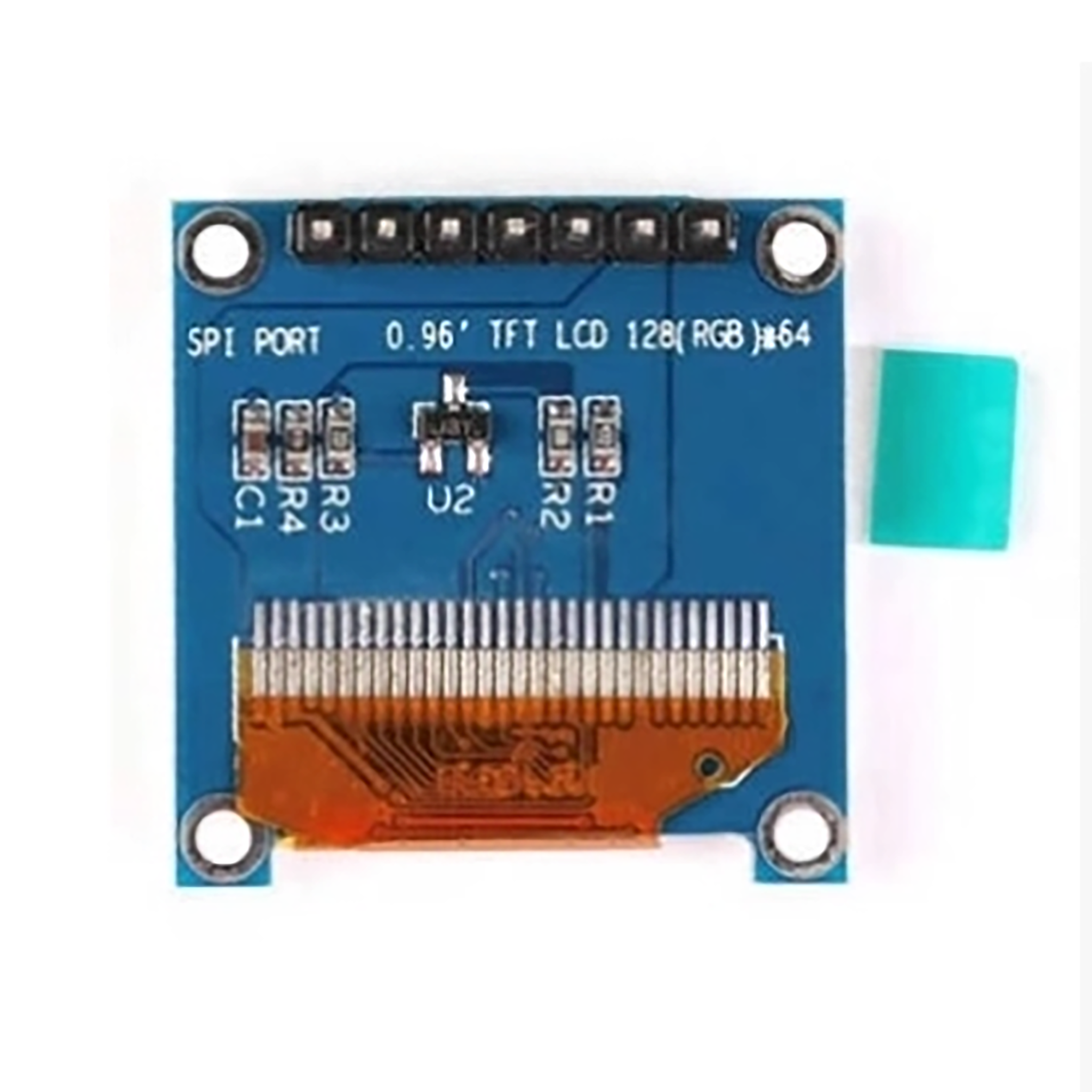

This screen is a full-color display using the ST7735 chip. Unlike OLED, it is an LCD screen type. To drive images, a microcontroller or chip with a larger memory is required.

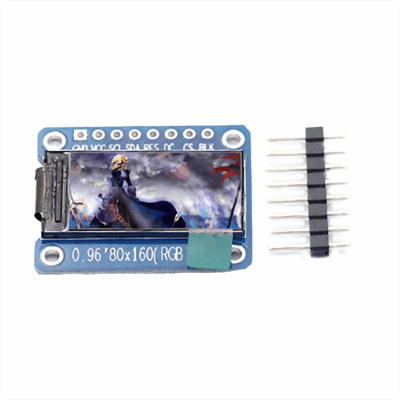

Interface definition:
- GND: Power ground
- VCC: Power positive 3.3V ~ 5.0V (DC)
- SCL: SPI clock line
- SDA: SPI data line
- RES: Reset connection
- DC: SPI data/command selection
- CS: Chip select connection
- BLK: Backlight control, default floating, backlight off at low level
Parameters:
- Material: New IPS color screen, more vibrant colors than O-TFT LCD
- Resolution: 80×160, display orientation can be adjusted for both landscape and portrait
- LCD color: 65K full color
- Hardware interface: SPI interface
- Driver IC: ST7735
- Operating temperature: -20 ~ 70℃
- Operating power: 3.3V
- Pinout: 8PIN
- Display area: 10.8*21.696mm
- Viewing direction: Full viewing angle (IPS)
