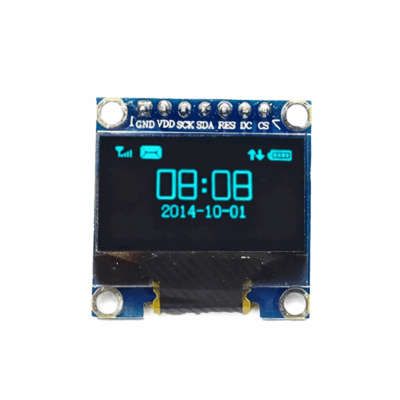

0.96-inch Screens SSD1306 7 Pin Version
$4.991pcs
The 0.96-inch screen with the SSD1306 7-pin controller is a small OLED display module offering low power consumption and high contrast. With a simple pin configuration and standard interfaces, it is well suited for compact embedded and display applications.
| Dimensions | 28 × 28 mm |
|---|---|
| Brand |
easyelecmodule |
3167 in stock
0.96-inch Screens SSD1306 7 Pin Version
The 7-pin version supports SPI or IIC protocol, and can be used according to your needs.

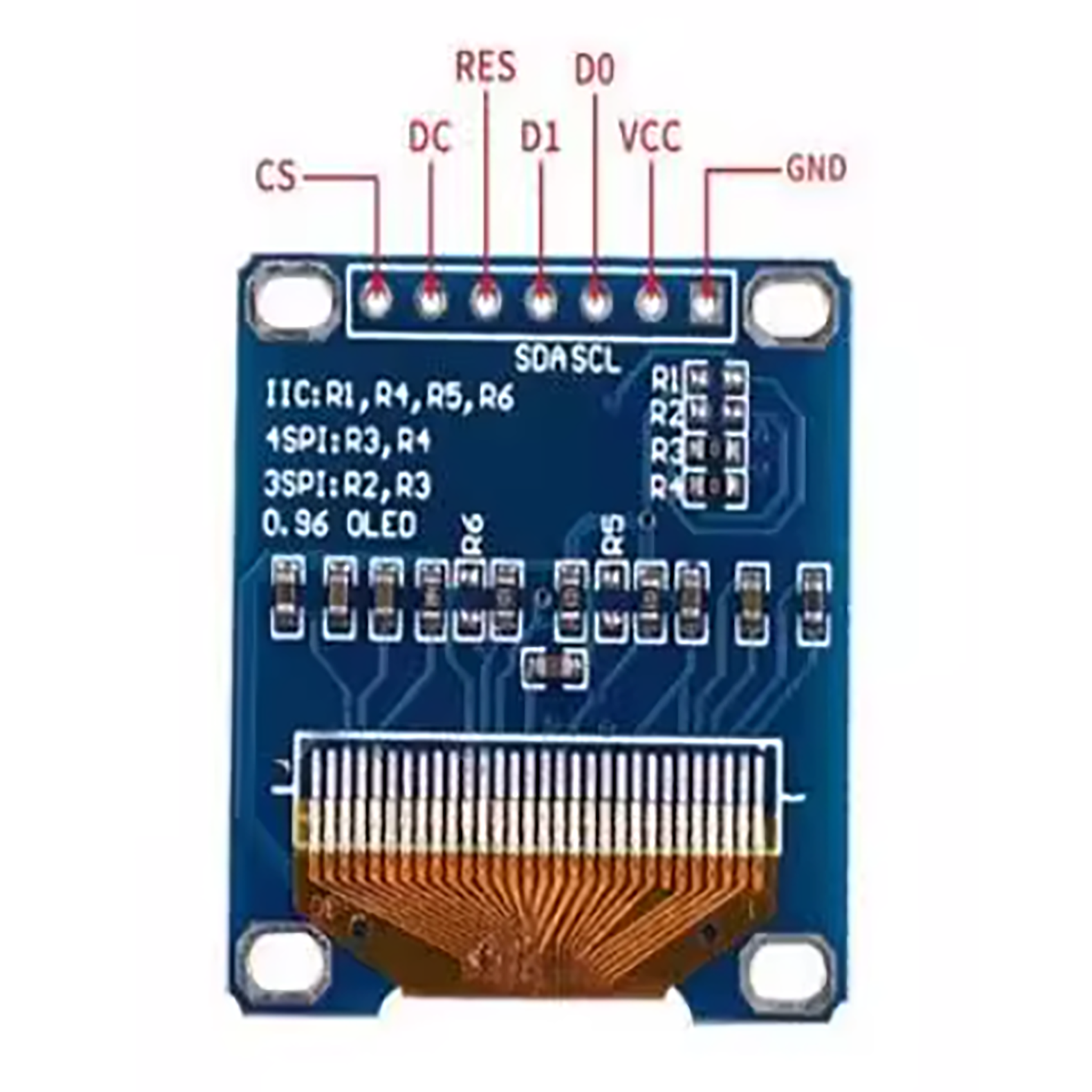

Interface definition:
GND – Power ground
VCC – Power positive (3.3V ~ 5V)
SCK – Clock line
SDA – Data line
RES – Reset line
DC – Data/command control line
CS – Chip select line
Parameters:
- No backlight required: The display unit can emit light on its own
- Resolution: 128*64
- Wide voltage: Supports 3V ~ 5V DC
- Operating temperature: -40℃ ~ +70℃
- Driver chip: SSD1306
- Low IO usage: Uses SPI or IIC communication, requiring only 4 IO pins to drive
