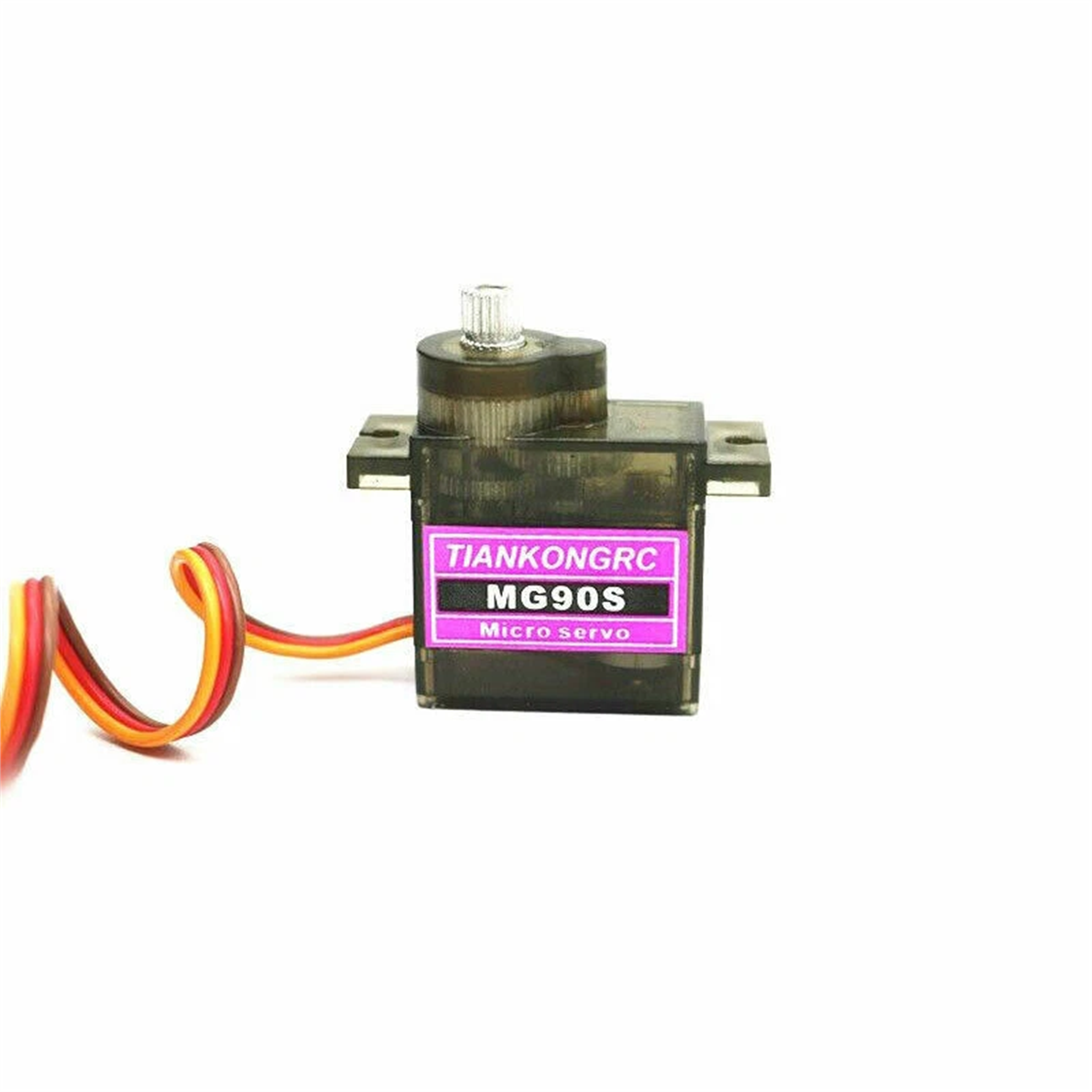

MG90S Servo Motor 180°
$3.651pcs
| Dimensions | 23 × 13 × 32.5 mm |
|---|---|
| Brand |
easyelecmodule |
4252 in stock
DESCRIPTIONS AND FEATURES
| PARAMETER CATEGORY | PARAMETER ITEM | PARAMETER VALUE | UNIT / DESCRIPTION |
|---|---|---|---|
| Physical Dimensions | Weight | 13.4 - 14 | Grams (g) |

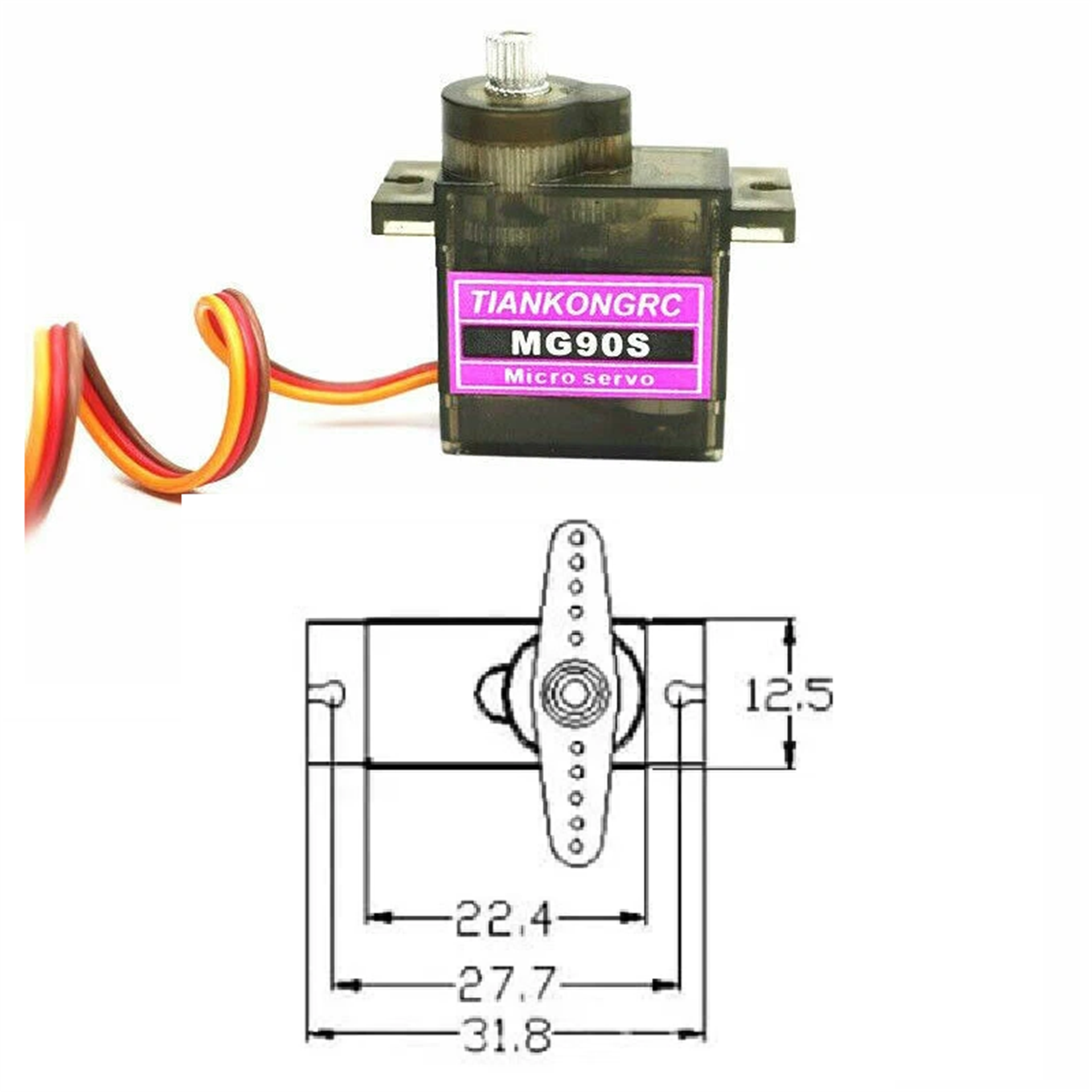

| Dimensions (L×W×H) | 22.8×12.2×28.5 | Millimeters (mm) | |
| Performance Parameters | Stall Torque | 1.8 (4.8V) / 2.2 (6V) | kg cm |
| Operating Speed | 0.10 (4.8V) / 0.08 (6V) | sec/60° | |
| Rotation Angle | 180 | Degrees (°) | |
| Electrical Characteristics | Operating Voltage | 4.8 - 6.0 | Volts (V) |
| Stall Current | Not specified | Milliamps (mA) | |
| Signal Type | PWM | Pulse Width Modulation | |
| Control Signal | Pulse Cycle | 20 | Milliseconds (ms) (Standard) |
| Pulse Width Range | 0.5 - 2.5 | Milliseconds (ms) (Estimated) | |
| Corresponding Angle | 0° - 180° | Degrees (°) | |

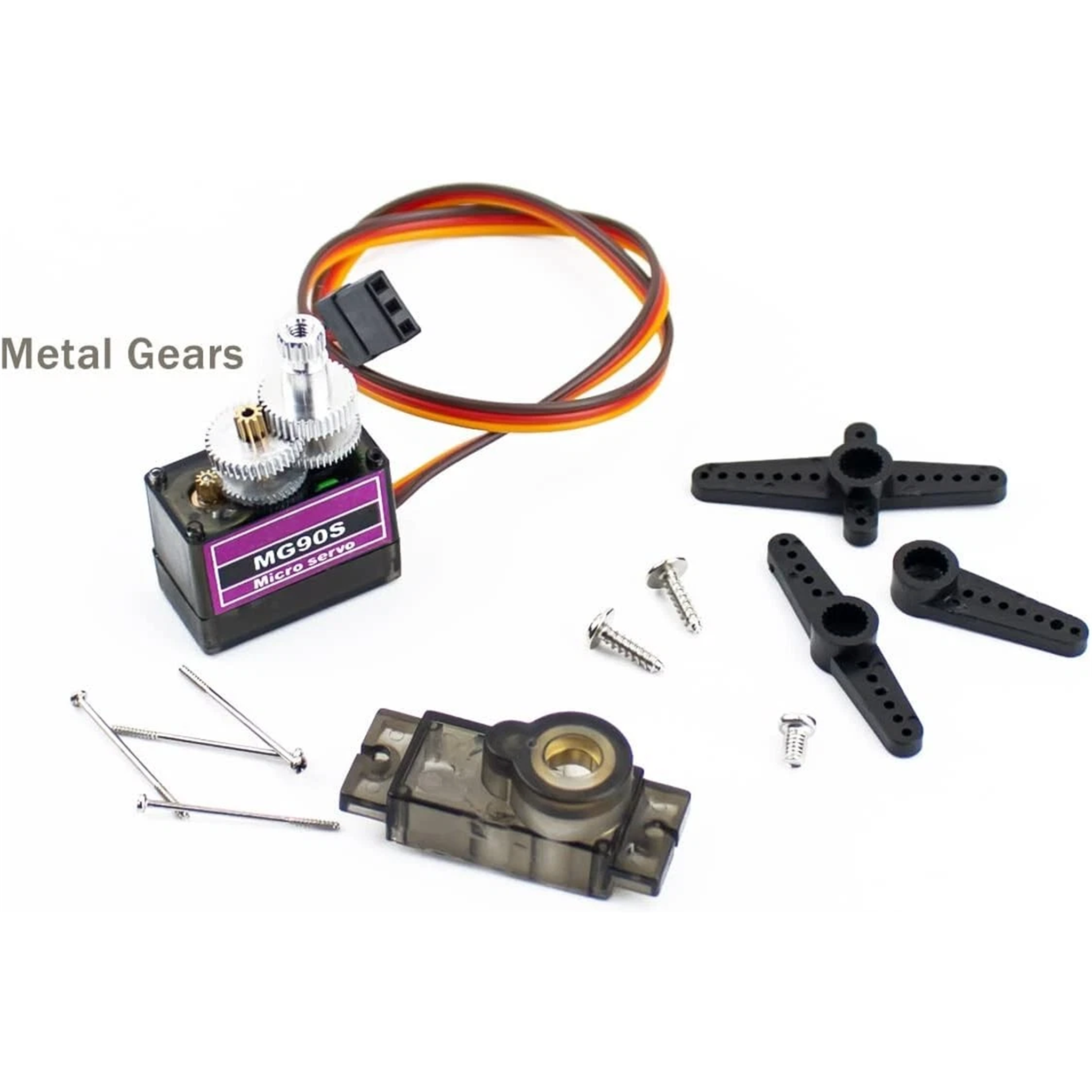

| Mechanical Construction | Gear Material | Metal | Full metal gear |
| Wire Order | Brown=GND, Red=VCC, Orange=Signal | Standard 3-pin interface | |
| Bearing Type | Dual ball bearing | Not ball bearing |
