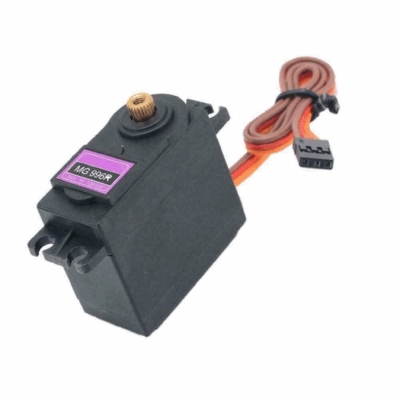

MG99R Servo Motor 180°
$4.501pcs
The MG99R is a high-torque metal-gear servo motor designed for precise, durable, and stable motion control in robotics, RC applications, and advanced DIY projects.
| Dimensions | 40.7 × 19.7 × 42.9 mm |
|---|---|
| Brand |
easyelecmodule |
5243 in stock
| PARAMETER CATEGORY | PARAMETER ITEM | PARAMETER VALUE | UNIT / DESCRIPTION |
|---|---|---|---|
| Physical Dimensions | Weight | 55 | Grams (g) |
| Dimensions (L×W×H) | 40.7×19.7×42.9 | Millimeters (mm) | |
| Performance Parameters | Stall Torque | 9.4 (4.8V) / 11 (6V) | kg cm |
| Operating Speed | 0.17 (4.8V) / 0.14 (6V) | sec/60° | |
| Rotation Angle | 180 | Degrees (°) | |
| Electrical Characteristics | Operating Voltage | 4.8 - 7.2 | Volts (V) |
| No-Load Current | 120 | Milliamps (mA) | |
| Stall Current | 1450 | Milliamps (mA) | |
| Signal Type | PWM | Pulse Width Modulation | |
| Control Signal | Pulse Cycle | 20 | Milliseconds (ms) |
| Pulse Width Range | 0.5 - 2.5 | Milliseconds (ms) | |
| Corresponding Angle | 0° - 180° | Degree (°) | |
| Mechanical Construction | Gear Material | Metal | Full metal gear |
| Wire Order | Brown=GND, Red=VCC, Orange=Signal | Standard 3-pin interface | |
| Bearing Type | Ball bearing | Dual ball bearing design |
