SW-18010P Vibration Sensor Module
$0.991pcs
Ultra‑sensitive SW‑18010P detects tiny vibrations instantly. Digital output, plug and play. Tiny, low power. Adds reliable motion sensing to security, monitoring and smart hardware.
| Dimensions | 32.0 × 14.0 mm |
|---|---|
| Brand |
easyelecmodule |
2625 in stock
SW-18010P Introduction
The normally open high-sensitivity vibration switch SW-18010P is adopted. When the switch is at rest, it is in an open circuit (OFF) state. When it is touched by an external force and reaches the corresponding vibration force, or when the moving speed reaches an appropriate centrifugal force, the conductive pins will momentarily conduct and present an instant ON state. When the external force disappears, the switch returns to an open circuit (OFF) state. It can be used in various vibration-triggering applications, such as anti-theft alarms, smart cars, electronic building blocks, etc. The sensor is specially equipped with M3 mounting holes for easy adjustment and installation. It uses a wide-voltage LM393 comparator, providing a clean signal with good waveforms and strong driving capability, exceeding 15mA. It is also equipped with a precision potentiometer for adjustable sensitivity.

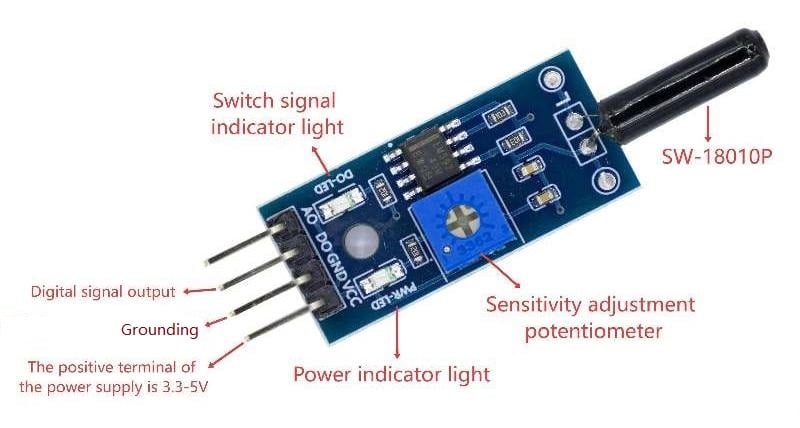

Pin Function
| Pin | Definition |
|---|---|
| VCC | External connection to 3.3V – 5V (can be directly connected to 5V microcontroller and 3.3V microcontroller) |
| GND | Grounding |
| DO | Small board digital output interface (0 and 1) |
| AO | Simulation output, invalid, not connected |
Usage Instruction
1. Connect the VCC and GND properly, and the module power indicator light will turn on.
2. Place the module horizontally on the desktop, slowly rotate the module upwards, the switch indicator light will turn on, then rotate the module in the opposite direction, back to the original state, and the switch indicator light will turn off. This phenomenon indicates that changing the sensor angle can trigger the module, thereby causing the switch indicator light to turn on.
3. When the module is not tilted or the tilt angle does not reach the set threshold, the D0 port outputs a high level. When the sensor tilt angle exceeds the set threshold, the module D0 outputs a low level.
Product Application
Vibration sensors are widely used in various industries and applications due to their ability to monitor and analyze mechanical vibrations. Here are some common applications:
1. Predictive Maintenance: Vibration sensors play a crucial role in predictive maintenance programs, by continuously monitoring the health and performance of machinery and equipment. By detecting changes in vibration levels, these sensors can identify potential faults before they escalate into costly failures, allowing for timely maintenance and repair.
2. Structural Health Monitoring: Vibration sensors are used in structural health monitoring (SHM) systems to assess the integrity and safety of buildings, bridges, dams, and other civil infrastructure. These sensors monitor vibrations caused by environmental factors, traffic loads, and seismic events, providing valuable data for evaluating structural health and identifying potential structural defects or damages.
3. Vehicle Health Monitoring: In the automotive and aerospace industries, vibration sensors are used to monitor the health and performance of vehicles and aircraft. They are applied in engine and transmission monitoring systems to detect abnormal vibrations caused by mechanical failures or component wear. Additionally, vibration sensors are also used in flight data recorders (black boxes) to capture and analyze the vibrations of aircraft during flight.
4. Earthquake and vibration monitoring: Vibration sensors, such as accelerometers and seismometers, are widely used in earthquake and vibration monitoring networks to detect and record ground vibrations caused by seismic events. These sensors assist seismologists and geologists in studying seismic activities, assessing seismic risks, and developing early warning systems to mitigate the impact of earthquakes on humans and infrastructure.
