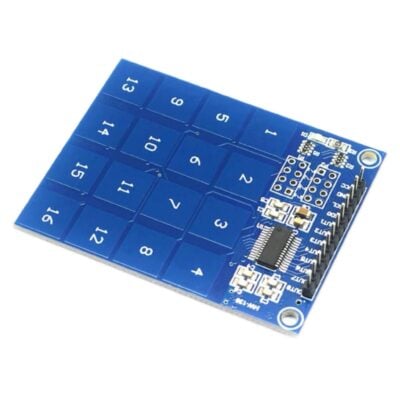

TTP229 Capacitive Touch Sensor Module 16-Channel
$2.261pcs
Plug and play with I2C/GPIO. Add 16 sleek touch keys instantly — no coding stress, just smart control and endless creativity.
| Dimensions | 64.5 × 49.3 mm |
|---|---|
| Brand |
easyelecmodule |
6213 in stock
Product Introduction
The TTP229 TonTouch™ IC is a touch chip designed based on the capacitive sensing principle. This TTP229 IC integrates a voltage regulator circuit for powering the touch sensor, and its stable touch performance can be applied in various applications. The human-machine touch panel can be connected through non-conductive insulating materials, with the main application being to replace mechanical switches or buttons. This chip can independently support 8 touch keys or 16 touch keys.
TTP229 Feature
1. Operating voltage:
2.4V~5.5V (Built-in voltage regulator circuit enabled)
2.0V~5.5V(Built-in voltage regulator circuit disabled)
2. The function of enabling/disabling the built-in voltage regulator circuit can be selected externally.
3. Stand-by current
At 3V, and sleep mode slow sampling rate 8Hz：
=> Typical 2.5 uA for 16 input keys
=> Typical 2.0 uA for 8 input keys
4. Provides to set 8 keys or 16 keys by option
5. Provides to set 8 separate outputs only for 8 direct input keys mode
6. It has two serial output modes, both can use for 8 and 16 keys mode
It includes 2-wire serial mode and I2C communication mode, which are selected by the option.
7. 8 direct output ports support selection of different output types (CMOS/OD/OC with active high/low)
8. 2-wire serial mode allows selection of active high or active low via option
9. Offer multi-key or single-key feature by option
10. Provides two kinds of sampling rate that slow sampling rate 8Hz and fast sampling rate 64Hz at sleep mode
11. Have the maximum key-on time about 80sec by pin option
12. Sensitivity can adjust by the capacitance(1~50pF) outside
13. After power-on have about 0.5 sec stable-time
During the time do not touch the key pad, and all functions are disabled.
14. Auto calibration
The re-calibration period is about 4.0sec, when all keys are not activated for fixed time.

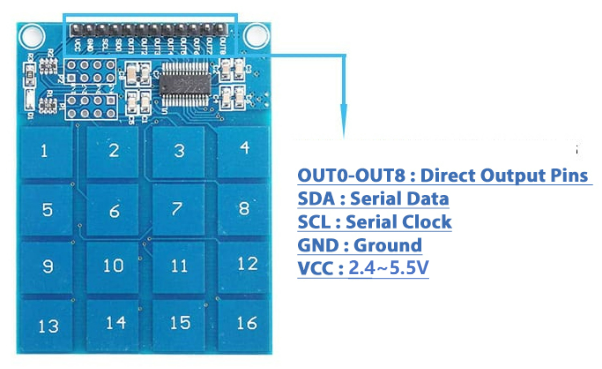

TTP229 Pin Function
TTP229 Parameter
- Onboard TTP229 capacitive 16-key touch sensing IC
- Onboard power indicator light
- Operating voltage: 2.4V~5.5V
- The TTP229 module can be configured with output mode, key output mode, long output time, and fast/low power consumption selection
TTP229 Application
- Used for light control, curtain control, air conditioner control, music playback, scene mode switching, etc.
- Used for industrial instruments and meters, PLC panels, numerical control equipment, power switch control, etc.
- Operation panels of early education machines, music boxes, smart toys, storytellers, and other devices.
- Electronic clocks, music players, electronic code locks, interactive devices, display equipment, etc.
