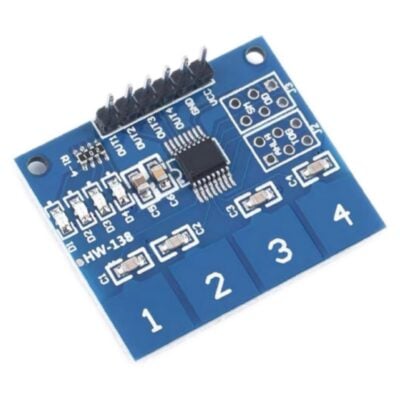

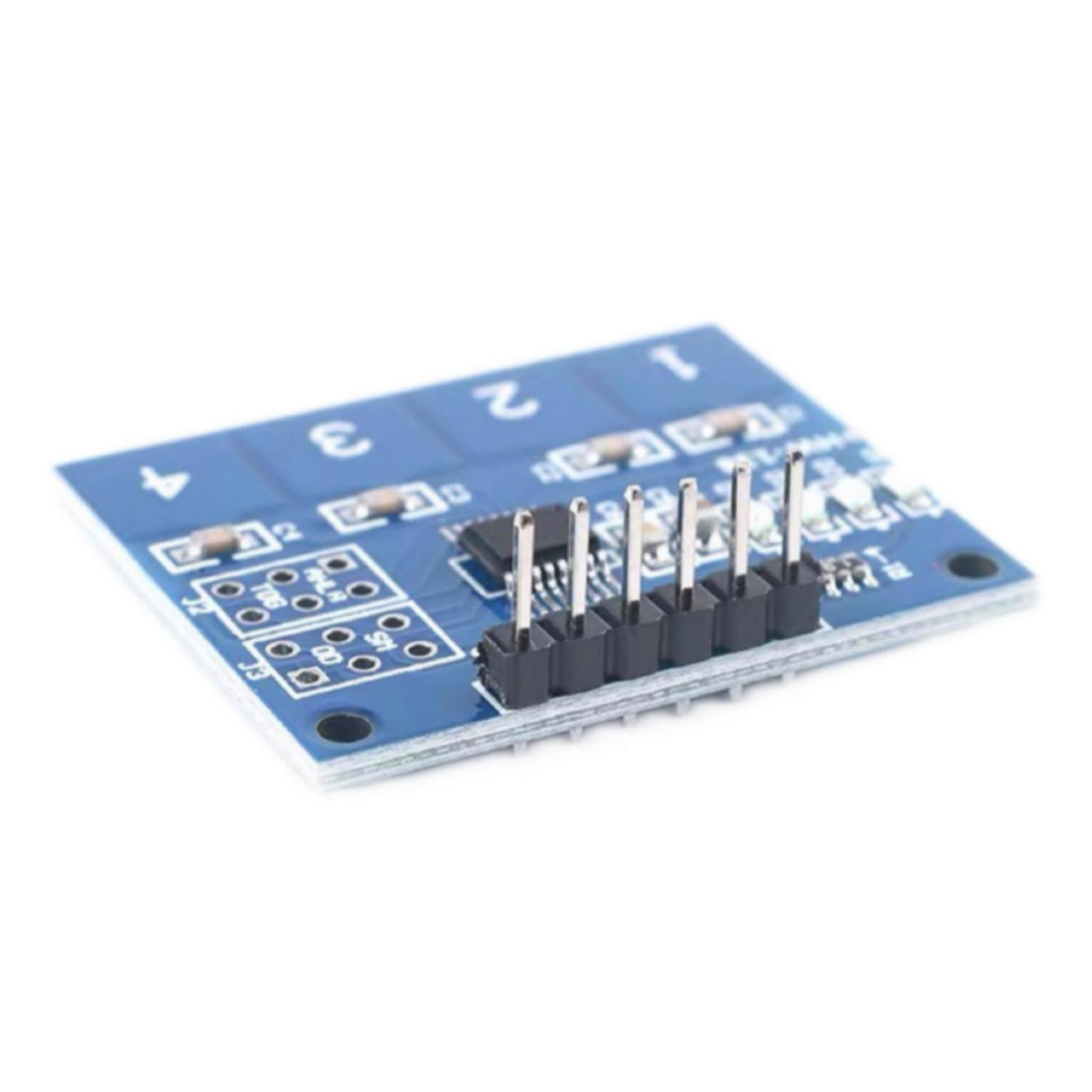

4-Channel TTP224 Touch Sensor Module Capacitive
$1.321pcs
4-key all-in-one design cuts wiring. 2.4-5.5V wide voltage supports mainstream MCUs. Independent sensitivity tuning fights interference, multi-mode switchable, on-board LEDs show real-time status !

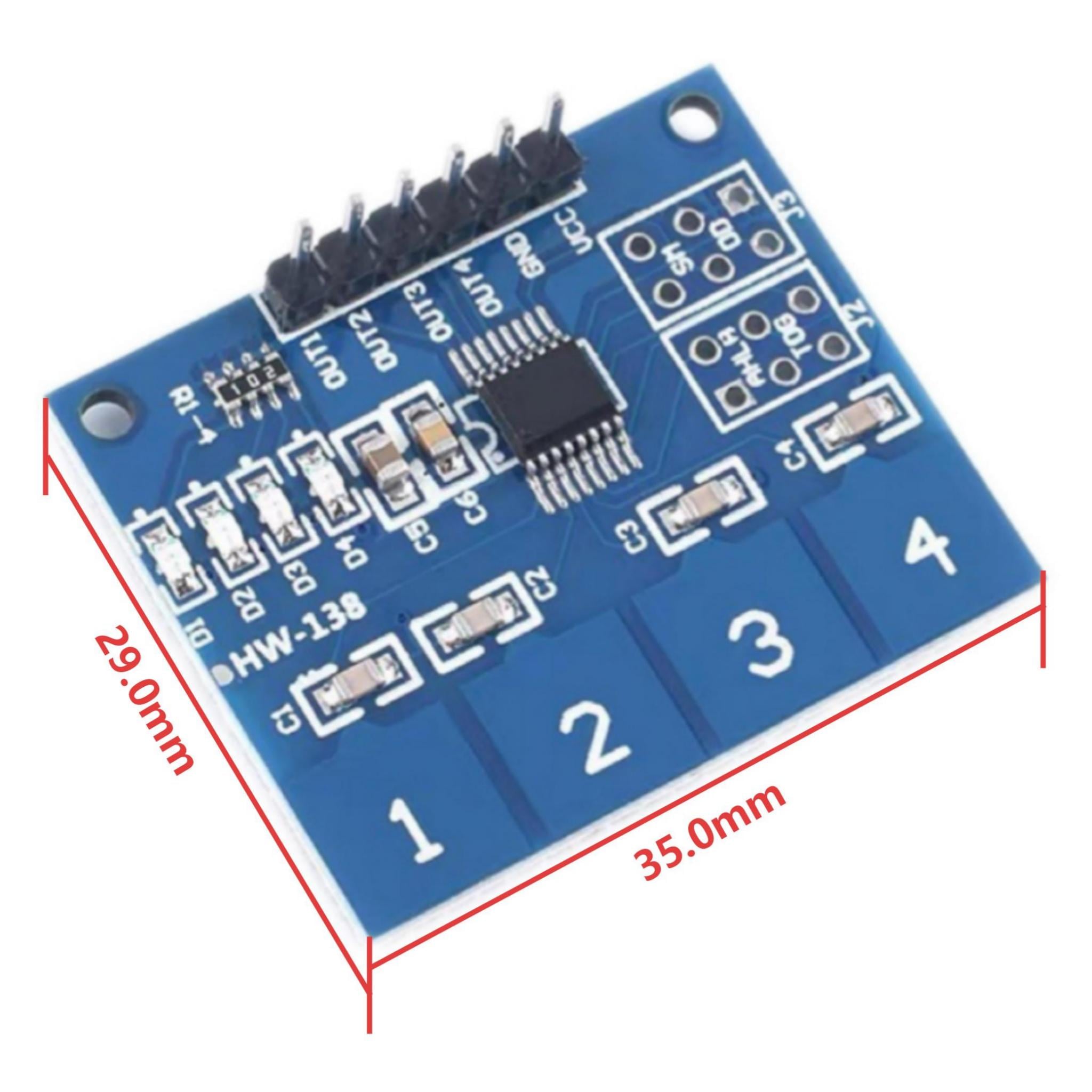

| Dimensions | 35.0 × 29.0 mm |
|---|---|
| Brand |
easyelecmodule |
5905 in stock
Product Introduction
This module is a capacitive jog touch switch module based on the TTP224B touch detection IC. In the normal state, the module outputs a low level and operates in the low-power mode. When a finger touches the corresponding position, the module outputs a high level and switches to the fast mode. When there is no touch for 12 consecutive seconds, the mode switches back to the low-power mode. The module can be installed on the surface of non-metallic materials such as plastic and glass. A thin piece of paper (non-metallic) can also be covered on the surface of the module until the touch position is correct, so that it can be made into a key hidden in walls, desktops, etc. This module can save you from the trouble of conventional push-button key.
TTP224 Feature
- On-board TTP224 capacitive 4-key touch sensing IC
- On-board 4-channel level status indicatorLEDs
- Operating voltage: 2.4V-5.5V
- The module can be configured with output modes, key output modes, maximum output time, and fast/low power consumption selection
- PCB board size: 35.0 x 29.0 mm

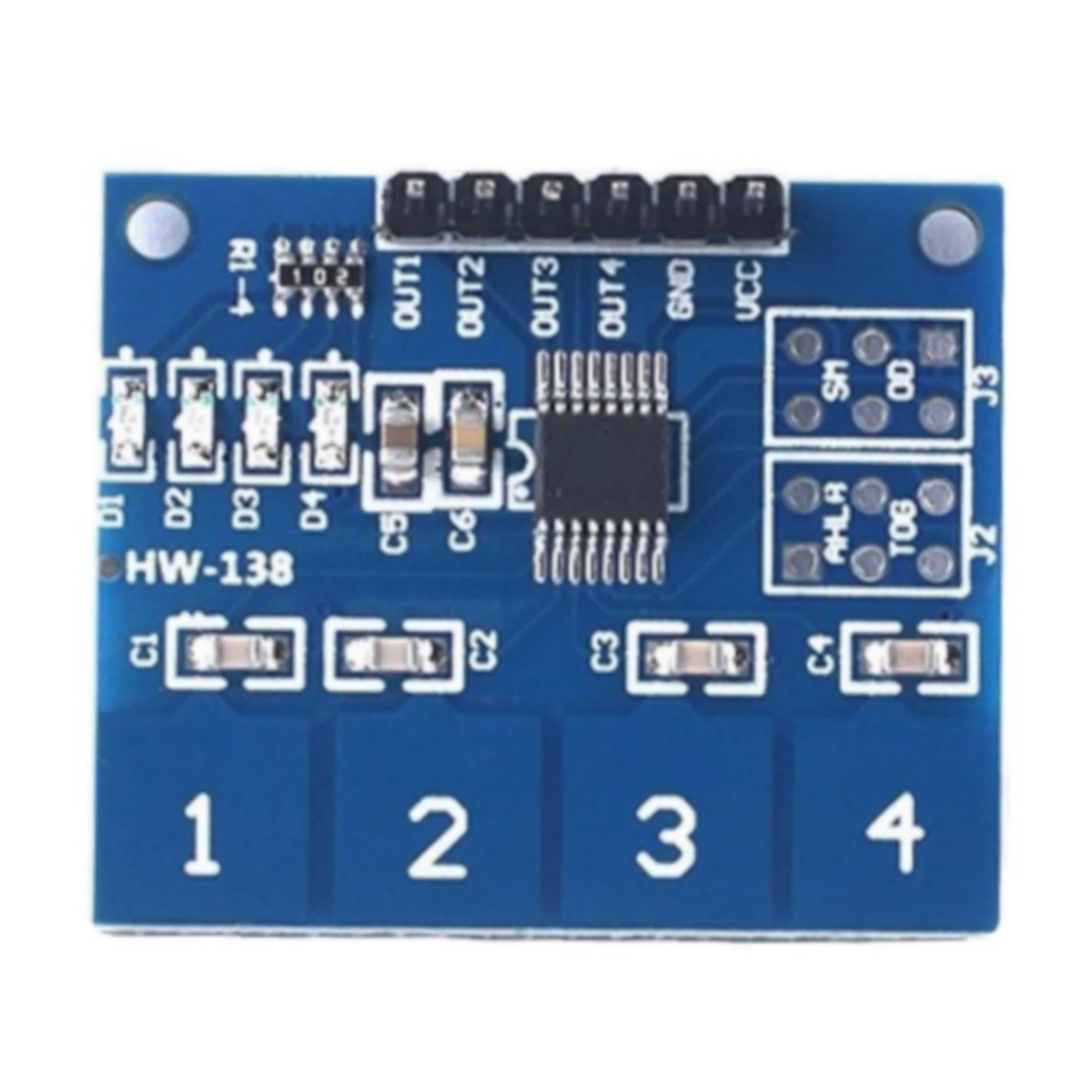

TTP224 Pin Function
TTP224 Application
- Smart home control panel
- Electronic password lock / Access control system
- Touch-controlled lamp / Lighting switch
- Multi-channel instrument or sound effect controller
- Industrial equipment human-machine interface
- Interactive control for smart toys
