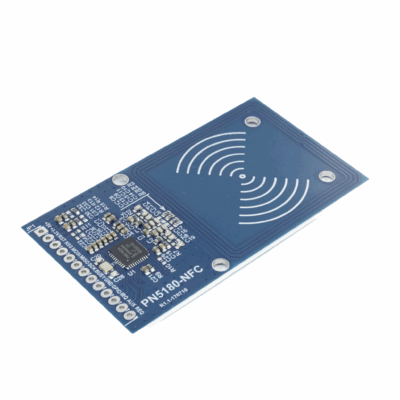

PN5180 NFC module
$10.001 pcs
Multi-protocol compatibility, high sensitivity, low power consumption, compact design, flexible interface configuration, high-speed transmission

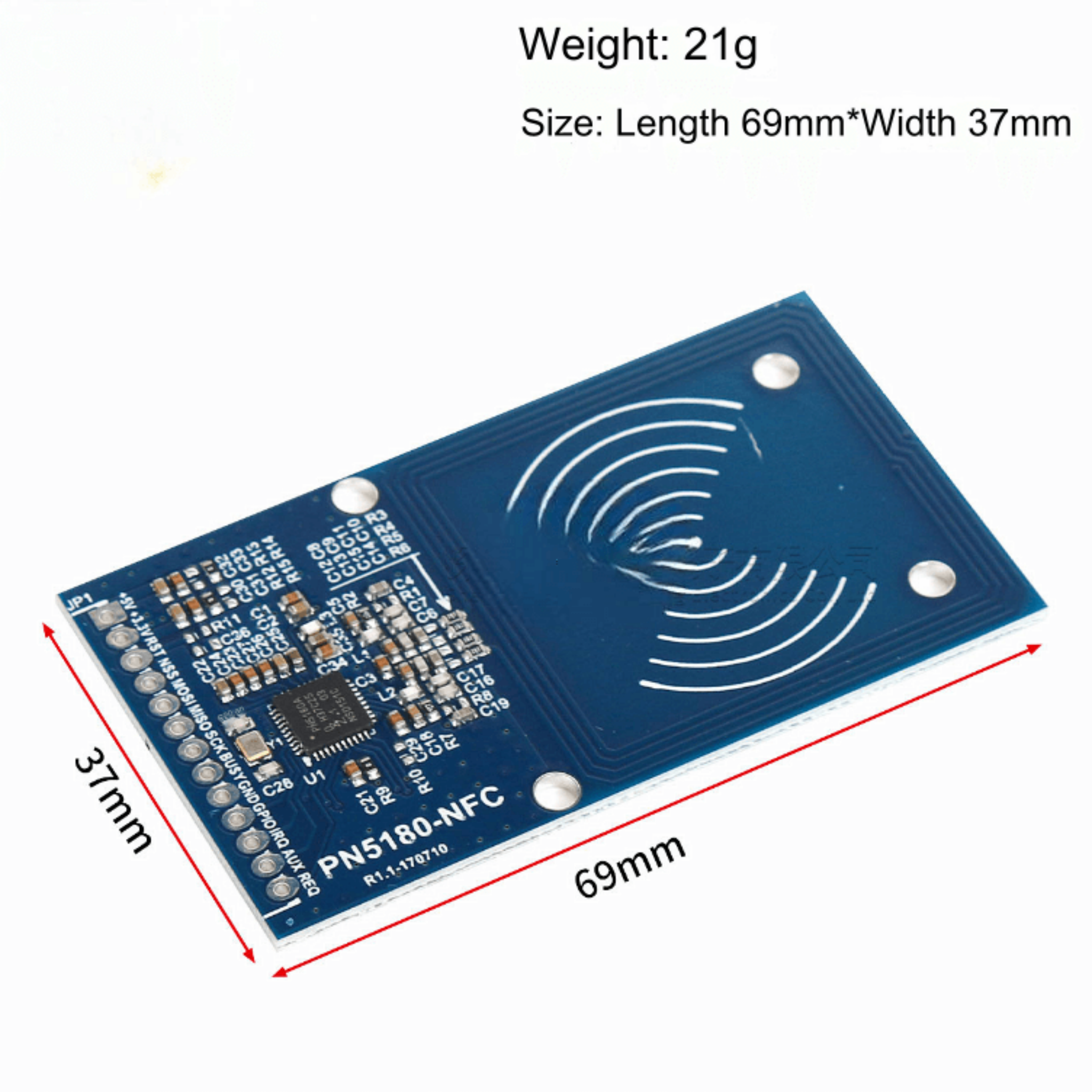

| Dimensions | 69 × 37 mm |
|---|---|
| Brand |
easyelecmodule |
5722 in stock
The PN5180 NFC module is a powerful and versatile reader-writer, suitable for contactless payment, access control, smart card solutions, and more. Based on the PN5180 chip, it supports multiple NFC standards and can communicate with various NFC-enabled devices and cards. It features a robust and durable design with high sensitivity, making it ideal for embedded systems and IoT applications where reliable and fast communication is critical.
Key Features and Advantages of the PN5180
- Multi-protocol compatibility:Works with ISO/IEC 14443 Type A/Band FeliCa protocols.
- High sensitivity:Expands transmission range and improves performance for reliable data transfer.
- Low power consumption:Suitable for battery-powered devices and energy-efficient applications.
- Compact design:Easy to integrate into various electronic projects and devices.
- Flexible interface options: Offers SPI and I2Ccommunication interfaces for diverse connection choices.
PN5180 Core Specifications: Hardware Foundation Supporting Advanced Features
| Parameter Dimension | Specific Specifications | Description |
|---|---|---|
| Operating Frequency | 13.56 MHz (NFC standard frequency) | Compatible with all NFC devices |
| Communication Distance | ≤ 5 cm (varies by card/device antenna size) | Safe distance for near-field communication |
| Supported Card Types | Mifare Classic, Mifare Ultralight, NTAG, ISO 15693 tags, etc. | Covers 99% of consumer-grade NFC cards |
| Interface Type | SPI (high-speed)/I2C/UART | SPI interface recommended (for high-speed data transmission) |
| Operating Voltage | 2.7V–5.5V | Compatible with battery power (3.7V lithium battery) and development board power |
| Sleep Current | ≤ 1 μA | Suitable for low-power portable devices |
PN5180 datasheet
Here we want to provide PN5180 datasheet for you reference：
