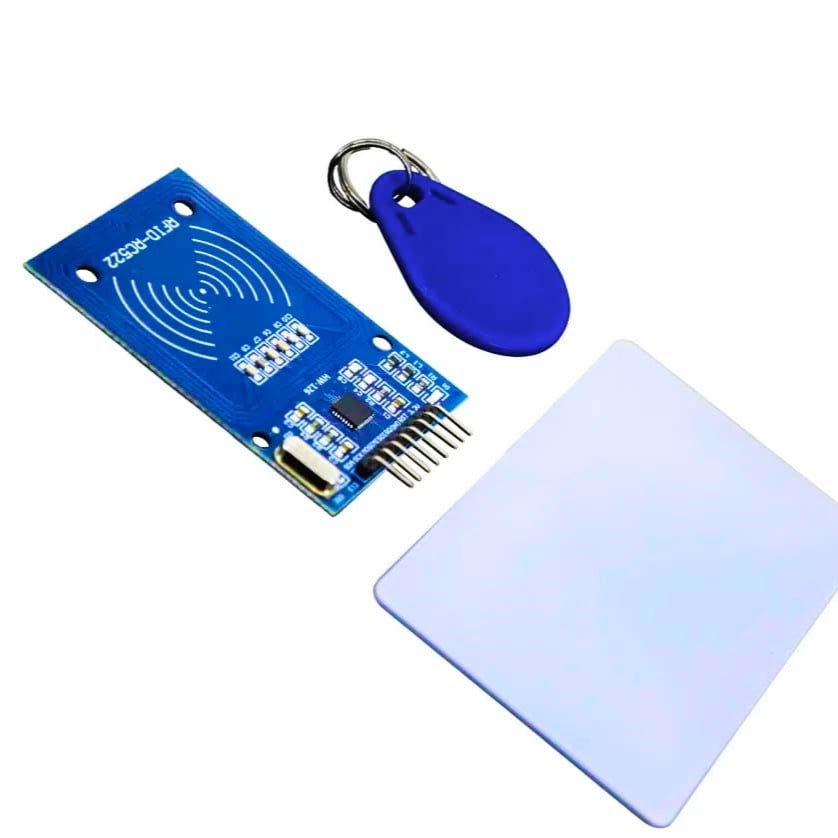

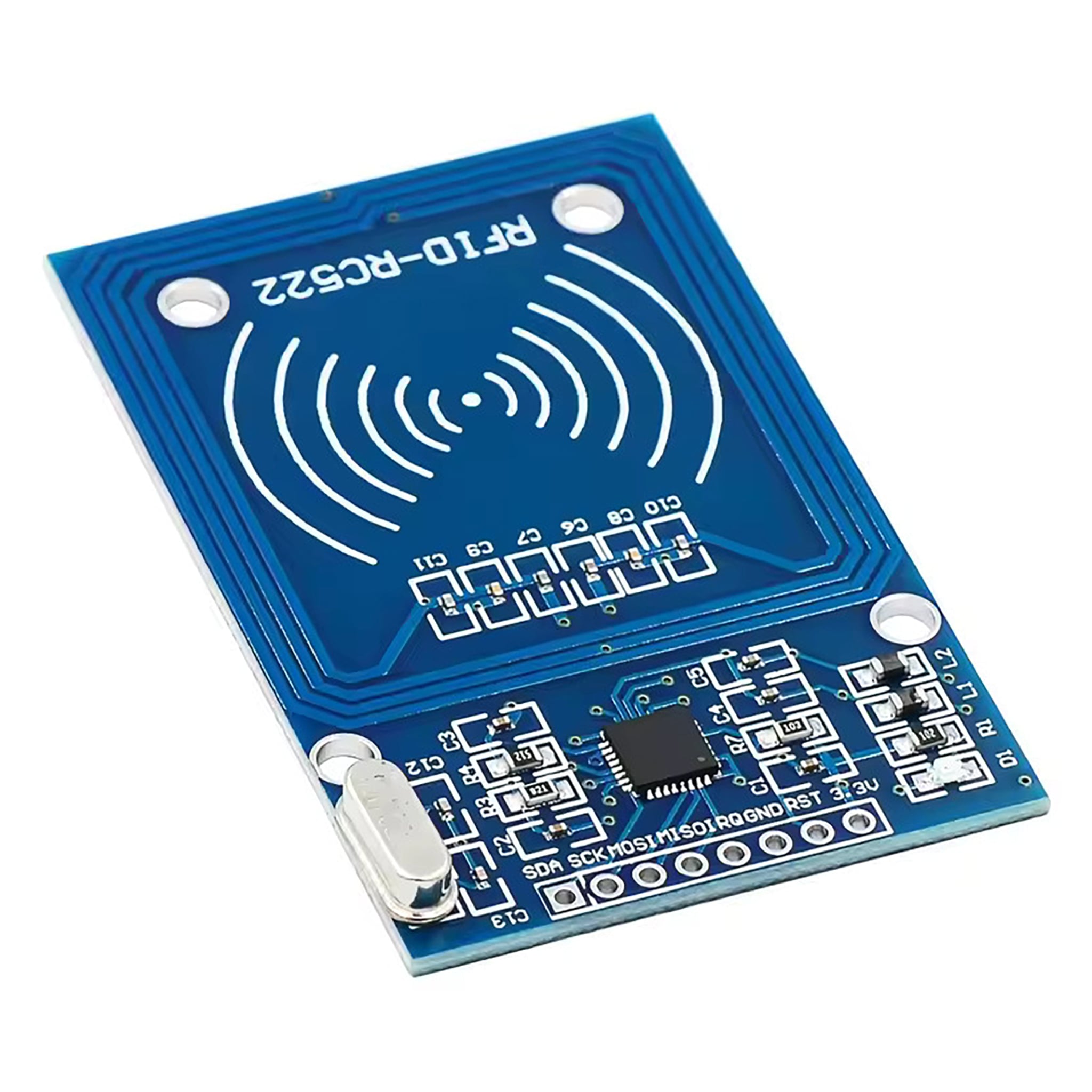

RC522-RFID Wireless Card Reader

$1.701pcs

RC522,customize your RFID access control card

Dimensions

40 × 60 mm

Brand

easyelecmodule

7414 in stock

DESCRPIPTION AND FEATURES

Introduction

The RC522 is a wireless card reader used in the RFID field. RFID is widely adopted because it can read data wirelessly, eliminating the complicated operation procedures of traditional card readers. For example, access control card readers and NFC all use RFID to read data from IC cards without physical contact.

The RC522 implements RFID functionality through its built-in IC, requiring no control from the MCU at all. The MCU only needs to perform initial setup and periodically check if the RC522 has new data. Alternatively, you can use the RC522’s interrupt output interface, which sends an interrupt signal when a card is detected. By modifying the MCU’s code, you can reduce the system’s resource usage.

The RC522 communicates with the MCU via SPI, which enhances communication efficiency and stability.

Product Parameter

RC522	VALUE
working voltage	3.3V (5V tolerant for communication)
sensing distance	10–40mm (environmental factors)
working frequency band	13.56 MHz
card type	MIFARE series, ISO/IEC14443
communication method	SPI (default) / IIC / UART
Maximum SPI Data Transfer Rate	10Mbps

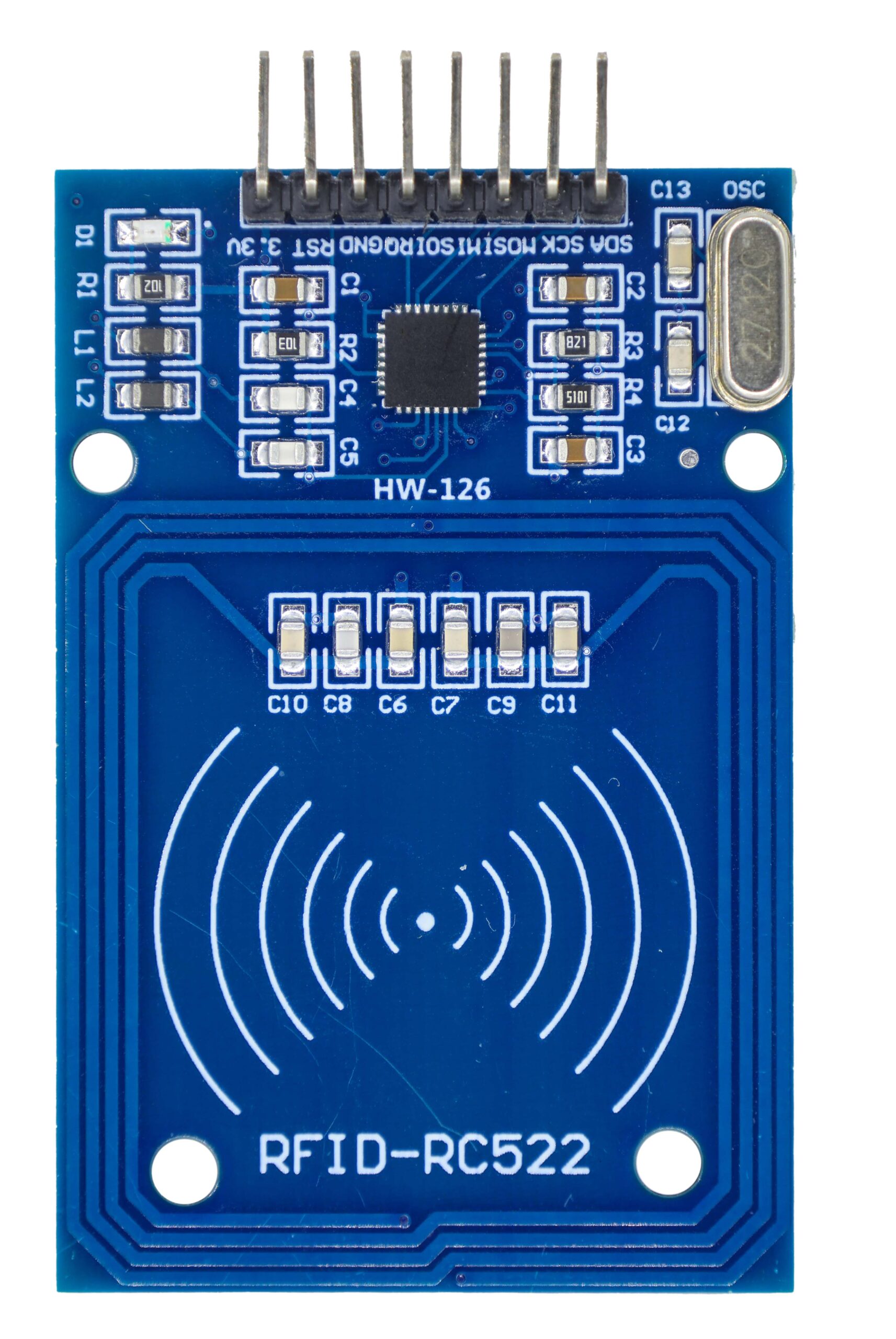

Pin Definition

SDA: NSS (SPI mode) / SDA (IIC mode) / RX (UART mode)
SCK: SPI clock
MOSI: SPI master output slave input
MISO: SPI master input slave output / SCL (IIC mode) / TX (UART mode)
IRQ: Interrupt signal output pin
GND: Ground
RST: Reset pin
3.3V: VCC
