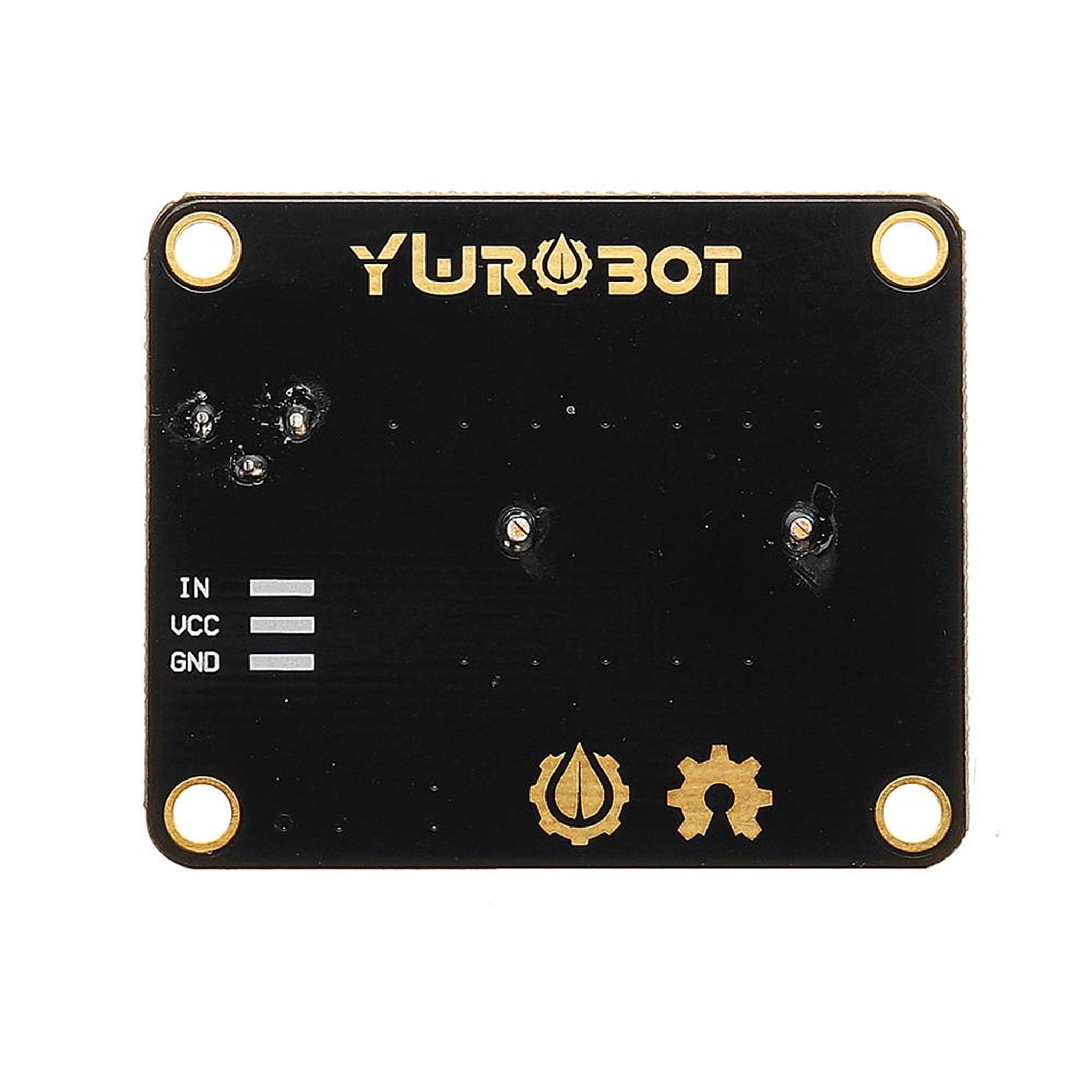

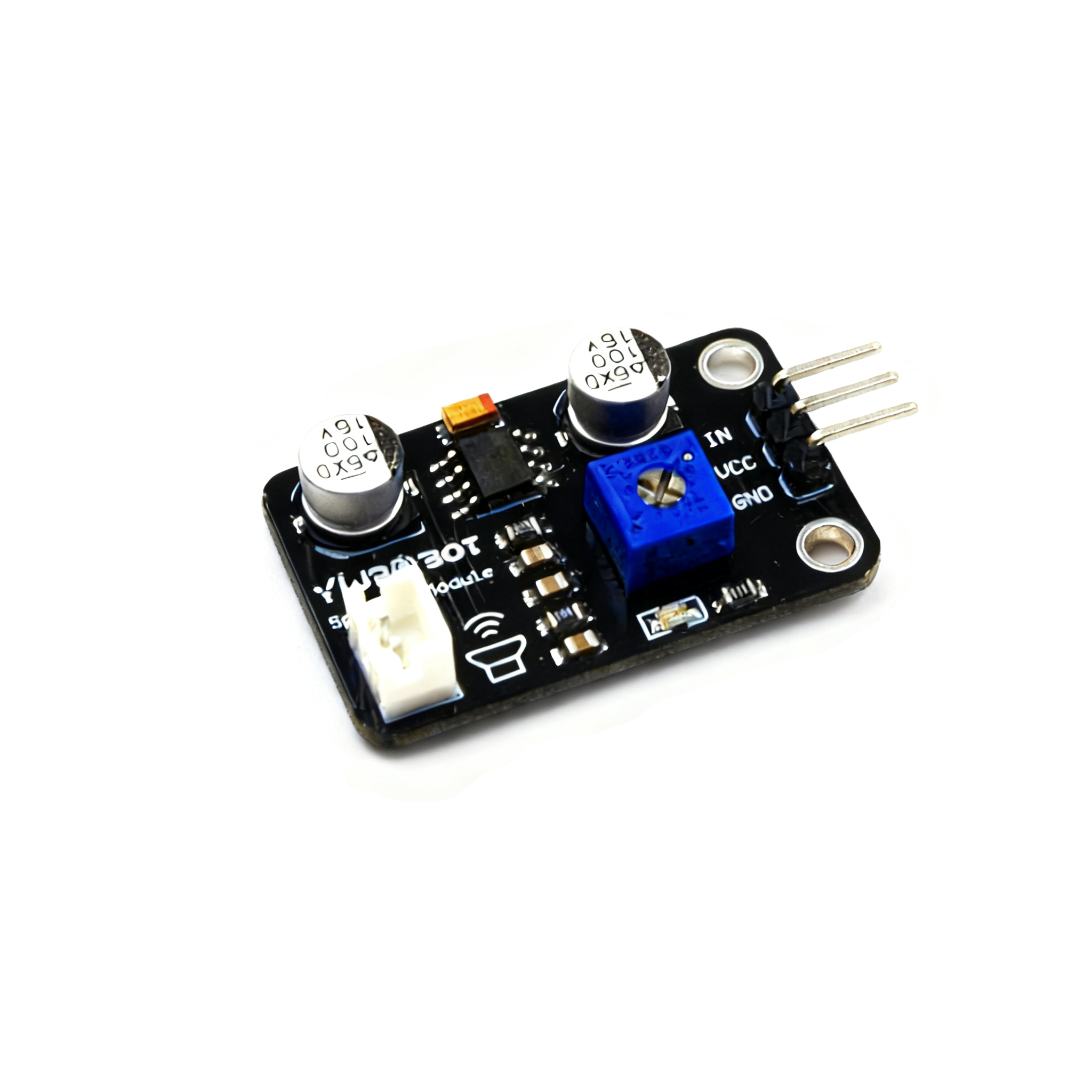

YwRobot speaker module
$6.751pcs
Built-in power amplifier circuit, which can drive the loudspeaker without external amplifier.
| Dimensions | 21 × 34 mm |
|---|---|
| Brand |
easyelecmodule |
5791 in stock
Description
Onboard power amplifier chip, multiple filter capacitor, to ensure that the audio output is not distorted

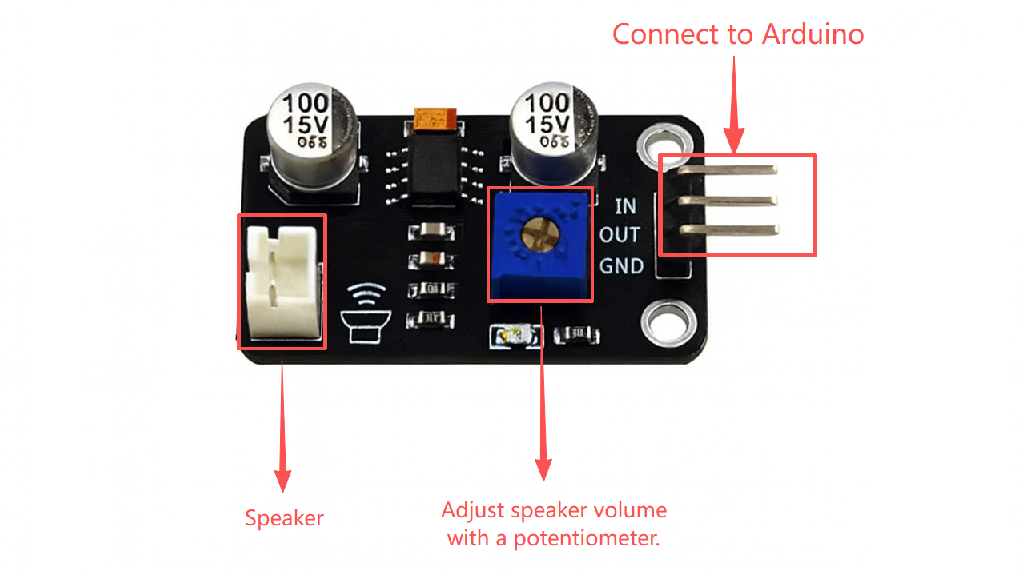

You can fine-tune the output volume through the potentiometer (because of space constraints, can not use the index potentiometer, the volume can only be adjusted in a small range), With Arduino Tone function, you can easily play music, It can also be used for audio equipment external active amplifier, The speaker fixed in the box, the sound quality is better, Suitable for Arduino play music, a variety of audio equipment, such as external power amplifier
Technical specifications
| Parameter | Details |
|---|---|
| Fixed Hole | 3mm |
| Pitch | 15mm |
| Speaker Power | 0.5W / 8Ω |
| Speaker Diameter | 50mm |
| Amplifier Chip | LM386 |
| Voltage | 5V |
| Port | Digital |
| Platform | Arduino, Single Chip |
Product Features
- On-board power amplifier chip and multiple filter capacitors ensure the audio output is not distorted.
- The output volume can be fine-tuned via a potentiometer (due to space limitations, an exponential potentiometer cannot be used, so the volume can only be adjusted within a small range).
- Works with the Arduino Tone function to easily play music.
- Can also be used as an external active amplifier for other audio devices.
- Fixing the speaker inside a cabinet will result in better sound quality.
- Suitable for Arduino music playback, external amplifiers for various audio devices, etc.
- Note: Due to space limitations, an exponential potentiometer cannot be used, so the volume can only be adjusted within a small range.
